This section sets the foundation for a safe repair environment. Before a single tool touches a phone, the workspace must be prepared to protect both the technician and the sensitive electronics.
Electrostatic Discharge (ESD) Safety: Instructions on grounding yourself using an ESD wrist strap and working on an anti-static mat to prevent frying microchips with static electricity.
Safety Gear: Protocols for wearing safety glasses (critical when prying shattered glass) and working in a well-ventilated area (crucial for adhesive fumes and soldering smoke).
Lighting and Magnification: Recommendations for high-intensity desk lamps and digital microscopes or magnifying visors for viewing microscopic components.
The most physically risky part of mobile repair is opening the device without cracking the glass screen or ripping delicate internal ribbon cables.
Thermal Tools (Heat Guns & Heat Pads): Instructions on setting precise temperatures (typically 80°C to 100°C) to soften heavy factory adhesives without damaging the display.
Suction & Leverage Tools: Proper placement of heavy-duty suction cups and screen prying fixtures to safely create an initial gap.
Separation Media (Plastic Picks & Spudgers): Techniques for slicing through glue lines using plastic opening picks without inserting them too deeply into the frame.
Modern smartphones use dozens of tiny, highly specialized screws and brackets to hold internal shields in place.
Precision Driver Identification: A breakdown of specialized micro-bits, detailing exactly when to use Pentalobe (iPhones), Tri-point/Y-type (internal Apple shields), Torx/Torx Security (Android devices), and standard Micro-Phillips.
Organization Systems: Guidelines for using magnetic project mats or screw organizing trays to map out screw locations, preventing the catastrophic error of “long-screw damage.”
Gripping & Placer Tools: How to utilize straight and curved ESD-safe tweezers to safely disconnect fragile ZIF (Zero Insertion Force) and coaxial cable connectors.
This section transitions the user from basic mechanical teardowns to logical troubleshooting when a phone won’t turn on or charge.
Digital Multimeter (DMM): Step-by-step instructions on setting up the meter for DC voltage testing (checking battery and charging port output) and continuity/diode mode (hunting for short circuits).
DC Power Supply: How to boot a phone motherboard without a battery attached, interpreting current draw (Amperage) to diagnose power management failures.
USB Ammeter / Tester: Utilizing an inline USB safety tester plugged into the charging block to instantly diagnose if a phone is pulling normal current ($1A$ to $2A$) or completely dead ($0A$).
For advanced users handling board-level fixes like swapping out charging ports, audio IC chips, or FPC connectors.
Soldering Iron Stations: Temperature calibration tips, tip selection (chisel vs. conical), and maintenance/tinning procedures.
Hot Air Rework Stations: Managing the delicate balance of air flow and temperature to safely desolder multi-pin components without blowing adjacent surface-mount resistors off the board.
Chemical Consumables: Proper application of rosin flux (to clean joints and fluidize solder), solder wick (braided wire to remove old solder), and low-melt solder alloys.
The final step is cleaning up the internal cavity and sealing the device back up to its original structural integrity.
Chemical Cleaners: Safe usage of 99% Isopropyl Alcohol (IPA) to dissolve old glue residues, flux oils, and clean mild liquid damage.
Liquid Adhesives vs. Tape: Instructions on applying specialized acrylic glues (like B-7000) versus applying precision-cut double-sided adhesive gaskets.
Camping and Curing: Utilizing specialized display repair clamps to apply even, steady pressure while the new adhesives cure over 15 to 30 minutes.

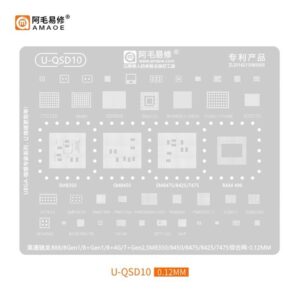

The Amaoe U-QSD10 Stencil is an essential tool in the realm of mobile phone repairs, particularly for professionals engaged in the intricate reballing process. Stencils play a critical role in ensuring precision during the soldering of components, which is crucial for maintaining the functionality and reliability of mobile devices. By providing a template for the application of solder balls, the U-QSD10 stencil simplifies the otherwise complex task of component placement and soldering, resulting in a cleaner, more effective repair process.
What sets the Amaoe U-QSD10 stencil apart from other options on the market is its unique design and high-quality materials, which significantly enhance durability and usability. The stencil is made from stainless steel, ensuring it can withstand the rigors of repeated use without warping or degrading. This feature is particularly important for repair technicians who rely on the stencil’s longevity in a fast-paced work environment. Additionally, the precision laser-cut openings allow for accurate alignment and solder ball placement, which is crucial for preventing common issues such as bridging or cold solder joints.
Another notable aspect of the U-QSD10 stencil is its compatibility with various mobile device models, making it a versatile choice for repair shops and technicians. This compatibility ensures that repair professionals can use a single stencil to service a wide range of devices, thus streamlining their workflow and reducing the need for multiple tools. Overall, the Amaoe U-QSD10 Stencil serves as an excellent investment for those looking to elevate their mobile repair skills, offering reliability, ease of use, and exceptional precision in the often-challenging landscape of mobile device repairs.
The Amaoe U-QSD10 Stencil is an essential tool for technicians looking to enhance their mobile repair capabilities. To effectively utilize this stencil, start by preparing a clean and organized working area. A clutter-free environment minimizes distractions and allows for better precision during repairs. It’s advisable to have all necessary tools within arm’s reach, including tweezers, a soldering iron, and flux.
Selecting suitable soldering materials is crucial. High-quality solder paste should be selected based on the components being handled. Ensure that the paste is compatible with the stencil to facilitate a smooth application process. Apply an even layer of solder paste through the stencil openings onto the PCB, utilizing the Amaoe U-QSD10’s precise alignment capabilities for accurate component positioning. This step is vital, as it directly correlates with the success of the soldering process.
While applying the stencil, gently press down to ensure even contact with the substrate. Avoid excessive force, as this could lead to misalignment or damage. After soldering, inspecting the joints under a microscope can ensure no defects, such as bridging or cold solder joints, are present. Common issues include incomplete paste transfer and misalignment; if these arise, reheating the stencil slightly may help in easing the paste movement.
Maintenance of the Amaoe U-QSD10 Stencil is key to ensuring its longevity and efficiency. After each use, ensure the stencil is cleaned thoroughly to prevent residue buildup. Using a soft brush and isopropyl alcohol is commonly recommended. Additionally, user testimonials highlight the importance of regular inspections for any wear, which can affect the stencil’s performance. By implementing these practices, technicians can maximize their productivity and maintain the high functionality of their tools for mobile repairs.
