This section sets the foundation for a safe repair environment. Before a single tool touches a phone, the workspace must be prepared to protect both the technician and the sensitive electronics.
Electrostatic Discharge (ESD) Safety: Instructions on grounding yourself using an ESD wrist strap and working on an anti-static mat to prevent frying microchips with static electricity.
Safety Gear: Protocols for wearing safety glasses (critical when prying shattered glass) and working in a well-ventilated area (crucial for adhesive fumes and soldering smoke).
Lighting and Magnification: Recommendations for high-intensity desk lamps and digital microscopes or magnifying visors for viewing microscopic components.
The most physically risky part of mobile repair is opening the device without cracking the glass screen or ripping delicate internal ribbon cables.
Thermal Tools (Heat Guns & Heat Pads): Instructions on setting precise temperatures (typically 80°C to 100°C) to soften heavy factory adhesives without damaging the display.
Suction & Leverage Tools: Proper placement of heavy-duty suction cups and screen prying fixtures to safely create an initial gap.
Separation Media (Plastic Picks & Spudgers): Techniques for slicing through glue lines using plastic opening picks without inserting them too deeply into the frame.
Modern smartphones use dozens of tiny, highly specialized screws and brackets to hold internal shields in place.
Precision Driver Identification: A breakdown of specialized micro-bits, detailing exactly when to use Pentalobe (iPhones), Tri-point/Y-type (internal Apple shields), Torx/Torx Security (Android devices), and standard Micro-Phillips.
Organization Systems: Guidelines for using magnetic project mats or screw organizing trays to map out screw locations, preventing the catastrophic error of “long-screw damage.”
Gripping & Placer Tools: How to utilize straight and curved ESD-safe tweezers to safely disconnect fragile ZIF (Zero Insertion Force) and coaxial cable connectors.
This section transitions the user from basic mechanical teardowns to logical troubleshooting when a phone won’t turn on or charge.
Digital Multimeter (DMM): Step-by-step instructions on setting up the meter for DC voltage testing (checking battery and charging port output) and continuity/diode mode (hunting for short circuits).
DC Power Supply: How to boot a phone motherboard without a battery attached, interpreting current draw (Amperage) to diagnose power management failures.
USB Ammeter / Tester: Utilizing an inline USB safety tester plugged into the charging block to instantly diagnose if a phone is pulling normal current ($1A$ to $2A$) or completely dead ($0A$).
For advanced users handling board-level fixes like swapping out charging ports, audio IC chips, or FPC connectors.
Soldering Iron Stations: Temperature calibration tips, tip selection (chisel vs. conical), and maintenance/tinning procedures.
Hot Air Rework Stations: Managing the delicate balance of air flow and temperature to safely desolder multi-pin components without blowing adjacent surface-mount resistors off the board.
Chemical Consumables: Proper application of rosin flux (to clean joints and fluidize solder), solder wick (braided wire to remove old solder), and low-melt solder alloys.
The final step is cleaning up the internal cavity and sealing the device back up to its original structural integrity.
Chemical Cleaners: Safe usage of 99% Isopropyl Alcohol (IPA) to dissolve old glue residues, flux oils, and clean mild liquid damage.
Liquid Adhesives vs. Tape: Instructions on applying specialized acrylic glues (like B-7000) versus applying precision-cut double-sided adhesive gaskets.
Camping and Curing: Utilizing specialized display repair clamps to apply even, steady pressure while the new adhesives cure over 15 to 30 minutes.

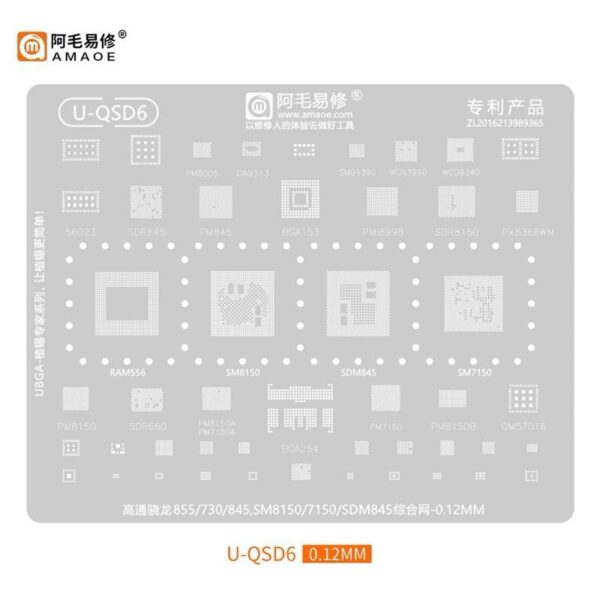

The AMAOE U-QSD6 stencil is a specialized tool designed to enhance the efficiency and effectiveness of mobile repairing. Its purpose revolves around facilitating the precise placement of components on circuit boards, which is critical for ensuring that mobile devices function correctly after repairs. Unlike other stencils, the U-QSD6 model stands out due to its innovative design tailored for a variety of mobile phone models, making it a versatile choice for technicians in the repair industry.
Manufactured with high-quality materials, the stencil exhibits durability and reliability during its usage. The robust construction ensures that it withstands the demanding environment of mobile repairs, while also maintaining precision over prolonged periods. The U-QSD6 stencil features strategically sized apertures that allow for accurate solder paste application, which is paramount in avoiding common pitfalls such as insufficient solder joints and misalignments. Each aperture is meticulously designed to match specific components, ensuring that the repair process is both streamlined and efficient.
Furthermore, this stencil’s design accommodates a wide range of mobile phone brands and models, allowing technicians to use it across multiple platforms without needing different tools for various devices. Such compatibility significantly boosts productivity in repair settings, especially when dealing with diverse mobile units. A unique aspect of the AMAOE U-QSD6 stencil is its ability to help improve the overall quality and reliability of repairs. By promoting consistent solder application and minimizing the risk of errors, this tool not only enhances performance but also contributes to a longer lifespan for the repaired devices. This distinctive combination of features makes the AMAOE U-QSD6 an indispensable tool for professionals in mobile repair.
Effectively utilizing the AMAOE U-QSD6 stencil in mobile repairs requires attention to detail and methodical preparation. Before beginning, it is crucial to thoroughly clean the stencil to remove any dust or contaminants that could affect its performance. Use a soft, lint-free cloth lightly moistened with a suitable cleaning solution, ensuring that all openings remain unblocked. Once cleaned, allow the stencil to dry completely to avoid any adhesion issues during application.
Next, align the stencil accurately with the circuit board. This step is vital for ensuring that components are soldered correctly, preventing potential damage during the repair process. Position the stencil over the board so that the openings correspond to the pads on the PCB (Printed Circuit Board). Many technicians find it helpful to use alignment pins or guides for increased accuracy. Additionally, securing the stencil with adhesive tape can prevent any shifting during the application of solder paste.
Common mistakes to avoid include misalignment of the stencil and applying excessive pressure when squeegeeing the solder paste. Both can lead to smudging and imprecise application. It is recommended to use a controlled, even pressure to ensure that the paste flows smoothly through the stencil openings. Furthermore, maintaining a clean working environment will minimize errors related to contamination.
For longevity and performance, it is advisable to conduct regular maintenance on the AMAOE U-QSD6 stencil. Clean it after each use and inspect for wear and tear, ensuring that it remains in optimal condition for future repairs. If challenges arise during the process, such as poor paste release or incomplete fills, reassess alignment, cleaning procedures, and paste consistency. With these best practices, both novice and experienced technicians can seamlessly incorporate the AMAOE U-QSD6 stencil into their mobile repair workflows successfully.
