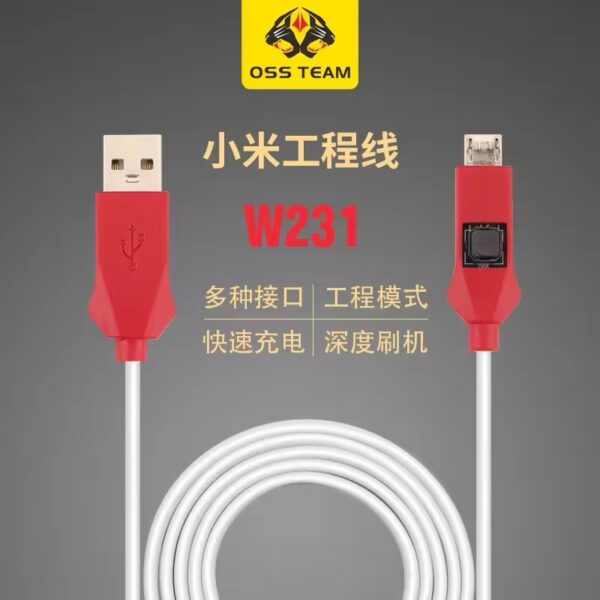

OSS Team W231 EDL Cable 80mm All Qualcomm Phones Xiaomi Android Phone Deep Flash Cable with Micro Type-C Port

OSS Team W231 EDL Cable 80mm All Qualcomm Phones Xiaomi Android Phone Deep Flash Cable with Micro Type-C Port

Effortless Flashing and Connectivity

The OSS Team W231 EDL Cable 80mm All Qualcomm Phones Xiaomi Android Phone Deep Flash Cable with Micro Type-C Port is the ultimate tool for seamless flashing and recovery operations. Specifically designed for all Qualcomm phones, including Xiaomi and Android devices, it ensures a smooth deep flash experience with minimal hassle. OSS Team W231 EDL Cable 80mm All Qualcomm Phones Xiaomi Android Phone Deep Flash Cable with Micro Type-C Port

Compact and Durable Design

With its 80mm length, this deep flash cable strikes the perfect balance between portability and usability. Its sturdy build ensures long-term durability, while the Micro Type-C port adds compatibility for modern devices. OSS Team W231 EDL Cable 80mm All Qualcomm Phones Xiaomi Android Phone Deep Flash Cable with Micro Type-C Port

Universal Compatibility

Engineered for versatility, this EDL cable supports a wide range of devices within the Qualcomm ecosystem. Whether you’re a technician or an enthusiast, the OSS Team W231 Deep Flash Cable is your go-to solution for reliable connectivity and flashing needs. OSS Team W231 EDL Cable 80mm All Qualcomm Phones Xiaomi Android Phone Deep Flash Cable with Micro Type-C Port

OSS Team W231 EDL Deep Flash Cable: The Ultimate Recovery Tool

The OSS Team W231 is a specialized engineering cable designed for technicians who work with Qualcomm-based Android devices. Often referred to as a “Deep Flash Cable,” this tool is essential for bypassing software-level bricking and putting a device into Emergency Download Mode (EDL), also known as Qualcomm HS-USB QDLoader 9008 mode.

This is particularly vital for Xiaomi (Mi/Redmi/Poco) devices and other Qualcomm-powered smartphones where the standard “Volume + Power” button combinations fail to trigger the flash mode due to corrupted firmware or locked bootloaders. OSS Team W231 EDL Cable 80mm All Qualcomm Phones Xiaomi Android Phone Deep Flash Cable with Micro Type-C Port

Technical Specifications & Connectivity

Core Functionality: Why “Deep Flash”?

In the world of mobile repair, a “soft brick” can usually be fixed via Fastboot or Recovery mode. However, a “hard brick” (where the screen stays black and the computer doesn’t recognize the device) requires a hardware-level override.

1. EDL Mode (9008) Triggering: The W231 uses a specific resistor configuration (activated by the button) to pull the Data (D+) and Ground lines in a sequence that signals the Qualcomm processor to enter 9008 mode.

2. Bypassing Bootloader Locks: Many modern phones have locked bootloaders that prevent unauthorized flashing. This cable allows the user to communicate directly with the chipset to flash official firmware, bypassing the OS-level restrictions.

3. Account Lock Removal: It is a critical tool for removing Mi Account locks or FRP (Factory Reset Protection) when used with authorized service software.

Operational Workflow for Technicians

Comparison: Engineering Cable vs. Standard Cable

Compatible Use Cases

The W231 is a versatile “swiss army knife” for the following scenarios:

• Xiaomi/Redmi Flash: Fixes “System has been destroyed” errors or boot-looping devices where Fastboot is inaccessible.

• Oppo/Vivo Unlocking: Helps in resetting pattern locks or flashing stock ROMs on Qualcomm variants.

• Data Recovery: When the screen is broken and the touch is unresponsive, entering EDL mode can sometimes allow for low-level data extraction.

• 9008 Port Stability: The short 80mm length ensures there is minimal data loss or voltage drop, which is a common cause of flashing failure on longer cables.

Advanced Design Features

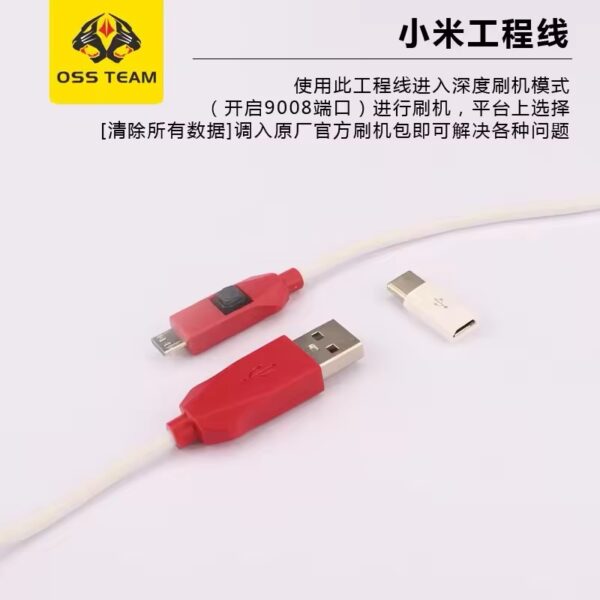

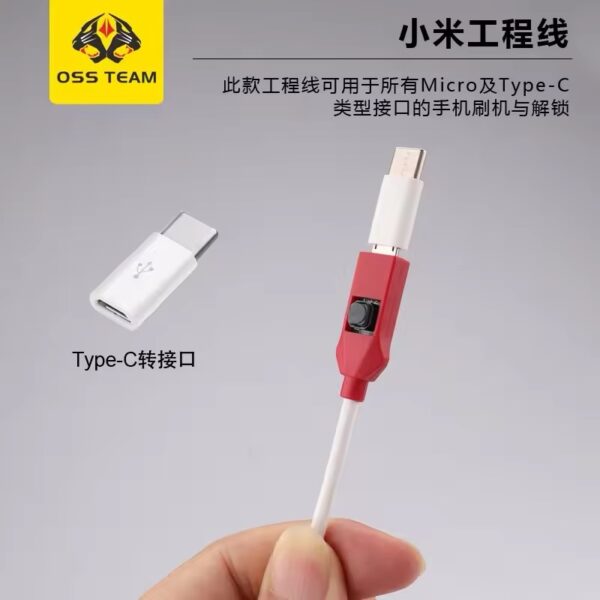

• 2-in-1 Design: Instead of carrying two separate cables for older Micro-USB phones and modern Type-C phones, the W231 consolidates both into one compact unit.

• Short Circuit Protection: The internal circuitry is designed to prevent damaging the phone’s charging IC while the data lines are being bridged.

• High-Speed Data Sync: While primarily for EDL mode, it supports high-speed data transfer protocols to ensure that multi-gigabyte firmware files are flashed without corruption.

Technician’s Pro-Tips

• Drivers Matter: Ensure the Qualcomm HS-USB QDLoader 9008 drivers are pre-installed on Windows. If the cable is working but the device shows as “Unknown,” it is usually a driver issue.

• The “Battery Out” Trick: For some extremely stubborn devices, disconnecting the battery connector from the motherboard before using the cable helps force the 9008 handshake.

• Port Selection: Always use a USB 2.0 port on the back of the PC (motherboard port) rather than a USB 3.0 or a front-panel hub for the most stable connection.
