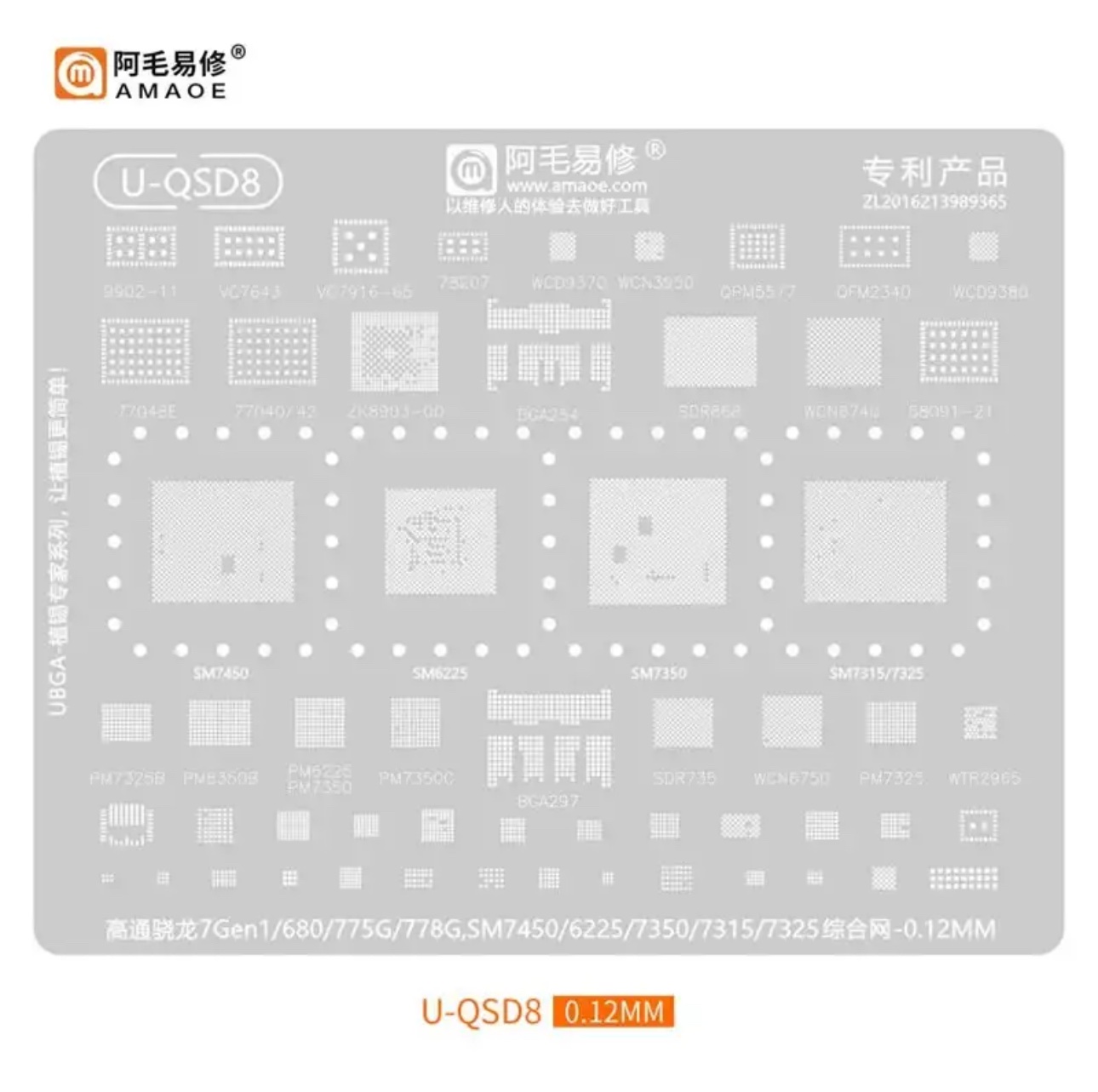

The AMAOE U QSD 8 stencil is a sophisticated tool specifically designed for mobile phone repairing, known for its precision and compatibility with a variety of mobile phone models. Constructed from high-quality stainless steel, this stencil marries durability with flexibility, ensuring robust performance while maintaining the fine tolerances required for modern electronic repairs. Its design accommodates numerous mobile device components, making it an essential asset in both professional repair shops and DIY repair enthusiasts’ toolkits.
This stencil features a meticulously crafted aperture layout that allows for the accurate application of solder paste directly onto the printed circuit boards (PCBs) of mobile phones. By utilizing laser-cut techniques, the AMAOE U QSD 8 ensures that each hole is precisely formed, facilitating an even distribution of solder paste. This characteristic not only enhances the overall soldering process but significantly reduces the risk of bridging or misaligned connections, which are common challenges in traditional soldering methods.
Furthermore, the AMAOE U QSD 8 stencil is engineered to be compatible with a wide range of devices, accommodating variations in component density and layout present in today’s smartphones. This practicality allows repair technicians to achieve a high level of accuracy and efficiency. Consequently, users can expect improved workflow as they can quickly switch between different stencils and mobile models without compromising on precision.
In comparison to conventional soldering techniques, which often rely on freehand application or generic templates, the AMAOE U QSD 8 stencil streamlines the process. The increased control over solder paste application results in less clean-up time and fewer errors, ultimately leading to higher-quality repairs. As a result, technicians can provide faster service times while ensuring that devices are restored to optimal functionality.
How to Use the AMAOE U QSD 8 Stencil Effectively
Using the AMAOE U QSD 8 stencil for mobile repairing requires careful preparation and execution to ensure optimal results. Follow these step-by-step instructions to utilize this stencil effectively. First, it is essential to begin with a clean work area. Ensure that the mobile device and the repair components are free from dust and debris, as any foreign particles can affect the soldering process.
Once the area is prepared, the next step involves aligning the stencil properly over the circuit board. Accurate alignment is critical for applying solder paste correctly. Place the stencil over the required area, ensuring that the openings align precisely with the pads on the board. Double-check the alignment before proceeding, as even minor misalignments can lead to ineffective solder connections.
After alignment, the application of solder paste through the stencil can begin. Use a spatula or stencil applicator to spread the solder paste over the stencil openings evenly. It is advisable to apply consistent pressure while spreading to ensure the paste fills the openings without excess overflow. For best results, apply the solder paste in a single direction rather than circular movements, which can cause inconsistency.
Once the paste is applied, carefully lift the stencil straight up to avoid smearing the paste. Inspect the pads to confirm that the solder has adhered adequately to their surfaces. Common pitfalls during this process include misalignment and using excessive pressure, which can lead to solder paste smudging. If you encounter issues, reevaluating your alignment and paste application technique can help resolve them.
By following these guidelines, technicians can enhance the reliability and effectiveness of mobile repairs using the AMAOE U QSD 8 stencil. With practice, these methods promote efficient soldering, leading to successful repair outcomes.
Furthermore, the AMAOE U QSD 8 stencil is engineered to be compatible with a wide range of devices, accommodating variations in component density and layout present in today’s smartphones. This practicality allows repair technicians to achieve a high level of accuracy and efficiency. Consequently, users can expect improved workflow as they can quickly switch between different stencils and mobile models without compromising on precision.
