QUICK M7 1000W Hot Air Gun Smart Lead-Free Soldering Station TFT Color Display For BGA Rework Soldering SMD SMT Welding Repair

QUICK M7 1000W Hot Air Gun Smart Lead-Free Soldering Station TFT Color Display For BGA Rework Soldering SMD SMT Welding Repair

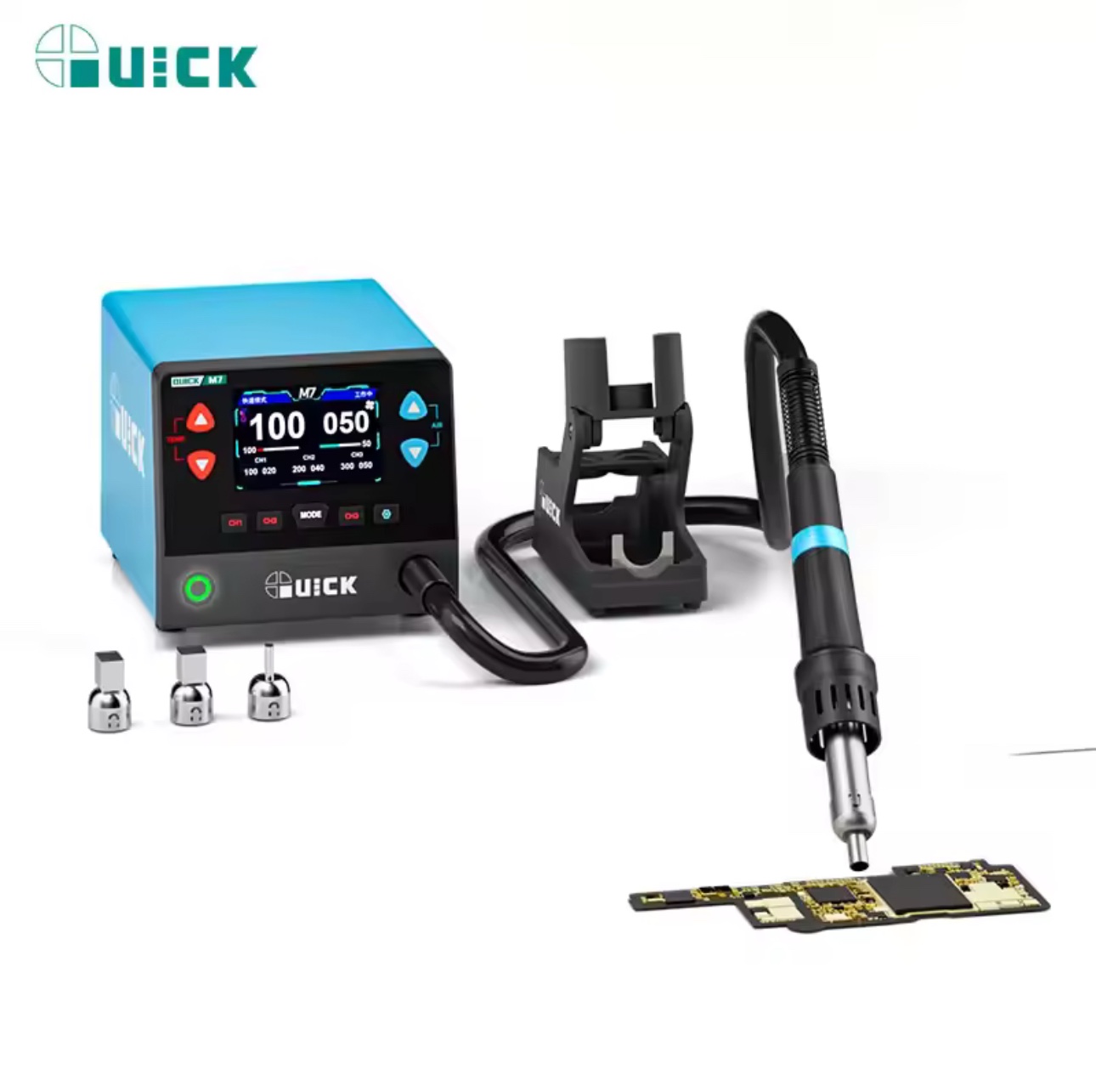

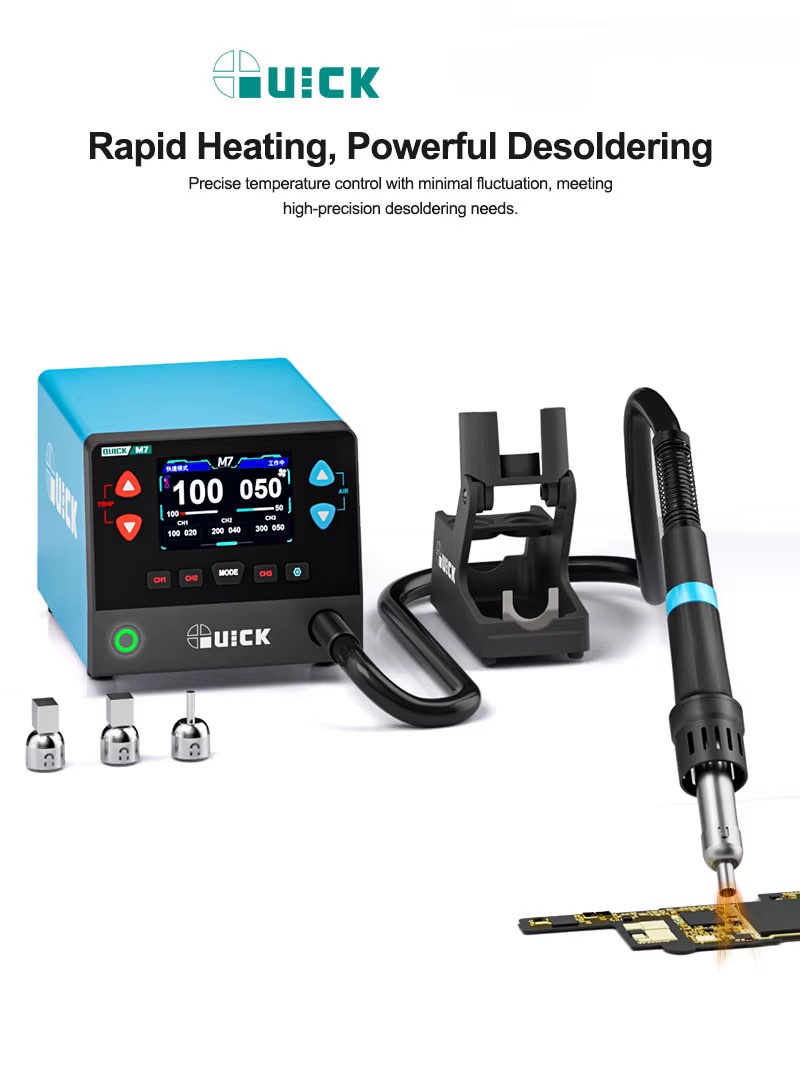

The QUICK M7 is a professional-grade 1000W intelligent lead-free hot air rework station. Designed specifically for precision electronics repair, it features a high-definition TFT color display and a sophisticated 9-channel memory system that allows for highly customized soldering and desoldering profiles.

Technical Specifications

Key Performance Features

• TFT Color Display: The intuitive UI provides real-time dynamic temperature visualization. You can switch between standard digital readouts and a “Curve Mode” to monitor heat application over time—critical for preventing thermal shock to sensitive BGA chips.

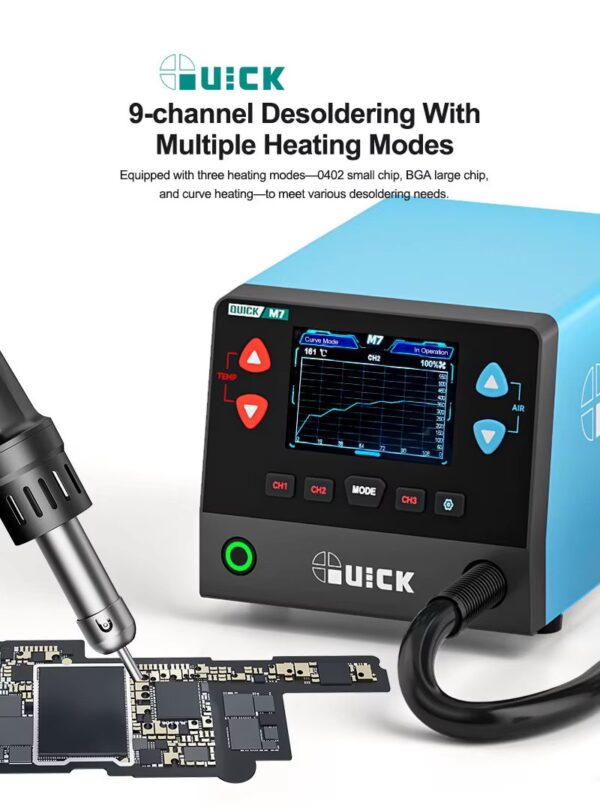

• 9-Channel Intelligence: Unlike standard stations with 3 presets, the M7 offers 9 channels. It includes specialized factory-tuned modes for:

  • 0402 Small Chips: Gentle heat for tiny SMD components.

  • BGA Large Chips: Sustained, high-volume heat for larger footprints.

  • Curve Heating: Custom profiles for specialized soldering tasks.

• Smart Induction Handle: The magnetic air gun holder automatically triggers “Sleep Mode” when the handle is docked, rapidly cooling the element to extend its lifespan by up to 30%.

• Adjustable Angle Stand: The air gun holder can be adjusted to various angles, allowing for hands-free operation in specific repair setups.

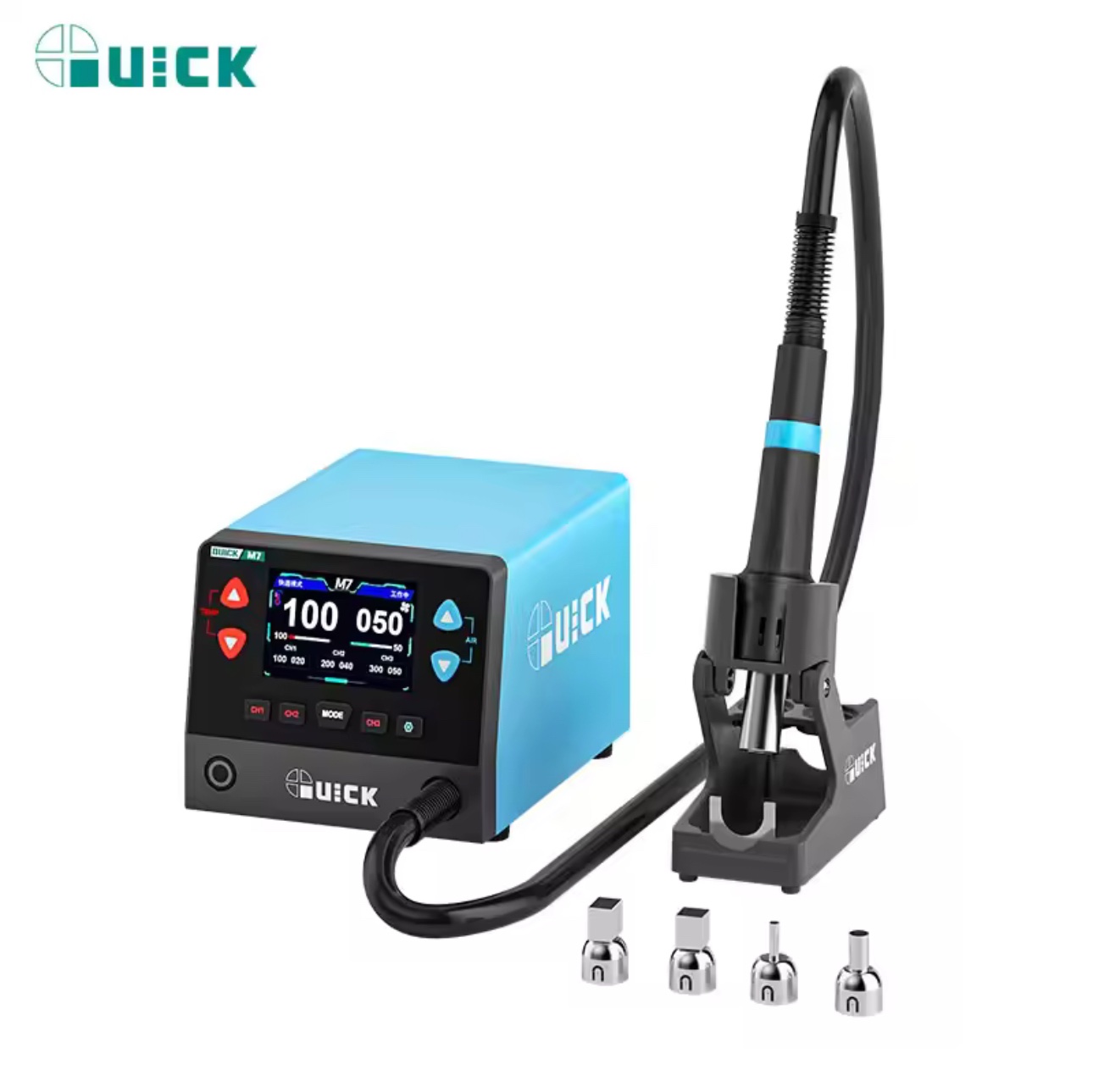

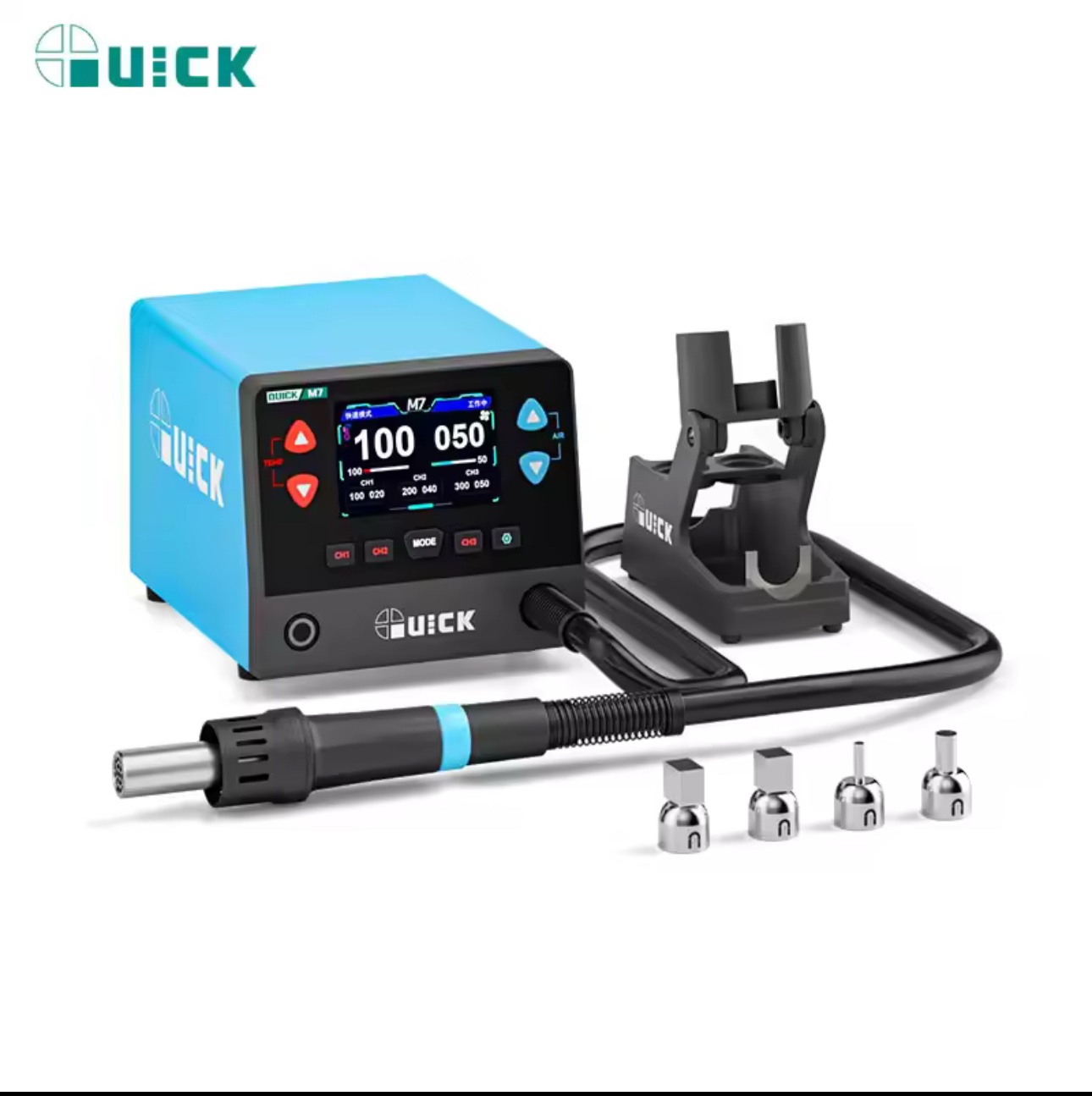

Standard Package Contents

• 1 × QUICK M7 Main Station

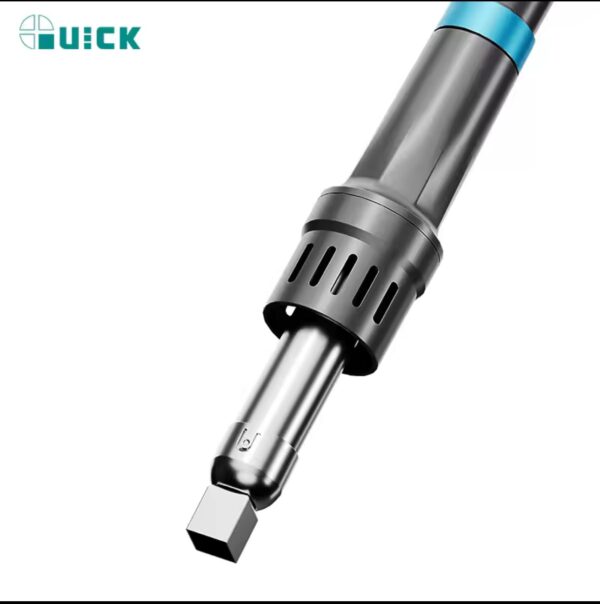

• 1 × Intelligent Hot Air Gun Handle

• 1 × Adjustable-Angle Magnetic Holder

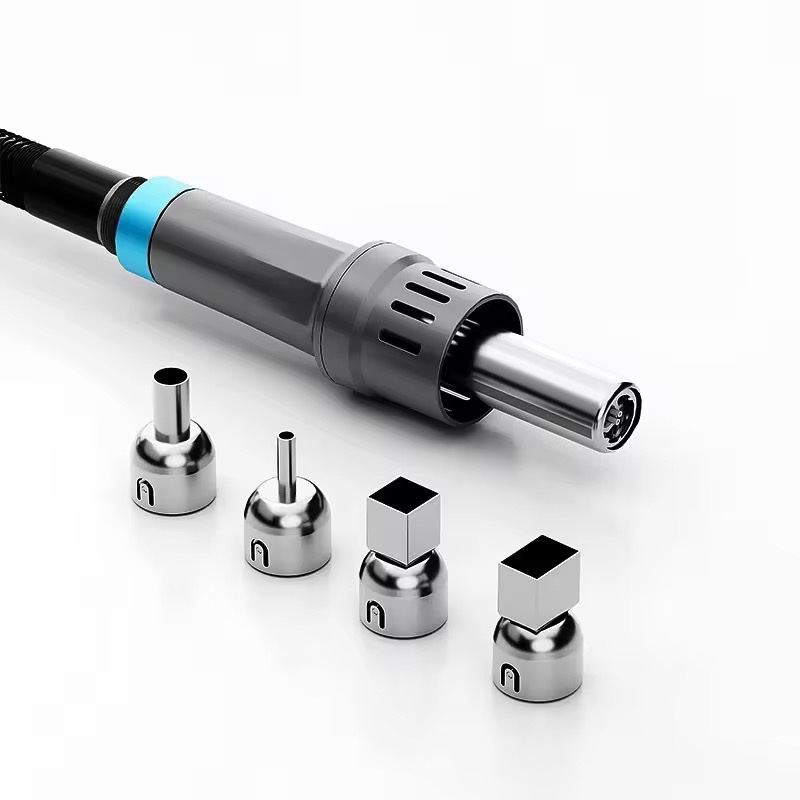

• 4 × Direct Air Nozzles (Standard sizes: 5mm, 10mm Circle; 12x17mm, 13x13mm Square)

• 1 × Power Cable & User Manual
