Please read the manual before use.
This section sets the foundation for a safe repair environment. Before a single tool touches a phone, the workspace must be prepared to protect both the technician and the sensitive electronics.
Electrostatic Discharge (ESD) Safety: Instructions on grounding yourself using an ESD wrist strap and working on an anti-static mat to prevent frying microchips with static electricity.
Safety Gear: Protocols for wearing safety glasses (critical when prying shattered glass) and working in a well-ventilated area (crucial for adhesive fumes and soldering smoke).
Lighting and Magnification: Recommendations for high-intensity desk lamps and digital microscopes or magnifying visors for viewing microscopic components.
The most physically risky part of mobile repair is opening the device without cracking the glass screen or ripping delicate internal ribbon cables.
Thermal Tools (Heat Guns & Heat Pads): Instructions on setting precise temperatures (typically 80°C to 100°C) to soften heavy factory adhesives without damaging the display.
Suction & Leverage Tools: Proper placement of heavy-duty suction cups and screen prying fixtures to safely create an initial gap.
Separation Media (Plastic Picks & Spudgers): Techniques for slicing through glue lines using plastic opening picks without inserting them too deeply into the frame.
Modern smartphones use dozens of tiny, highly specialized screws and brackets to hold internal shields in place.
Precision Driver Identification: A breakdown of specialized micro-bits, detailing exactly when to use Pentalobe (iPhones), Tri-point/Y-type (internal Apple shields), Torx/Torx Security (Android devices), and standard Micro-Phillips.
Organization Systems: Guidelines for using magnetic project mats or screw organizing trays to map out screw locations, preventing the catastrophic error of “long-screw damage.”
Gripping & Placer Tools: How to utilize straight and curved ESD-safe tweezers to safely disconnect fragile ZIF (Zero Insertion Force) and coaxial cable connectors.
This section transitions the user from basic mechanical teardowns to logical troubleshooting when a phone won’t turn on or charge.
Digital Multimeter (DMM): Step-by-step instructions on setting up the meter for DC voltage testing (checking battery and charging port output) and continuity/diode mode (hunting for short circuits).
DC Power Supply: How to boot a phone motherboard without a battery attached, interpreting current draw (Amperage) to diagnose power management failures.
USB Ammeter / Tester: Utilizing an inline USB safety tester plugged into the charging block to instantly diagnose if a phone is pulling normal current ($1A$ to $2A$) or completely dead ($0A$).
For advanced users handling board-level fixes like swapping out charging ports, audio IC chips, or FPC connectors.
Soldering Iron Stations: Temperature calibration tips, tip selection (chisel vs. conical), and maintenance/tinning procedures.
Hot Air Rework Stations: Managing the delicate balance of air flow and temperature to safely desolder multi-pin components without blowing adjacent surface-mount resistors off the board.
Chemical Consumables: Proper application of rosin flux (to clean joints and fluidize solder), solder wick (braided wire to remove old solder), and low-melt solder alloys.
The final step is cleaning up the internal cavity and sealing the device back up to its original structural integrity.
Chemical Cleaners: Safe usage of 99% Isopropyl Alcohol (IPA) to dissolve old glue residues, flux oils, and clean mild liquid damage.
Liquid Adhesives vs. Tape: Instructions on applying specialized acrylic glues (like B-7000) versus applying precision-cut double-sided adhesive gaskets.
Camping and Curing: Utilizing specialized display repair clamps to apply even, steady pressure while the new adhesives cure over 15 to 30 minutes.

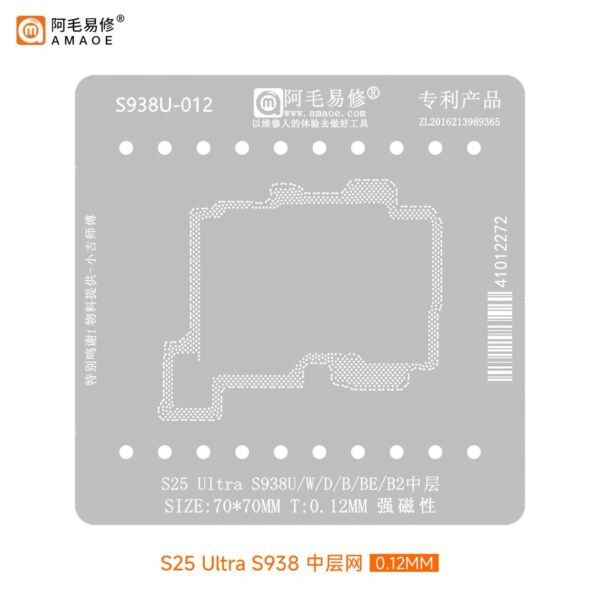

The Amaoe S25 Ultra Middle Layer BGA Reablling Stencil Set For Samsung Galaxy S938-Motherboard Tin Planting Soldering Fixture is specifically designed to streamline your motherboard tin planting and soldering tasks. Tailored for the Samsung Galaxy S938, this high-precision tool ensures superior reliability and consistent performance during intricate repairs. Amaoe S25 Ultra Middle Layer BGA Reablling Stencil Set For Samsung Galaxy S938-Motherboard Tin Planting Soldering Fixture
Crafted with durable, heat-resistant materials, this stencil set enhances your soldering accuracy, saving both time and effort. Whether you’re a professional technician or an electronics enthusiast, its compatibility with the Galaxy S938 motherboard makes it a go-to fixture for flawless results. Experience reduced errors and increased efficiency on every project. Amaoe S25 Ultra Middle Layer BGA Reablling Stencil Set For Samsung Galaxy S938-Motherboard Tin Planting Soldering Fixture
Optimize your reballing workflow with our expertly engineered stencil set. From complex tin planting to standard soldering operations, the Amaoe S25 Ultra Middle Layer BGA Reablling Stencil Set For Samsung Galaxy S938-Motherboard Tin Planting Soldering Fixture delivers unparalleled ease of use. Elevate your repair capabilities with a tool that’s built to meet the highest industry standards.
The Amaoe S25 Ultra Middle Layer BGA Reablling Stencil Set For Samsung Galaxy S938-Motherboard Tin Planting Soldering Fixture is a high-precision, professional-grade tool designed specifically for the Samsung Galaxy S23 Ultra (S938) motherboard architecture. As smartphone internal designs move toward “sandwich” or stacked PCB layouts to save space, middle-layer reballing has become a critical skill for board-level technicians. This set is engineered to facilitate the precise application of solder paste (tin planting) on the intricate pads connecting the upper and lower logic boards.
The stencil is manufactured using high-quality imported Japanese steel. This material is chosen for its excellent thermal stability and resistance to deformation. During the “tin planting” process, technicians often apply heat directly to the stencil. Amaoe S25 Ultra Middle Layer BGA Reablling Stencil Set For Samsung Galaxy S938-Motherboard Tin Planting Soldering Fixture high-toughness steel ensures that the stencil remains flat and does not “buckle” or warp under heat, which is essential for maintaining uniform solder ball height.
Each aperture (hole) in the stencil is created using ultra-precision CNC laser cutting. The holes are slightly tapered—wider at the bottom than the top—to allow for easy release of the solder paste. For the Amaoe S25 Ultra Middle Layer BGA Reablling Stencil Set For Samsung Galaxy S938-Motherboard Tin Planting Soldering Fixture, which features hundreds of microscopic pads, this precision prevents bridging (solder shorts) and ensures every pad receives an identical amount of tin.
Unlike cheaper stencils that use circular holes, the Amaoe S938 set utilizes a square hole design with rounded corners. This specific geometry improves the “stripping” success rate, ensuring that the solder paste stays on the motherboard pads and doesn’t get stuck inside the stencil when you lift it.
Custom Fit for Samsung S938: The layout is a 1:1 match for the Samsung Galaxy S23 Ultra middle frame. It covers the CPU, Power IC, and the critical interlocking border pads that join the two PCB layers.
Heat Dissipation Vents: The stencil includes strategically placed “anti-drum” or cooling holes. These allow air to circulate and prevent the stencil from lifting due to trapped heat, ensuring the solder balls form perfectly.
Alignment Accuracy: The stencil features etched markings and precise cutouts that align with the motherboard’s positioning components, reducing the time spent on manual alignment.
Using the Amaoe S25 Ultra set involves a specific workflow to ensure the “sandwich” board is successfully reunited:
Cleaning: The old solder must be completely removed from the middle layer pads of both the top and bottom boards using a soldering iron and desoldering wick.

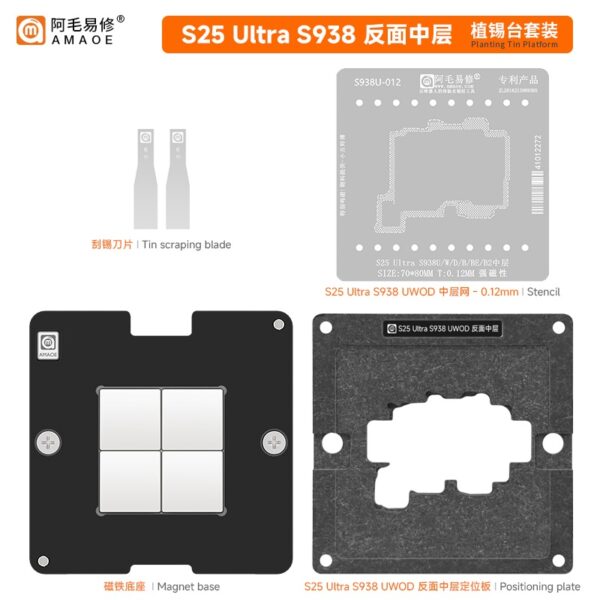

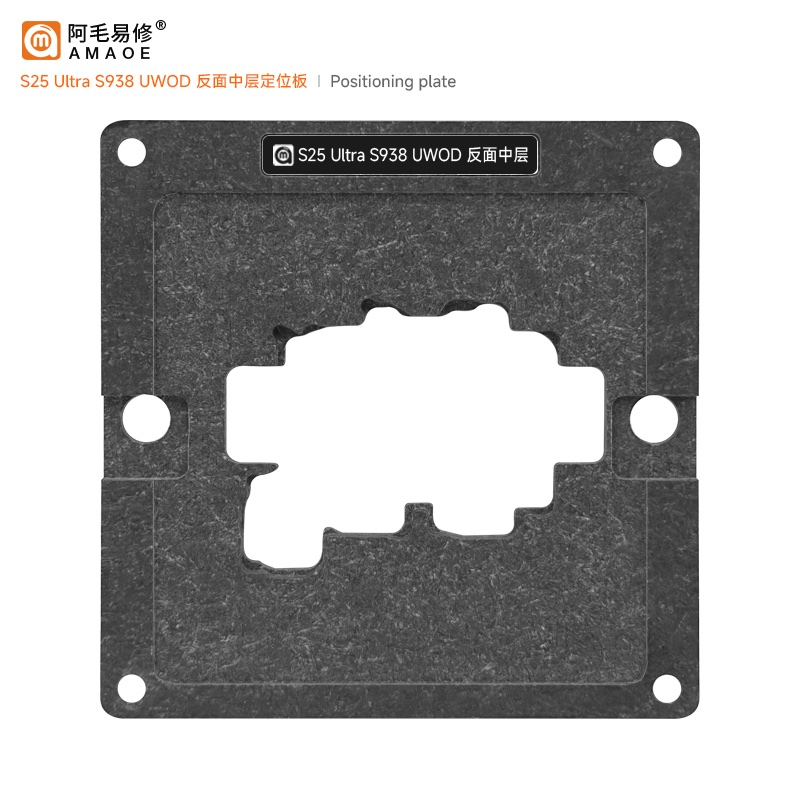

Positioning: The S938 motherboard is placed into a dedicated soldering fixture (included in the full set). The Amaoe stencil is then laid over the middle layer.
Tin Planting: A high-quality solder paste (usually 183°C or 138°C depending on the technician’s preference) is spread across the stencil. The precision holes ensure the paste only reaches the intended pads.
Heating: Using a hot air station, the paste is melted into uniform solder balls. The Japanese steel construction prevents the stencil from moving during this critical phase.
Separation: Once cooled, the stencil is removed, leaving behind perfect “bumps” of solder ready for the two PCB layers to be fused back together.
In the world of mobile repair, the “middle layer” is the most common point of failure after a heavy drop or water damage. If the solder joints between the two boards crack, the phone may lose Wi-Fi, Baseband (signal), or fail to boot entirely.
The Amaoe S25 Ultra Stencil Set is considered the industry standard because it minimizes the “trial and error” often associated with reballing. By providing a stable, heat-resistant, and perfectly aligned template, it allows technicians to perform complex motherboard surgeries with a much higher success rate, ensuring the longevity of the repair and the safety of the sensitive Samsung components.
