₹250 Original price was: ₹250.₹159Current price is: ₹159.
Shipping India
Guaranteed Satisfaction
Safe Checkout
Please read the manual before use.
This section sets the foundation for a safe repair environment. Before a single tool touches a phone, the workspace must be prepared to protect both the technician and the sensitive electronics.
Electrostatic Discharge (ESD) Safety: Instructions on grounding yourself using an ESD wrist strap and working on an anti-static mat to prevent frying microchips with static electricity.
Safety Gear: Protocols for wearing safety glasses (critical when prying shattered glass) and working in a well-ventilated area (crucial for adhesive fumes and soldering smoke).
Lighting and Magnification: Recommendations for high-intensity desk lamps and digital microscopes or magnifying visors for viewing microscopic components.
The most physically risky part of mobile repair is opening the device without cracking the glass screen or ripping delicate internal ribbon cables.
Thermal Tools (Heat Guns & Heat Pads): Instructions on setting precise temperatures (typically 80°C to 100°C) to soften heavy factory adhesives without damaging the display.
Suction & Leverage Tools: Proper placement of heavy-duty suction cups and screen prying fixtures to safely create an initial gap.
Separation Media (Plastic Picks & Spudgers): Techniques for slicing through glue lines using plastic opening picks without inserting them too deeply into the frame.
Modern smartphones use dozens of tiny, highly specialized screws and brackets to hold internal shields in place.
Precision Driver Identification: A breakdown of specialized micro-bits, detailing exactly when to use Pentalobe (iPhones), Tri-point/Y-type (internal Apple shields), Torx/Torx Security (Android devices), and standard Micro-Phillips.
Organization Systems: Guidelines for using magnetic project mats or screw organizing trays to map out screw locations, preventing the catastrophic error of “long-screw damage.”
Gripping & Placer Tools: How to utilize straight and curved ESD-safe tweezers to safely disconnect fragile ZIF (Zero Insertion Force) and coaxial cable connectors.
This section transitions the user from basic mechanical teardowns to logical troubleshooting when a phone won’t turn on or charge.
Digital Multimeter (DMM): Step-by-step instructions on setting up the meter for DC voltage testing (checking battery and charging port output) and continuity/diode mode (hunting for short circuits).
DC Power Supply: How to boot a phone motherboard without a battery attached, interpreting current draw (Amperage) to diagnose power management failures.
USB Ammeter / Tester: Utilizing an inline USB safety tester plugged into the charging block to instantly diagnose if a phone is pulling normal current ($1A$ to $2A$) or completely dead ($0A$).
For advanced users handling board-level fixes like swapping out charging ports, audio IC chips, or FPC connectors.
Soldering Iron Stations: Temperature calibration tips, tip selection (chisel vs. conical), and maintenance/tinning procedures.
Hot Air Rework Stations: Managing the delicate balance of air flow and temperature to safely desolder multi-pin components without blowing adjacent surface-mount resistors off the board.
Chemical Consumables: Proper application of rosin flux (to clean joints and fluidize solder), solder wick (braided wire to remove old solder), and low-melt solder alloys.
The final step is cleaning up the internal cavity and sealing the device back up to its original structural integrity.
Chemical Cleaners: Safe usage of 99% Isopropyl Alcohol (IPA) to dissolve old glue residues, flux oils, and clean mild liquid damage.
Liquid Adhesives vs. Tape: Instructions on applying specialized acrylic glues (like B-7000) versus applying precision-cut double-sided adhesive gaskets.
Camping and Curing: Utilizing specialized display repair clamps to apply even, steady pressure while the new adhesives cure over 15 to 30 minutes.

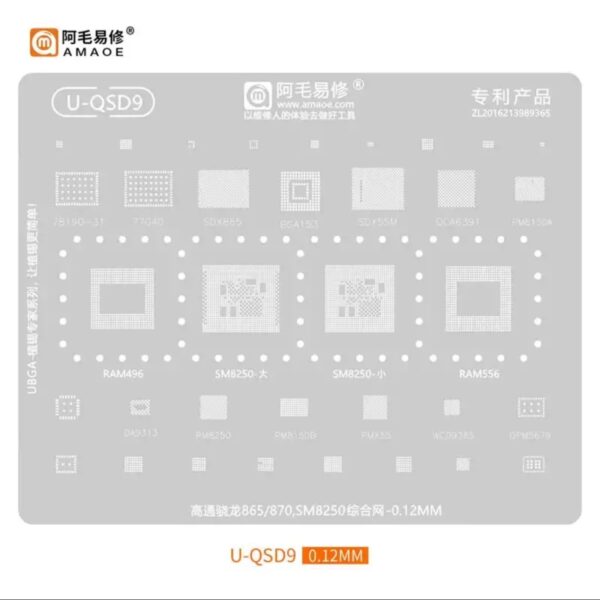

The Amaoe U QSD 9 stencil is a specialized tool designed for mobile repairing, particularly for micro soldering and chip-level work. One of its standout characteristics is its precision engineering, which ensures that repair technicians can effectively perform delicate tasks that demand a high degree of accuracy. This stencil is crafted from durable materials that not only enhance its longevity but also improve its performance during intricate repairs.
In terms of design, the U QSD 9 stencil is compact and user-friendly, making it suitable for a variety of mobile devices, including smartphones and tablets from different manufacturers. Its dimensions have been meticulously calculated to accommodate a broad range of chip locations and sizes, allowing for versatile application in repair tasks. This adaptability is essential as mobile devices come with different layouts and configurations, thus requiring tools that can offer comprehensive support.
Moreover, the precision of the U QSD 9 stencil plays a pivotal role in ensuring that repairs are conducted smoothly and effectively. The stencil minimizes the risk of misalignment, which is crucial in preventing damage to sensitive components. When working at the micro-level, even slight deviations can lead to significant failures in device functionality, underscoring the importance of utilizing high-quality stencils such as the U QSD 9.
Additionally, the market offers various stencils, but the Amaoe U QSD 9 stands out due to its combination of quality materials, thoughtful design, and compatibility with a wide array of mobile devices. This tool not only simplifies the repair process but also enhances the overall efficiency of technicians, allowing for faster turnaround times on repairs. The U QSD 9 stencil represents a valuable investment for those in the mobile repair field, ensuring that users can achieve professional-quality results in their work.
The Amaoe U QSD 9 stencil is an essential tool for technicians engaged in mobile repairing. Its design facilitates precise soldering, which is crucial for the efficient functioning of component-level repairs. When applying the stencil, one should begin by preparing a clean work area and ensuring that all necessary tools are at hand. Check that the stencil aligns perfectly over the targeted area on the circuit board, as misalignment can lead to soldering errors that could compromise the device’s functionality.
Prior to soldering, prepare the components by cleaning both the stencil and the surface of the circuit board. Using a suitable solvent to eliminate grime or previous solder residues is necessary. Secure the stencil in place using a vacuum or adhesive strips, which will ensure stable positioning during the soldering process. When applying solder paste through the stencil openings, it is advisable to use a squeegee to evenly distribute the paste and avoid over-application.
Once the soldering is complete, carefully remove the stencil and inspect the solder joints for defects such as cold solder joints or bridges. If any issues arise, immediate correction is necessary to prevent future complications. It is prudent to conduct a thorough inspection and testing of the device’s functionalities after repair. Furthermore, maintaining the Amaoe U QSD 9 stencil is vital for its longevity. Clean the stencil after each use to prevent paste build-up, and store it in a protective case to avoid warping or damage.
By adhering to these best practices, technicians can maximize the effectiveness of the Amaoe U QSD 9 stencil, ensuring cleaner and more reliable repairs. Avoiding common pitfalls, such as inadequate cleaning or improper alignment, will significantly enhance both efficiency and outcome in mobile device repair operations.
