Please read the manual before use.
This section sets the foundation for a safe repair environment. Before a single tool touches a phone, the workspace must be prepared to protect both the technician and the sensitive electronics.
Electrostatic Discharge (ESD) Safety: Instructions on grounding yourself using an ESD wrist strap and working on an anti-static mat to prevent frying microchips with static electricity.
Safety Gear: Protocols for wearing safety glasses (critical when prying shattered glass) and working in a well-ventilated area (crucial for adhesive fumes and soldering smoke).
Lighting and Magnification: Recommendations for high-intensity desk lamps and digital microscopes or magnifying visors for viewing microscopic components.
The most physically risky part of mobile repair is opening the device without cracking the glass screen or ripping delicate internal ribbon cables.
Thermal Tools (Heat Guns & Heat Pads): Instructions on setting precise temperatures (typically 80°C to 100°C) to soften heavy factory adhesives without damaging the display.
Suction & Leverage Tools: Proper placement of heavy-duty suction cups and screen prying fixtures to safely create an initial gap.
Separation Media (Plastic Picks & Spudgers): Techniques for slicing through glue lines using plastic opening picks without inserting them too deeply into the frame.
Modern smartphones use dozens of tiny, highly specialized screws and brackets to hold internal shields in place.
Precision Driver Identification: A breakdown of specialized micro-bits, detailing exactly when to use Pentalobe (iPhones), Tri-point/Y-type (internal Apple shields), Torx/Torx Security (Android devices), and standard Micro-Phillips.
Organization Systems: Guidelines for using magnetic project mats or screw organizing trays to map out screw locations, preventing the catastrophic error of “long-screw damage.”
Gripping & Placer Tools: How to utilize straight and curved ESD-safe tweezers to safely disconnect fragile ZIF (Zero Insertion Force) and coaxial cable connectors.
This section transitions the user from basic mechanical teardowns to logical troubleshooting when a phone won’t turn on or charge.
Digital Multimeter (DMM): Step-by-step instructions on setting up the meter for DC voltage testing (checking battery and charging port output) and continuity/diode mode (hunting for short circuits).
DC Power Supply: How to boot a phone motherboard without a battery attached, interpreting current draw (Amperage) to diagnose power management failures.
USB Ammeter / Tester: Utilizing an inline USB safety tester plugged into the charging block to instantly diagnose if a phone is pulling normal current ($1A$ to $2A$) or completely dead ($0A$).
For advanced users handling board-level fixes like swapping out charging ports, audio IC chips, or FPC connectors.
Soldering Iron Stations: Temperature calibration tips, tip selection (chisel vs. conical), and maintenance/tinning procedures.
Hot Air Rework Stations: Managing the delicate balance of air flow and temperature to safely desolder multi-pin components without blowing adjacent surface-mount resistors off the board.
Chemical Consumables: Proper application of rosin flux (to clean joints and fluidize solder), solder wick (braided wire to remove old solder), and low-melt solder alloys.
The final step is cleaning up the internal cavity and sealing the device back up to its original structural integrity.
Chemical Cleaners: Safe usage of 99% Isopropyl Alcohol (IPA) to dissolve old glue residues, flux oils, and clean mild liquid damage.
Liquid Adhesives vs. Tape: Instructions on applying specialized acrylic glues (like B-7000) versus applying precision-cut double-sided adhesive gaskets.
Camping and Curing: Utilizing specialized display repair clamps to apply even, steady pressure while the new adhesives cure over 15 to 30 minutes.

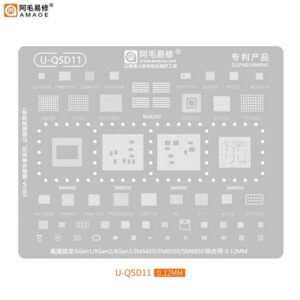

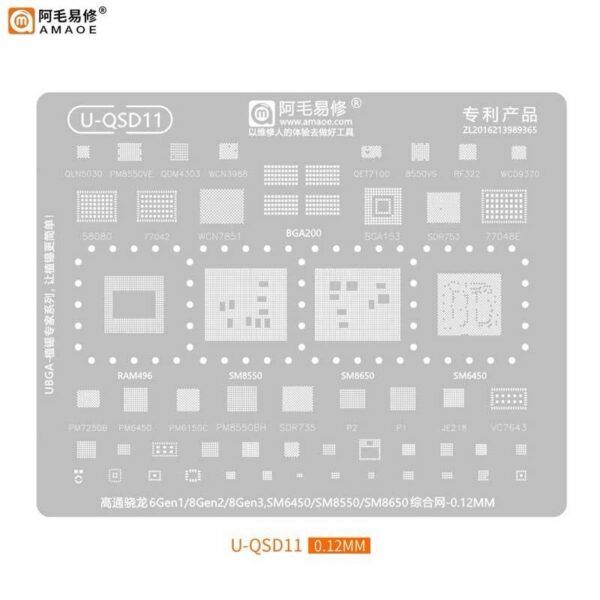

The AMAOE U-QSD11 stencil is a pivotal tool in the realm of mobile device repairs, designed to enhance precision and efficiency in soldering processes. One of its notable features is the high-quality stainless steel construction, which promotes durability and resistance to wear, making it ideal for frequent use in various repair settings. The stencil’s finely crafted apertures are optimally sized to ensure that solder paste is accurately deposited, which is crucial for achieving effective connections on circuit boards.
This stencil is engineered with compatibility in mind, catering to a diverse range of mobile devices, including popular brands like Apple, Samsung, and Huawei. Its versatility enables technicians to utilize a single stencil across multiple models, streamlining their workflow. Furthermore, the design of the AMAOE U-QSD11 allows for effortless integration into pre-existing repair processes without the need for significant adjustments. This characteristic is particularly beneficial for repair shops aiming to minimize downtime in their operations.
Technicians who employ the AMAOE U-QSD11 stencil frequently report substantial improvements in their repair outcomes. Many have noted a marked decrease in repair errors, attributing this success to the stencil’s precision in solder paste application. This enhancement not only leads to improved device functionality but also fosters customer satisfaction, as repairs are executed more reliably. Moreover, the time-saving aspects of the stencil cannot be overlooked; with quicker soldering times, technicians can service more devices within a specified period, thereby boosting overall productivity.
With testimonials highlighting its effectiveness, it is evident that the AMAOE U-QSD11 stencil is an invaluable component in the toolkit of any mobile repair professional, enabling them to master the art of mobile repair with enhanced confidence and skill.
Using the AMAOE U-QSD11 stencil in mobile repairs can greatly enhance the precision and effectiveness of your work. Begin by preparing your workspace to ensure a smooth repair process. Choose a clean, well-lit area that is free from any clutter. Gather all necessary tools, including the AMAOE U-QSD11 stencil, solder paste, a soldering iron, tweezers, a heat source such as a hot air rework station, and cleaning materials. Having everything on hand will save you time and ensure you can focus on the repair.
Once your workspace is set up, the next step involves cleaning the mobile device. Use isopropyl alcohol and a lint-free cloth to carefully remove any dust, fingerprints, or old solder residue from the circuit board. This will help achieve better adhesion when applying the stencil and ensure a cleaner finish.
With the device prepped, position the AMAOE U-QSD11 stencil onto the circuit board. Take extra care to align it properly with the target components; misalignment can lead to unsatisfactory results. Once aligned, use a spatula to evenly apply solder paste over the stencil openings. A gentle yet firm application will ensure adequate fill without creating excess paste.
After applying the solder paste, carefully lift the stencil away, leaving behind the necessary solder deposits on the circuit board. Next, use the heat source to initiate the reflow process. Set the temperature according to the paste manufacturer’s guidelines, and move the heat source in a circular motion to distribute heat evenly across the area. Watch for the solder to melt and form solid connections.
Safety is paramount during this process. Ensure you are equipped with safety glasses and are working in a well-ventilated area to avoid inhaling any fumes. Additionally, be aware of common pitfalls, such as overheating components, which can cause irreversible damage. If you encounter any issues, troubleshooting involves re-evaluating the alignment, solder application, and heat settings.
Following these steps will facilitate a successful repair using the AMAOE U-QSD11 stencil. Taking the time to ensure that each phase is meticulously executed ultimately leads to higher-quality repairs.
