This section sets the foundation for a safe repair environment. Before a single tool touches a phone, the workspace must be prepared to protect both the technician and the sensitive electronics.
Electrostatic Discharge (ESD) Safety: Instructions on grounding yourself using an ESD wrist strap and working on an anti-static mat to prevent frying microchips with static electricity.
Safety Gear: Protocols for wearing safety glasses (critical when prying shattered glass) and working in a well-ventilated area (crucial for adhesive fumes and soldering smoke).
Lighting and Magnification: Recommendations for high-intensity desk lamps and digital microscopes or magnifying visors for viewing microscopic components.
The most physically risky part of mobile repair is opening the device without cracking the glass screen or ripping delicate internal ribbon cables.
Thermal Tools (Heat Guns & Heat Pads): Instructions on setting precise temperatures (typically 80°C to 100°C) to soften heavy factory adhesives without damaging the display.
Suction & Leverage Tools: Proper placement of heavy-duty suction cups and screen prying fixtures to safely create an initial gap.
Separation Media (Plastic Picks & Spudgers): Techniques for slicing through glue lines using plastic opening picks without inserting them too deeply into the frame.
Modern smartphones use dozens of tiny, highly specialized screws and brackets to hold internal shields in place.
Precision Driver Identification: A breakdown of specialized micro-bits, detailing exactly when to use Pentalobe (iPhones), Tri-point/Y-type (internal Apple shields), Torx/Torx Security (Android devices), and standard Micro-Phillips.
Organization Systems: Guidelines for using magnetic project mats or screw organizing trays to map out screw locations, preventing the catastrophic error of “long-screw damage.”
Gripping & Placer Tools: How to utilize straight and curved ESD-safe tweezers to safely disconnect fragile ZIF (Zero Insertion Force) and coaxial cable connectors.
This section transitions the user from basic mechanical teardowns to logical troubleshooting when a phone won’t turn on or charge.
Digital Multimeter (DMM): Step-by-step instructions on setting up the meter for DC voltage testing (checking battery and charging port output) and continuity/diode mode (hunting for short circuits).
DC Power Supply: How to boot a phone motherboard without a battery attached, interpreting current draw (Amperage) to diagnose power management failures.
USB Ammeter / Tester: Utilizing an inline USB safety tester plugged into the charging block to instantly diagnose if a phone is pulling normal current ($1A$ to $2A$) or completely dead ($0A$).
For advanced users handling board-level fixes like swapping out charging ports, audio IC chips, or FPC connectors.
Soldering Iron Stations: Temperature calibration tips, tip selection (chisel vs. conical), and maintenance/tinning procedures.
Hot Air Rework Stations: Managing the delicate balance of air flow and temperature to safely desolder multi-pin components without blowing adjacent surface-mount resistors off the board.
Chemical Consumables: Proper application of rosin flux (to clean joints and fluidize solder), solder wick (braided wire to remove old solder), and low-melt solder alloys.
The final step is cleaning up the internal cavity and sealing the device back up to its original structural integrity.
Chemical Cleaners: Safe usage of 99% Isopropyl Alcohol (IPA) to dissolve old glue residues, flux oils, and clean mild liquid damage.
Liquid Adhesives vs. Tape: Instructions on applying specialized acrylic glues (like B-7000) versus applying precision-cut double-sided adhesive gaskets.
Camping and Curing: Utilizing specialized display repair clamps to apply even, steady pressure while the new adhesives cure over 15 to 30 minutes.
The LUOWEI LW-AP05 Heat-Insulating Ring-Shaped Tempered Glass Repair Fixture is an innovative tool designed to provide unparalleled accuracy during motherboard repairs for mobile phones. Its high-quality tempered glass material ensures durability and outstanding heat resistance, making it easy to handle even in demanding repair tasks.
Featuring a ring-shaped structure, the LW-AP05 guarantees a secure and stable hold, reducing potential risks when working with sensitive chips and intricate motherboard layouts. Its thoughtful design offers a perfect balance between functionality and user comfort, ensuring a seamless repair experience.
This versatile repair holder is specifically tailored for mobile phone chip repair tasks, providing firm support to prevent unwanted movement and ensuring the precision you need for detailed work. Whether you’re a professional technician or a hobbyist, this reliable tool makes your chip repair jobs efficient and hassle-free.
The LUOWEI LW-AP05 is a professional-grade, high-precision repair fixture specifically engineered for mobile phone technicians. It stands out in the market due to its “ring-shaped” design and the integration of aviation-grade tempered glass, which provides superior thermal management compared to traditional metal or synthetic stone holders.
Below is the comprehensive breakdown of its technical specifications and features.

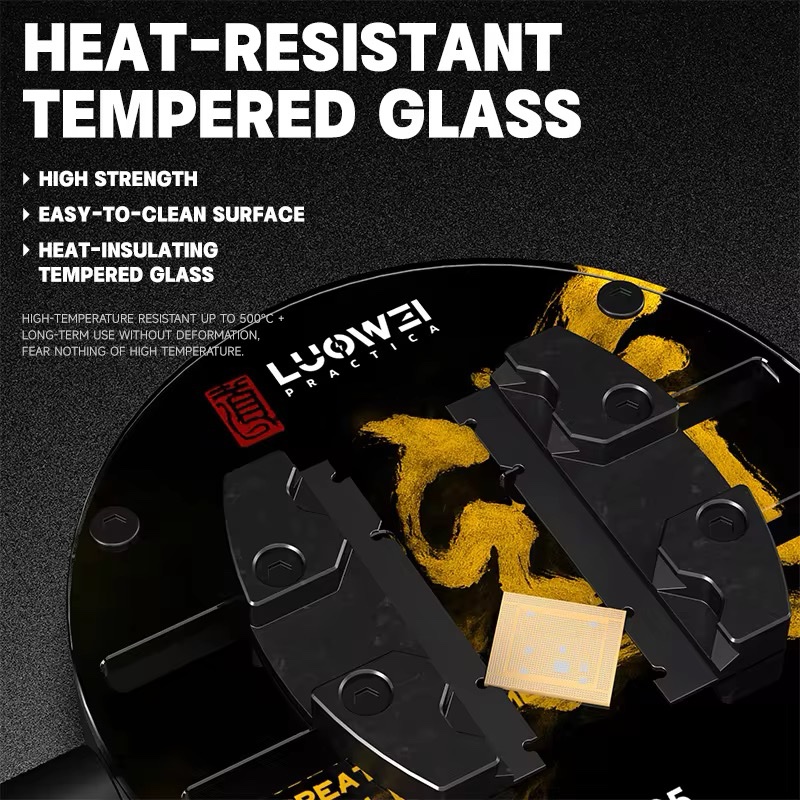

The core innovation of the LW-AP05 is the use of heat-insulating tempered glass. Unlike metal fixtures that can act as a heat sink (drawing heat away from the work area) or synthetic stone that can crack over time, this glass provides:
High Temperature Stability: It can withstand constant exposure to hot air guns at $500°C$ without warping or deforming.
Insulation: It keeps the heat focused on the specific IC or chip being repaired, preventing heat dissipation to the surrounding fixture, which improves soldering efficiency.

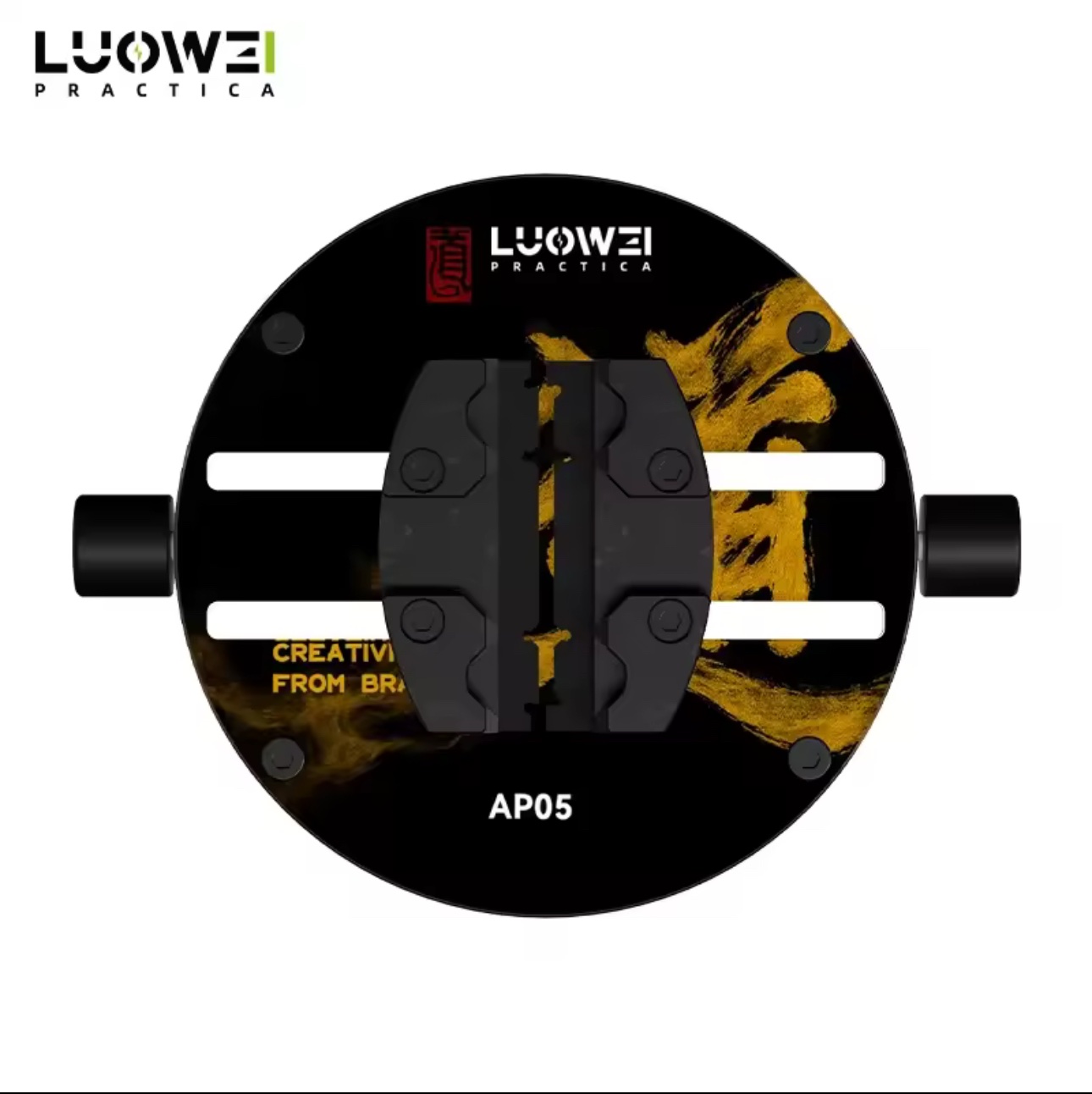

The “Road” or ring-shaped structure isn’t just for aesthetics. It serves two critical technical purposes:
Rapid Heat Dissipation: The hollow center allows air to circulate under the motherboard, preventing heat buildup that could damage sensitive components on the underside of the PCB.
Ease of Cleaning: Solder balls, flux residue, and glue scraps fall through the hollow sections rather than accumulating on the fixture, making it much easier to maintain a clean workspace.

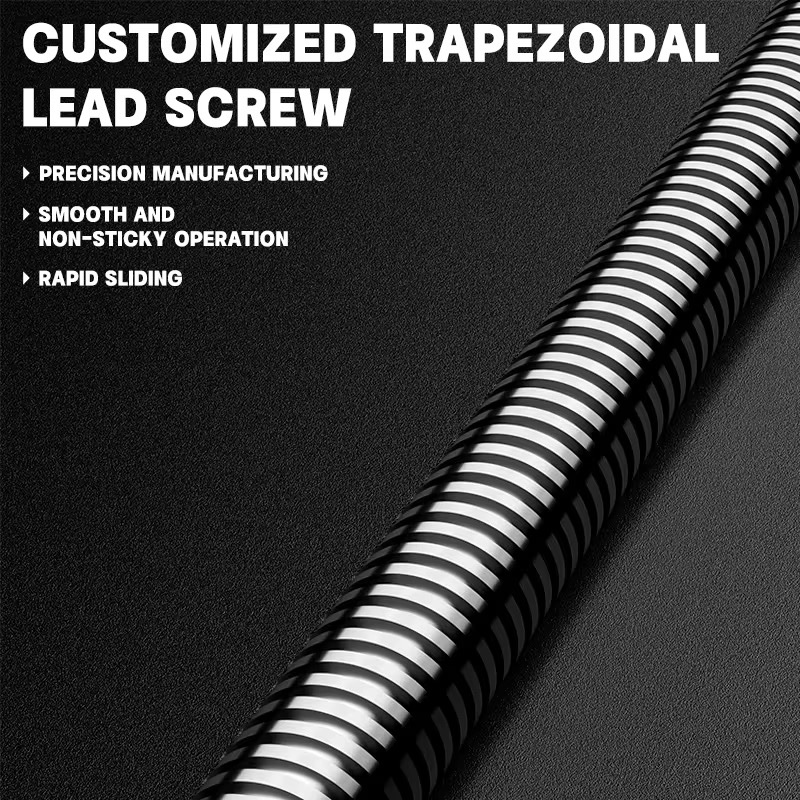

The LW-AP05 utilizes a customized trapezoidal lead screw. This thread design ensures that the movement is smooth and non-sticky.
Vibration Resistance: Once locked, the motherboard remains completely static, which is essential for micro-soldering under a microscope.

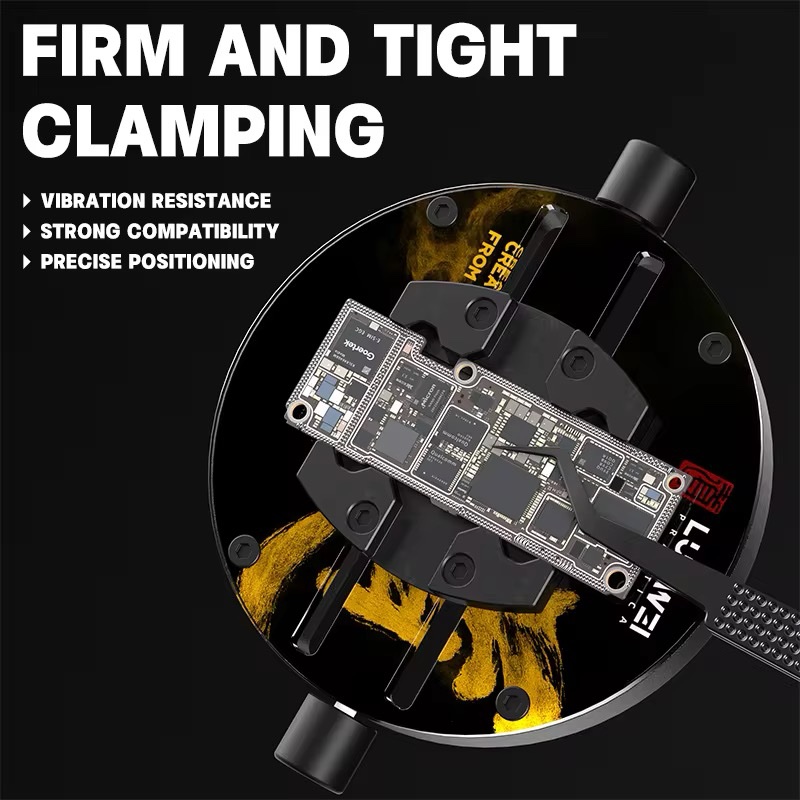

Non-Destructive Grip: The double-layer clamping mouth features a unique groove design that grips the edge of the PCB firmly without crushing or scratching the delicate traces on the motherboard.
The fixture is designed with a “clamping stroke” that is highly adaptive. Whether you are working on a standard rectangular Android board or the L-shaped, split, or stacked motherboards found in modern iPhones, the adjustable jaws and specialized notches provide a secure fit for almost any mobile logic board.
For technicians performing heavy IC work—such as CPU reballing or NAND replacement—the LW-AP05 offers a level of transparency and cleanliness that traditional fixtures lack. The glass surface is non-porous, meaning flux and chemicals like 530 cleaner or PCB wash can be wiped away instantly without leaving stains or odors.
Its weight of 500g is carefully balanced; it is heavy enough to stay put on your workbench during vigorous scraping (glue removal) but light enough to be repositioned easily under a microscope.
