Please read the manual before use.
This section sets the foundation for a safe repair environment. Before a single tool touches a phone, the workspace must be prepared to protect both the technician and the sensitive electronics.
Electrostatic Discharge (ESD) Safety: Instructions on grounding yourself using an ESD wrist strap and working on an anti-static mat to prevent frying microchips with static electricity.
Safety Gear: Protocols for wearing safety glasses (critical when prying shattered glass) and working in a well-ventilated area (crucial for adhesive fumes and soldering smoke).
Lighting and Magnification: Recommendations for high-intensity desk lamps and digital microscopes or magnifying visors for viewing microscopic components.
The most physically risky part of mobile repair is opening the device without cracking the glass screen or ripping delicate internal ribbon cables.
Thermal Tools (Heat Guns & Heat Pads): Instructions on setting precise temperatures (typically 80°C to 100°C) to soften heavy factory adhesives without damaging the display.
Suction & Leverage Tools: Proper placement of heavy-duty suction cups and screen prying fixtures to safely create an initial gap.
Separation Media (Plastic Picks & Spudgers): Techniques for slicing through glue lines using plastic opening picks without inserting them too deeply into the frame.
Modern smartphones use dozens of tiny, highly specialized screws and brackets to hold internal shields in place.
Precision Driver Identification: A breakdown of specialized micro-bits, detailing exactly when to use Pentalobe (iPhones), Tri-point/Y-type (internal Apple shields), Torx/Torx Security (Android devices), and standard Micro-Phillips.
Organization Systems: Guidelines for using magnetic project mats or screw organizing trays to map out screw locations, preventing the catastrophic error of “long-screw damage.”
Gripping & Placer Tools: How to utilize straight and curved ESD-safe tweezers to safely disconnect fragile ZIF (Zero Insertion Force) and coaxial cable connectors.
This section transitions the user from basic mechanical teardowns to logical troubleshooting when a phone won’t turn on or charge.
Digital Multimeter (DMM): Step-by-step instructions on setting up the meter for DC voltage testing (checking battery and charging port output) and continuity/diode mode (hunting for short circuits).
DC Power Supply: How to boot a phone motherboard without a battery attached, interpreting current draw (Amperage) to diagnose power management failures.
USB Ammeter / Tester: Utilizing an inline USB safety tester plugged into the charging block to instantly diagnose if a phone is pulling normal current ($1A$ to $2A$) or completely dead ($0A$).
For advanced users handling board-level fixes like swapping out charging ports, audio IC chips, or FPC connectors.
Soldering Iron Stations: Temperature calibration tips, tip selection (chisel vs. conical), and maintenance/tinning procedures.
Hot Air Rework Stations: Managing the delicate balance of air flow and temperature to safely desolder multi-pin components without blowing adjacent surface-mount resistors off the board.
Chemical Consumables: Proper application of rosin flux (to clean joints and fluidize solder), solder wick (braided wire to remove old solder), and low-melt solder alloys.
The final step is cleaning up the internal cavity and sealing the device back up to its original structural integrity.
Chemical Cleaners: Safe usage of 99% Isopropyl Alcohol (IPA) to dissolve old glue residues, flux oils, and clean mild liquid damage.
Liquid Adhesives vs. Tape: Instructions on applying specialized acrylic glues (like B-7000) versus applying precision-cut double-sided adhesive gaskets.
Camping and Curing: Utilizing specialized display repair clamps to apply even, steady pressure while the new adhesives cure over 15 to 30 minutes.
The LUOWEI LW-GK02 TITAN Dual-Axis Microscope Stand is engineered to ensure unparalleled precision and accuracy for your microscopy needs. Its 360° rotatable swing and dual-axis design let you adjust effortlessly for optimal viewing angles. Made entirely of premium aluminum, this articulating arm bracket guarantees long-term durability and stability during use.
This stand isn’t just functional—it’s versatile. Whether you’re a professional researcher or an enthusiast working on intricate tasks, the LUOWEI LW-GK02 TITAN is adaptable to different microscopes and projects. The swing capabilities enhance flexibility, allowing adjustments to match varying working environments and requirements effectively.
The solid aluminum build combines lightweight construction with robust support, making it easier for you to focus on your work without concerns about wear and tear. Its innovative dual-axis mechanism is designed to simplify your workflow, providing smoother adjustments and better control for precision-based work. Elevate your microscopy experience with this state-of-the-art articulating arm bracket!

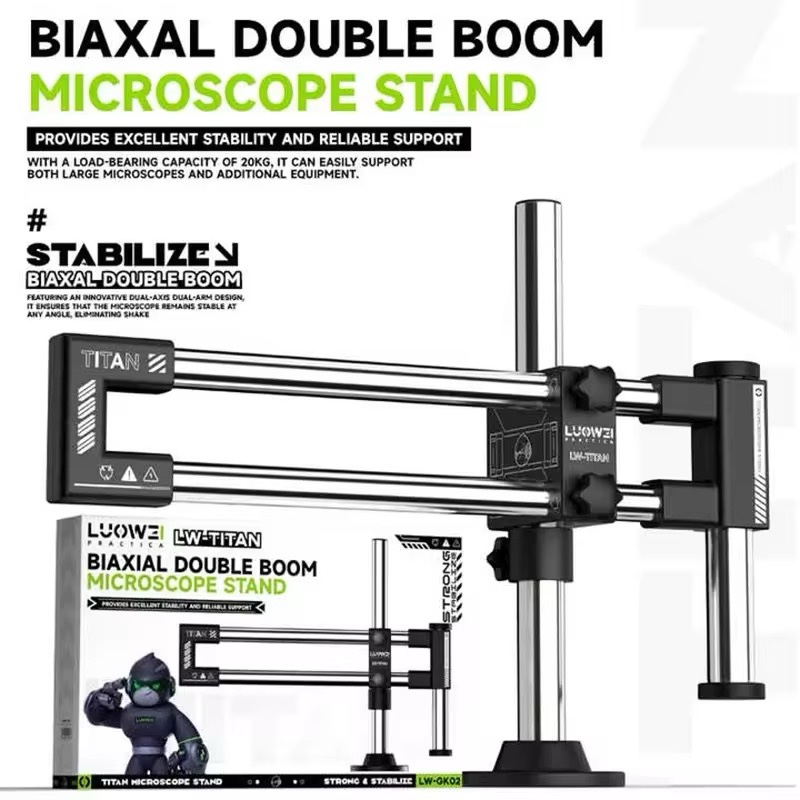

The LUOWEI LW-GK02 TITAN Dual-Axis Microscope Stand is a professional-grade articulating arm designed for high-precision environments such as PCB repair, micro-soldering, and industrial inspection. Known for its “Titan” moniker, this stand focuses on heavy-duty stability and fluid, multi-axis movement to accommodate large stereo and trinocular microscopes.
Below is the comprehensive specification and technical analysis of the LW-GK02.

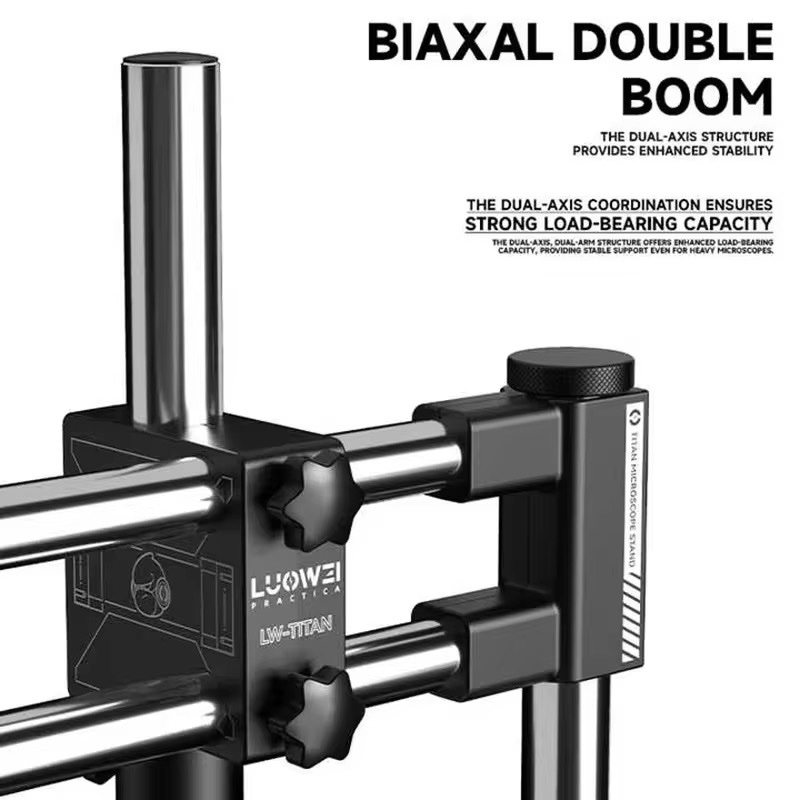

Unlike traditional single-arm stands that may “droop” or vibrate under the weight of a trinocular head and a 4K camera, the LW-GK02 TITAN utilizes a biaxial double-boom structure. This geometry distributes the weight across two parallel tracks, significantly reducing the center-of-gravity shift when the arm is fully extended.

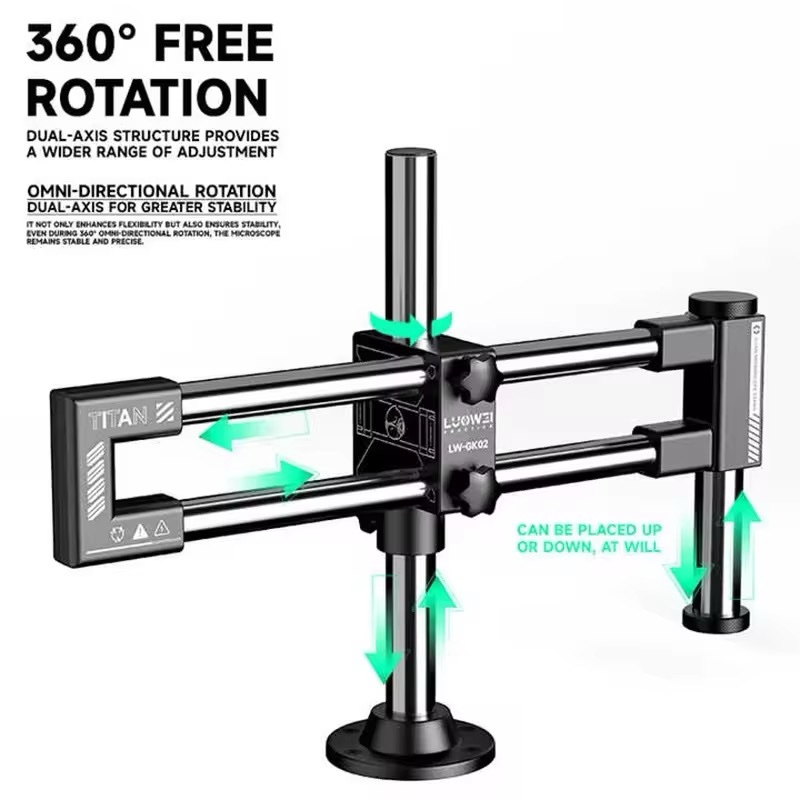

The stand is engineered with precision bearings at its pivot points. This allows the user to swing the microscope head across a wide workbench without moving the base. The dual-axis design means you can adjust the reach (horizontal) and the swing (circular) independently, providing a “floating” feel to the microscope.

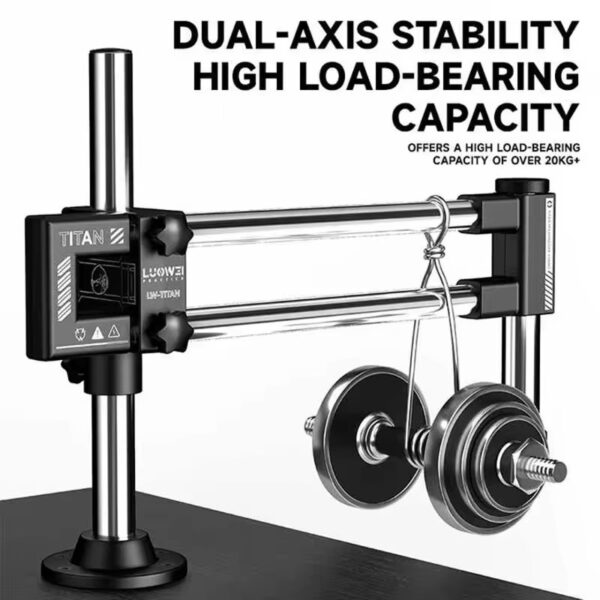

By using aerospace aluminum, Luowei has balanced the need for a high load-bearing capacity (over 20 kg) with a relatively lightweight frame. The aluminum is treated to be corrosion-resistant and heat-stable, which is essential for technicians performing “hot air” rework or high-temperature soldering directly beneath the arm.

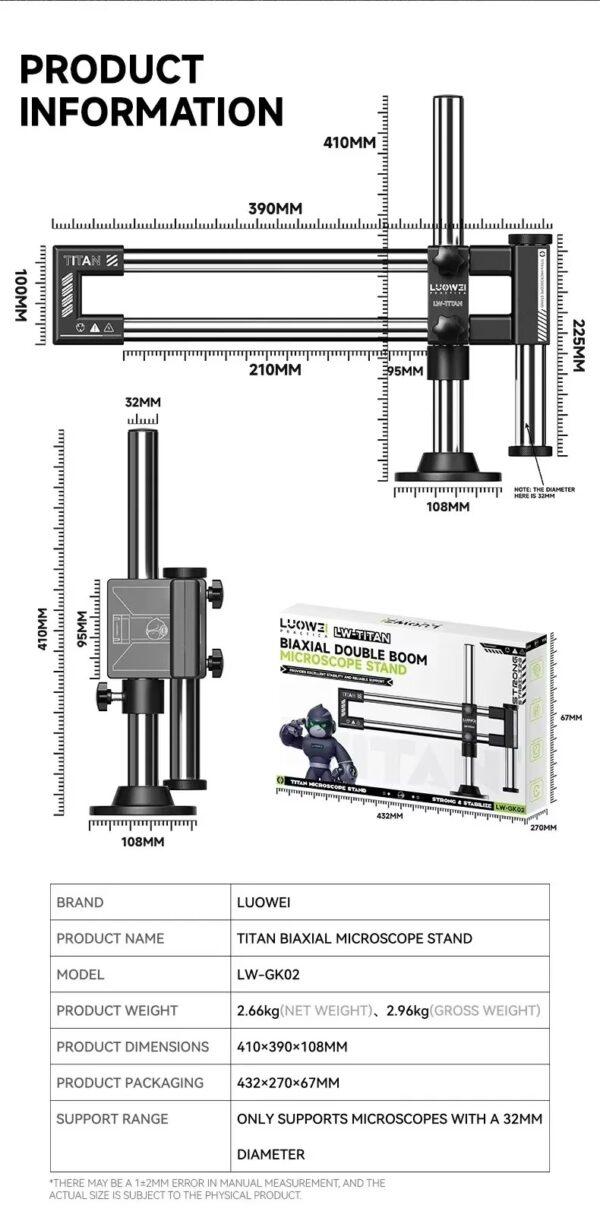

The stand features a standard 32 mm diameter interface. This makes it a “plug-and-play” solution for the vast majority of industrial microscope brands, including:
Relife (M3T series)
Mechanic (MC75 series)
RF4 (6565 series)
Sunshine, Hayear, and Eakins models.
Mobile Phone Repair: Perfect for navigating around large iPad or MacBook motherboards where a fixed stand would limit the field of view.
Industrial Quality Control: Used in assembly lines for checking solder joint integrity across large trays of components.
Watchmaking & Jewelry: The smooth motion allows for detailed engraving and assembly without the jerky movements of lower-quality brackets.
Educational Labs: Enables multiple students to view a specimen by simply swinging the arm between stations without refocusing.
The LW-GK02 is typically secured to the workbench using a 6-screw fixed base. This ensures that even when the heavy microscope is extended to its maximum horizontal reach, the stand remains anchored. Ensure your workbench is made of solid wood or metal to support the torque generated by the extended arm.
