Please read the manual before use.
This section sets the foundation for a safe repair environment. Before a single tool touches a phone, the workspace must be prepared to protect both the technician and the sensitive electronics.
Electrostatic Discharge (ESD) Safety: Instructions on grounding yourself using an ESD wrist strap and working on an anti-static mat to prevent frying microchips with static electricity.
Safety Gear: Protocols for wearing safety glasses (critical when prying shattered glass) and working in a well-ventilated area (crucial for adhesive fumes and soldering smoke).
Lighting and Magnification: Recommendations for high-intensity desk lamps and digital microscopes or magnifying visors for viewing microscopic components.
The most physically risky part of mobile repair is opening the device without cracking the glass screen or ripping delicate internal ribbon cables.
Thermal Tools (Heat Guns & Heat Pads): Instructions on setting precise temperatures (typically 80°C to 100°C) to soften heavy factory adhesives without damaging the display.
Suction & Leverage Tools: Proper placement of heavy-duty suction cups and screen prying fixtures to safely create an initial gap.
Separation Media (Plastic Picks & Spudgers): Techniques for slicing through glue lines using plastic opening picks without inserting them too deeply into the frame.
Modern smartphones use dozens of tiny, highly specialized screws and brackets to hold internal shields in place.
Precision Driver Identification: A breakdown of specialized micro-bits, detailing exactly when to use Pentalobe (iPhones), Tri-point/Y-type (internal Apple shields), Torx/Torx Security (Android devices), and standard Micro-Phillips.
Organization Systems: Guidelines for using magnetic project mats or screw organizing trays to map out screw locations, preventing the catastrophic error of “long-screw damage.”
Gripping & Placer Tools: How to utilize straight and curved ESD-safe tweezers to safely disconnect fragile ZIF (Zero Insertion Force) and coaxial cable connectors.
This section transitions the user from basic mechanical teardowns to logical troubleshooting when a phone won’t turn on or charge.
Digital Multimeter (DMM): Step-by-step instructions on setting up the meter for DC voltage testing (checking battery and charging port output) and continuity/diode mode (hunting for short circuits).
DC Power Supply: How to boot a phone motherboard without a battery attached, interpreting current draw (Amperage) to diagnose power management failures.
USB Ammeter / Tester: Utilizing an inline USB safety tester plugged into the charging block to instantly diagnose if a phone is pulling normal current ($1A$ to $2A$) or completely dead ($0A$).
For advanced users handling board-level fixes like swapping out charging ports, audio IC chips, or FPC connectors.
Soldering Iron Stations: Temperature calibration tips, tip selection (chisel vs. conical), and maintenance/tinning procedures.
Hot Air Rework Stations: Managing the delicate balance of air flow and temperature to safely desolder multi-pin components without blowing adjacent surface-mount resistors off the board.
Chemical Consumables: Proper application of rosin flux (to clean joints and fluidize solder), solder wick (braided wire to remove old solder), and low-melt solder alloys.
The final step is cleaning up the internal cavity and sealing the device back up to its original structural integrity.
Chemical Cleaners: Safe usage of 99% Isopropyl Alcohol (IPA) to dissolve old glue residues, flux oils, and clean mild liquid damage.
Liquid Adhesives vs. Tape: Instructions on applying specialized acrylic glues (like B-7000) versus applying precision-cut double-sided adhesive gaskets.
Camping and Curing: Utilizing specialized display repair clamps to apply even, steady pressure while the new adhesives cure over 15 to 30 minutes.

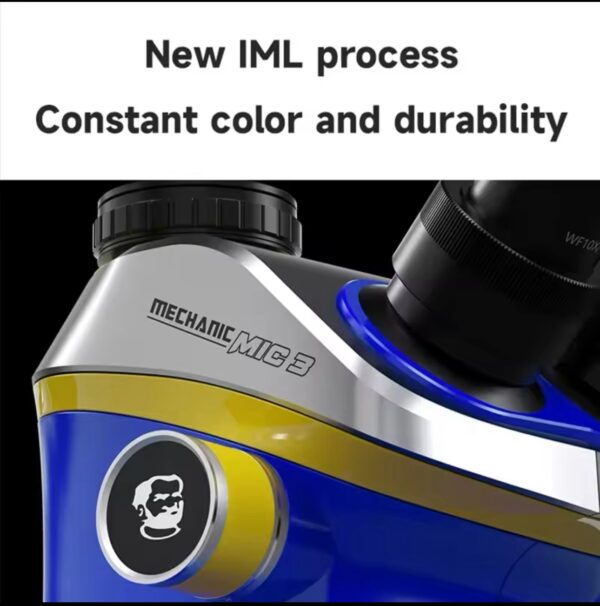

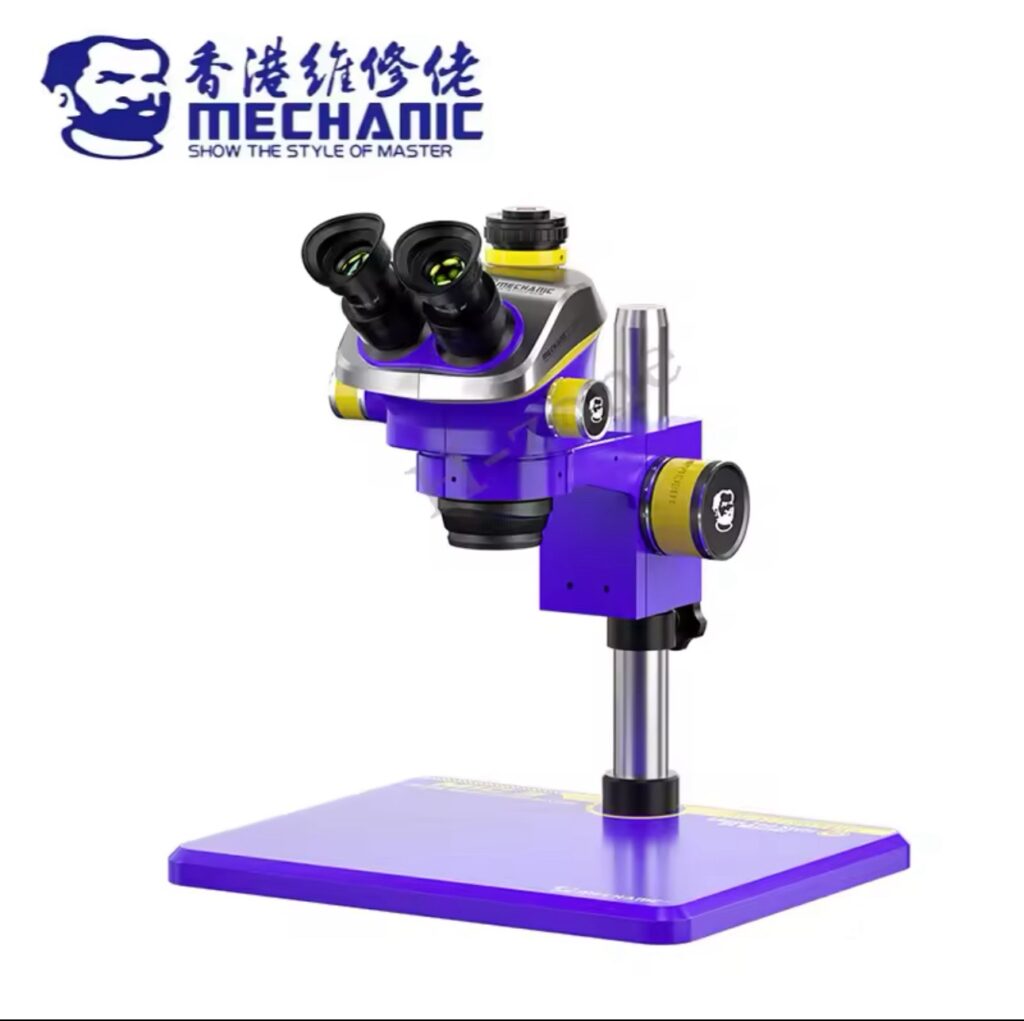

The MECHANIC Mic3 B11 is a high-performance magnification tool designed for precision tasks in electronic repair, circuit board inspection, jewelry making, and other detailed work. Featuring a 7-50X continuous zoom, an HD observation platform, and a trinocular design, this microscope ensures outstanding clarity, versatility, and ease of use for professionals and enthusiasts alike.
The MECHANIC Mic3 B11 offers an impressive 7-50X continuous zoom capability, allowing users to adjust the magnification seamlessly for detailed observations. This flexibility is ideal for examining tiny components on PCB boards, inspecting solder joints, or identifying micro-cracks in electronic circuits.

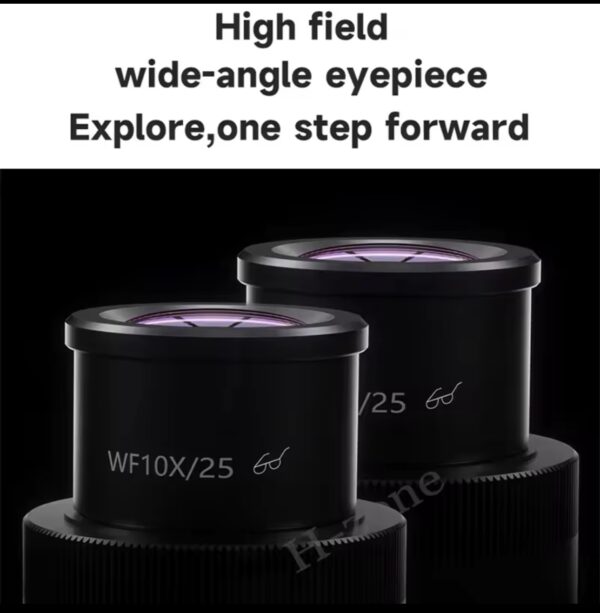

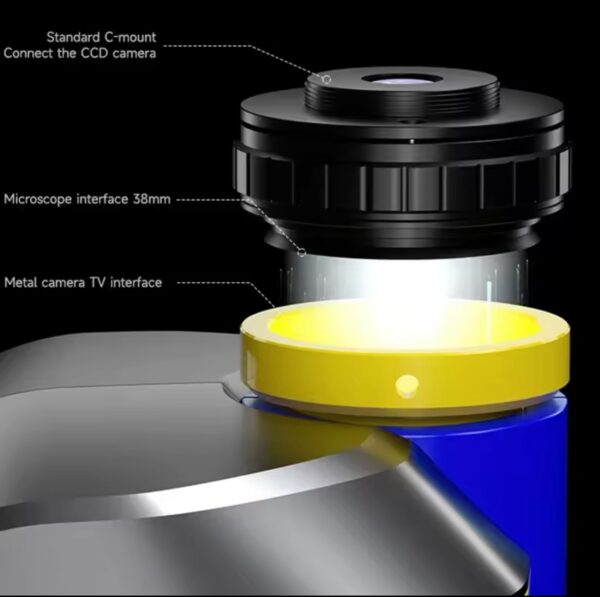

The trinocular structure includes two eyepieces for direct viewing and an additional camera port for connecting an HD camera. This design allows users to capture high-resolution images and video recordings for documentation, training, or analysis. The HD output ensures crystal-clear visuals that enable precise work on intricate details.

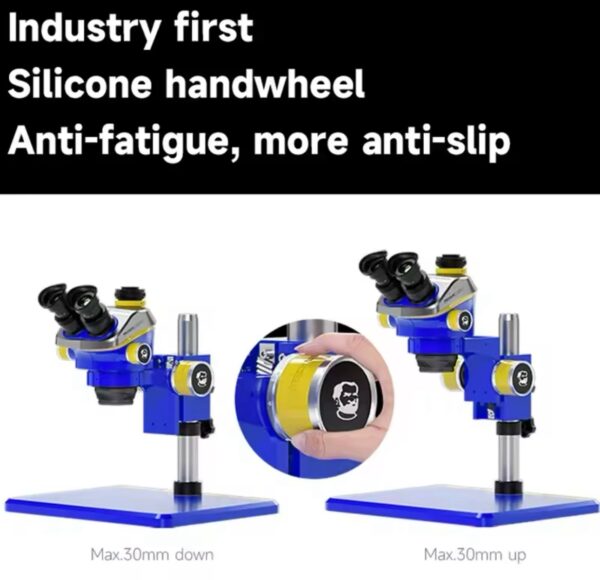

Equipped with high-quality optics, the Mic3 B11 delivers sharp, distortion-free images. The wide field of view and deep depth of field provide comprehensive visibility for tasks requiring extreme precision. The microscope’s fine focus adjustment ensures smooth, accurate focusing even on minuscule objects.
The MECHANIC Mic3 B11 features a durable, anti-slip observation platform that securely holds objects in place during examination. The platform’s design facilitates stable positioning for delicate soldering, micro-welding, or intricate repairs. This stability is essential when working on fragile components like IC chips or BGA reballing.
The integrated LED illumination system provides consistent, adjustable lighting to suit varying work conditions. The adjustable brightness feature enhances visibility in dimly lit workspaces and prevents glare or shadow interference during detailed inspections.
The MECHANIC Mic3 B11 is widely used in industries such as:
Its compatibility with various camera systems and accessories makes it adaptable for multiple applications.
The MECHANIC Mic3 B11 Industrial Trinocular Stereo Microscope is an indispensable tool for professionals requiring precise visual inspection and observation. With its powerful zoom range, high-definition capabilities, and durable design, it stands as a reliable solution for electronic repair, scientific exploration, and intricate craftsmanship. Whether you’re a technician, researcher, or hobbyist, the Mic3 B11 ensures accuracy, clarity, and ease of use in every task.
