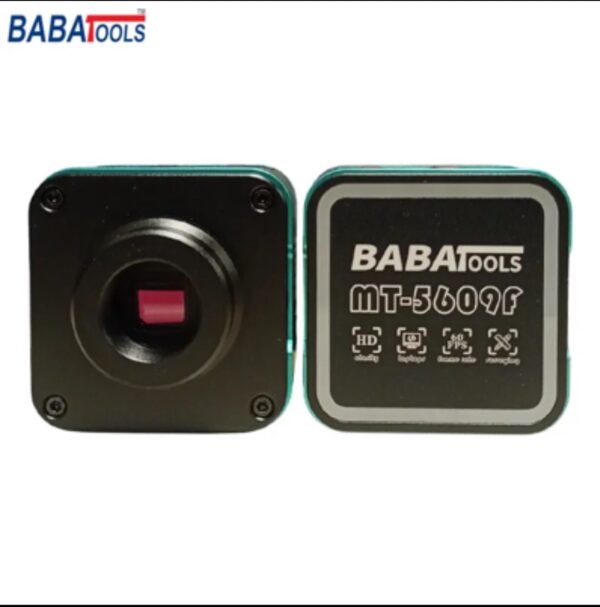

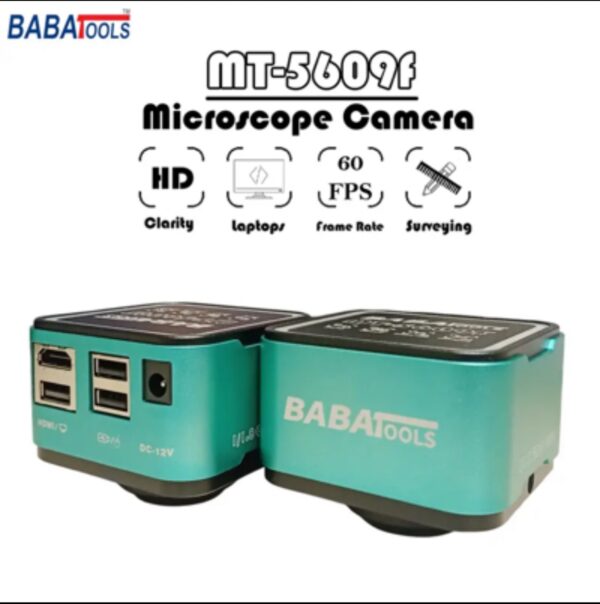

The BABA MT-5609F HD Microscope Camera is a high-performance industrial imaging solution designed to deliver crisp, real-time visuals for precision inspection tasks. With its 60 frames per second (FPS) HDMI output, this camera ensures smooth, lag-free video performance, making it ideal for electronics repair, PCB inspection, and precision manufacturing. Whether you’re a technician, researcher, or educator, the BABA MT-5609f HD Microscope provides superior image clarity and user-friendly operation for optimal results.
The BABA MT-5609f HD Microscope offers 1080P Full HD resolution at an impressive 60FPS, ensuring sharp, detailed visuals with fluid motion. This high frame rate minimizes lag, delivering real-time feedback crucial for tasks like micro-soldering, BGA rework, and delicate component repairs.
Equipped with a dedicated HDMI output, the MT-5609F can connect directly to monitors or displays without the need for a computer. This feature streamlines workflow in industrial settings, allowing immediate observation on large screens for improved clarity and group discussions.
The integrated high-performance CMOS sensor ensures exceptional image quality with vibrant colors, sharp contrast, and minimal noise. This sensor enhances visibility in low-light conditions, ensuring clear observation of intricate details.
With its optimized image processing engine, the BABA MT-5609f HD Microscope offers zero delay during live observation, ensuring technicians can inspect components, trace circuits, or monitor soldering processes with precision.
The camera supports on-screen measurement tools, enabling users to calculate dimensions, angles, and distances directly on the display. This feature is essential for precision inspection, quality control, and research applications.
The BABA MT-5609F offers customizable image settings, including:
Brightness Adjustment
Contrast Enhancement
Color Saturation Control
Sharpness and Focus Settings
These controls ensure optimal image clarity across a variety of working environments.
Designed to integrate seamlessly with various microscope types, the MT-5609F is compatible with trinocular microscopes, stereo microscopes, and other industrial imaging setups. Its universal mounting design makes installation quick and straightforward.
Crafted from durable materials, the BABA MT-5609f HD Microscope is built to withstand continuous usage in demanding workspaces such as electronics labs, manufacturing floors, and repair stations.
The camera’s intuitive interface allows for easy operation with on-screen controls accessible via a connected monitor. Users can adjust settings, switch display modes, and capture images or video with minimal effort.
The BABA MT-5609F HD Microscope Camera is designed for precision tasks that require high-definition imaging and real-time observation. Ideal applications include:
Electronics Repair & PCB Inspection: Enables clear visualization of micro-solder joints, IC chips, and circuit traces.
SMD Soldering and Rework: The smooth 60FPS display ensures technicians can accurately position soldering tools in real-time.
Quality Control in Manufacturing: Allows inspectors to assess product defects, surface finishes, and structural integrity with precision.
Research and Laboratory Use: Ideal for biological, metallurgical, and material science studies requiring high-detail imaging.
Jewelry and Watch Repair: Provides excellent detail for intricate mechanisms and gemstone assessments.
Resolution: 1920 x 1080 (Full HD 1080P)
Frame Rate: 60FPS (HDMI Output)
Image Sensor: High-performance CMOS sensor

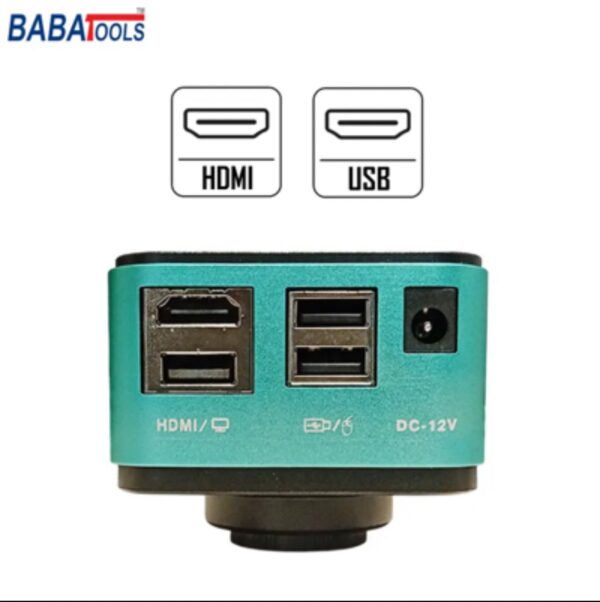

Output Interface: HDMI (direct display support)
Image Controls: Brightness, contrast, color, sharpness adjustment
Measurement Tools: On-screen measurement for angles, distances, and areas
Camera Mount Compatibility: Standard C-mount interface for microscope integration
Power Supply: DC 12V input for stable performance
Material: Durable metal casing for industrial durability
The BABA MT-5609f HD Microscope excels in providing sharp, detailed images with real-time performance, ensuring seamless inspection workflows. Its 60FPS HDMI output ensures no delays or lag, making it a standout choice for professionals handling delicate repairs, precision soldering, or intricate assembly tasks.
Key benefits include:✅ Real-time video output with no latency✅ High-definition visuals for precise detail recognition✅ Robust build quality for industrial durability✅ Easy setup with HDMI plug-and-play connectivity✅ Ideal for both individual work and collaborative troubleshooting
BABA MT-5609F HD Microscope Camera
Power Adapter (DC 12V)
HDMI Cable for Direct Connection
User Manual for Setup and Operation
Mount the Camera: Attach the BABA MT-5609f HD Microscope to your microscope’s trinocular port or C-mount adapter.
Connect to Display: Use the included HDMI cable to link the camera to your monitor.
Power On: Connect the power adapter to activate the camera.
Adjust Settings: Fine-tune brightness, contrast, and sharpness directly using the on-screen controls for optimal clarity.
With its plug-and-play design, setup is quick and hassle-free, making it perfect for busy workspaces.
The BABA MT-5609F HD Microscope Camera combines superior imaging performance, smooth 60FPS output, and industrial-grade durability to meet the demands of precision work. Whether you’re performing detailed electronics repair, conducting quality control in manufacturing, or exploring scientific research, this camera delivers exceptional clarity and responsiveness.
Invest in the BABA MT-5609F to enhance your inspection capabilities, improve efficiency, and ensure accurate observations in every task.
More Products : https://gsmtoolsindia.com/
Official Website : https://www.mechanichk.com/
