₹300 Original price was: ₹300.₹110Current price is: ₹110.
Please read the manual before use.
This section sets the foundation for a safe repair environment. Before a single tool touches a phone, the workspace must be prepared to protect both the technician and the sensitive electronics.
Electrostatic Discharge (ESD) Safety: Instructions on grounding yourself using an ESD wrist strap and working on an anti-static mat to prevent frying microchips with static electricity.
Safety Gear: Protocols for wearing safety glasses (critical when prying shattered glass) and working in a well-ventilated area (crucial for adhesive fumes and soldering smoke).
Lighting and Magnification: Recommendations for high-intensity desk lamps and digital microscopes or magnifying visors for viewing microscopic components.
The most physically risky part of mobile repair is opening the device without cracking the glass screen or ripping delicate internal ribbon cables.
Thermal Tools (Heat Guns & Heat Pads): Instructions on setting precise temperatures (typically 80°C to 100°C) to soften heavy factory adhesives without damaging the display.
Suction & Leverage Tools: Proper placement of heavy-duty suction cups and screen prying fixtures to safely create an initial gap.
Separation Media (Plastic Picks & Spudgers): Techniques for slicing through glue lines using plastic opening picks without inserting them too deeply into the frame.
Modern smartphones use dozens of tiny, highly specialized screws and brackets to hold internal shields in place.
Precision Driver Identification: A breakdown of specialized micro-bits, detailing exactly when to use Pentalobe (iPhones), Tri-point/Y-type (internal Apple shields), Torx/Torx Security (Android devices), and standard Micro-Phillips.
Organization Systems: Guidelines for using magnetic project mats or screw organizing trays to map out screw locations, preventing the catastrophic error of “long-screw damage.”
Gripping & Placer Tools: How to utilize straight and curved ESD-safe tweezers to safely disconnect fragile ZIF (Zero Insertion Force) and coaxial cable connectors.
This section transitions the user from basic mechanical teardowns to logical troubleshooting when a phone won’t turn on or charge.
Digital Multimeter (DMM): Step-by-step instructions on setting up the meter for DC voltage testing (checking battery and charging port output) and continuity/diode mode (hunting for short circuits).
DC Power Supply: How to boot a phone motherboard without a battery attached, interpreting current draw (Amperage) to diagnose power management failures.
USB Ammeter / Tester: Utilizing an inline USB safety tester plugged into the charging block to instantly diagnose if a phone is pulling normal current ($1A$ to $2A$) or completely dead ($0A$).
For advanced users handling board-level fixes like swapping out charging ports, audio IC chips, or FPC connectors.
Soldering Iron Stations: Temperature calibration tips, tip selection (chisel vs. conical), and maintenance/tinning procedures.
Hot Air Rework Stations: Managing the delicate balance of air flow and temperature to safely desolder multi-pin components without blowing adjacent surface-mount resistors off the board.
Chemical Consumables: Proper application of rosin flux (to clean joints and fluidize solder), solder wick (braided wire to remove old solder), and low-melt solder alloys.
The final step is cleaning up the internal cavity and sealing the device back up to its original structural integrity.
Chemical Cleaners: Safe usage of 99% Isopropyl Alcohol (IPA) to dissolve old glue residues, flux oils, and clean mild liquid damage.
Liquid Adhesives vs. Tape: Instructions on applying specialized acrylic glues (like B-7000) versus applying precision-cut double-sided adhesive gaskets.
Camping and Curing: Utilizing specialized display repair clamps to apply even, steady pressure while the new adhesives cure over 15 to 30 minutes.
Shipping India
Guaranteed Satisfaction
Safe Checkout

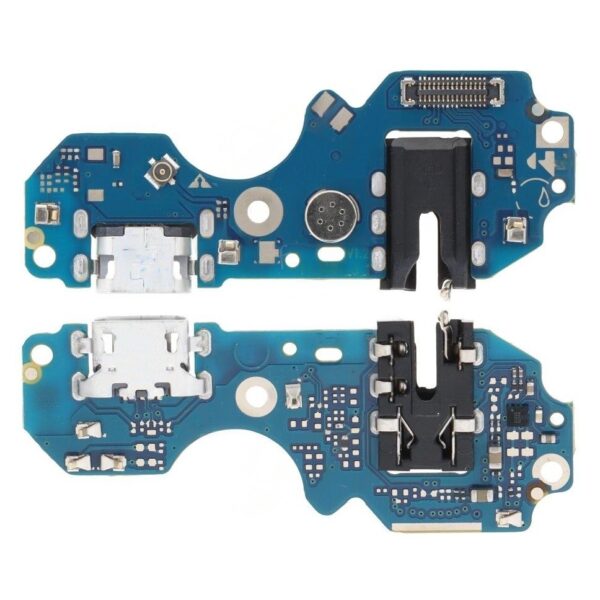

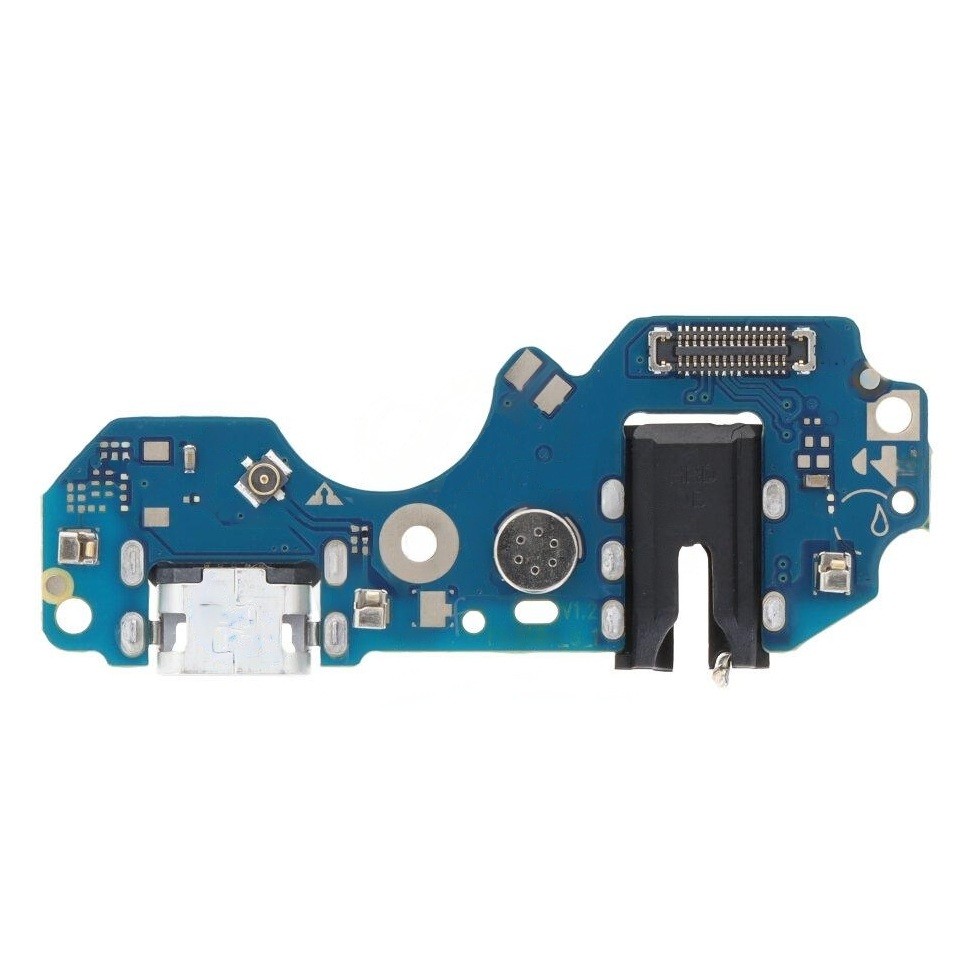

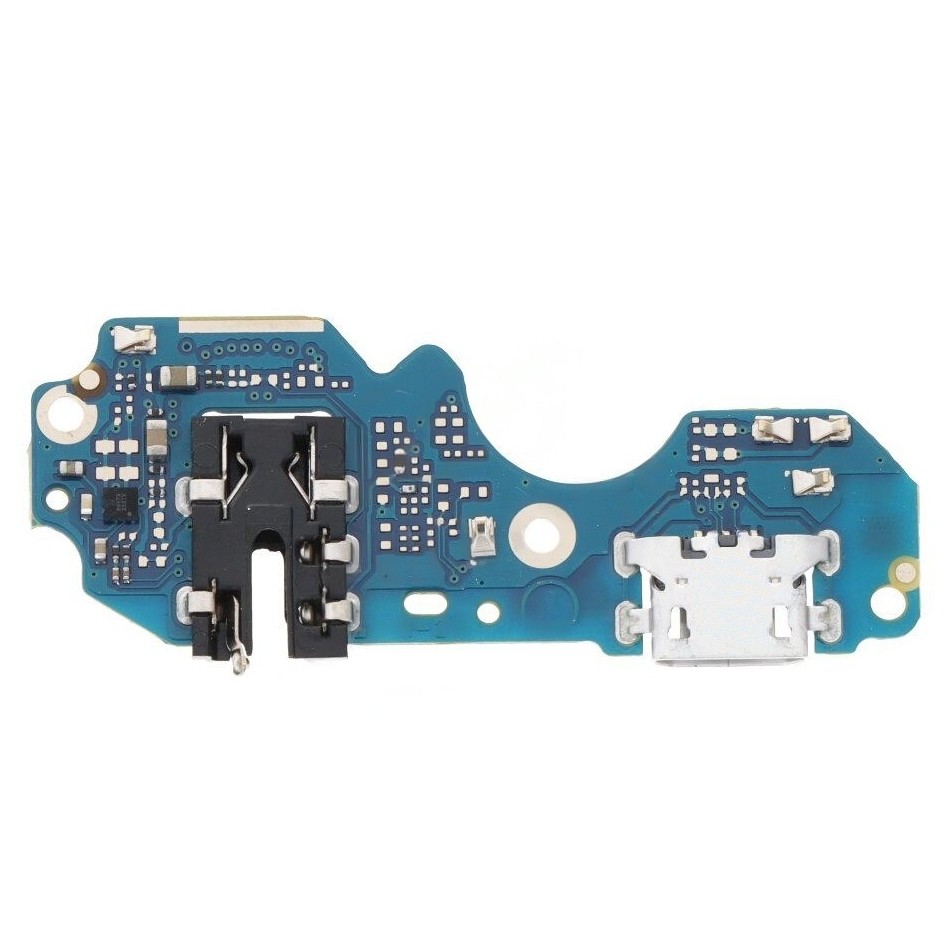

The Infinix Smart 6 Charging Connector Flex is a vital internal component designed to restore or maintain optimal charging and data transfer functionality for the Infinix Smart 6 smartphone. This flex cable module ensures stable connectivity between the USB Type-C or micro USB charging port and the main motherboard, making it an essential part of any repair or replacement process.
Whether you are a professional technician or a DIY repair enthusiast, understanding the precise specifications and functionality of this component is key to successful installation and long-term phone performance. Below is a comprehensive breakdown of its technical features, functions, compatibility, and benefits.
Product Type: Charging Connector Flex Cable
Model Compatibility: Specifically designed for Infinix Smart 6 (X6511/X6511B)
Connector Type: Micro USB (Type-B) port
Board Type: Integrated sub-board with mic, charging port, and vibration motor connector
Material: High-quality flexible PCB (Printed Circuit Board)
Color: Typically black or dark blue PCB with silver/gold contact points
Dimensions: Precisely cut to match the Infinix Smart 6 internal housing layout
Weight: Lightweight design (approx. 3–5 grams)
Mounting Type: Screw and clip-based mounting compatible with OEM layout
Included Components:
Charging port
Microphone (soldered on-board)
Flex cable with connector tip
Mounting holes and connector terminals
The Infinix Smart 6 Charging Connector Flex performs several crucial functions:
Charging: Acts as the bridge between the power source and the phone’s battery. It ensures safe and stable power transmission.
Data Sync: Facilitates data transfer when connected to a computer or USB accessory.
Microphone Support: Contains an integrated microphone, allowing for voice input and clear audio during calls.
Vibration Motor and Accessory Connection: Connects to other sub-components like the vibration motor, enabling alert functions.
This charging flex is designed specifically for the Infinix Smart 6 smartphone and is not compatible with other models, even within the Smart series. Variants supported include:
Infinix Smart 6 (X6511)
Infinix Smart 6 (X6511B)
It is crucial to confirm the model number of the device before installation to avoid compatibility issues.
Tools Required: Precision screwdriver set, plastic pry tools, tweezers, suction cup, and optionally a heat gun for easier back cover removal.
Installation Time: Approximately 15–30 minutes for experienced technicians.
Caution: Always power off the device and disconnect the battery before installation. Electrostatic discharge (ESD) precautions are recommended to protect internal components.
Constructed using premium-grade flexible PCB material, this charging flex is engineered for durability and stable performance. The charging port is reinforced for resistance to wear caused by frequent cable insertion. The solder joints and terminals are precision-soldered to ensure longevity and minimal signal loss.
Replacing the charging connector flex can resolve the following issues:
Device not charging or charging slowly
No USB data detection when connected to a computer
Phone not recognizing chargers or accessories
Unresponsive or faulty microphone during calls
Vibration function failure
Using a high-quality replacement like this ensures that your Infinix Smart 6 retains its factory-like performance. Inferior components may lead to short circuits, weak port strength, and frequent disconnections.
The Infinix Smart 6 Charging Connector Flex usually comes in anti-static packaging to protect against electrostatic damage. It is readily available from mobile spare parts suppliers, repair stores, and online marketplaces.
The Infinix Smart 6 Charging Connector Flex is a small yet crucial component for maintaining the full functionality of your smartphone. Whether you’re fixing a non-charging issue or restoring audio clarity during calls, this flex cable ensures reliable performance. Choose a high-quality version for seamless integration, long-term durability, and full compatibility with the original device layout.
Engineered specifically for the Infinix Smart 6, this charging connector flex guarantees exceptional compatibility and performance. It ensures that your device charges efficiently without overheating or damaging the internal components. Say goodbye to slow charging times and frequent interruptions with this reliable connector. Upgrade your charging experience and enjoy the freedom of seamless power without compromise.
