Please read the manual before use.
This section sets the foundation for a safe repair environment. Before a single tool touches a phone, the workspace must be prepared to protect both the technician and the sensitive electronics.
Electrostatic Discharge (ESD) Safety: Instructions on grounding yourself using an ESD wrist strap and working on an anti-static mat to prevent frying microchips with static electricity.
Safety Gear: Protocols for wearing safety glasses (critical when prying shattered glass) and working in a well-ventilated area (crucial for adhesive fumes and soldering smoke).
Lighting and Magnification: Recommendations for high-intensity desk lamps and digital microscopes or magnifying visors for viewing microscopic components.
The most physically risky part of mobile repair is opening the device without cracking the glass screen or ripping delicate internal ribbon cables.
Thermal Tools (Heat Guns & Heat Pads): Instructions on setting precise temperatures (typically 80°C to 100°C) to soften heavy factory adhesives without damaging the display.
Suction & Leverage Tools: Proper placement of heavy-duty suction cups and screen prying fixtures to safely create an initial gap.
Separation Media (Plastic Picks & Spudgers): Techniques for slicing through glue lines using plastic opening picks without inserting them too deeply into the frame.
Modern smartphones use dozens of tiny, highly specialized screws and brackets to hold internal shields in place.
Precision Driver Identification: A breakdown of specialized micro-bits, detailing exactly when to use Pentalobe (iPhones), Tri-point/Y-type (internal Apple shields), Torx/Torx Security (Android devices), and standard Micro-Phillips.
Organization Systems: Guidelines for using magnetic project mats or screw organizing trays to map out screw locations, preventing the catastrophic error of “long-screw damage.”
Gripping & Placer Tools: How to utilize straight and curved ESD-safe tweezers to safely disconnect fragile ZIF (Zero Insertion Force) and coaxial cable connectors.
This section transitions the user from basic mechanical teardowns to logical troubleshooting when a phone won’t turn on or charge.
Digital Multimeter (DMM): Step-by-step instructions on setting up the meter for DC voltage testing (checking battery and charging port output) and continuity/diode mode (hunting for short circuits).
DC Power Supply: How to boot a phone motherboard without a battery attached, interpreting current draw (Amperage) to diagnose power management failures.
USB Ammeter / Tester: Utilizing an inline USB safety tester plugged into the charging block to instantly diagnose if a phone is pulling normal current ($1A$ to $2A$) or completely dead ($0A$).
For advanced users handling board-level fixes like swapping out charging ports, audio IC chips, or FPC connectors.
Soldering Iron Stations: Temperature calibration tips, tip selection (chisel vs. conical), and maintenance/tinning procedures.
Hot Air Rework Stations: Managing the delicate balance of air flow and temperature to safely desolder multi-pin components without blowing adjacent surface-mount resistors off the board.
Chemical Consumables: Proper application of rosin flux (to clean joints and fluidize solder), solder wick (braided wire to remove old solder), and low-melt solder alloys.
The final step is cleaning up the internal cavity and sealing the device back up to its original structural integrity.
Chemical Cleaners: Safe usage of 99% Isopropyl Alcohol (IPA) to dissolve old glue residues, flux oils, and clean mild liquid damage.
Liquid Adhesives vs. Tape: Instructions on applying specialized acrylic glues (like B-7000) versus applying precision-cut double-sided adhesive gaskets.
Camping and Curing: Utilizing specialized display repair clamps to apply even, steady pressure while the new adhesives cure over 15 to 30 minutes.

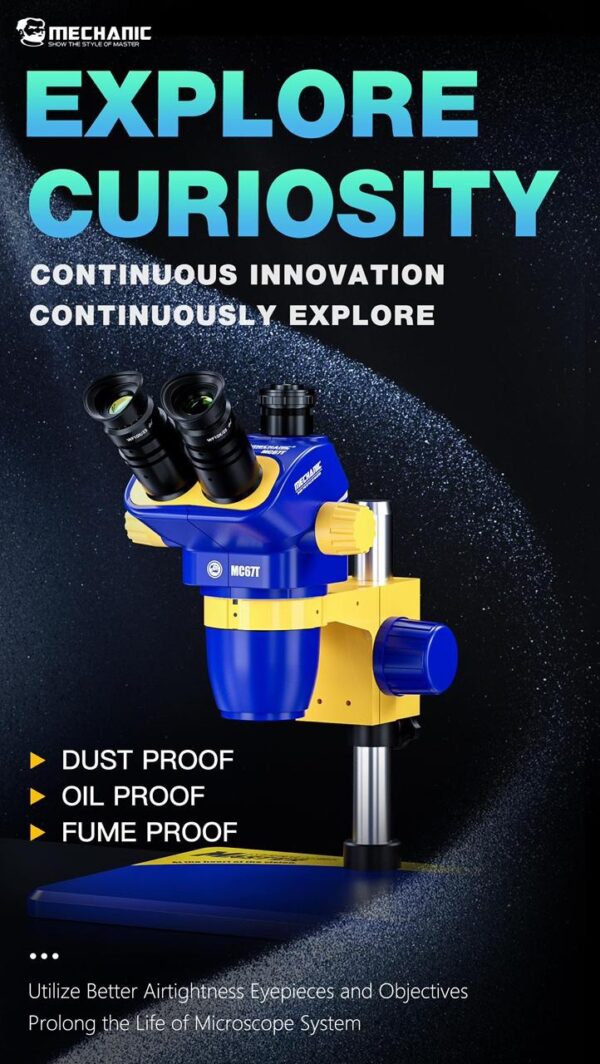

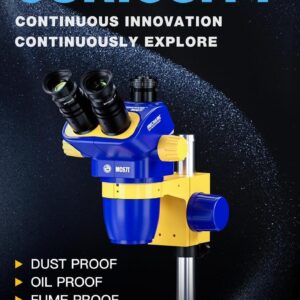

The Mechanic Ms67T 67x microscope is a sophisticated and versatile trinocular instrument, suitable for professionals and educational settings alike. Engineered to deliver exceptional optical performance, the microscope features a commendable zoom range of 67X, allowing users to explore samples with remarkable clarity and depth. This comprehensive magnification capability makes it particularly advantageous for observing intricate details in a variety of applications. Mechanic Ms67T 67x
One of the standout aspects of the MS67T is its robust construction. Built with high-quality materials, this microscope is designed to withstand regular use in both laboratory and field environments. Furthermore, its ergonomic design ensures comfort during prolonged observations, reducing user fatigue significantly. This factor is crucial for researchers and educators who may spend extended periods examining specimens under the microscope. Mechanic Ms67T 67x

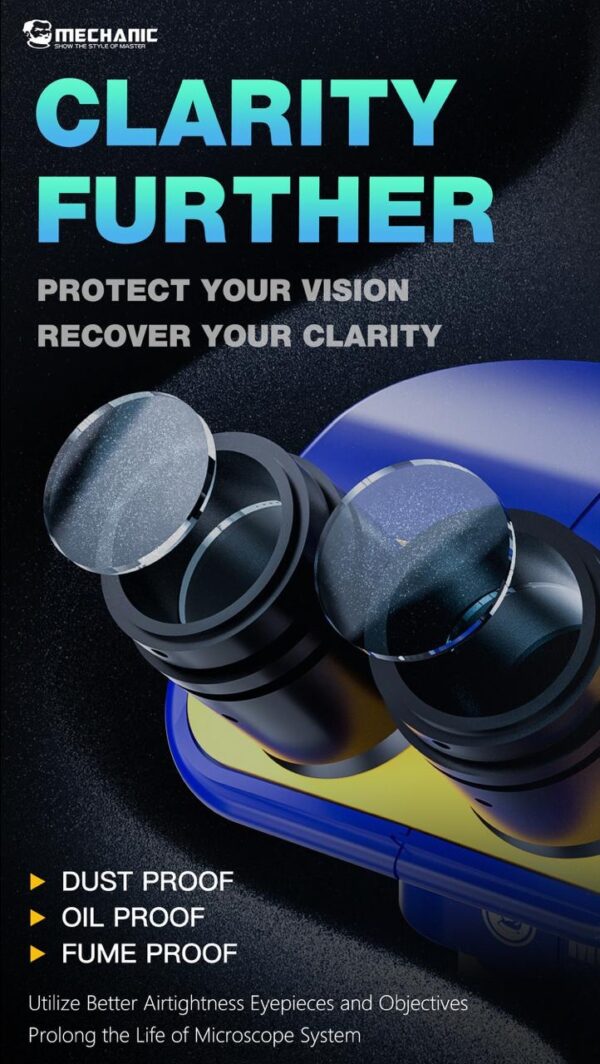

The trinocular head of the MS67T is specifically designed to accommodate additional cameras, enabling users to capture high-resolution images for documentation and analysis. This feature not only enhances the versatility of the microscope but also allows for seamless integration into digital workflows, making it suitable for research, teaching, and quality control processes. Mechanic Ms67T 67x
The Mechanic MS67T is ideally suited for a wide range of applications, including biological studies, material analysis, and electronics inspection. Its ability to provide detailed imagery makes it an invaluable tool for biologists examining cellular structures, materials scientists investigating the properties of materials, and electronics technicians inspecting circuit boards. The remarkable adaptability of this microscope to various fields underscores its significance in enhancing research and educational outcomes. Mechanic Ms67T 67x
The Mechanic MS67T microscope, featuring a 67X zoom capability, offers a wide range of benefits and applications across various fields, including biology, mechanical engineering, and educational settings. This advanced microscope allows users to observe both biological specimens and intricate mechanical parts in detail, enhancing the accuracy of analyses. The high magnification level ensures that minute details are not only visible but can be carefully examined, which is crucial in research and quality control tasks.
Users frequently report improved experiences with the MS67T, particularly regarding its image clarity. The optics of this microscope enable vivid and true-to-life representations of the observed objects, which is essential for both documentation and educational purposes. Whether utilized for scientific research or technical inspections, the MS67T provides high-resolution images that facilitate thorough analyses and more reliable results.
Another significant feature of the MS67T is its trinocular design. This design allows for simultaneous viewing and digital documentation, making it easier for users to capture images and video of their findings. Consequently, this capability is particularly advantageous for laboratories, educational institutions, and repair shops, where visual documentation plays a vital role in conveying information and ensuring accurate records are maintained.
To maximize the utility of the Mechanic MS67T microscope, users are encouraged to familiarize themselves with its various features and settings. For novice users, starting with a lower magnification can help in building confidence before progressing to higher zoom levels. Experienced users should leverage the trinocular outlet for capturing images, ensuring they adjust the lighting appropriately for optimal visibility. By understanding these practical tips and employing effective techniques, users can enhance their observational skills and benefit fully from this remarkable microscope.
