MECHANIC P40 Stainless Steel Probe Test Lead Wire

0 customer reviews Sold: 0

Original price was: ₹600.Current price is: ₹299.


Original price was: ₹600.Current price is: ₹299.

Add to cart
Buy Now
  • Size Guide

    Size Guide

    SIZE CHEST WAIST HIPS
    XS 34 28 34
    S 36 30 36
    M 38 32 38
    L 40 34 40
    XL 42 36 42
    2XL 44 38 44
  • Delivery Return

    User Guide

    Please read the manual before use.

    1. Safety Warning
    • The information in this document won't be modified or extended in accordance with any notice.
    • The watch should be charging 2 hours at least before use. Security Code
    • The original code is 1122,this code can prevent your watch in use by others without your permission.
    • Please change the original code to insure your personal information safe.

    2. Product details

    • Power button: Power On/Off；Awaken/turn off screen；Back to main menu
    • Touch screen: each function (main menu) will be shown and displayed on capacitive touch screen

    3. Clock Display

    • Method 1: Power on, when the phone in clock mode, please click middle screen and set different clock interfaces if you like.
    • Method 2:Power on, Main menu: setting--phone setting--standby menu display -- unlock selection.

    4. Product quick use

    • Download the Sync software
    • Install and use the Sync software
  • Ask a Question

    Ask a Question


    MECHANIC P40 Stainless Steel Probe Test Lead Wire

    Original price was: ₹600.Current price is: ₹299.
Categories: , , Tag: Brand:
Guaranteed Safe Checkout

Free

Worldwide
Shopping

100%

Guaranteed
Satisfaction

30 Days

Guaranteed
Money Back

MECHANIC P40 Stainless Steel Probe Test Lead Wire

Durable Stainless Steel Build

The MECHANIC P40 Stainless Steel Probe Test Lead Wire is crafted with high-grade stainless steel, ensuring strength, reliability, and long-lasting performance. Designed for precision diagnostics, this test lead wire guarantees consistent results in even the most demanding environments.

Seamless Connectivity and Precision

Streamline your testing and diagnostic processes with superior conductivity and accurate connections. The MECHANIC P40 Stainless Steel Probe Test Lead Wire Probe provides optimal contact points, making it ideal for professional mechanics, technicians, and hobbyists seeking reliable performance.

Versatile and Easy to Use

Whether you’re troubleshooting electrical systems or performing intricate repairs, the MECHANIC P40 Stainless Steel Probe Test Lead Wire is versatile enough to meet a wide range of applications. Simplify your workflow with a tool that promises efficient functionality and ease of use.

The MECHANIC P40 Stainless Steel Probe Test Lead Wire is a professional-grade diagnostic accessory engineering tool specifically designed for micro-electronics, mobile phone repair (BGA/IC), and precision hardware testing. Below is the comprehensive, exhaustive technical specification document detailed in a structured tabular format.

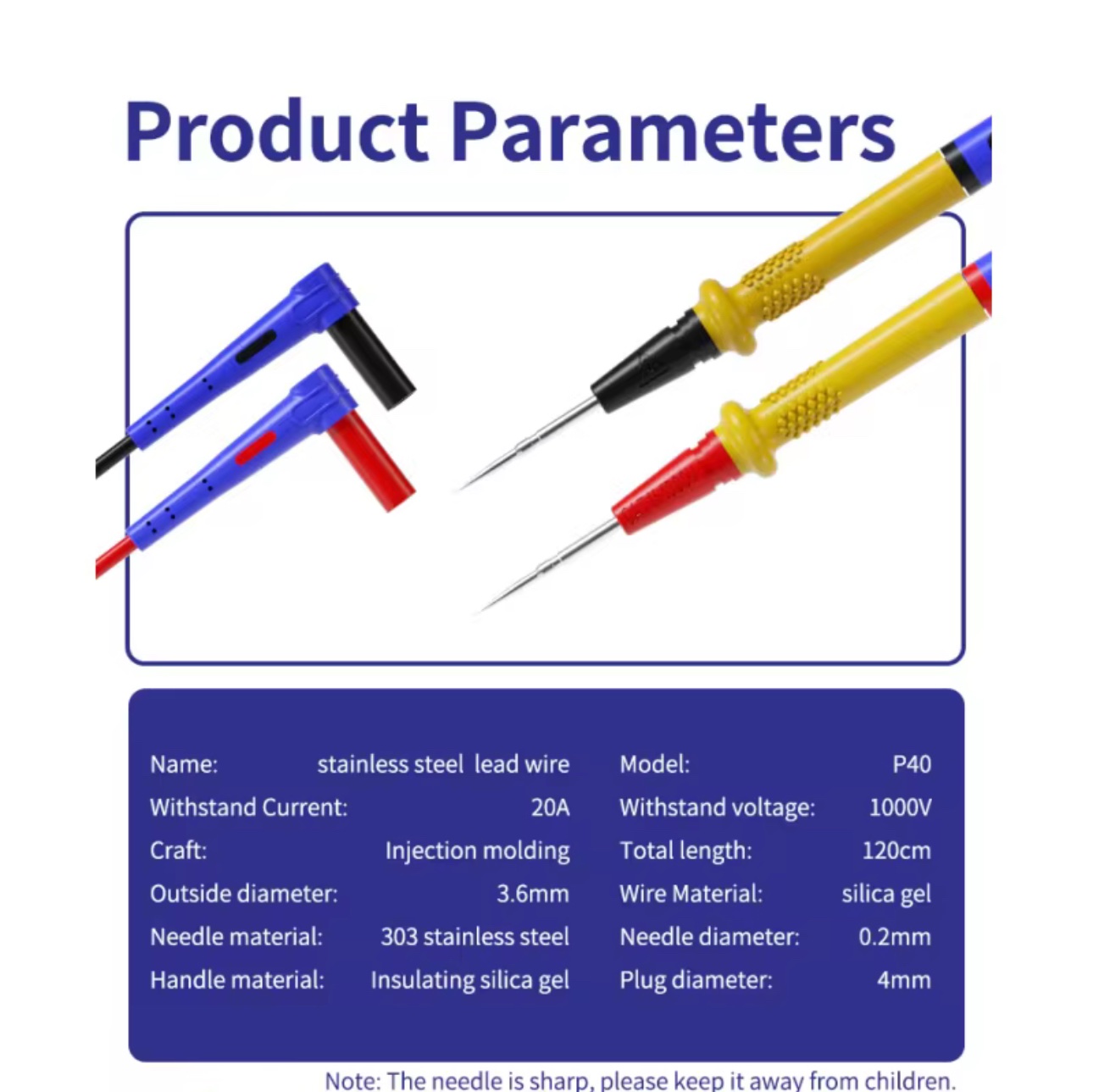

1. Primary Electrical & Mechanical Specifications

Specification Metric Technical Parameters & Ratings Practical Application Significance
Model Designation MECHANIC P40 Stainless Steel Probe Test Lead Wire Official manufacturing code for inventory tracking and compatibility matching.
Maximum Withstand Voltage 1000V DC / AC Peak High-voltage ceiling rating allowing safe operation on main electrical lines and automotive circuitry.
Maximum Current Rating 20A (Amperes) Sustained current tolerance preventing lead overheating during high-amp load testing.
Safety Certification Class CAT I 1000V / CAT II Compliant Meets rigorous safety guidelines ensuring isolation protection against transient voltage spikes.

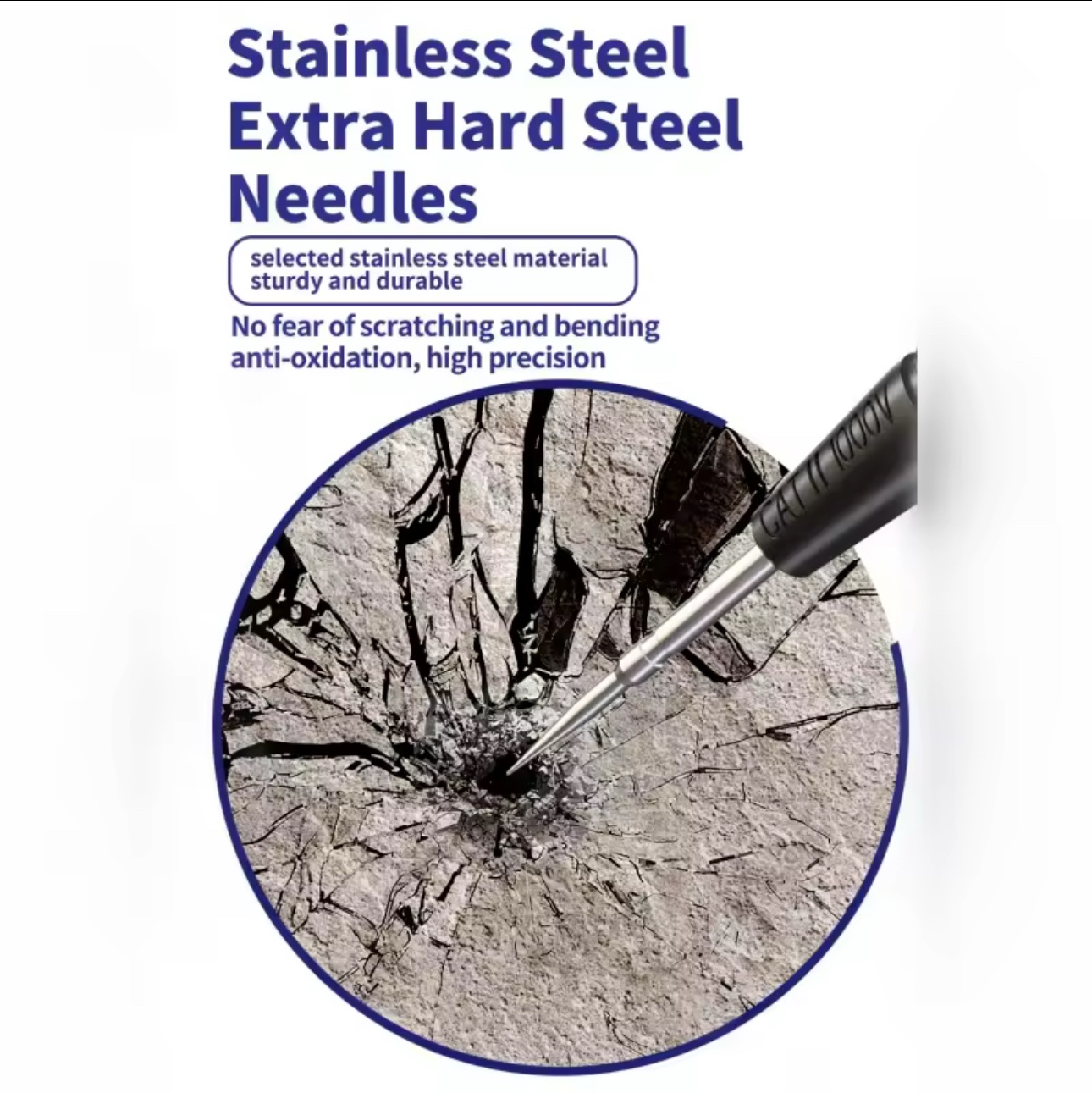

Needle Tip Type Ultra-Sharp Extra-Hard Tapered Needle Prevents the probe from slipping off micro-soldering pads and dense circuit components.
Needle Tip Diameter 0.2 mm (0.01 inches) Engineered exclusively for microscopic precision, probing dense BGA chips without bridging pins.

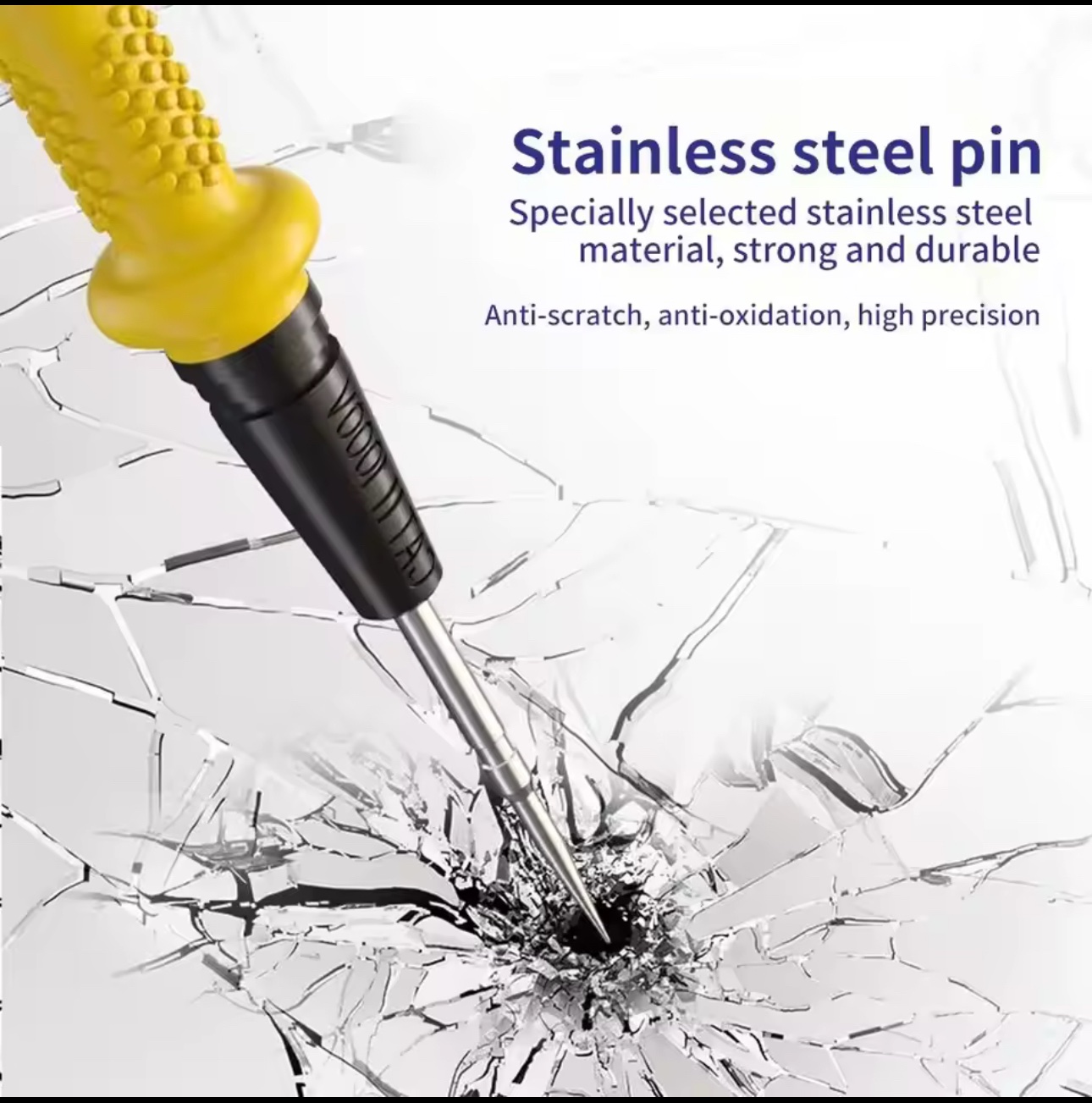

Needle Material Composition Grade 303 Premium Stainless Steel Delivers exceptional mechanical hardness; resists accidental tip bending and tip snapping.
Internal Conductor Core Bold, High-Purity Refined Copper Core Minimizes internal resistance ($R \approx 0$) ensuring stable electrical conductivity and rapid signal transfer.
Conductor Insulation Material High-Grade Flexible Silica Gel (Silicone) Offers premium protection against electrical arcing while preventing physical tangles.

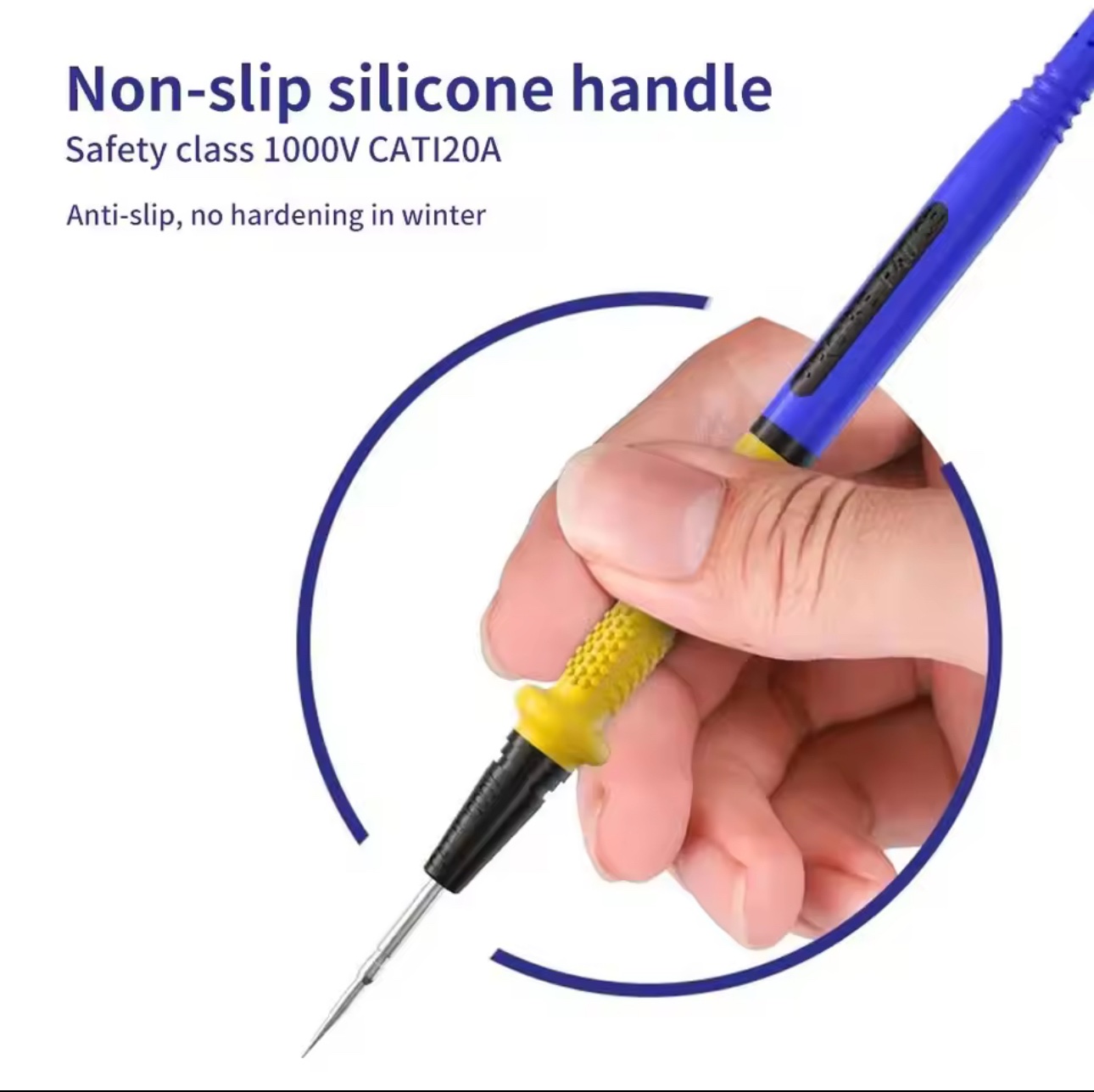

Handle Body Insulation Injection-Molded High-Dielectric Silicone Creates a thick barrier between the operator’s hand and internal live voltages.
Total Cable Length 120 cm (Approx. 47.2 inches) Provides long-reach flexibility across sprawling laboratory workbenches.
Wire Outer Diameter (OD) 3.6 mm Striking the optimal balance between high physical protection and cable flexibility.
Terminal Plug Diameter 4.0 mm Banana Plug (Standard) Standard universal sizing engineered to snugly fit roughly 99% of digital multimeters worldwide.
Terminal Plug Style Shrouded / Right-Angle Safety Plug Minimizes bare metal exposure at the meter terminal, preventing arc flashes.

2. Environmental, Material, and Manufacturing Tolerances

Parameter Category Specific Material Property / Value Operational Benefit & Durability Impact

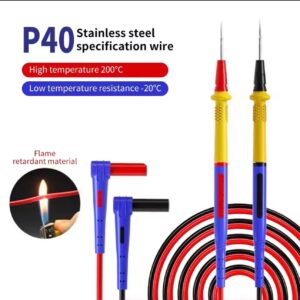

Thermal Upper Limit Resistant up to +200°C (Silicone Wire) Survives accidental, direct contact with hot soldering iron tips without melting or off-gassing.
Thermal Lower Limit Frost-Proof / Anti-Freezing down to -20°C The lead wire maintains its flexible, fluid characteristics without hardening or cracking in freezing climates.
Surface Hardness Rating High-Density Scratch-Resistant Steel The 303 Stainless Steel tip stands up to repeated abrasive scraping through conformal coatings.
Oxidation Profile Multi-Layer Anti-Oxidation Treatment Guarantees the micro-needle resists chemical rust and atmospheric tarnish, preserving contact clarity.
Flame Retardancy Self-Extinguishing Silicone Construction Extinguishes naturally when exposed to open combustion or short-circuit over-current events.
Manufacturing Process Multi-Stage Co-Injection Molding Integrates the handle seamlessly with the probe needle, eliminating structural structural wobble.
Ergonomic Profile Ribbed, Ergonomic Non-Slip Friction Zones Relieves hand fatigue during prolonged inspection cycles and prevents micro-slippage.
Bend Resistance Threshold High-Flex Strain Relief Sleeves Prevents internal copper fraying at critical junction points near the handle and the banana plug.

3. Application Spectrum and Compatibility Guidelines

Target Domain Component Compatibility Functional Implementation Advantage
Smart Device Diagnostics Apple iPhone, iPad, Android Motherboards Navigates hyper-dense logic boards to test capacitor rails, resistors, and SMD chips cleanly. MECHANIC P40 Stainless Steel Probe Test Lead Wire
BGA & IC Troubleshooting Ball Grid Array (BGA) and Integrated Circuits Slides cleanly between microscopic gap tolerances to diagnose individual ball power states. MECHANIC P40 Stainless Steel Probe Test Lead Wire
Automotive Electronics Sensor Diagnostics, ECU Mapping, Fuse Panels Pierces safely through thin oxidation or dirt layers on automotive relays and sensor pins. MECHANIC P40 Stainless Steel Probe Test Lead Wire
Consumer Electronics Laptop Motherboards, Game Consoles, Power Bricks Empowers repair technicians to find short-circuited rails across dense power delivery circuits.
Multimeter Interfacing Fluke, Keysight, Uni-T, Brymen, Mechanic Meters Operates natively across standard banana sockets without requiring intermediate adapter pins. MECHANIC P40 Stainless Steel Probe Test Lead Wire

4. Maintenance and Longevity Management

Maintenance Category Protocol & Handling Procedure Intended Performance Outcome
Tip Safety Storage Utilize included protective friction caps Eliminates accidental puncture injuries and preserves the sharp 0.2mm edge.
Chemical Cleaning Wipe down with $\ge 99\%$ Isopropyl Alcohol (IPA) Completely strips away residual solder flux, skin oils, and grease without degrading the silicone handle.
Physical Usage Caution Avoid high-impact prying actions Protects the 0.2mm ultra-fine tip from experiencing structural shear snapping.

MECHANIC P40 Stainless Steel Probe Test Lead Wire

More Products : https://gsmtoolsindia.com/

Follow us on https://whatsapp.com/channel/0029VaRI8ARBPzjaKiOwLT3i

Weight 0.3 kg
