Unmatched Accuracy for Electronics Work

The JTX A9 Curve Waveform Digital Multimeter for Electronics Repair PCB Testing Voltage Current Resistance Measurement offers precise and reliable measurement solutions, ideal for professionals and hobbyists tackling electronics repair, PCB testing, and detailed diagnostics. With advanced waveform technology, this tool ensures accuracy in measuring voltage, current, and resistance every time. JTX A9 Curve Waveform Digital Multimeter for Electronics Repair PCB Testing Voltage Current Resistance Measurement

Streamlined Testing for Efficiency

Designed with user-friendly interfaces and a robust build, the JTX A9 Digital Multimeter simplifies the testing process, enabling quick and efficient diagnostics. Whether you’re analyzing circuit behavior or identifying faults, this device empowers you with actionable insights in real-time.

A Versatile Companion for Projects

This multimeter caters to diverse electronic repair and testing needs, making it a versatile addition to your toolkit. From PCB evaluations to voltage checks, the JTX A9 Curve Waveform Digital Multimeter for Electronics Repair PCB Testing Voltage Current Resistance Measurement combines innovation with practicality, ensuring you have the edge in every project.

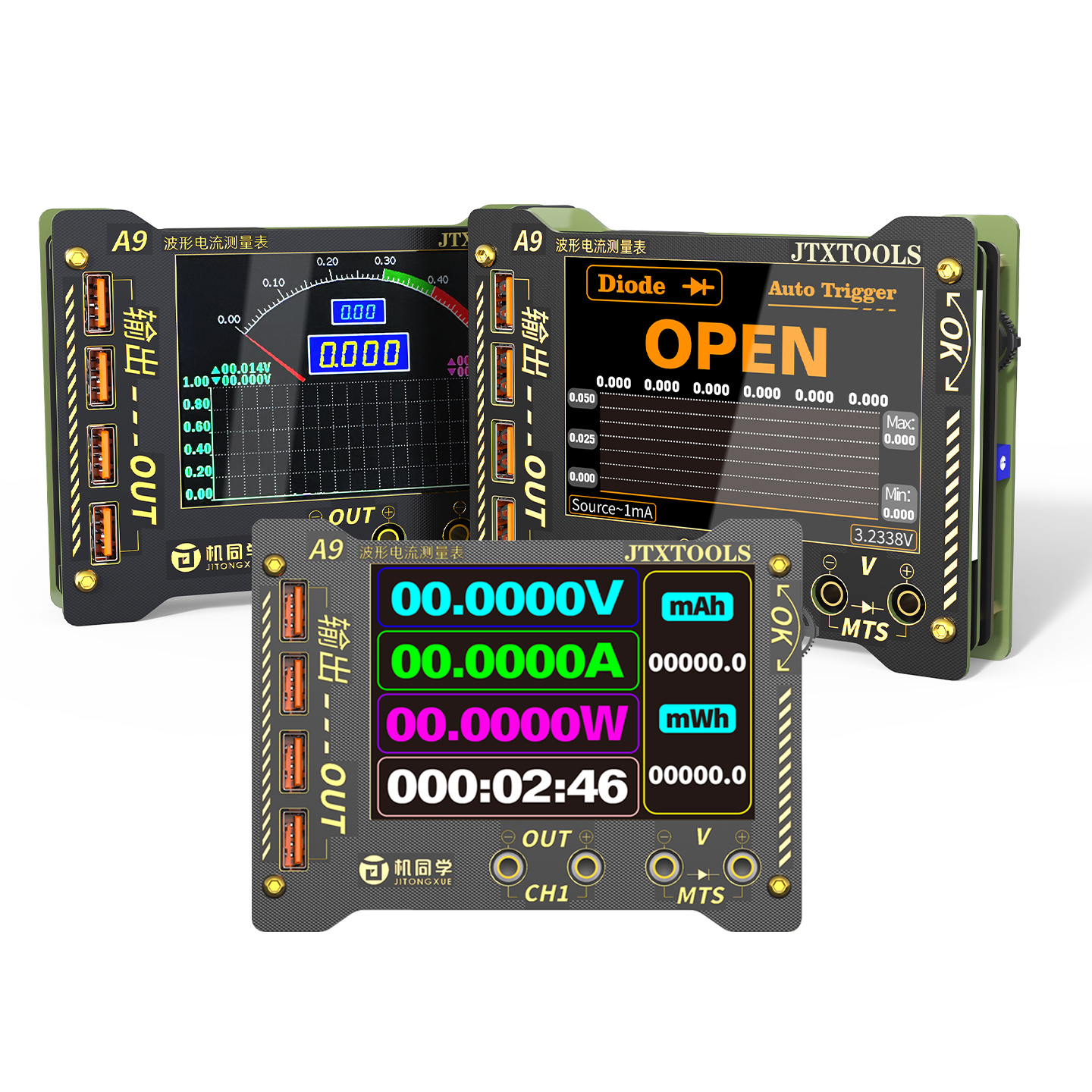

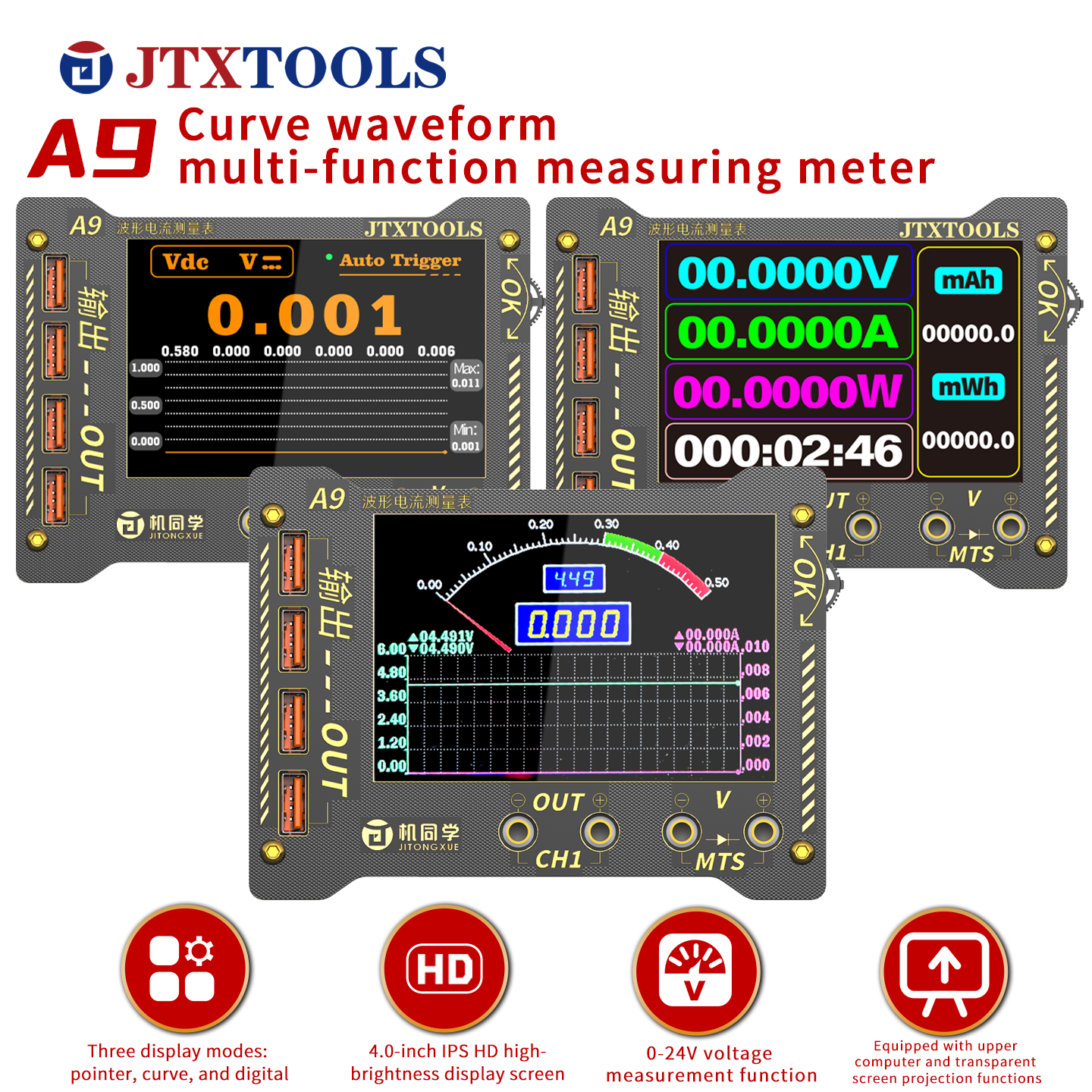

The JTX A9 Curve Waveform Digital Multimeter for Electronics Repair PCB Testing Voltage Current Resistance Measurement (also classified as a Waveform Multi-Function Measurement Meter) is a specialized diagnostic workstation engineered primarily for precision printed circuit board (PCB) troubleshooting, mobile phone diagnostics, and advanced electronics repair.

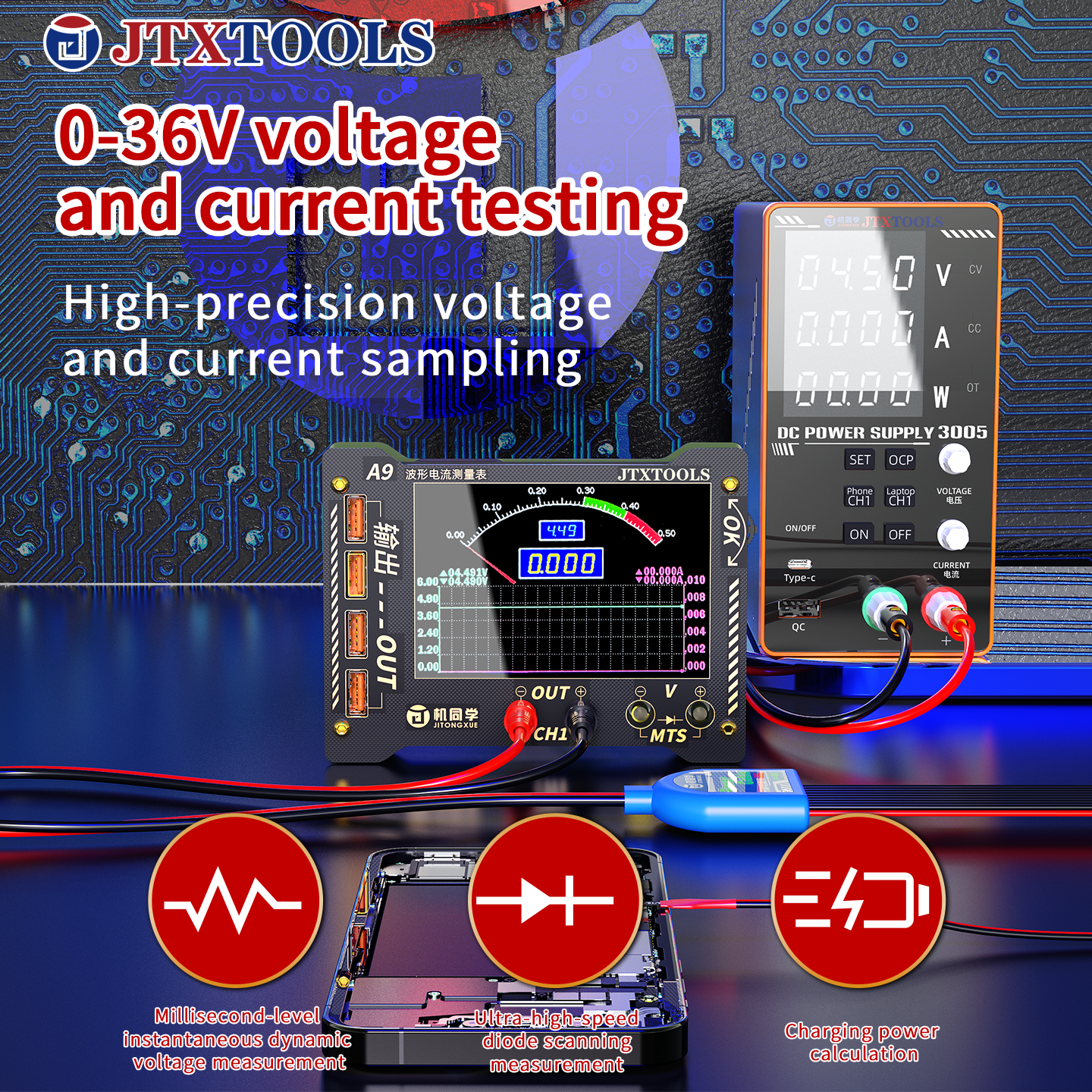

Unlike traditional digital multimeters that only display static numerical data, the JTX A9 Curve Waveform Digital Multimeter for Electronics Repair PCB Testing Voltage Current Resistance Measurement integrates high-speed, millisecond-level sampling with dynamic graphical visualization. This allows technicians to track transient voltage drops, current fluctuations, and diode leakage profiles in real time.

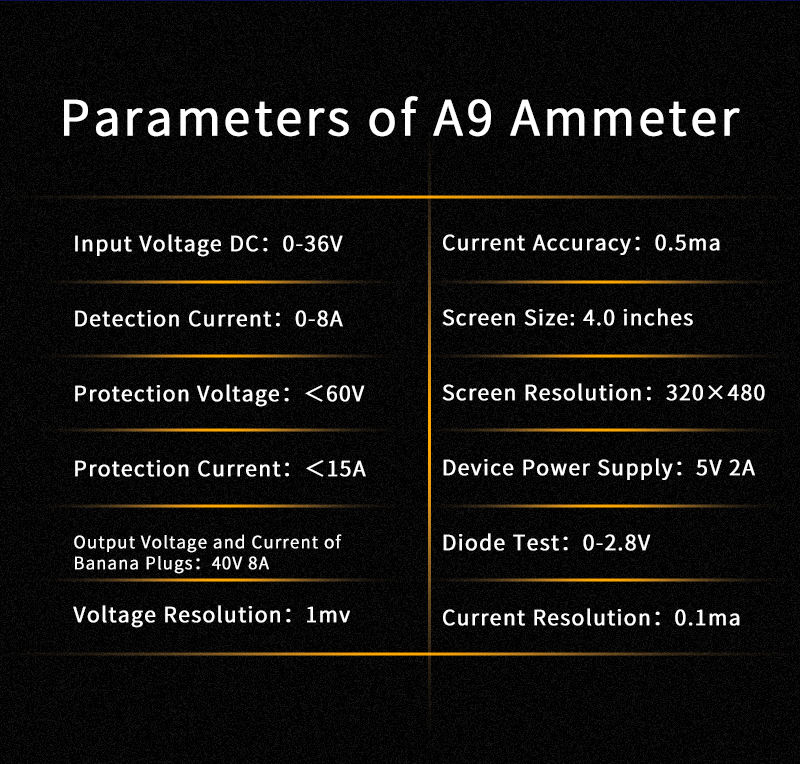

1. Technical Core & Architectural Specifications

2. Advanced Measurement Modes & Performance Parameters

The instrument addresses circuit testing by splitting core diagnostics into four separate operational software engines:

3. Specialized System Features & Protections

4. Diagnostics Mapping for Advanced PCB Repair

The JTX A9 Curve Waveform Digital Multimeter for Electronics Repair PCB Testing Voltage Current Resistance Measurement acts as a hybrid bridge between a high-precision digital ammeter and a single-channel digital storage oscilloscope (DSO). By tracking real-time voltage and current behavior simultaneously, it helps detect common board-level anomalies:

VCC Main / Power Rail Transient Analysis

Standard multimeters hide power sag events because their display refresh rates are locked to 2–3 updates per second. If a power rail experiences a 10-millisecond drop to 0V due to a faulty filtering capacitor, a traditional meter will still read a solid, normal 4.2V.

The JTX A9 Curve Waveform Digital Multimeter for Electronics Repair PCB Testing Voltage Current Resistance Measurement draws this drop as a sharp downwards spike on the 4.0-inch display. This prevents technicians from replacing expensive Power Management ICs (PMICs) when the root problem is a failing capacitor.

Diagnostic Matrix for Component Failure Paths

[Target Component] ---> [Traditional Multimeter Behavior] ----> [JTX A9 Diagnostic Output]
       |
       +--> Leaky SMD Capacitor ------> Shows correct DC voltage ------> Shows uneven, noisy current waveform
       |
       +--> Partial Short IC ---------> Reads low stable resistance ---> Triggers rapid short-circuit tone & current spike
       |
       +--> Damaged Protection Diode --> Intermittent OL reading ------> 0.01s scan charts a degraded forward-bias curve

Advanced Diagnostics Applications

• Micro-Current Boot Sequence Profiling: By recording the exact curve shape of a mobile device as it boots up, technicians can instantly pinpoint where the boot sequence hangs (e.g., RAM initialization failure versus CPU power rail drops). JTX A9 Curve Waveform Digital Multimeter for Electronics Repair PCB Testing Voltage Current Resistance Measurement

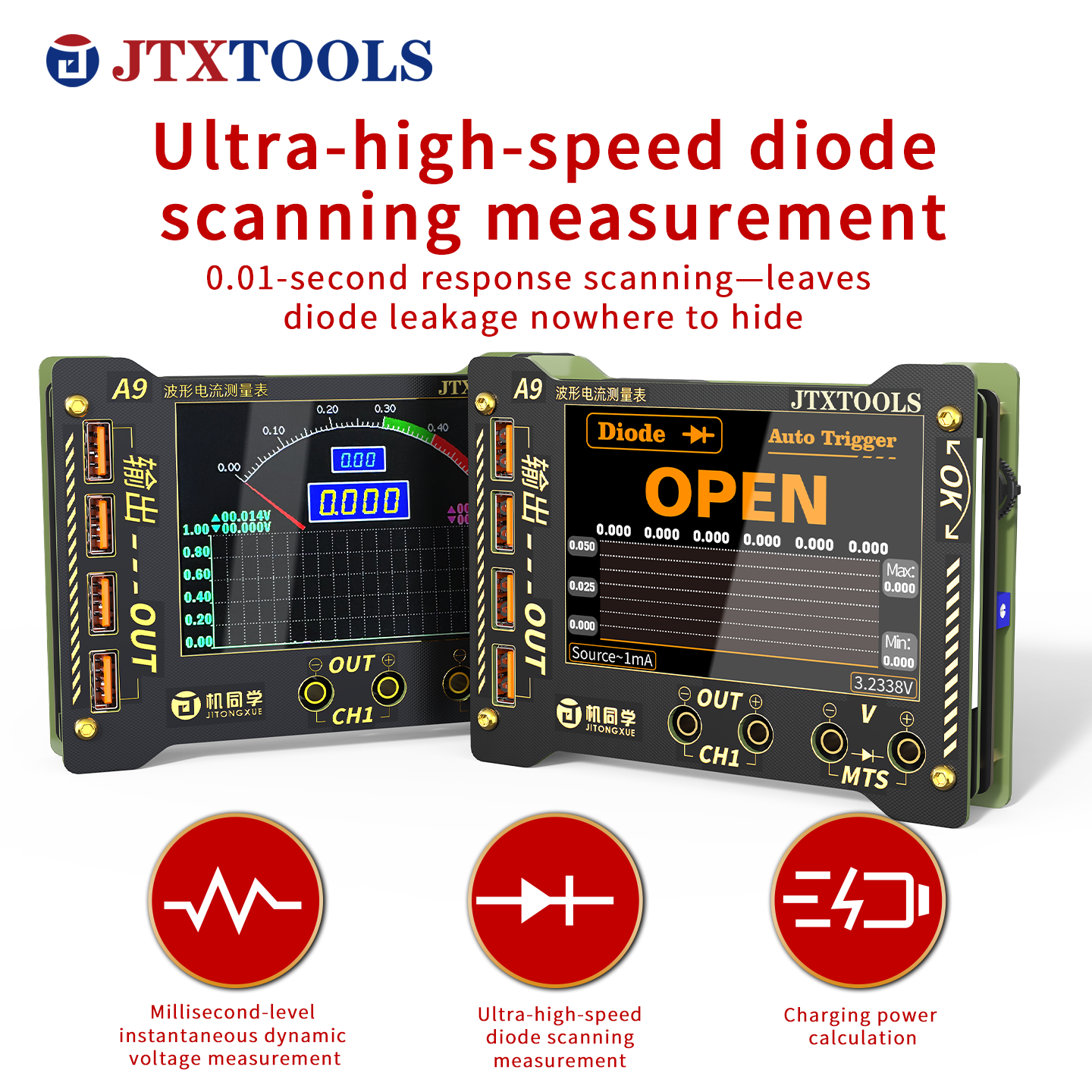

• High-Speed Diode Leakage Sweeps: The 0.01-second scanning speed maps line-to-ground resistance values across dense data lines (like MIPI or USB high-speed lines) in seconds, making it easy to isolate leaked currents. JTX A9 Curve Waveform Digital Multimeter for Electronics Repair PCB Testing Voltage Current Resistance Measurement

5. Standard Kit Contents & Safe Operation Guidelines

Every factory configuration of the JTX A9 includes a specialized kit engineered to handle fine-pitch micro-soldering and bench diagnostics:

• 1 × JTX A9 High-Performance Waveform Measurement Workstation Unit

• 1 × Pair of High-Flexibility Ultra-Fine Point Diagnostic Probes (Banana Plugs rated for 40V/8A)

• 1 × USB Type-C High-Current Power Link Cable

• 1 × Upper Computer Synchronization Manual & Instructional User Guide

Safe Operation Practices

To ensure long-term tool safety and maintain measurement accuracy, follow these engineering guidelines:

1. Power Configuration: Always drive the device from an isolated 5V/2A power supply. Fluctuating or noisy power bricks can introduce unwanted artifacts into your waveform readings.

2. Strict Over-Voltage Compliance: Never hook the standard test leads to circuits running above 36V-40V DC. The device is optimized for low-voltage, high-speed PCB diagnostics; attempting to test high-voltage mains power will damage the high-speed sampling chips. JTX A9 Curve Waveform Digital Multimeter for Electronics Repair PCB Testing Voltage Current Resistance Measurement

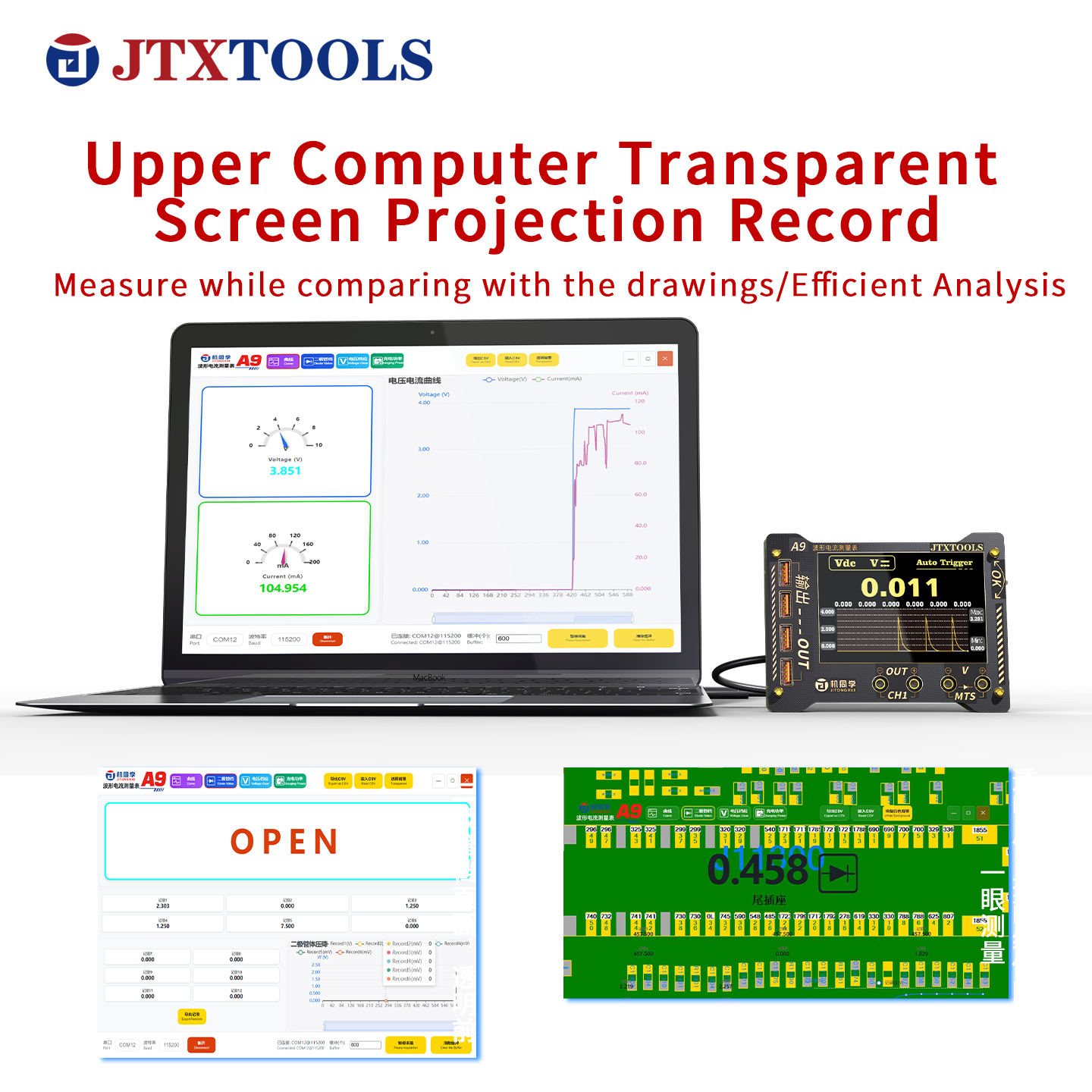

3. Software Setup: When logging complex charging behaviors or long-term circuit trends, stream the display to a PC via the built-in upper computer interface. This reduces memory usage on the device and gives you a much larger screen for detailed waveform analysis. JTX A9 Curve Waveform Digital Multimeter for Electronics Repair PCB Testing Voltage Current Resistance Measurement
