Please read the manual before use.
This section sets the foundation for a safe repair environment. Before a single tool touches a phone, the workspace must be prepared to protect both the technician and the sensitive electronics.
Electrostatic Discharge (ESD) Safety: Instructions on grounding yourself using an ESD wrist strap and working on an anti-static mat to prevent frying microchips with static electricity.
Safety Gear: Protocols for wearing safety glasses (critical when prying shattered glass) and working in a well-ventilated area (crucial for adhesive fumes and soldering smoke).
Lighting and Magnification: Recommendations for high-intensity desk lamps and digital microscopes or magnifying visors for viewing microscopic components.
The most physically risky part of mobile repair is opening the device without cracking the glass screen or ripping delicate internal ribbon cables.
Thermal Tools (Heat Guns & Heat Pads): Instructions on setting precise temperatures (typically 80°C to 100°C) to soften heavy factory adhesives without damaging the display.
Suction & Leverage Tools: Proper placement of heavy-duty suction cups and screen prying fixtures to safely create an initial gap.
Separation Media (Plastic Picks & Spudgers): Techniques for slicing through glue lines using plastic opening picks without inserting them too deeply into the frame.
Modern smartphones use dozens of tiny, highly specialized screws and brackets to hold internal shields in place.
Precision Driver Identification: A breakdown of specialized micro-bits, detailing exactly when to use Pentalobe (iPhones), Tri-point/Y-type (internal Apple shields), Torx/Torx Security (Android devices), and standard Micro-Phillips.
Organization Systems: Guidelines for using magnetic project mats or screw organizing trays to map out screw locations, preventing the catastrophic error of “long-screw damage.”
Gripping & Placer Tools: How to utilize straight and curved ESD-safe tweezers to safely disconnect fragile ZIF (Zero Insertion Force) and coaxial cable connectors.
This section transitions the user from basic mechanical teardowns to logical troubleshooting when a phone won’t turn on or charge.
Digital Multimeter (DMM): Step-by-step instructions on setting up the meter for DC voltage testing (checking battery and charging port output) and continuity/diode mode (hunting for short circuits).
DC Power Supply: How to boot a phone motherboard without a battery attached, interpreting current draw (Amperage) to diagnose power management failures.
USB Ammeter / Tester: Utilizing an inline USB safety tester plugged into the charging block to instantly diagnose if a phone is pulling normal current ($1A$ to $2A$) or completely dead ($0A$).
For advanced users handling board-level fixes like swapping out charging ports, audio IC chips, or FPC connectors.
Soldering Iron Stations: Temperature calibration tips, tip selection (chisel vs. conical), and maintenance/tinning procedures.
Hot Air Rework Stations: Managing the delicate balance of air flow and temperature to safely desolder multi-pin components without blowing adjacent surface-mount resistors off the board.
Chemical Consumables: Proper application of rosin flux (to clean joints and fluidize solder), solder wick (braided wire to remove old solder), and low-melt solder alloys.
The final step is cleaning up the internal cavity and sealing the device back up to its original structural integrity.
Chemical Cleaners: Safe usage of 99% Isopropyl Alcohol (IPA) to dissolve old glue residues, flux oils, and clean mild liquid damage.
Liquid Adhesives vs. Tape: Instructions on applying specialized acrylic glues (like B-7000) versus applying precision-cut double-sided adhesive gaskets.
Camping and Curing: Utilizing specialized display repair clamps to apply even, steady pressure while the new adhesives cure over 15 to 30 minutes.

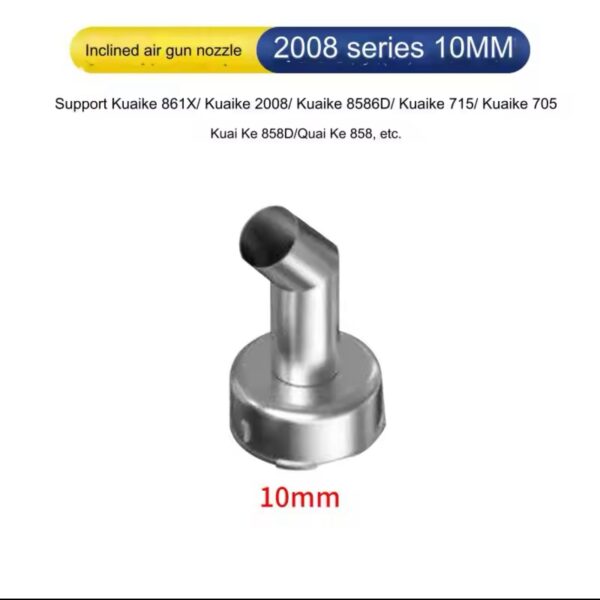

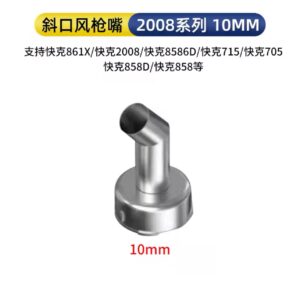

The Quick 2008 smd Bend Nozzle 10mm is a must-have for any serious mobile phone repair technician. This specialized nozzle is designed to provide precise and controlled airflow for surface mount device (SMD) rework, making it an indispensable tool for delicate component removal and replacement. Specifically designed for use with the Quick 2008 rework station (and potentially compatible with others), this 10mm bent nozzle offers a unique advantage when working in tight spaces and around sensitive components. Quick 2008 smd Bend Nozzle 10mm
Precision and Control for Delicate Work:
Mobile phone repair often involves working with incredibly small and densely packed components. Traditional straight nozzles can be cumbersome and may risk damaging surrounding parts due to their direct airflow. The Quick 2008 SMD Bend Nozzle’s 10mm bent design addresses this issue by allowing technicians to direct hot air at a specific angle. This angled approach is crucial for:
Key Features and Benefits:
Using the Quick 2008 SMD Bend Nozzle:
Using this nozzle is straightforward. Simply attach it to your Quick 2008 rework station, ensuring it is securely fastened. Set the appropriate temperature and airflow on the rework station according to the component being worked on. Use the bent nozzle to direct the hot air precisely onto the component, applying heat until the solder melts. Use appropriate tools like tweezers or a vacuum pick-up tool to carefully remove the component. When replacing a component, apply a small amount of flux to the pads and position the new component using the hot air from the nozzle to reflow the solder. Quick 2008 smd Bend Nozzle 10mm
Conclusion:
The Quick 2008 SMD Bend Nozzle is an essential investment for any mobile phone repair technician. Its specialized design, optimized airflow, and durable construction make it an invaluable tool for precise and safe SMD rework. By improving access, control, and accuracy, this 10mm bent nozzle empowers technicians to handle even the most delicate mobile repairs with confidence and efficiency. It is a worthwhile addition to any professional repair toolkit, contributing to higher quality repairs and increased productivity. Quick 2008 smd Bend Nozzle 10mm
