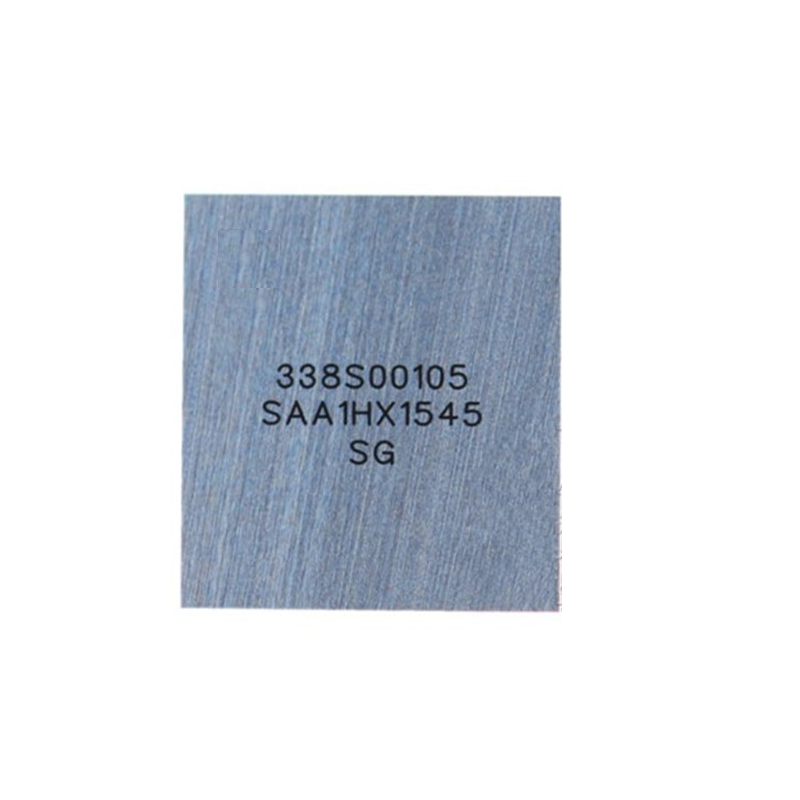

The 338S00105 U3500 BIG AUDIO IC is a crucial integrated circuit (IC) designed to manage audio functions in Apple devices such as the iPhone 6S, 6S Plus, 7, and 7 Plus. As an essential component of the audio system, this IC is responsible for ensuring clear sound output, stable voice transmission, and reliable microphone performance. 338S00105 U3500 BIG AUDIO IC
A damaged or faulty 338S00105 Big Audio IC can lead to common audio-related issues like no sound during calls, malfunctioning loudspeakers, microphone failure, or distorted sound. Therefore, this IC is a vital replacement component in mobile phone repair and is frequently used by professional technicians to restore proper audio functionality in iPhones. 338S00105 U3500 BIG AUDIO IC
Key Features
OEM-Grade Quality
The 338S00105 Big Audio IC is designed to meet Apple’s original equipment manufacturer (OEM) specifications.
This ensures reliable performance, long-lasting durability, and compatibility with Apple’s audio circuitry. 338S00105 U3500 BIG AUDIO IC
Wide Compatibility
This IC is compatible with the following iPhone models:
iPhone 6S
iPhone 6S Plus
iPhone 7
iPhone 7 Plus
Precision Engineering
The IC is engineered with advanced micro-circuitry to efficiently manage the complex audio processing functions required in Apple devices.
Improved Sound Quality
The 338S00105 IC is designed to deliver clear voice quality, strong speaker output, and noise reduction capabilities for improved audio experiences.
Compact and Efficient Design
Built in a compact chip layout, the IC efficiently handles multiple audio channels while minimizing power consumption.
Reliable Thermal Performance
Engineered to withstand heat buildup during extended usage, ensuring stable performance without overheating.
Common Audio Issues Indicating IC Failure
The 338S00105 (U3500) Big Audio IC is commonly replaced when the following audio-related issues occur in iPhones:
No Sound During Calls: The phone may fail to transmit sound during voice calls, even though the speakers and microphones are intact. 338S00105 U3500 BIG AUDIO IC
Greyed-Out Speaker Icon: The speaker icon may appear greyed out during calls, preventing audio from functioning properly. 338S00105 U3500 BIG AUDIO IC
Microphone Malfunctions: Problems like muffled sound, voice distortion, or complete microphone failure can signal IC damage. 338S00105 U3500 BIG AUDIO IC
Boot Loop or Power-On Issues: Some iPhones may experience startup issues, particularly following damage to the audio IC. 338S00105 U3500 BIG AUDIO IC
Audio Delay or Echo: Poor sound synchronization in videos, music playback, or calls may indicate a failing IC. 338S00105 U3500 BIG AUDIO IC
Applications
The 338S00105 Big Audio IC is ideal for:
iPhone Motherboard Repair: Replacing damaged or defective audio ICs on the logic board.
Water Damage Restoration: Repairing devices affected by liquid exposure that compromised the audio circuitry.
Drop or Impact Repair: Fixing phones that developed audio issues after physical damage.
Speaker and Microphone Issues: Restoring sound functionality in devices with unclear audio signals or greyed-out icons.
Replacement Process for 338S00105 Big Audio IC
Replacing the 338S00105 Big Audio IC requires precision soldering skills and specialized tools. Follow these key steps for successful installation:
Preparation:
Power off the device and disconnect the battery.
Carefully remove the logic board from the iPhone.
Identifying the IC Location:

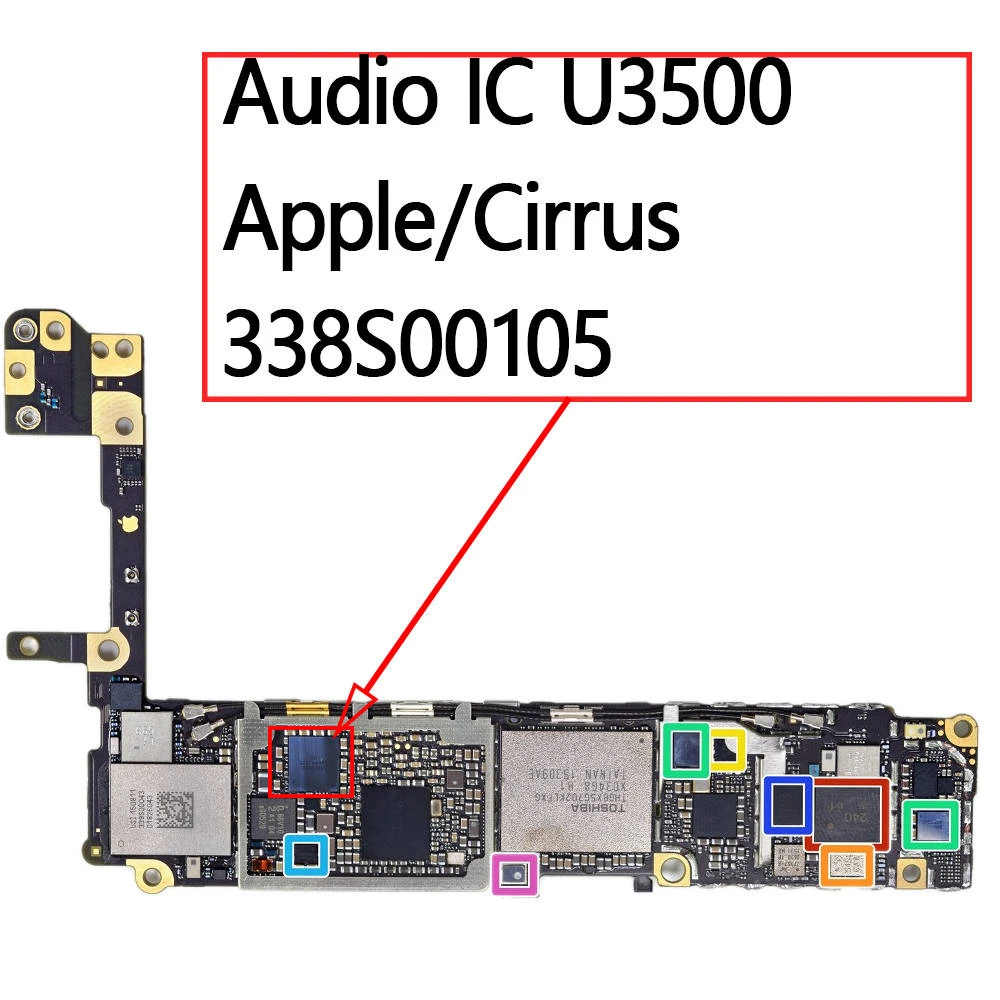

Locate the U3500 IC on the motherboard, often positioned near the power and audio pathways.
Desoldering the Damaged IC:
Use a hot air rework station to gently heat the area around the IC.
Carefully lift the damaged IC once the solder joints have melted.
Cleaning the Board:
Clean the contact pads with flux and isopropyl alcohol to remove solder residue.
Installing the New IC:
Align the new 338S00105 Big Audio IC correctly on the cleaned contact pads.
Use a hot air rework station to reflow the solder and secure the IC in place.
Testing the Device:
Reassemble the iPhone and test audio functions to confirm the repair’s success.
Recommended Tools for Replacement
To ensure precise and safe installation, the following tools are recommended:
Hot Air Rework Station (for heating and desoldering)
Precision Tweezers (for accurate IC placement)
Soldering Flux (to improve solder flow)
Microscope or Magnifying Glass (for inspecting solder joints)
ESD-Safe Mat and Tools (to prevent static discharge damage)
Tips for Successful Installation
Preheat the Board: Gradually increase heat to prevent thermal shock to the logic board.
Apply Flux Generously: Ensures smoother solder flow and better adhesion.
Check for Cold Joints: Inspect solder points carefully to ensure no weak connections remain.
Use Proper Alignment Techniques: Incorrect positioning may result in sound distortion or incomplete functionality.
Storage and Handling
To maintain the integrity and performance of the 338S00105 Big Audio IC, follow these guidelines:
Store in Anti-Static Packaging: Protect the IC from static electricity that can damage sensitive circuits.
Keep in a Cool, Dry Environment: Avoid exposure to moisture, heat, or dust.
Handle with ESD Protection: Always wear anti-static gloves or wrist straps when handling the IC.
Why Choose the 338S00105 Big Audio IC?
The 338S00105 (U3500) Big Audio IC is a trusted solution for resolving audio issues in iPhone models such as the 6S, 6S Plus, 7, and 7 Plus. Its robust design, precision engineering, and compatibility with Apple devices make it the go-to choice for professional technicians and repair experts. 338S00105 U3500 BIG AUDIO IC
Whether you’re a repair professional or an experienced DIY enthusiast, this IC offers a reliable way to restore clear, high-quality audio functionality in Apple devices. Its durable construction and OEM-grade performance ensure long-lasting results, improving customer satisfaction and device reliability. 338S00105 U3500 BIG AUDIO IC
For anyone engaged in mobile phone repair, the 338S00105 Big Audio IC is an essential component that guarantees optimal audio restoration and enhanced repair success rates. 338S00105 U3500 BIG AUDIO IC
