Please read the manual before use.
This section sets the foundation for a safe repair environment. Before a single tool touches a phone, the workspace must be prepared to protect both the technician and the sensitive electronics.
Electrostatic Discharge (ESD) Safety: Instructions on grounding yourself using an ESD wrist strap and working on an anti-static mat to prevent frying microchips with static electricity.
Safety Gear: Protocols for wearing safety glasses (critical when prying shattered glass) and working in a well-ventilated area (crucial for adhesive fumes and soldering smoke).
Lighting and Magnification: Recommendations for high-intensity desk lamps and digital microscopes or magnifying visors for viewing microscopic components.
The most physically risky part of mobile repair is opening the device without cracking the glass screen or ripping delicate internal ribbon cables.
Thermal Tools (Heat Guns & Heat Pads): Instructions on setting precise temperatures (typically 80°C to 100°C) to soften heavy factory adhesives without damaging the display.
Suction & Leverage Tools: Proper placement of heavy-duty suction cups and screen prying fixtures to safely create an initial gap.
Separation Media (Plastic Picks & Spudgers): Techniques for slicing through glue lines using plastic opening picks without inserting them too deeply into the frame.
Modern smartphones use dozens of tiny, highly specialized screws and brackets to hold internal shields in place.
Precision Driver Identification: A breakdown of specialized micro-bits, detailing exactly when to use Pentalobe (iPhones), Tri-point/Y-type (internal Apple shields), Torx/Torx Security (Android devices), and standard Micro-Phillips.
Organization Systems: Guidelines for using magnetic project mats or screw organizing trays to map out screw locations, preventing the catastrophic error of “long-screw damage.”
Gripping & Placer Tools: How to utilize straight and curved ESD-safe tweezers to safely disconnect fragile ZIF (Zero Insertion Force) and coaxial cable connectors.
This section transitions the user from basic mechanical teardowns to logical troubleshooting when a phone won’t turn on or charge.
Digital Multimeter (DMM): Step-by-step instructions on setting up the meter for DC voltage testing (checking battery and charging port output) and continuity/diode mode (hunting for short circuits).
DC Power Supply: How to boot a phone motherboard without a battery attached, interpreting current draw (Amperage) to diagnose power management failures.
USB Ammeter / Tester: Utilizing an inline USB safety tester plugged into the charging block to instantly diagnose if a phone is pulling normal current ($1A$ to $2A$) or completely dead ($0A$).
For advanced users handling board-level fixes like swapping out charging ports, audio IC chips, or FPC connectors.
Soldering Iron Stations: Temperature calibration tips, tip selection (chisel vs. conical), and maintenance/tinning procedures.
Hot Air Rework Stations: Managing the delicate balance of air flow and temperature to safely desolder multi-pin components without blowing adjacent surface-mount resistors off the board.
Chemical Consumables: Proper application of rosin flux (to clean joints and fluidize solder), solder wick (braided wire to remove old solder), and low-melt solder alloys.
The final step is cleaning up the internal cavity and sealing the device back up to its original structural integrity.
Chemical Cleaners: Safe usage of 99% Isopropyl Alcohol (IPA) to dissolve old glue residues, flux oils, and clean mild liquid damage.
Liquid Adhesives vs. Tape: Instructions on applying specialized acrylic glues (like B-7000) versus applying precision-cut double-sided adhesive gaskets.
Camping and Curing: Utilizing specialized display repair clamps to apply even, steady pressure while the new adhesives cure over 15 to 30 minutes.

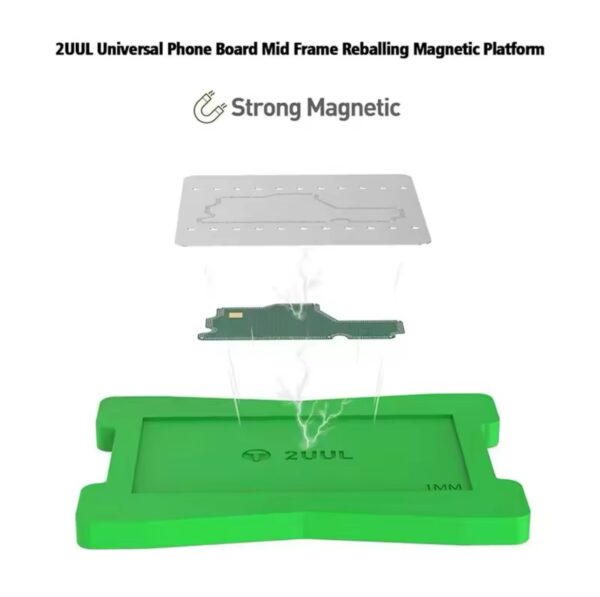

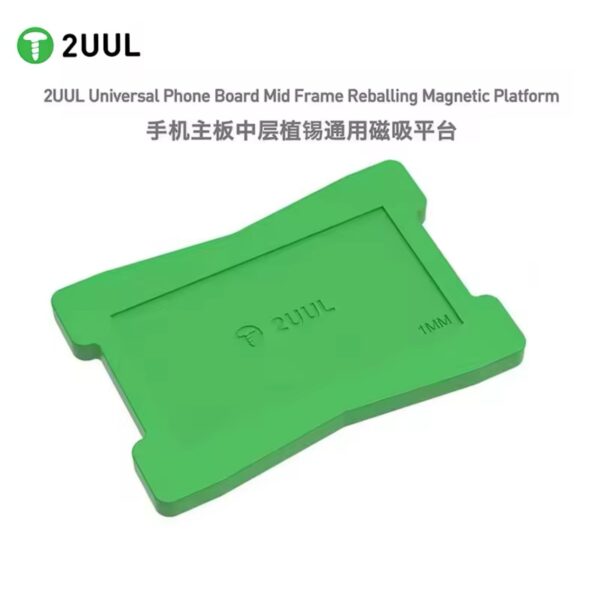

The 2UUL BH11 strong magnetic repair pad is a highly innovative tool designed specifically for mobile phone repairs. One of its most notable features is its robust magnetic strength, which ensures that small components and tools remain securely in place during intricate repair processes. This is particularly advantageous during the delicate task of mobile phone motherboard repairs, where precision is paramount. 2UUL BH11 Strong Magnetic

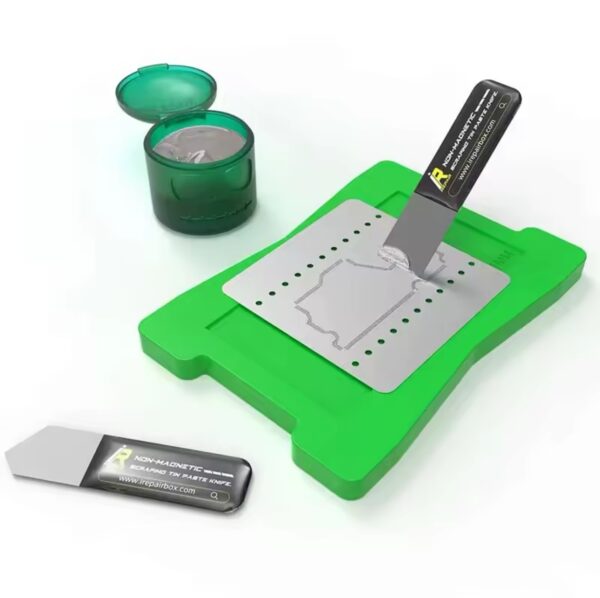

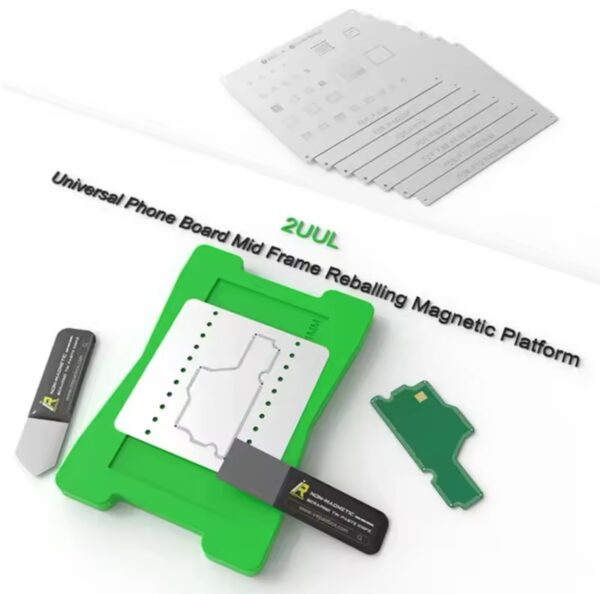

Constructed from high-quality materials, the BH11 pad enhances durability and longevity, making it a reliable choice for technicians in the field. Its surface is engineered to provide optimal conditions for the middle layer tinning process, a critical step in repairing mobile phone motherboards. By facilitating effective positioning of components, the BH11 minimizes the risk of misplaced parts, ultimately streamlining the repair process. 2UUL BH11 Strong Magnetic
Furthermore, the magnetic suction capabilities of the 2UUL BH11 pad significantly improve efficiency. Unlike traditional repair platforms, which often rely on manual management of components, the BH11 pad’s magnetism allows for a hands-free environment. Technicians can focus on their work without the constant worry of losing tiny screws or other essential parts, leading to a more organized and productive workspace. 2UUL BH11 Strong Magnetic
A comparison with conventional repair setups further highlights the BH11’s advantages. Many traditional platforms do not offer the same level of magnetic support, often resulting in frustration as small tools frequent misplacement. In contrast, the 2UUL BH11 repair pad is tailored to address these pervasive issues, making it an essential tool for modern technicians. The combination of strong magnetic properties, durable materials, and optimized design positions the 2UUL BH11 as a superior choice for mobile phone repairs, enhancing the overall repair experience for professionals in the industry. 2UUL BH11 Strong Magnetic
The 2UUL BH11 strong magnetic repair pad is an innovative tool designed to enhance the efficiency and precision of mobile phone repairs. To begin using the BH11, ensure it is placed on a stable, flat surface free from any magnetic interference. Before starting the repair, carefully remove the components from the mobile phone while organizing screws and other small parts in the dedicated sections of the pad. This will prevent loss and ensure that each element is easily accessible during the reassembly.
To ensure optimal adhesion of components during repairs, it is essential to position the electronic parts securely on the pad. The BH11’s powerful magnets hold the components firmly in place, reducing the risk of accidental displacement. For even better adhesion, cleaning the contact surfaces of the components can help remove any dust or oil residue, allowing for better magnetic interaction. In instances where a component does not seem to adhere properly, check alignment and consider adjusting the angle or position to maximize contact with the magnetic surface.
Handling delicate mobile phone motherboards requires both care and technique. When placing the motherboard onto the BH11, use tweezers with non-metallic tips to avoid any potential static damage. Additionally, be cautious of the working environments, ensuring that you are grounded to prevent build-up of static charge. Should you face any challenges, such as difficulty with adhesion or components slipping, revisiting the initial setup can often resolve these issues.
Constructed from high-quality materials, the BH11 pad enhances durability and longevity, making it a reliable choice for technicians in the field. Its surface is engineered to provide optimal conditions for the middle layer tinning process, a critical step in repairing mobile phone motherboards. By facilitating effective positioning of components, the BH11 minimizes the risk of misplaced parts, ultimately streamlining the repair process.
To maintain the longevity and performance of the 2UUL BH11, it is advisable to regularly clean the surface of the pad with a soft, dry cloth to remove dust and debris. Developing a routine maintenance schedule will preserve its effectiveness. Utilizing the BH11 magnetic pad streamlines the workflow for mobile repair technicians, increasing productivity and reducing repair times, thus revolutionizing the overall repair process.
