Please read the manual before use.
This section sets the foundation for a safe repair environment. Before a single tool touches a phone, the workspace must be prepared to protect both the technician and the sensitive electronics.
Electrostatic Discharge (ESD) Safety: Instructions on grounding yourself using an ESD wrist strap and working on an anti-static mat to prevent frying microchips with static electricity.
Safety Gear: Protocols for wearing safety glasses (critical when prying shattered glass) and working in a well-ventilated area (crucial for adhesive fumes and soldering smoke).
Lighting and Magnification: Recommendations for high-intensity desk lamps and digital microscopes or magnifying visors for viewing microscopic components.
The most physically risky part of mobile repair is opening the device without cracking the glass screen or ripping delicate internal ribbon cables.
Thermal Tools (Heat Guns & Heat Pads): Instructions on setting precise temperatures (typically 80°C to 100°C) to soften heavy factory adhesives without damaging the display.
Suction & Leverage Tools: Proper placement of heavy-duty suction cups and screen prying fixtures to safely create an initial gap.
Separation Media (Plastic Picks & Spudgers): Techniques for slicing through glue lines using plastic opening picks without inserting them too deeply into the frame.
Modern smartphones use dozens of tiny, highly specialized screws and brackets to hold internal shields in place.
Precision Driver Identification: A breakdown of specialized micro-bits, detailing exactly when to use Pentalobe (iPhones), Tri-point/Y-type (internal Apple shields), Torx/Torx Security (Android devices), and standard Micro-Phillips.
Organization Systems: Guidelines for using magnetic project mats or screw organizing trays to map out screw locations, preventing the catastrophic error of “long-screw damage.”
Gripping & Placer Tools: How to utilize straight and curved ESD-safe tweezers to safely disconnect fragile ZIF (Zero Insertion Force) and coaxial cable connectors.
This section transitions the user from basic mechanical teardowns to logical troubleshooting when a phone won’t turn on or charge.
Digital Multimeter (DMM): Step-by-step instructions on setting up the meter for DC voltage testing (checking battery and charging port output) and continuity/diode mode (hunting for short circuits).
DC Power Supply: How to boot a phone motherboard without a battery attached, interpreting current draw (Amperage) to diagnose power management failures.
USB Ammeter / Tester: Utilizing an inline USB safety tester plugged into the charging block to instantly diagnose if a phone is pulling normal current ($1A$ to $2A$) or completely dead ($0A$).
For advanced users handling board-level fixes like swapping out charging ports, audio IC chips, or FPC connectors.
Soldering Iron Stations: Temperature calibration tips, tip selection (chisel vs. conical), and maintenance/tinning procedures.
Hot Air Rework Stations: Managing the delicate balance of air flow and temperature to safely desolder multi-pin components without blowing adjacent surface-mount resistors off the board.
Chemical Consumables: Proper application of rosin flux (to clean joints and fluidize solder), solder wick (braided wire to remove old solder), and low-melt solder alloys.
The final step is cleaning up the internal cavity and sealing the device back up to its original structural integrity.
Chemical Cleaners: Safe usage of 99% Isopropyl Alcohol (IPA) to dissolve old glue residues, flux oils, and clean mild liquid damage.
Liquid Adhesives vs. Tape: Instructions on applying specialized acrylic glues (like B-7000) versus applying precision-cut double-sided adhesive gaskets.
Camping and Curing: Utilizing specialized display repair clamps to apply even, steady pressure while the new adhesives cure over 15 to 30 minutes.
AMAOE MT6835V BGA Reballing is a critical process in mobile device repairs, particularly for components such as the Dimensity 6100 CPU. In essence, BGA reballing involves replacing the solder balls on a microchip to restore electrical connectivity. This procedure is often necessitated by issues such as defective solder joints, which can result from overheating, physical damage, or manufacturing defects. As mobile technology evolves, the need for precise and reliable repair methods becomes increasingly vital, highlighting the significance of BGA reballing.

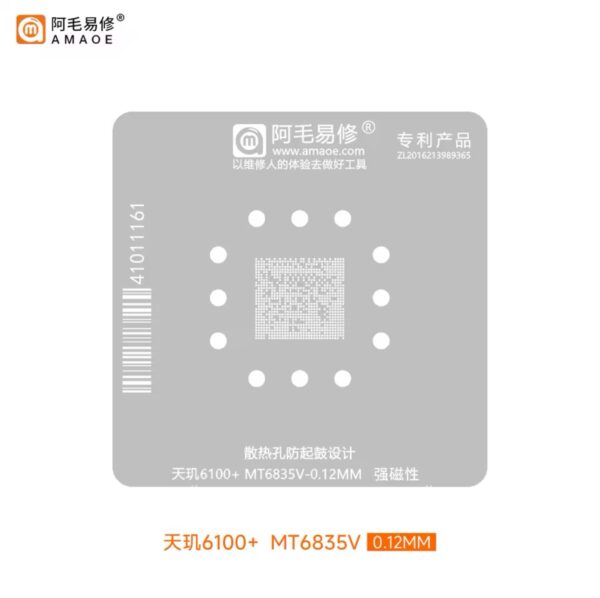

Stencils play an integral role in the BGA reballing process. Specifically, they are used to accurately position and apply solder balls onto the chip. The choice of stencil can dramatically influence the outcome of repairs, as quality and precision are paramount for successful soldering. The AMAOE MT6835V BGA reballing stencil is an exemplary tool crafted with meticulous attention to detail, designed specifically to support technicians in achieving optimal results.
This stencil features a robust steel mesh material that ensures durability and precision. With a standard hole size of 0.12mm, it enables technicians to achieve consistent solder ball placement, which is crucial in maintaining the functionality of the CPU. Compared to manual methods of applying solder, which are often prone to errors and inconsistencies, the use of the AMAOE stencil provides enhanced efficiency and accuracy. The effective application of solder balls directly influences the electrical performance of the repaired chip, emphasizing the necessity of using a high-quality stencil in the reballing process.
In summary, understanding the fundamentals of BGA reballing and the critical function of stencils like the AMAOE MT6835V is essential for any technician engaged in mobile device repairs. The precision and efficacy offered by this specific stencil make it a valuable asset in ensuring the successful rehabilitation of complex components such as the Dimensity 6100 CPU.
The AMAOE MT6835V BGA reballing stencil is a crucial tool for technicians involved in mobile repairs, particularly for devices featuring the Dimensity 6100 CPU. To ensure a successful reballing process, it is vital to gather the necessary tools and materials, including solder paste, the stencil itself, a heat source (such as a hot air rework station), a clean workstation, and an appropriate adhesive for securing the CPU. Safety equipment such as anti-static wrist straps and protective eyewear should also be utilized to avoid injuries and damage to sensitive components.
Begin the process with the preparation of the CPU. Carefully detach the CPU from the motherboard, making sure not to damage surrounding components. Clean the surfaces using isopropyl alcohol to remove any residual solder and contaminants, which ensures a good bond between the new solder balls and the CPU.
Next, place the BGA stencil over the CPU, aligning it correctly. Apply solder paste through the stencil openings using a spatula, ensuring an even distribution across all pads. It is essential to use the right amount of solder paste, as an excess can lead to solder bridging, while too little can result in poor connections.
Once the solder paste is applied, gently remove the stencil, taking care not to disturb the solder paste application. Use a hot air rework station to heat the assembly. It is advisable to start with a lower temperature and gradually increase it, reaching the melting point of the solder paste. This ensures that the solder balls are formed correctly without damaging the components.
After heating, allow the assembly to cool down naturally before reattaching it to the motherboard. Finally, perform testing to ensure functionality. If there are any issues, review the reballing process for common pitfalls such as insufficient solder paste or improper heating. Taking the time to follow these steps will significantly enhance the likelihood of successful repairs, ensuring optimal performance of the Dimensity 6100 CPU. By adopting best practices, technicians can effectively navigate common challenges, fostering confidence in their reballing capabilities.
