Amaoe S23 Ultra Middle Layer BGA Reablling Stencil Set For Samsung Galaxy S918U-Motherboard Tin Planting Soldering Fixture

Amaoe S23 Ultra Middle Layer BGA Reablling Stencil Set For Samsung Galaxy S918U-Motherboard Tin Planting Soldering Fixture

Enhance Your Repairing Precision

The Amaoe S23 Ultra Middle Layer BGA Reablling Stencil Set For Samsung Galaxy S918U-Motherboard Tin Planting Soldering Fixture is the ultimate companion for repairing the Samsung Galaxy S918U motherboard. Designed for precision tin planting and soldering, this stencil set simplifies intricate repair tasks and ensures professional-level results. Whether you’re an experienced technician or a DIY enthusiast, this tool adds unmatched accuracy to your workflow.

Built for Durability and Compatibility

Crafted with high-quality materials, the Amaoe S23 Ultra Middle Layer BGA Reablling Stencil Set For Samsung Galaxy S918U-Motherboard Tin Planting Soldering Fixture offers long-lasting performance. Specifically engineered for the S918U motherboard, it enhances compatibility, reducing the risk of errors during delicate soldering processes. The meticulously designed middle layer ensures flawless alignment, saving you both time and effort during repair operations.

Why Choose the Amaoe BGA Stencil Set?

This soldering fixture is not just a tool but a productivity booster. It allows for safer and more efficient application of solder, ensuring the optimal performance of the repaired device. Ideal for reballing and motherboard tin planting, this stencil set meets the highest industry standards, making it an indispensable addition to your toolkit. Amaoe S23 Ultra Middle Layer BGA Reablling Stencil Set For Samsung Galaxy S918U-Motherboard Tin Planting Soldering Fixture

Amaoe S23 Ultra Middle Layer BGA Reballing Stencil Set

The Amaoe S23 Ultra Middle Layer BGA Reballing Stencil Set is a professional-grade precision tool designed specifically for the complex repair of the Samsung Galaxy S23 Ultra (SM-S918U). As modern smartphone motherboards utilize a “sandwich” or double-stacked PCB design, repairing the middle layer requires extreme thermal stability and alignment accuracy. Amaoe S23 Ultra Middle Layer BGA Reablling Stencil Set For Samsung Galaxy S918U-Motherboard Tin Planting Soldering Fixture

This set is engineered to facilitate “tin planting”—the process of applying perfectly uniform solder balls to the BGA (Ball Grid Array) pads of the motherboard’s middle frame. Below is the comprehensive technical specification for this toolset. Amaoe S23 Ultra Middle Layer BGA Reablling Stencil Set For Samsung Galaxy S918U-Motherboard Tin Planting Soldering Fixture

Full Technical Specifications

Core Components and Functionality

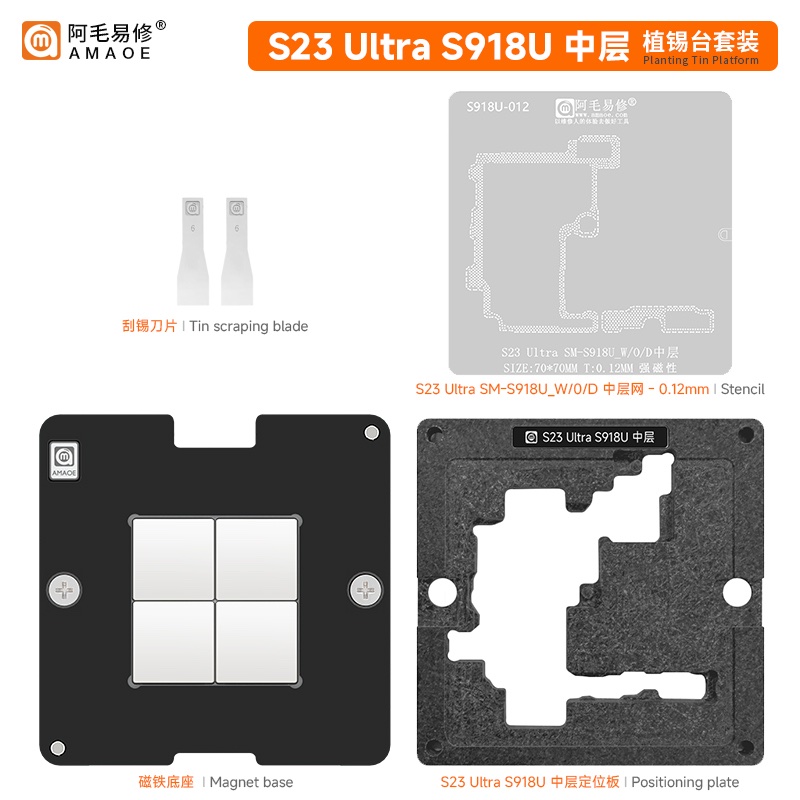

1. The Precision Stencil

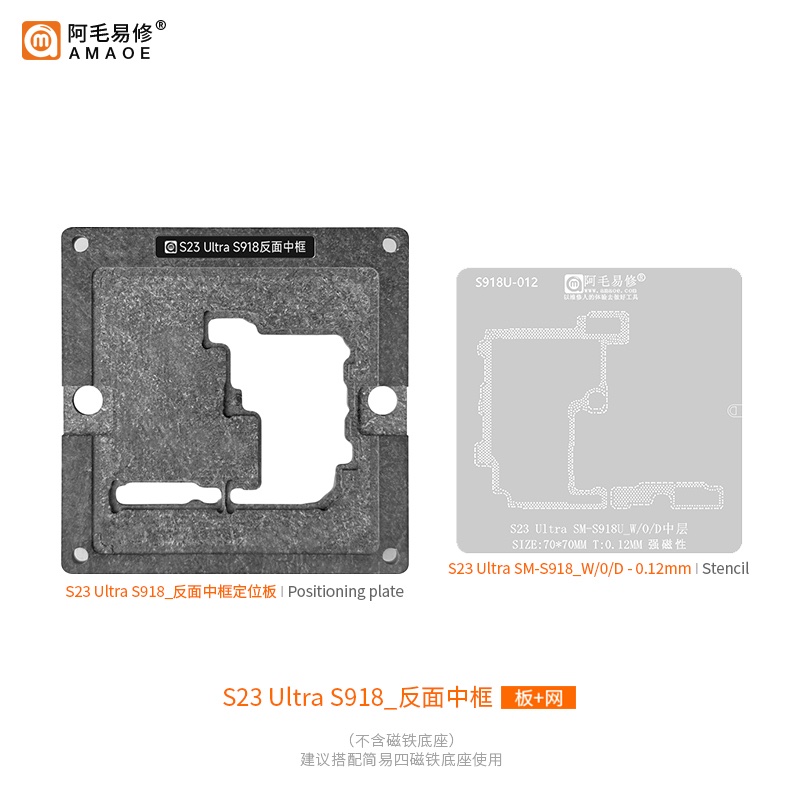

The heart of this set is the 0.12mm thickness stencil. Unlike generic stencils, Amaoe uses laser-drilled square holes with tapered interior walls. This ensures that when you apply solder paste and heat it, the solder balls form evenly without sticking to the stencil. The material is a specialized alloy that prevents the “bowing” or “warping” effect commonly seen when applying high heat to thin metal. Amaoe S23 Ultra Middle Layer BGA Reablling Stencil Set For Samsung Galaxy S918U-Motherboard Tin Planting Soldering Fixture

2. The Synthetic Stone Fixture

The base fixture is made from high-density synthetic stone. This material is chosen for its low thermal conductivity, which protects the surrounding work surface and ensures that heat is concentrated specifically on the solder joints. The fixture features precise CNC-milled grooves that perfectly match the contours of the S23 Ultra motherboard, preventing any lateral movement during the reballing process. Amaoe S23 Ultra Middle Layer BGA Reablling Stencil Set For Samsung Galaxy S918U-Motherboard Tin Planting Soldering Fixture

3. Magnetic Positioning System

To achieve a successful “sandwich” board repair, alignment must be accurate within microns. This set utilizes high-strength magnets to lock the stencil onto the fixture. This “hands-free” approach allows the technician to focus entirely on the heat gun and solder flow, reducing the risk of manual tremors causing a bridged connection. Amaoe S23 Ultra Middle Layer BGA Reablling Stencil Set For Samsung Galaxy S918U-Motherboard Tin Planting Soldering Fixture

Application and Repair Workflow

Reballing the S23 Ultra middle layer is a high-stakes procedure usually necessitated by water damage, severe drops (cracked solder joints), or logic board swaps.

• De-soldering: The double-stacked board is separated using a pre-heating station.

• Cleaning: Residual solder is removed from the middle frame using a soldering iron and wick.

• Alignment: The cleaned motherboard section is placed into the Amaoe fixture. The magnetic stencil is snapped into place.

• Tin Planting: Solder paste (typically 183°C or 158°C leaded/lead-free depending on preference) is spread across the stencil.

• Reflow: A hot air station is used to melt the paste into uniform spheres.

• Re-uniting: The two layers of the motherboard are aligned and soldered back together.

Advantages of the Amaoe Set

• Durability: The Japanese steel resists oxidation and maintains its shape over hundreds of repair cycles.

• Anti-Stick: The polished hole walls minimize the “lifting” of solder balls when the stencil is removed.

• Thermal Efficiency: The fixture prevents the motherboard from warping under the heat required to melt the middle-layer solder.

Maintenance and Care

To maintain the 0.12mm precision, technicians should clean the stencil immediately after use using PCB cleaner or 99% Isopropyl Alcohol. Avoid using metal scrapers that could scratch the surface or deform the holes; instead, use a soft-bristled brush or a plastic spatula. Store the stencil flat within the fixture to prevent accidental bending. Amaoe S23 Ultra Middle Layer BGA Reablling Stencil Set For Samsung Galaxy S918U-Motherboard Tin Planting Soldering Fixture
