Please read the manual before use.
This section sets the foundation for a safe repair environment. Before a single tool touches a phone, the workspace must be prepared to protect both the technician and the sensitive electronics.
Electrostatic Discharge (ESD) Safety: Instructions on grounding yourself using an ESD wrist strap and working on an anti-static mat to prevent frying microchips with static electricity.
Safety Gear: Protocols for wearing safety glasses (critical when prying shattered glass) and working in a well-ventilated area (crucial for adhesive fumes and soldering smoke).
Lighting and Magnification: Recommendations for high-intensity desk lamps and digital microscopes or magnifying visors for viewing microscopic components.
The most physically risky part of mobile repair is opening the device without cracking the glass screen or ripping delicate internal ribbon cables.
Thermal Tools (Heat Guns & Heat Pads): Instructions on setting precise temperatures (typically 80°C to 100°C) to soften heavy factory adhesives without damaging the display.
Suction & Leverage Tools: Proper placement of heavy-duty suction cups and screen prying fixtures to safely create an initial gap.
Separation Media (Plastic Picks & Spudgers): Techniques for slicing through glue lines using plastic opening picks without inserting them too deeply into the frame.
Modern smartphones use dozens of tiny, highly specialized screws and brackets to hold internal shields in place.
Precision Driver Identification: A breakdown of specialized micro-bits, detailing exactly when to use Pentalobe (iPhones), Tri-point/Y-type (internal Apple shields), Torx/Torx Security (Android devices), and standard Micro-Phillips.
Organization Systems: Guidelines for using magnetic project mats or screw organizing trays to map out screw locations, preventing the catastrophic error of “long-screw damage.”
Gripping & Placer Tools: How to utilize straight and curved ESD-safe tweezers to safely disconnect fragile ZIF (Zero Insertion Force) and coaxial cable connectors.
This section transitions the user from basic mechanical teardowns to logical troubleshooting when a phone won’t turn on or charge.
Digital Multimeter (DMM): Step-by-step instructions on setting up the meter for DC voltage testing (checking battery and charging port output) and continuity/diode mode (hunting for short circuits).
DC Power Supply: How to boot a phone motherboard without a battery attached, interpreting current draw (Amperage) to diagnose power management failures.
USB Ammeter / Tester: Utilizing an inline USB safety tester plugged into the charging block to instantly diagnose if a phone is pulling normal current ($1A$ to $2A$) or completely dead ($0A$).
For advanced users handling board-level fixes like swapping out charging ports, audio IC chips, or FPC connectors.
Soldering Iron Stations: Temperature calibration tips, tip selection (chisel vs. conical), and maintenance/tinning procedures.
Hot Air Rework Stations: Managing the delicate balance of air flow and temperature to safely desolder multi-pin components without blowing adjacent surface-mount resistors off the board.
Chemical Consumables: Proper application of rosin flux (to clean joints and fluidize solder), solder wick (braided wire to remove old solder), and low-melt solder alloys.
The final step is cleaning up the internal cavity and sealing the device back up to its original structural integrity.
Chemical Cleaners: Safe usage of 99% Isopropyl Alcohol (IPA) to dissolve old glue residues, flux oils, and clean mild liquid damage.
Liquid Adhesives vs. Tape: Instructions on applying specialized acrylic glues (like B-7000) versus applying precision-cut double-sided adhesive gaskets.
Camping and Curing: Utilizing specialized display repair clamps to apply even, steady pressure while the new adhesives cure over 15 to 30 minutes.

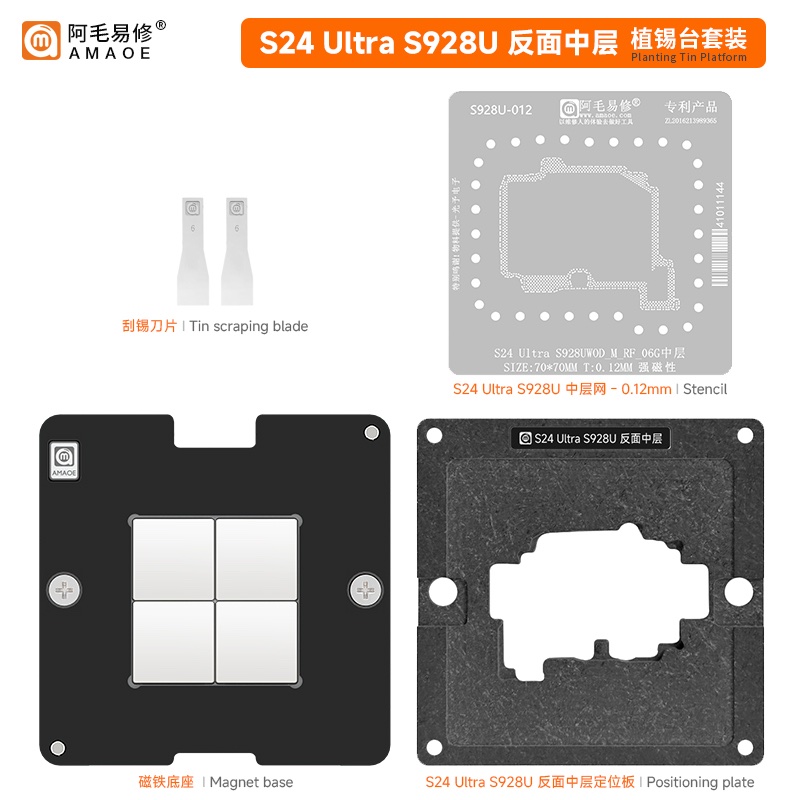

The Amaoe S24 Ultra Middle Layer BGA Reablling Stencil Set For Samsung Galaxy S928U-Motherboard Tin Planting Soldering Fixture is the ultimate solution for efficient and precise tin planting and soldering needs. Designed specifically for Samsung Galaxy S928U motherboards, this fixture ensures top-tier accuracy and reliability during reballing tasks. Amaoe S24 Ultra Middle Layer BGA Reablling Stencil Set For Samsung Galaxy S928U-Motherboard Tin Planting Soldering Fixture
Crafted with high-quality materials, this stencil set stands out for its durability and long-lasting performance. Its middle-layer design guarantees perfect alignment, making it ideal for handling intricate soldering processes with ease. Amaoe S24 Ultra Middle Layer BGA Reablling Stencil Set For Samsung Galaxy S928U-Motherboard Tin Planting Soldering Fixture
Whether you’re a professional technician or an electronics enthusiast, this tool provides unparalleled support during motherboard repairs. Compatible with a wide range of Samsung Galaxy S928U models, it simplifies the soldering process, saving you both time and effort. Amaoe S24 Ultra Middle Layer BGA Reablling Stencil Set For Samsung Galaxy S928U-Motherboard Tin Planting Soldering Fixture
The Amaoe S24 Ultra Middle Layer Stencil Set is a professional-grade precision tool designed specifically for the complex repair of the Samsung Galaxy S928U (S24 Ultra) motherboard. As smartphone architectures move toward “sandwich” or stacked PCB designs, the middle layer reballing process has become the most critical step in restoring a device after a drop, water damage, or processor failure.
This set is engineered to facilitate tin planting (solder paste application) with microscopic accuracy, ensuring that the hundreds of connection points between the upper and lower logic boards are perfectly aligned and uniform.

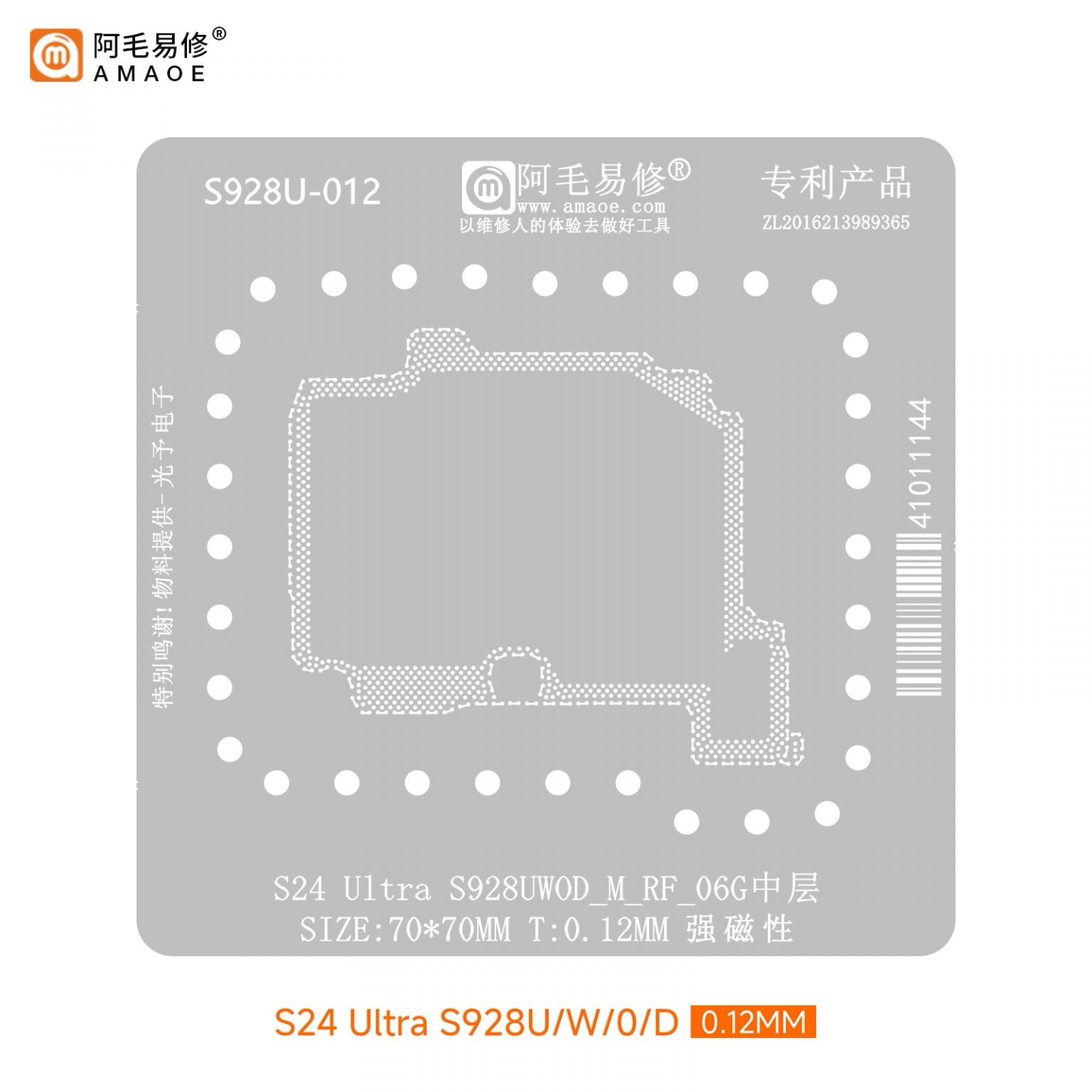

The heart of this set is the laser-cut stencil. Unlike cheaper alternatives, Amaoe S24 Ultra Middle Layer BGA Reablling Stencil Set For Samsung Galaxy S928U-Motherboard Tin Planting Soldering Fixtureuses a specific cooling hole pattern surrounding the BGA pads. This prevents the stencil from “bulging” or warping when heat is applied via a hot air station. The 0.12mm thickness is calculated to deposit the exact volume of solder paste required to form a perfect sphere, preventing bridges (shorts) between the dense middle-layer pins. Amaoe S24 Ultra Middle Layer BGA Reablling Stencil Set For Samsung Galaxy S928U-Motherboard Tin Planting Soldering Fixture

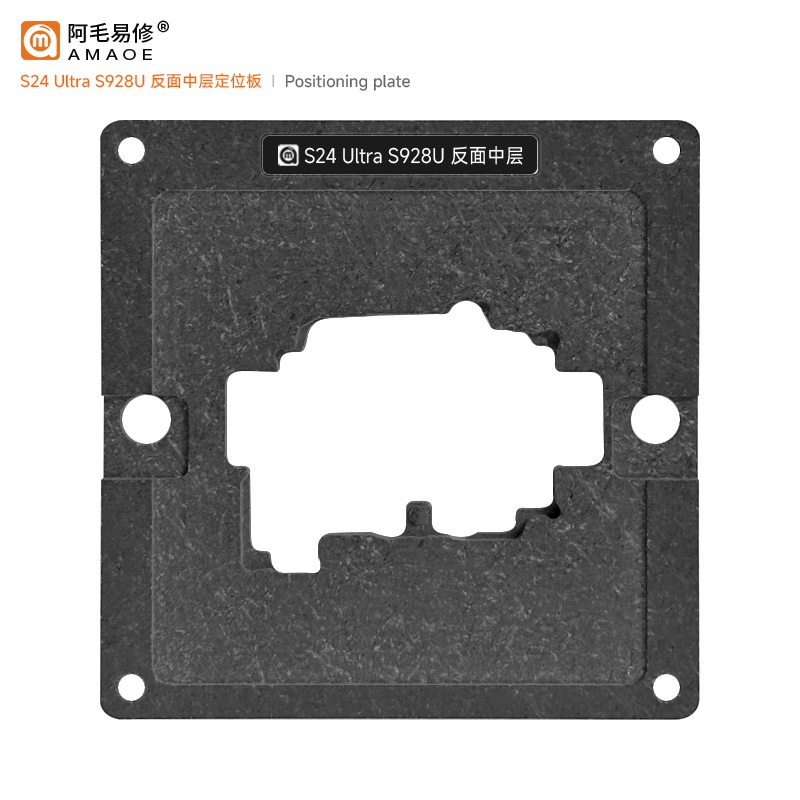

The motherboard of the Amaoe S24 Ultra Middle Layer BGA Reablling Stencil Set For Samsung Galaxy S928U-Motherboard Tin Planting Soldering Fixture is sensitive to ESD (Electrostatic Discharge) and uneven heating. The base included in this set is made from high-density synthetic stone. This material is an excellent thermal insulator; it holds the motherboard securely without absorbing all the heat from your rework station, allowing for faster, safer soldering.
To eliminate the frustration of stencils shifting during paste application, the fixture utilizes powerful N52 magnets or a mechanical locking rail. Once the S24 Ultra motherboard is placed in the groove, the stencil snaps into an absolute 1:1 alignment with the pads. This “Planting Soldering Fixture” ensures that even technicians with moderate experience can achieve factory-level results.
Anti-Drumming Design: The stencil features “anti-drum” grooves. When the solder paste expands slightly under heat, these grooves provide a path for air to escape, ensuring the stencil stays flat against the PCB.
Easy Tin Stripping: The interior walls of the stencil holes are polished. This means once the solder balls are formed, the stencil lifts off cleanly without pulling the newly formed balls away from the motherboard pads.
Chemical Resistance: The stainless steel alloy is resistant to aggressive flux cleaners and Isopropyl Alcohol (IPA), ensuring the tool does not corrode or lose its structural integrity over hundreds of uses.
Preparation: Clean the middle frame pads of the S24 Ultra upper and lower boards using a soldering iron and wick. Ensure the surface is perfectly flat.
Placement: Insert the motherboard into the Amaoe synthetic stone base. The precision-milled slots will prevent the board from moving.
Alignment: Place the Amaoe stencil over the board. The fixture will guide it into the correct position.
Paste Application: Apply a high-quality 183°C or 138°C (low melt) solder paste. Use a scraper to fill the holes evenly.
Heating: Use a hot air gun (recommended: 330°C, low airflow) to melt the paste. Watch for the “shiny” transition indicating the balls have formed.
Separation: Allow it to cool for 10 seconds before removing the stencil. The S24 Ultra middle layer is now ready for “sandwiching” (joining the two halves).
To ensure the longevity of the Amaoe S24 Ultra Stencil Set, it is vital to clean the stencil immediately after use. Dried solder paste can clog the microscopic holes, leading to uneven tin planting in future repairs. Use a soft-bristled brush and PCB cleaner to maintain the aperture clarity. Avoid using sharp metal scrapers that could scratch the surface or distort the hole edges.
