Amaoe Samsung S21 Ultra SM-G998U Layer Reballing Stencil Set Template Positioning plant tin net Steel mesh

Amaoe Samsung S21 Ultra SM-G998U Layer Reballing Stencil Set Template Positioning plant tin net Steel mesh

Enhance Precision with Superior Craftsmanship

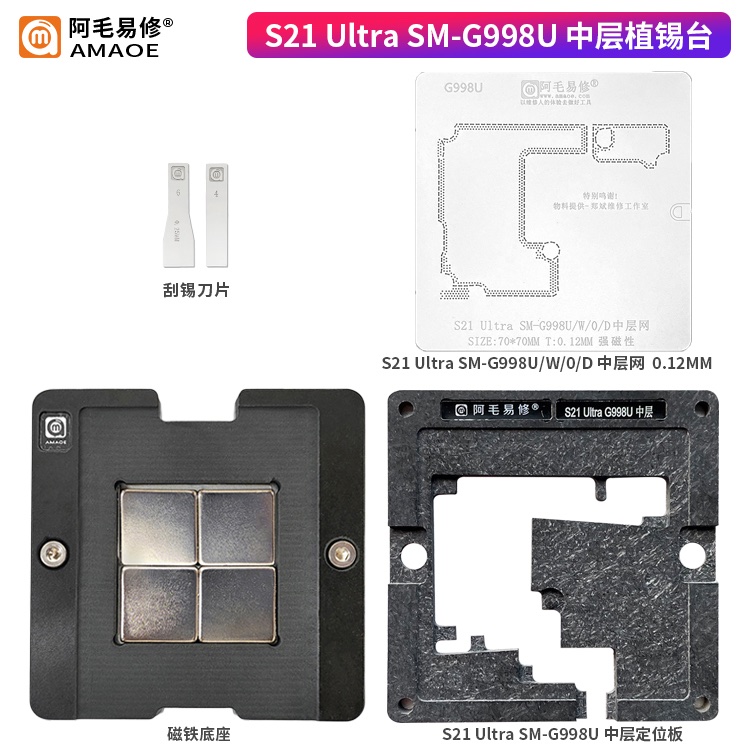

The Amaoe Samsung S21 Ultra SM-G998U Layer Reballing Stencil Set Template Positioning plant tin net Steel mesh is expertly designed for hassle-free and accurate reballing tasks. With its high-quality steel mesh and precise positioning, this tool ensures exceptional performance for repairing and reballing your Samsung S21 Ultra SM-G998U.

Durable Design for Long-Term Use

Boasting robust construction, the stencil set’s steel mesh is both durable and resistant to deformation, making it the perfect choice for professional use. The plant tin net enhances accuracy, allowing for smooth operations and efficient results every time. Amaoe Samsung S21 Ultra SM-G998U Layer Reballing Stencil Set Template Positioning plant tin net Steel mesh

Perfect Fit for Samsung S21 Ultra SM-G998U

Custom-made to match the intricate design of the Samsung S21 Ultra SM-G998U, this template ensures perfect alignment while minimizing errors. Whether you’re a repair specialist or a DIY enthusiast, this stencil set simplifies advanced repair tasks with confidence and ease. Amaoe Samsung S21 Ultra SM-G998U Layer Reballing Stencil Set Template Positioning plant tin net Steel mesh

The Amaoe Samsung S21 Ultra SM-G998U Layer Reballing Stencil Set Template Positioning plant tin net Steel mesh is a professional-grade precision tool designed for senior repair technicians. When dealing with the Snapdragon 888 variant of the S21 Ultra, the “sandwich” motherboard design requires absolute accuracy to ensure the middle layer logic board makes perfect contact after a repair.

Below is the comprehensive technical specification and breakdown for this specific stencil set.

Technical Specifications Table

Core Features and Functional Design

1. 3D Positioning and Plant Tin Net

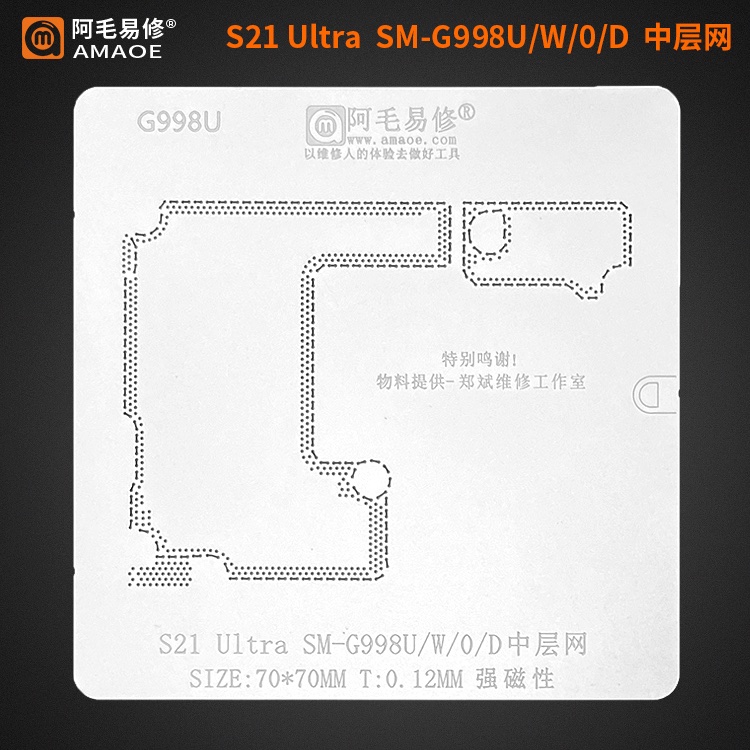

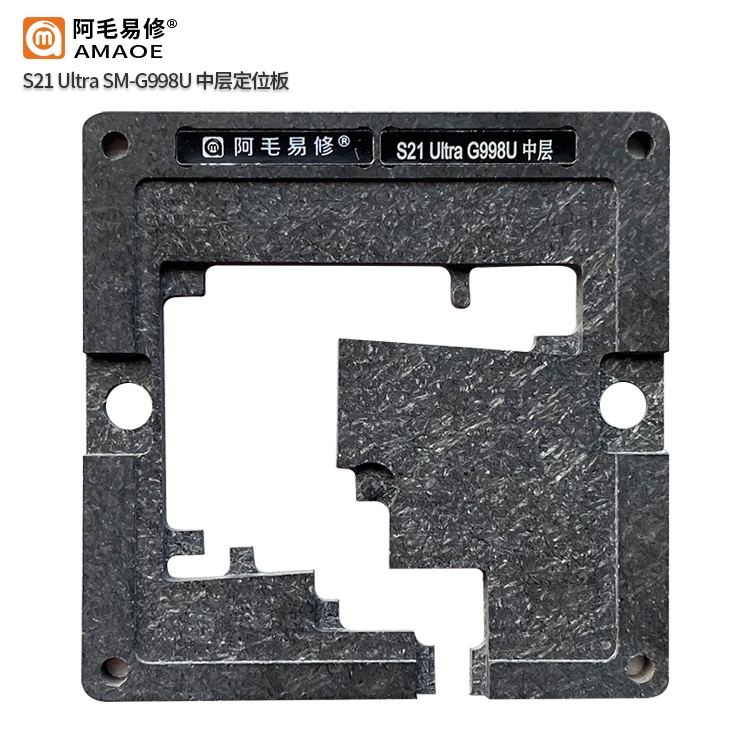

Unlike standard flat stencils, the Amaoe Samsung S21 Ultra SM-G998U Layer Reballing Stencil Set Template Positioning plant tin net Steel mesh utilizes a layered positioning system. The “plant tin net” refers to the specific mesh layout that aligns perfectly with the BGA (Ball Grid Array) pads of the S21 Ultra’s middle frame. The template features recessed grooves that “lock” the motherboard into place, preventing any lateral movement during the application of solder paste.

2. Specialized Steel Mesh Material

The use of 304 stainless steel ensures that the mesh remains rigid under high heat. During the reballing process, technicians apply heat to melt the solder paste into spheres. Cheap stencils often “bow” or expand, causing solder bridges. This Amaoe Samsung S21 Ultra SM-G998U Layer Reballing Stencil Set Template Positioning plant tin net Steel meshtemplate is engineered with thermal expansion gaps to maintain flatness at melting temperatures ($183^\circ\text{C}$ for leaded or $217^\circ\text{C}$ for lead-free paste).

3. Precision Square Holes

The stencil holes are laser-cut with a slight taper. The top of the hole is marginally wider than the bottom. This geometry allows the solder balls to release effortlessly from the mesh once they have solidified, reducing the risk of “torn pads” or missing solder balls when the stencil is lifted.

Application Workflow for SM-G998U

To achieve a professional-grade repair on the S21 Ultra motherboard, the following workflow is optimized for this stencil:

• Cleaning: Use specialized PCB cleaner and a fiber brush to remove all old solder and flux from the middle layer interposer.

• Positioning: Place the SM-G998U logic board into the Amaoe positioning base. The board should sit flush within the cutouts.

• Paste Application: Apply a high-quality solder paste (e.g., $183^\circ\text{C}$ Medium Temperature) across the steel mesh. Use a scraper at a 45-degree angle to ensure even filling of the square holes.

• Heating: Using a hot air station set to approximately $330^\circ\text{C}$ with low airflow, heat the stencil in a circular motion. The plant tin net design ensures even heat distribution to prevent localized warping.

• Cooling & Release: Allow the board to cool for 10 seconds before lifting the stencil vertically.

Maintenance and Durability

Why SM-G998U Specificity Matters

The US variant (SM-G998U) utilizes the Qualcomm architecture, which has a distinct pinout and middle-layer footprint compared to the Exynos (International) versions. Using a generic S21 Ultra stencil often leads to alignment failures. This Amaoe set is specifically mapped to the SM8350 platform’s RF and Power management traces, ensuring that every ground and data pin is perfectly reballed for a 100% success rate in “sandwich” board reassembly.

More Products : https://gsmtoolsindia.com/

Follow us on https://whatsapp.com/channel/0029VaRI8ARBPzjaKiOwLT3i
