This section sets the foundation for a safe repair environment. Before a single tool touches a phone, the workspace must be prepared to protect both the technician and the sensitive electronics.
Electrostatic Discharge (ESD) Safety: Instructions on grounding yourself using an ESD wrist strap and working on an anti-static mat to prevent frying microchips with static electricity.
Safety Gear: Protocols for wearing safety glasses (critical when prying shattered glass) and working in a well-ventilated area (crucial for adhesive fumes and soldering smoke).
Lighting and Magnification: Recommendations for high-intensity desk lamps and digital microscopes or magnifying visors for viewing microscopic components.
The most physically risky part of mobile repair is opening the device without cracking the glass screen or ripping delicate internal ribbon cables.
Thermal Tools (Heat Guns & Heat Pads): Instructions on setting precise temperatures (typically 80°C to 100°C) to soften heavy factory adhesives without damaging the display.
Suction & Leverage Tools: Proper placement of heavy-duty suction cups and screen prying fixtures to safely create an initial gap.
Separation Media (Plastic Picks & Spudgers): Techniques for slicing through glue lines using plastic opening picks without inserting them too deeply into the frame.
Modern smartphones use dozens of tiny, highly specialized screws and brackets to hold internal shields in place.
Precision Driver Identification: A breakdown of specialized micro-bits, detailing exactly when to use Pentalobe (iPhones), Tri-point/Y-type (internal Apple shields), Torx/Torx Security (Android devices), and standard Micro-Phillips.
Organization Systems: Guidelines for using magnetic project mats or screw organizing trays to map out screw locations, preventing the catastrophic error of “long-screw damage.”
Gripping & Placer Tools: How to utilize straight and curved ESD-safe tweezers to safely disconnect fragile ZIF (Zero Insertion Force) and coaxial cable connectors.
This section transitions the user from basic mechanical teardowns to logical troubleshooting when a phone won’t turn on or charge.
Digital Multimeter (DMM): Step-by-step instructions on setting up the meter for DC voltage testing (checking battery and charging port output) and continuity/diode mode (hunting for short circuits).
DC Power Supply: How to boot a phone motherboard without a battery attached, interpreting current draw (Amperage) to diagnose power management failures.
USB Ammeter / Tester: Utilizing an inline USB safety tester plugged into the charging block to instantly diagnose if a phone is pulling normal current ($1A$ to $2A$) or completely dead ($0A$).
For advanced users handling board-level fixes like swapping out charging ports, audio IC chips, or FPC connectors.
Soldering Iron Stations: Temperature calibration tips, tip selection (chisel vs. conical), and maintenance/tinning procedures.
Hot Air Rework Stations: Managing the delicate balance of air flow and temperature to safely desolder multi-pin components without blowing adjacent surface-mount resistors off the board.
Chemical Consumables: Proper application of rosin flux (to clean joints and fluidize solder), solder wick (braided wire to remove old solder), and low-melt solder alloys.
The final step is cleaning up the internal cavity and sealing the device back up to its original structural integrity.
Chemical Cleaners: Safe usage of 99% Isopropyl Alcohol (IPA) to dissolve old glue residues, flux oils, and clean mild liquid damage.
Liquid Adhesives vs. Tape: Instructions on applying specialized acrylic glues (like B-7000) versus applying precision-cut double-sided adhesive gaskets.
Camping and Curing: Utilizing specialized display repair clamps to apply even, steady pressure while the new adhesives cure over 15 to 30 minutes.

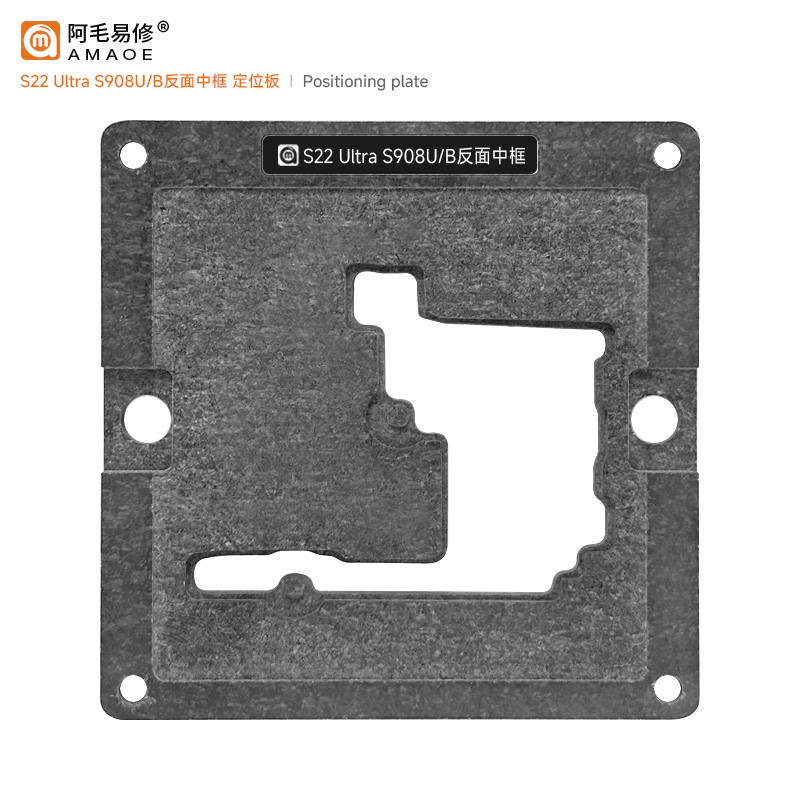

The Amaoe Samsung S22 Ultra SM-S908U/B Layer Reballing Stencil Set Template Positioning plant tin net Steel mesh Set is an essential tool for professionals aiming for precision and efficiency in advanced repair work. Designed specifically for the Samsung S22 Ultra, this set ensures a snug fit, enabling seamless alignment and soldering operations. Amaoe Samsung S22 Ultra SM-S908U/B Layer Reballing Stencil Set Template Positioning plant tin net Steel mesh
Crafted from high-quality, heat-resistant steel, this stencil set is built to withstand demanding conditions. Its robust build ensures stability while reballing, making it a reliable companion for intricate tasks. Additionally, the durable materials offer consistent performance over extended use. Amaoe Samsung S22 Ultra SM-S908U/B Layer Reballing Stencil Set Template Positioning plant tin net Steel mesh
This reballing stencil set includes templates optimized for specific positioning, ensuring you get accurate placement every time. Whether you’re working on advanced circuit board repairs or handling delicate chip soldering, the intuitive design streamlines the workflow for both beginners and seasoned technicians.
The Amaoe Samsung S22 Ultra (SM-S908U/B) Reballing Stencil Set is a high-precision maintenance tool designed specifically for professional micro-soldering and motherboard repair. As smartphones move toward stacked (sandwich) motherboard architectures, the need for exact positioning and uniform solder paste distribution has become critical for successful repairs. Amaoe Samsung S22 Ultra SM-S908U/B Layer Reballing Stencil Set Template Positioning plant tin net Steel mesh
This template set is engineered for the Snapdragon and Exynos variants of the S22 Ultra, providing a comprehensive solution for logic board separation, cleaning, and re-joining.
The set utilizes imported Japanese steel with high-temperature resistance to prevent warping during the heating process. The “Square Hole” design is a signature Amaoe feature, ensuring that solder balls are formed with uniform height and volume, which reduces the risk of short circuits or “cold” solder joints when the motherboard layers are compressed. Amaoe Samsung S22 Ultra SM-S908U/B Layer Reballing Stencil Set Template Positioning plant tin net Steel mesh
The “Plant Tin Net” refers to the specific grid pattern used to apply solder paste to the interposer of the S22 Ultra motherboard. Because the S22 Ultra uses a dual-layer PCB, the alignment must be perfect. The Amaoe stencil features precise cutouts that match the alignment pins on the motherboard, ensuring the steel mesh does not shift during paste application.
Traditional round holes often trap solder paste, leading to uneven solder balls. The Square Hole design allows for better airflow and easier release of the paste. This results in perfectly spherical solder balls once the heat gun is applied, which is essential for the high-density pinouts found on the SM-S908U logic boards.
One of the biggest challenges in reballing is “stencil bulging.” When heat is applied directly to a thin mesh, the metal expands. Amaoe stencils are treated to dissipate heat evenly, maintaining a flat profile against the chip. This prevents “bridging,” where two solder balls melt together into a single blob.
This set is specifically mapped for the North American (U) and Global (B) versions of the S22 Ultra. It includes specific patterns for:
The Main CPU (Snapdragon 8 Gen 1 / Exynos 2200)
LPDDR5 RAM modules
UFS 3.1/4.0 Storage chips
Power Management ICs (PMIC)
The Middle Frame / Interposer Layer
To achieve the best results with this stencil set:
Cleaning: Ensure the motherboard pads are completely flat using a soldering wick and high-quality flux before positioning the stencil.
Paste Selection: Use a high-quality “middle-layer” solder paste (typically 183°C or 138°C depending on the specific repair requirements).
Heat Control: Use a concentrated nozzle on your hot air station. For reballing with this 0.12mm stencil, a temperature of 320°C to 350°C with low airflow is recommended to prevent blowing the solder balls out of their sockets.
In the mobile repair industry, Amaoe Samsung S22 Ultra SM-S908U/B Layer Reballing Stencil Set Template Positioning plant tin net Steel meshis recognized for durability. While cheaper “universal” stencils exist, they often lack the precise thickness required for the S22 Ultra’s tight tolerances. The SM-S908 series has a very low clearance between components; using a stencil that is even 0.02mm too thick can cause the motherboard to sit unevenly, leading to “No Power” or “No Signal” symptoms after reassembly.
