Please read the manual before use.
This section sets the foundation for a safe repair environment. Before a single tool touches a phone, the workspace must be prepared to protect both the technician and the sensitive electronics.
Electrostatic Discharge (ESD) Safety: Instructions on grounding yourself using an ESD wrist strap and working on an anti-static mat to prevent frying microchips with static electricity.
Safety Gear: Protocols for wearing safety glasses (critical when prying shattered glass) and working in a well-ventilated area (crucial for adhesive fumes and soldering smoke).
Lighting and Magnification: Recommendations for high-intensity desk lamps and digital microscopes or magnifying visors for viewing microscopic components.
The most physically risky part of mobile repair is opening the device without cracking the glass screen or ripping delicate internal ribbon cables.
Thermal Tools (Heat Guns & Heat Pads): Instructions on setting precise temperatures (typically 80°C to 100°C) to soften heavy factory adhesives without damaging the display.
Suction & Leverage Tools: Proper placement of heavy-duty suction cups and screen prying fixtures to safely create an initial gap.
Separation Media (Plastic Picks & Spudgers): Techniques for slicing through glue lines using plastic opening picks without inserting them too deeply into the frame.
Modern smartphones use dozens of tiny, highly specialized screws and brackets to hold internal shields in place.
Precision Driver Identification: A breakdown of specialized micro-bits, detailing exactly when to use Pentalobe (iPhones), Tri-point/Y-type (internal Apple shields), Torx/Torx Security (Android devices), and standard Micro-Phillips.
Organization Systems: Guidelines for using magnetic project mats or screw organizing trays to map out screw locations, preventing the catastrophic error of “long-screw damage.”
Gripping & Placer Tools: How to utilize straight and curved ESD-safe tweezers to safely disconnect fragile ZIF (Zero Insertion Force) and coaxial cable connectors.
This section transitions the user from basic mechanical teardowns to logical troubleshooting when a phone won’t turn on or charge.
Digital Multimeter (DMM): Step-by-step instructions on setting up the meter for DC voltage testing (checking battery and charging port output) and continuity/diode mode (hunting for short circuits).
DC Power Supply: How to boot a phone motherboard without a battery attached, interpreting current draw (Amperage) to diagnose power management failures.
USB Ammeter / Tester: Utilizing an inline USB safety tester plugged into the charging block to instantly diagnose if a phone is pulling normal current ($1A$ to $2A$) or completely dead ($0A$).
For advanced users handling board-level fixes like swapping out charging ports, audio IC chips, or FPC connectors.
Soldering Iron Stations: Temperature calibration tips, tip selection (chisel vs. conical), and maintenance/tinning procedures.
Hot Air Rework Stations: Managing the delicate balance of air flow and temperature to safely desolder multi-pin components without blowing adjacent surface-mount resistors off the board.
Chemical Consumables: Proper application of rosin flux (to clean joints and fluidize solder), solder wick (braided wire to remove old solder), and low-melt solder alloys.
The final step is cleaning up the internal cavity and sealing the device back up to its original structural integrity.
Chemical Cleaners: Safe usage of 99% Isopropyl Alcohol (IPA) to dissolve old glue residues, flux oils, and clean mild liquid damage.
Liquid Adhesives vs. Tape: Instructions on applying specialized acrylic glues (like B-7000) versus applying precision-cut double-sided adhesive gaskets.
Camping and Curing: Utilizing specialized display repair clamps to apply even, steady pressure while the new adhesives cure over 15 to 30 minutes.

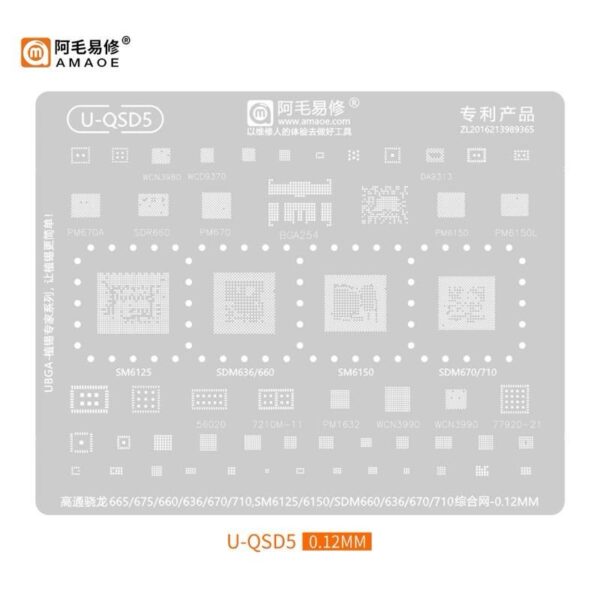

The AMAOE U-QSD5 stencil is a pivotal tool in the realm of mobile repairing, offering technicians a reliable and efficient means for precise soldering and reballing of components. This stencil is specifically designed to cater to the diverse needs encountered in mobile repairs, making it compatible with a wide range of mobile phone models. Its adaptability ensures that technicians can utilize the same stencil for various devices, reducing the need for multiple stencils and thereby streamlining their workflow.
One of the standout features of the AMAOE U-QSD5 stencil is its precision design. Each opening in the stencil is crafted with meticulous attention to detail, allowing for accurate application of solder paste during the reballing process. This precision minimizes the risk of bridging and short circuits, which are common issues faced during mobile repairs. Furthermore, the stencil is constructed from high-quality materials that guarantee durability, ensuring it can withstand the rigors of frequent use without compromising its performance.
The role of stencils in the soldering process cannot be overstated. They provide a template for applying solder paste onto the designated pads of a circuit board, facilitating a clean and uniform application. This is particularly important in mobile repairing, where the components are often miniature and closely packed together. Utilizing high-quality stencils like the AMAOE U-QSD5 enhances the overall repair quality, allowing technicians to achieve excellent results in soldering and reballing tasks. In essence, the AMAOE U-QSD5 stencil is an indispensable asset for professionals seeking precision and reliability in mobile repair endeavors.
To achieve successful repairs using the AMAOE U-QSD5 stencil, it is crucial to begin with proper preparations. Start by cleaning the printed circuit board (PCB) thoroughly to remove any dust, residue, or contaminants that could interfere with the soldering process. An effective way to clean the PCB is to use isopropyl alcohol and a lint-free cloth, ensuring that all areas, particularly around the component pads, are spotless.
Once the PCB is clean, the next step is the correct application of solder paste. Use a stencil applicator or a squeegee to evenly spread the solder paste over the stencil. Ensure that you apply enough pressure to push the solder paste through the openings while avoiding excessive spillage around the stencil edges. It is recommended to use high-quality solder paste compatible with the components and the PCB to achieve the best results.
After applying the solder paste, align the stencil accurately on the PCB. The alignment is critical; misalignment can lead to short circuits or insufficient solder on the pads. Take time to check the positioning before proceeding further. Once the stencil is in place, carefully lift it off to leave the solder paste deposited on the PCB pads.
The next phase involves the heating and reflow soldering process. Place the PCB in a solder reflow oven or use a hot air rework station, adhering to manufacturer instructions regarding temperature profiles. This critical stage ensures that the solder paste melts and forms reliable connections between the components and the PCB. Pay close attention to the temperature and time settings to avoid overheating, which may damage the components.
Finally, troubleshoot any common issues that may arise during the procedure, such as insufficient solder or misaligned components. Utilizing magnification tools can assist in identifying these problems, allowing you to take corrective measures promptly. Following best practices will enhance the chances of achieving high-quality repairs with the AMAOE U-QSD5 stencil.
