Please read the manual before use.
This section sets the foundation for a safe repair environment. Before a single tool touches a phone, the workspace must be prepared to protect both the technician and the sensitive electronics.
Electrostatic Discharge (ESD) Safety: Instructions on grounding yourself using an ESD wrist strap and working on an anti-static mat to prevent frying microchips with static electricity.
Safety Gear: Protocols for wearing safety glasses (critical when prying shattered glass) and working in a well-ventilated area (crucial for adhesive fumes and soldering smoke).
Lighting and Magnification: Recommendations for high-intensity desk lamps and digital microscopes or magnifying visors for viewing microscopic components.
The most physically risky part of mobile repair is opening the device without cracking the glass screen or ripping delicate internal ribbon cables.
Thermal Tools (Heat Guns & Heat Pads): Instructions on setting precise temperatures (typically 80°C to 100°C) to soften heavy factory adhesives without damaging the display.
Suction & Leverage Tools: Proper placement of heavy-duty suction cups and screen prying fixtures to safely create an initial gap.
Separation Media (Plastic Picks & Spudgers): Techniques for slicing through glue lines using plastic opening picks without inserting them too deeply into the frame.
Modern smartphones use dozens of tiny, highly specialized screws and brackets to hold internal shields in place.
Precision Driver Identification: A breakdown of specialized micro-bits, detailing exactly when to use Pentalobe (iPhones), Tri-point/Y-type (internal Apple shields), Torx/Torx Security (Android devices), and standard Micro-Phillips.
Organization Systems: Guidelines for using magnetic project mats or screw organizing trays to map out screw locations, preventing the catastrophic error of “long-screw damage.”
Gripping & Placer Tools: How to utilize straight and curved ESD-safe tweezers to safely disconnect fragile ZIF (Zero Insertion Force) and coaxial cable connectors.
This section transitions the user from basic mechanical teardowns to logical troubleshooting when a phone won’t turn on or charge.
Digital Multimeter (DMM): Step-by-step instructions on setting up the meter for DC voltage testing (checking battery and charging port output) and continuity/diode mode (hunting for short circuits).
DC Power Supply: How to boot a phone motherboard without a battery attached, interpreting current draw (Amperage) to diagnose power management failures.
USB Ammeter / Tester: Utilizing an inline USB safety tester plugged into the charging block to instantly diagnose if a phone is pulling normal current ($1A$ to $2A$) or completely dead ($0A$).
For advanced users handling board-level fixes like swapping out charging ports, audio IC chips, or FPC connectors.
Soldering Iron Stations: Temperature calibration tips, tip selection (chisel vs. conical), and maintenance/tinning procedures.
Hot Air Rework Stations: Managing the delicate balance of air flow and temperature to safely desolder multi-pin components without blowing adjacent surface-mount resistors off the board.
Chemical Consumables: Proper application of rosin flux (to clean joints and fluidize solder), solder wick (braided wire to remove old solder), and low-melt solder alloys.
The final step is cleaning up the internal cavity and sealing the device back up to its original structural integrity.
Chemical Cleaners: Safe usage of 99% Isopropyl Alcohol (IPA) to dissolve old glue residues, flux oils, and clean mild liquid damage.
Liquid Adhesives vs. Tape: Instructions on applying specialized acrylic glues (like B-7000) versus applying precision-cut double-sided adhesive gaskets.
Camping and Curing: Utilizing specialized display repair clamps to apply even, steady pressure while the new adhesives cure over 15 to 30 minutes.

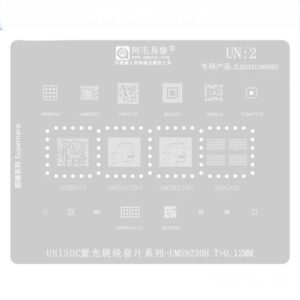

Amaoe UN:2 CPU BGA Reballing an essential technique in mobile repairing, refers to the process of replacing the solder balls on a Ball Grid Array (BGA) chip. This chip type is commonly found in various mobile devices due to its effective use of space and improved performance capabilities. Over time, the solder joints on these components can deteriorate or become damaged, leading to connectivity issues and, ultimately, hardware failures. Recognizing the significance of reballing is vital for any technician looking to maintain and restore mobile devices’ functionality. Amaoe UN:2 CPU BGA Reballing Stencil for UMW2652 UMP510G UIP8910 UIS8910 UMS9230H SGM41512 BGA153 BGA200
The necessity for BGA reballing can arise from several issues. A prevalent cause is the accumulation of heat during operation, which can weaken the solder connections. Additionally, physical stresses or manufacturing defects may lead to poor connections, resulting in intermittent faults or complete device malfunctions. In these scenarios, the traditional approach may often involve replacing the entire chip, an option that can be both costly and inefficient. Instead, employing BGA stencils, such as the AMAOE UN:2 CPU models, allows for a more streamlined and effective repair process. These stencils enable technicians to accurately apply new solder balls, ensuring optimal placement and reliability. Amaoe UN:2 CPU BGA Reballing Stencil for UMW2652 UMP510G UIP8910 UIS8910 UMS9230H SGM41512 BGA153 BGA200
BGA reballing provides numerous benefits, making it a preferred choice for many repairs. Firstly, it is a cost-effective solution, reducing the need for expensive component replacements. This practice also aligns with sustainability goals within the electronics industry by extending the lifespan of mobile devices. Moreover, reballing typically results in a faster repair turnaround, enhancing customer satisfaction. By understanding and utilizing BGA reballing techniques, technicians can effectively address common connectivity issues while adhering to principles of economic and ecological responsibility. Amaoe UN:2 CPU BGA Reballing Stencil for UMW2652 UMP510G UIP8910 UIS8910 UMS9230H SGM41512 BGA153 BGA200

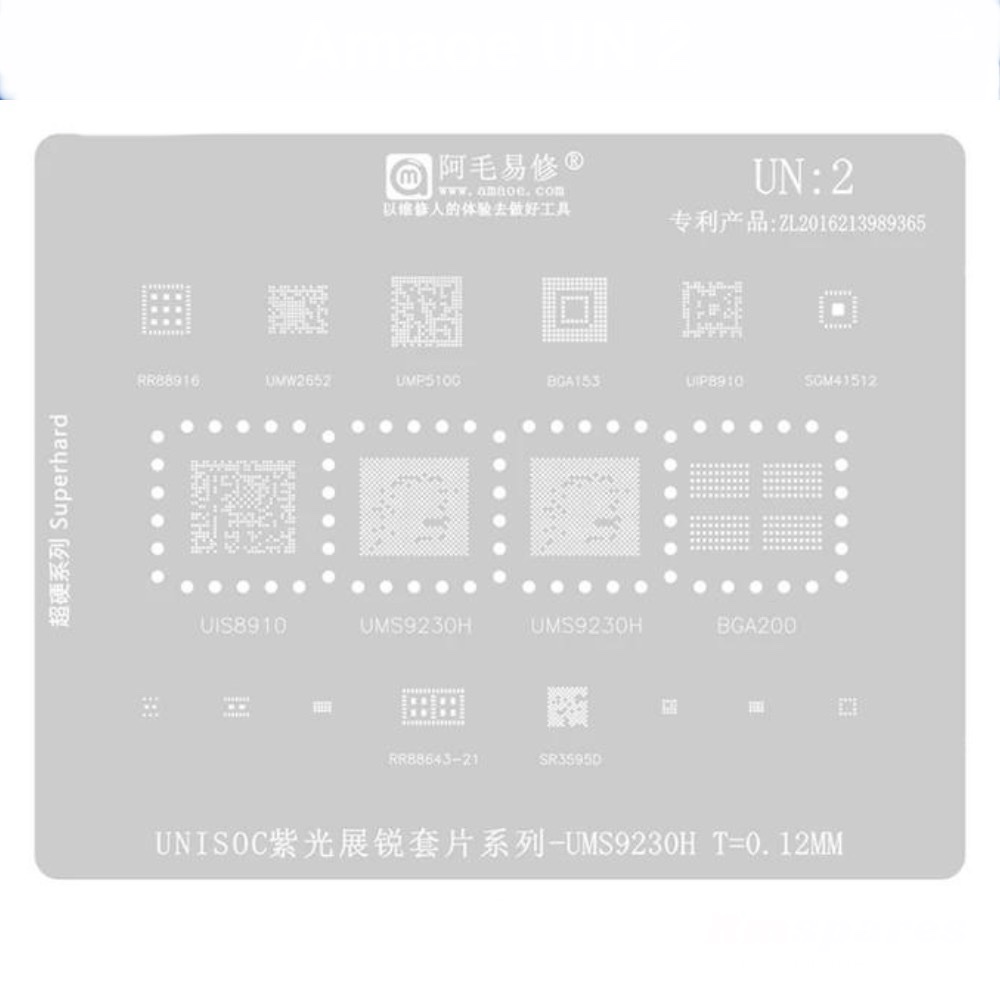

The AMAOE UN:2 series of BGA reballing stencils has garnered significant attention in the mobile repair industry due to their robust compatibility with various Ball Grid Array (BGA) packages. These stencils are specifically designed for integrated circuits such as the UMW2652, UMP510G, UIP8910, UIS8910, UMS9230H, SGM41512, and BGA153 and BGA200 packages. The precision engineering behind these stencils allows technicians to achieve exceptional accuracy during the reballing process, which is critical for modern mobile devices. Amaoe UN:2 CPU BGA Reballing
One of the foremost advantages of the AMAOE UN:2 stencils is their meticulous design, which facilitates uniform solder ball placement across the BGA package. Consistent alignment is crucial in mitigating solder bridging risks, thereby enhancing the reliability of electronic connections post-repair. When employed correctly, these stencils not only contribute to superior electrical performance but also extend the lifespan of the devices being repaired. Amaoe UN:2 CPU BGA Reballing
Furthermore, the specifications of the AMAOE UN:2 stencils include various thickness options tailored to specific applications. This adaptability enables technicians to select a stencil that complements the particular characteristics of the components being serviced. The materials used in the construction of these stencils are durable, allowing for repeated use without compromising precision, thereby providing a cost-effective solution for repair shops. Amaoe UN:2 CPU BGA Reballing
For practitioners aiming for optimal results, several tips can be employed when selecting and using these stencils. Firstly, understanding the specific requirements of the BGA package being worked on is vital. Each application may necessitate a different stencil size or type. Additionally, maintaining the stencil’s cleanliness and ensuring proper alignment during the reballing process will yield the best outcomes. Employing these best practices with AMAOE UN:2 stencils can significantly improve repair quality while minimizing potential errors, making them an invaluable asset for mobile repair specialists. Amaoe UN:2 CPU BGA Reballing
