₹200 Original price was: ₹200.₹100Current price is: ₹100.
Shipping India
Guaranteed Satisfaction
Safe Checkout
Please read the manual before use.
This section sets the foundation for a safe repair environment. Before a single tool touches a phone, the workspace must be prepared to protect both the technician and the sensitive electronics.
Electrostatic Discharge (ESD) Safety: Instructions on grounding yourself using an ESD wrist strap and working on an anti-static mat to prevent frying microchips with static electricity.
Safety Gear: Protocols for wearing safety glasses (critical when prying shattered glass) and working in a well-ventilated area (crucial for adhesive fumes and soldering smoke).
Lighting and Magnification: Recommendations for high-intensity desk lamps and digital microscopes or magnifying visors for viewing microscopic components.
The most physically risky part of mobile repair is opening the device without cracking the glass screen or ripping delicate internal ribbon cables.
Thermal Tools (Heat Guns & Heat Pads): Instructions on setting precise temperatures (typically 80°C to 100°C) to soften heavy factory adhesives without damaging the display.
Suction & Leverage Tools: Proper placement of heavy-duty suction cups and screen prying fixtures to safely create an initial gap.
Separation Media (Plastic Picks & Spudgers): Techniques for slicing through glue lines using plastic opening picks without inserting them too deeply into the frame.
Modern smartphones use dozens of tiny, highly specialized screws and brackets to hold internal shields in place.
Precision Driver Identification: A breakdown of specialized micro-bits, detailing exactly when to use Pentalobe (iPhones), Tri-point/Y-type (internal Apple shields), Torx/Torx Security (Android devices), and standard Micro-Phillips.
Organization Systems: Guidelines for using magnetic project mats or screw organizing trays to map out screw locations, preventing the catastrophic error of “long-screw damage.”
Gripping & Placer Tools: How to utilize straight and curved ESD-safe tweezers to safely disconnect fragile ZIF (Zero Insertion Force) and coaxial cable connectors.
This section transitions the user from basic mechanical teardowns to logical troubleshooting when a phone won’t turn on or charge.
Digital Multimeter (DMM): Step-by-step instructions on setting up the meter for DC voltage testing (checking battery and charging port output) and continuity/diode mode (hunting for short circuits).
DC Power Supply: How to boot a phone motherboard without a battery attached, interpreting current draw (Amperage) to diagnose power management failures.
USB Ammeter / Tester: Utilizing an inline USB safety tester plugged into the charging block to instantly diagnose if a phone is pulling normal current ($1A$ to $2A$) or completely dead ($0A$).
For advanced users handling board-level fixes like swapping out charging ports, audio IC chips, or FPC connectors.
Soldering Iron Stations: Temperature calibration tips, tip selection (chisel vs. conical), and maintenance/tinning procedures.
Hot Air Rework Stations: Managing the delicate balance of air flow and temperature to safely desolder multi-pin components without blowing adjacent surface-mount resistors off the board.
Chemical Consumables: Proper application of rosin flux (to clean joints and fluidize solder), solder wick (braided wire to remove old solder), and low-melt solder alloys.
The final step is cleaning up the internal cavity and sealing the device back up to its original structural integrity.
Chemical Cleaners: Safe usage of 99% Isopropyl Alcohol (IPA) to dissolve old glue residues, flux oils, and clean mild liquid damage.
Liquid Adhesives vs. Tape: Instructions on applying specialized acrylic glues (like B-7000) versus applying precision-cut double-sided adhesive gaskets.
Camping and Curing: Utilizing specialized display repair clamps to apply even, steady pressure while the new adhesives cure over 15 to 30 minutes.

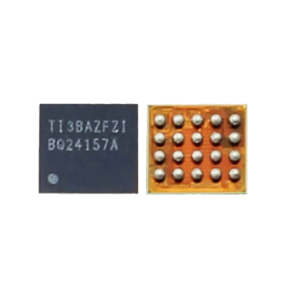

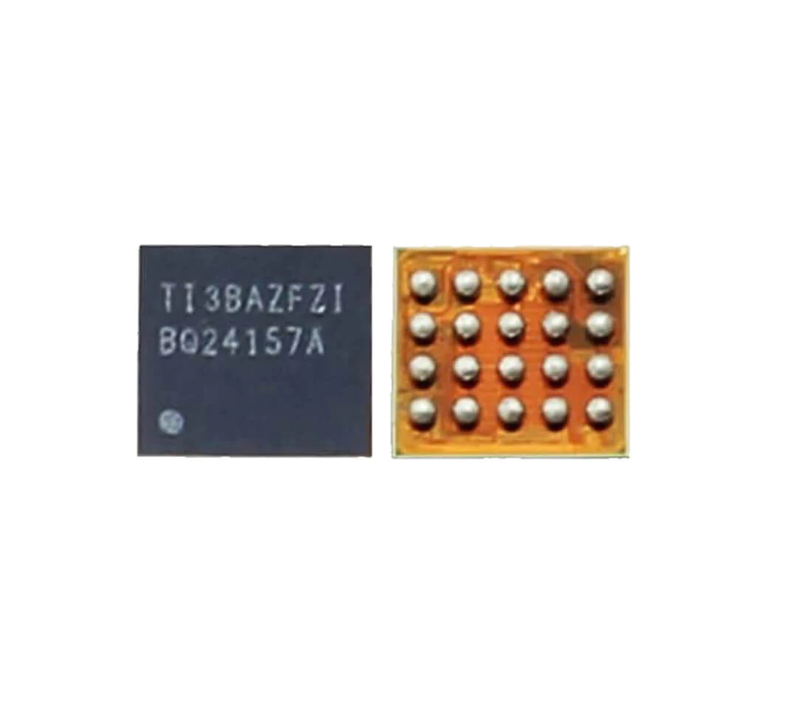

The BQ24157A ORG CHARGING IC is a highly versatile charging integrated circuit (IC) designed primarily for use in modern portable electronic devices. It supports multiple battery chemistries, most notably Lithium-Ion (Li-Ion) and Lithium-Polymer (Li-Poly), catering to a diverse range of applications from smartphones to tablets and other consumer electronics. This adaptability to various battery sizes and types underscores its significance in today’s technology landscape. BQ24157A ORG CHARGING IC
One of the key specifications of the BQ24157A is its ability to deliver up to 3A of charging current, which is critical for rapid battery charging while maintaining safety and efficiency. The device features a unique power path management system that allows simultaneous charging and system operation, ensuring that devices remain functional even when plugged in. This allows manufacturers to design products that are both powerful and user-friendly. BQ24157A ORG CHARGING IC
Efficiency is paramount in extending battery life and improving device performance. The BQ24157A incorporates advanced techniques to minimize power loss during the charging process, which is further complemented by its thermal management capabilities. This IC is designed with protection features such as over-voltage protection, thermal regulation, and input over-current protection, all of which enhance the safety of the end device, making it a reliable choice for developers. BQ24157A ORG CHARGING IC
When compared to other charging ICs, the BQ24157A stands out due to its integrated safety features, high efficiency, and flexibility in supporting various battery chemistries. These attributes position the BQ24157A not only as a robust solution for charging but also as a crucial component in the design of energy-efficient and safe portable electronics. BQ24157A ORG CHARGING IC
The BQ24157A charging IC is renowned for its versatility and efficiency in modern electronic devices. To implement this IC effectively, several design considerations must be taken into account. First, the PCB layout is crucial; it should allow for optimal thermal performance, minimizing resistance paths and maintaining a compact design. Proper grounding techniques are essential to avoid noise interference, which can adversely affect the charging performance. It is also recommended to keep the loop area of the charging circuit small to enhance stability. BQ24157A ORG CHARGING IC
Component selection plays a significant role in maximizing the performance of the BQ24157A. Choosing the right external components, such as capacitors and inductors, is essential, as they can influence the charging efficiency and device robustness. The selection of input and output capacitors, for instance, should consider the effective series resistance (ESR) to optimize ripple voltage and overall performance. Additionally, designers should evaluate the trade-offs between cost and performance when integrating this IC into their systems. BQ24157A ORG CHARGING IC
Power management strategies are also critical for the effective use of the BQ24157A. By using advanced battery management techniques—such as active charge control and temperature monitoring—developers can enhance battery life while ensuring safety during the charging process. This IC’s features allow intelligent charge termination, which helps prevent overcharging and battery wear. BQ24157A ORG CHARGING IC
Various use cases demonstrate the practicality of the BQ24157A in contemporary devices. In smartphones and tablets, its ability to deliver fast charging benefits users while preserving battery health. Wearable technology, too, leverages the BQ24157A to optimize power consumption, improving device longevity without compromising performance. Real-world applications show that integrating this charging IC can substantially enhance the user experience through reliable and efficient charging solutions. BQ24157A ORG CHARGING IC
