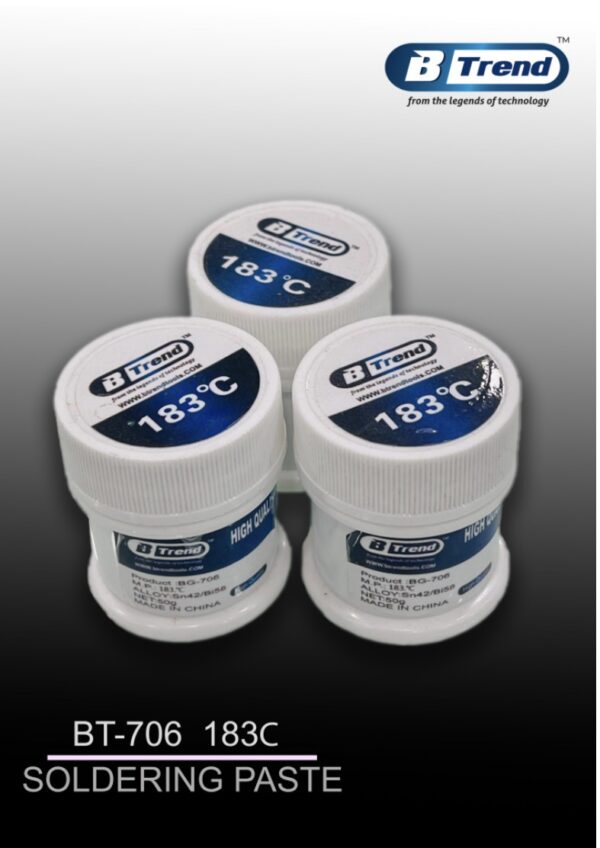

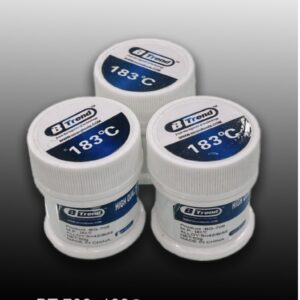

BTREND BT-706 183°C SOLDER PASTE

BTREND BT-706 183°C SOLDER PASTE

Introduction

The BTREND BT-706 183°C Solder Paste is a specialized material designed to provide superior soldering performance for electronic components, PCB assemblies, and various other precision soldering applications. Known for its optimal melting point of 183°C, this solder paste offers a combination of excellent thermal stability, strong adhesion, and reliable conductivity. BTREND BT-706 183°C SOLDER PASTE

Composition and Characteristics

The BTREND BT-706 solder paste is a meticulously engineered blend of fine solder powder and flux. It typically contains a combination of 63% tin (Sn) and 37% lead (Pb), which aligns with the industry-standard eutectic alloy composition that melts uniformly at precisely 183°C. This precise melting temperature ensures stable soldering conditions and minimal thermal stress on electronic components. BTREND BT-706 183°C SOLDER PASTE

Key features of the BTREND BT-706 solder paste include:

• Fine Particle Size: Ensures consistent application for fine-pitch components and micro-soldering needs.
• Smooth Consistency: Facilitates precise stencil printing and hand-soldering techniques.
• High Tackiness: Provides superior component holding power during reflow processes.
• Excellent Wetting Properties: Ensures efficient bonding between metallic surfaces and PCB pads.
• Minimal Residue: Leaves behind minimal non-corrosive residue, reducing the need for extensive post-solder cleaning.

Applications

The BTREND BT-706 183°C solder paste is widely used across industries that require precision soldering and strong mechanical connections. Common applications include:

• PCB Assembly: Ideal for mounting surface-mount devices (SMDs) and through-hole components.
• BGA and CSP Packages: Effective in advanced electronic devices requiring uniform solder connections.
• Repair and Rework: Suitable for touch-ups on delicate circuits, ensuring stable thermal performance.
• Consumer Electronics: Utilized in assembling mobile phones, laptops, and other electronic gadgets.
• Industrial Electronics: Used in automotive control modules, sensors, and communication devices.

Advantages

The BTREND BT-706 183°C solder paste offers several benefits that enhance its utility in electronic manufacturing and repair:

1. Precise Melting Point: The eutectic composition ensures the solder paste melts at exactly 183°C, minimizing thermal damage to sensitive components.
2. Consistent Flow: The paste’s uniform viscosity allows for controlled application, improving the quality of solder joints.
3. Stable Performance: The paste remains stable under controlled storage conditions, preserving its effective lifespan.
4. Enhanced Electrical Conductivity: Ensures optimal signal transmission and minimizes resistance.
5. Low Voiding: Designed to reduce air gaps in solder joints, improving mechanical strength and reliability.

Storage and Handling

To maintain its performance, the BTREND BT-706 183°C solder paste must be stored correctly:

• Storage Temperature: Recommended storage between 0°C to 10°C to preserve the paste’s consistency and prevent oxidation.
• Shelf Life: When stored in optimal conditions, the paste typically retains its effectiveness for up to 6 months.
• Handling Precautions: Before use, allow the paste to reach room temperature for approximately 1-2 hours to prevent moisture condensation that may affect performance.

Application Techniques

The BTREND BT-706 solder paste is compatible with various application methods, including:

• Stencil Printing: Preferred in large-scale PCB assembly for precise paste deposition.
• Dispensing Systems: Used in automated setups for accurate paste placement.
• Manual Application: Effective for prototype development, repairs, and rework projects.

Reflow Profile

For optimal results, the BTREND BT-706 solder paste should follow an appropriate reflow profile:

1. Preheat Stage: Gradual heating between 150°C to 180°C over 60-90 seconds to stabilize the board’s temperature.
2. Soak Zone: Maintain temperatures between 183°C to 200°C for approximately 30-60 seconds.
3. Peak Temperature: Achieve a peak of 220°C to 230°C for 10-20 seconds to ensure proper solder flow.
4. Cooling Phase: Gradual cooling to solidify solder joints and minimize thermal shock.

Safety and Precautions

As a lead-containing solder paste, appropriate safety measures must be observed:

• Use in Well-Ventilated Areas: Prevent inhalation of fumes during soldering.
• Wear Protective Gear: Utilize gloves and eye protection to minimize direct contact.
• Proper Disposal: Follow local regulations for disposing of lead-based materials.

Conclusion

The BTREND BT-706 183°C Solder Paste is a highly reliable and efficient choice for electronics assembly, ensuring robust solder joints, stable electrical conductivity, and consistent performance. Its precise melting point, smooth consistency, and versatile application methods make it ideal for professional and DIY electronics projects alike. By following proper storage, application, and safety guidelines, users can maximize the paste’s performance and ensure successful soldering outcomes. BTREND BT-706 183°C SOLDER PASTE
