Please read the manual before use.
This section sets the foundation for a safe repair environment. Before a single tool touches a phone, the workspace must be prepared to protect both the technician and the sensitive electronics.
Electrostatic Discharge (ESD) Safety: Instructions on grounding yourself using an ESD wrist strap and working on an anti-static mat to prevent frying microchips with static electricity.
Safety Gear: Protocols for wearing safety glasses (critical when prying shattered glass) and working in a well-ventilated area (crucial for adhesive fumes and soldering smoke).
Lighting and Magnification: Recommendations for high-intensity desk lamps and digital microscopes or magnifying visors for viewing microscopic components.
The most physically risky part of mobile repair is opening the device without cracking the glass screen or ripping delicate internal ribbon cables.
Thermal Tools (Heat Guns & Heat Pads): Instructions on setting precise temperatures (typically 80°C to 100°C) to soften heavy factory adhesives without damaging the display.
Suction & Leverage Tools: Proper placement of heavy-duty suction cups and screen prying fixtures to safely create an initial gap.
Separation Media (Plastic Picks & Spudgers): Techniques for slicing through glue lines using plastic opening picks without inserting them too deeply into the frame.
Modern smartphones use dozens of tiny, highly specialized screws and brackets to hold internal shields in place.
Precision Driver Identification: A breakdown of specialized micro-bits, detailing exactly when to use Pentalobe (iPhones), Tri-point/Y-type (internal Apple shields), Torx/Torx Security (Android devices), and standard Micro-Phillips.
Organization Systems: Guidelines for using magnetic project mats or screw organizing trays to map out screw locations, preventing the catastrophic error of “long-screw damage.”
Gripping & Placer Tools: How to utilize straight and curved ESD-safe tweezers to safely disconnect fragile ZIF (Zero Insertion Force) and coaxial cable connectors.
This section transitions the user from basic mechanical teardowns to logical troubleshooting when a phone won’t turn on or charge.
Digital Multimeter (DMM): Step-by-step instructions on setting up the meter for DC voltage testing (checking battery and charging port output) and continuity/diode mode (hunting for short circuits).
DC Power Supply: How to boot a phone motherboard without a battery attached, interpreting current draw (Amperage) to diagnose power management failures.
USB Ammeter / Tester: Utilizing an inline USB safety tester plugged into the charging block to instantly diagnose if a phone is pulling normal current ($1A$ to $2A$) or completely dead ($0A$).
For advanced users handling board-level fixes like swapping out charging ports, audio IC chips, or FPC connectors.
Soldering Iron Stations: Temperature calibration tips, tip selection (chisel vs. conical), and maintenance/tinning procedures.
Hot Air Rework Stations: Managing the delicate balance of air flow and temperature to safely desolder multi-pin components without blowing adjacent surface-mount resistors off the board.
Chemical Consumables: Proper application of rosin flux (to clean joints and fluidize solder), solder wick (braided wire to remove old solder), and low-melt solder alloys.
The final step is cleaning up the internal cavity and sealing the device back up to its original structural integrity.
Chemical Cleaners: Safe usage of 99% Isopropyl Alcohol (IPA) to dissolve old glue residues, flux oils, and clean mild liquid damage.
Liquid Adhesives vs. Tape: Instructions on applying specialized acrylic glues (like B-7000) versus applying precision-cut double-sided adhesive gaskets.
Camping and Curing: Utilizing specialized display repair clamps to apply even, steady pressure while the new adhesives cure over 15 to 30 minutes.

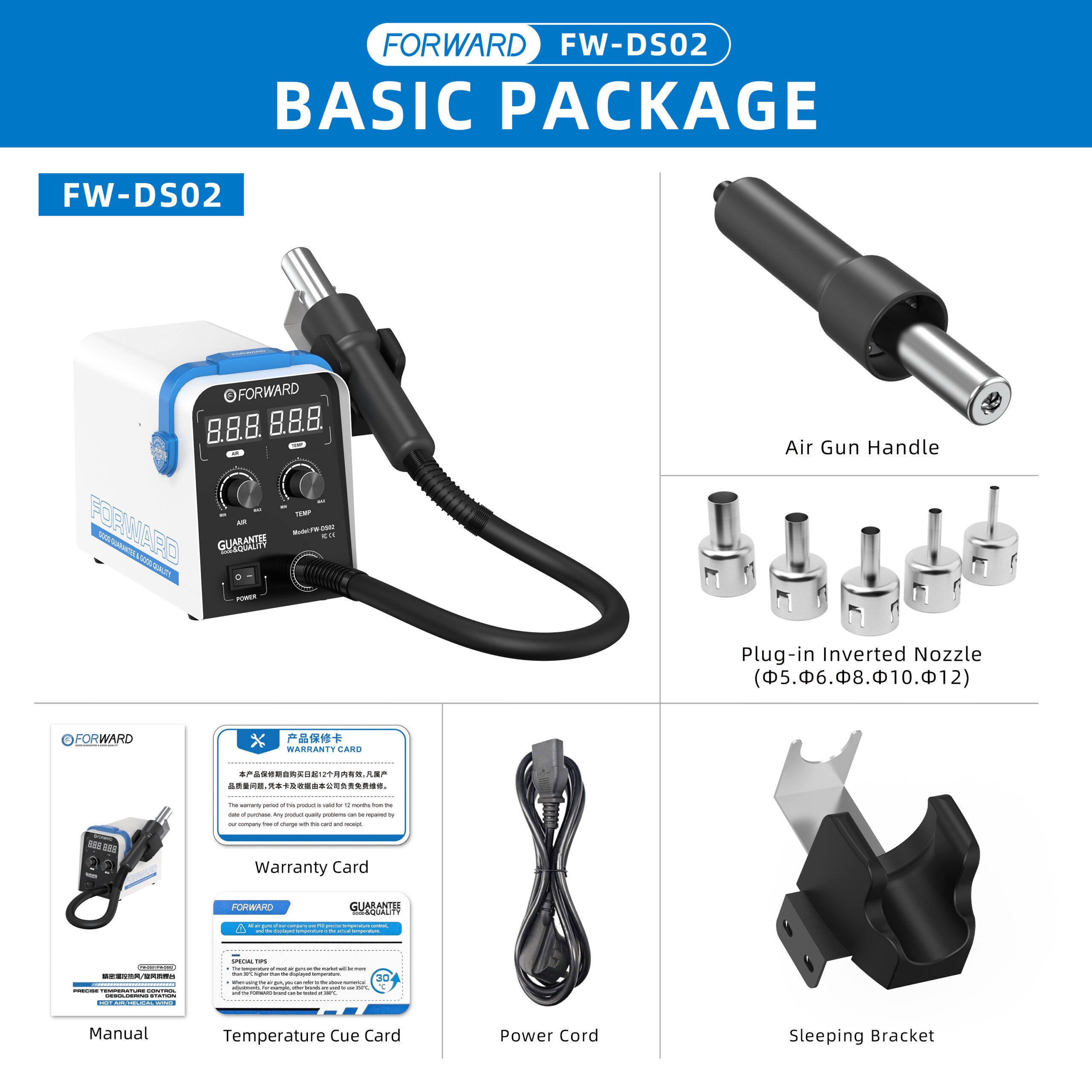

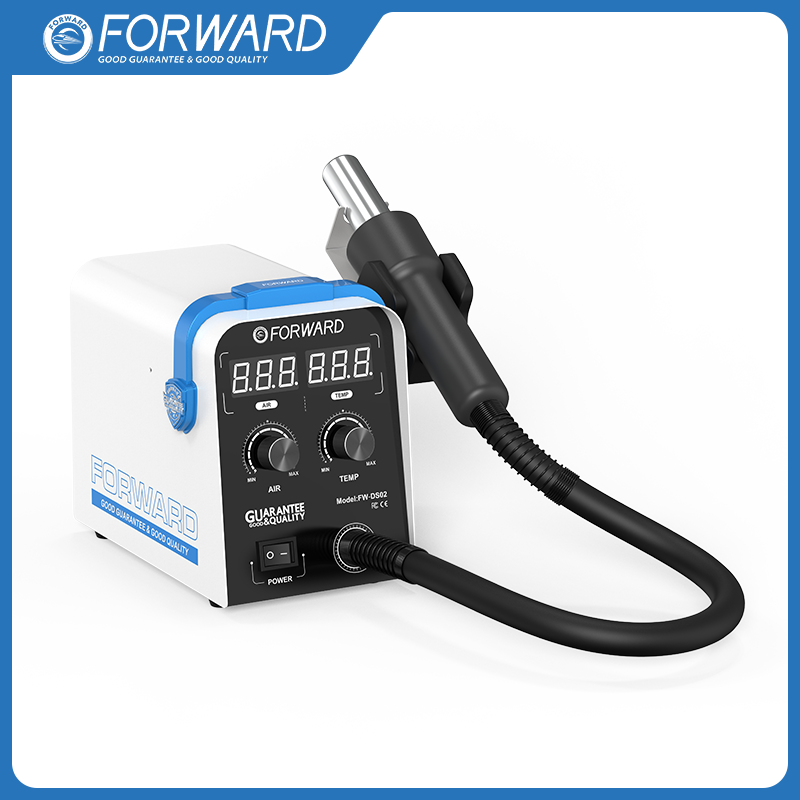

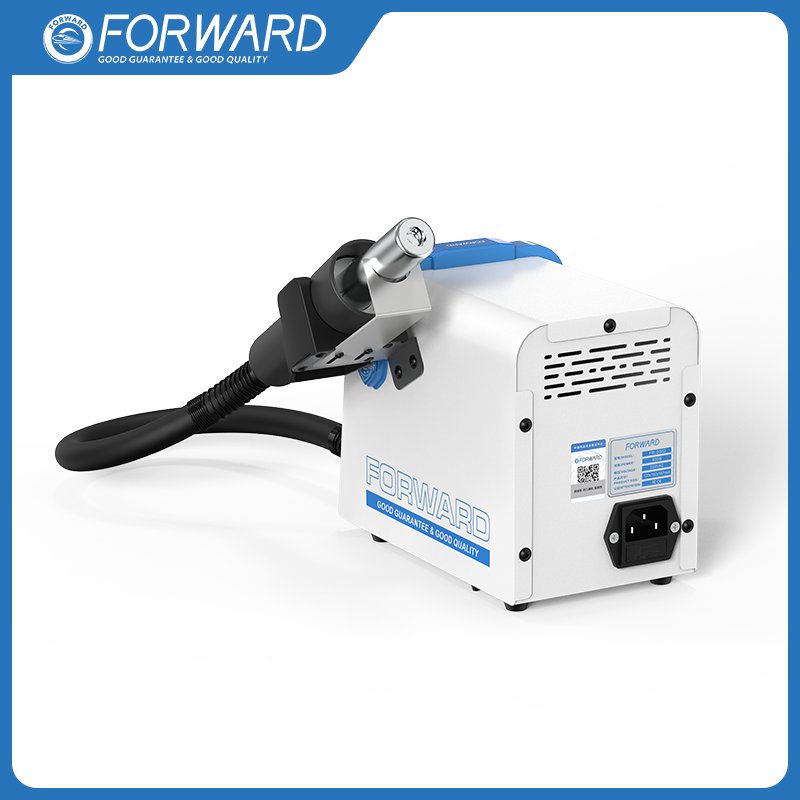

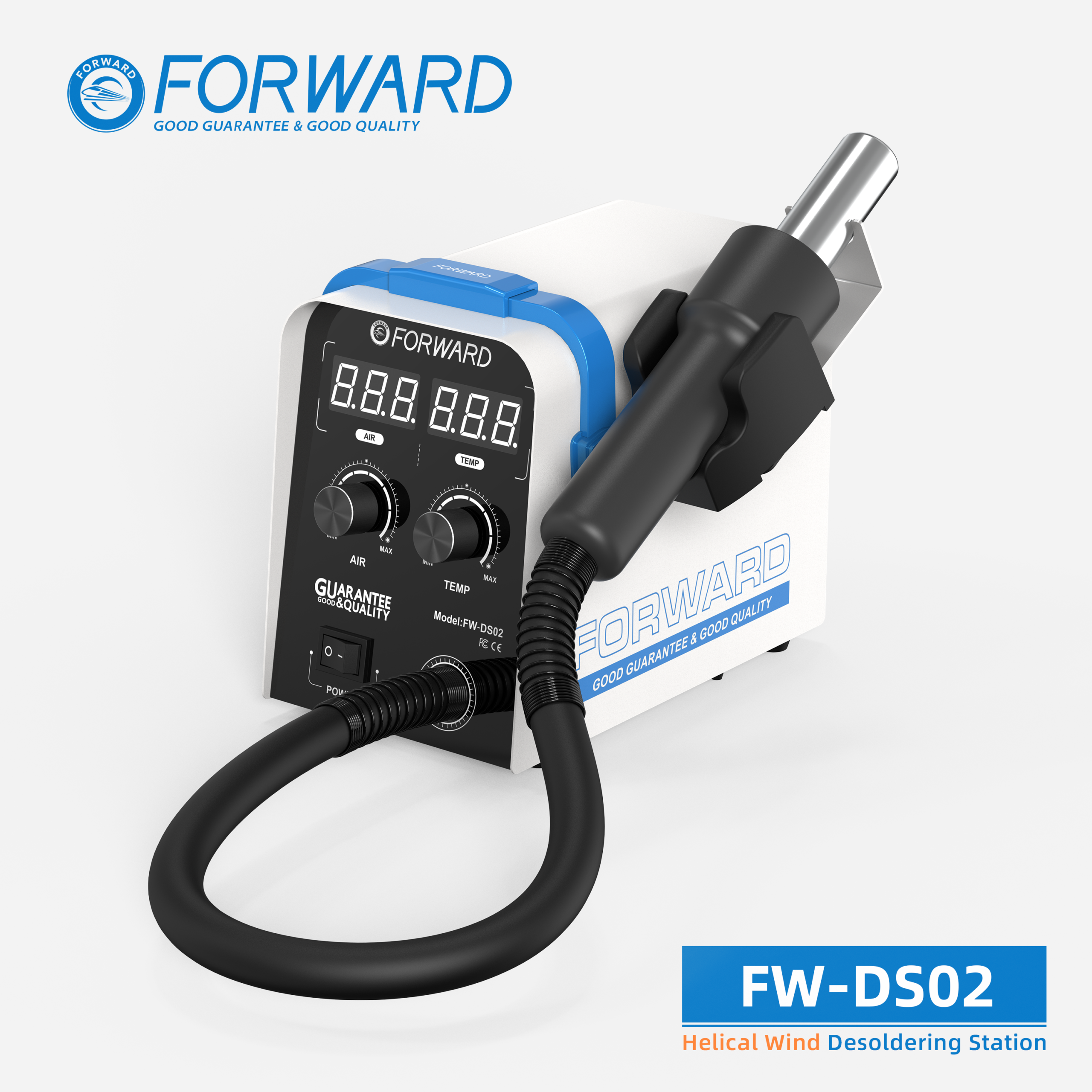

Introducing the FORWARD FW-DS02 New Arrival Helical Wind Soldering Station Welding Hot Air Gun SMD Rework Heat Gun For BGA Motherboard Repair, the ultimate helical wind soldering station designed for seamless SMD rework and BGA motherboard repairs. Built for professionals and enthusiasts alike, this versatile hot air gun ensures peak performance with an emphasis on precision and reliability.
The FORWARD FW-DS02 integrates advanced helical wind mechanics, offering consistent heat distribution and reduced thermal damage to sensitive components. Whether you’re reflowing solder or working on intricate motherboard fixes, this tool provides the stability you need for top-tier results.
Compact, lightweight, and easy to handle, the FW-DS02 makes challenging soldering tasks a breeze. Its ergonomic design and user-friendly controls enhance productivity while ensuring comfort during extended use. Ideal for BGA repairs, SMD rework, and more, this station is your go-to solution for professional-grade welding projects.
The FORWARD FW-DS02 Precise Temperature Control Helical Wind Desoldering SMD Rework Station is an advanced, high-efficiency hot air repair system engineered primarily for delicate micro-electronics, BGA rework, and mobile phone motherboard servicing. Below is the comprehensive technical profile and breakdown of its specifications, design architectures, and operating guidelines.
The primary differentiator of the FW-DS02 is its Helical Wind System. Standard straight-air rework stations force high-velocity air directly downward. On multi-layer mobile boards, this direct blast can easily dislodge neighboring micro-resistors, capacitors, or filters ($01005$ or $0201$ packages). The FW-DS02 utilizes a specialized internal vortex nozzle structure and a brushless blower to output a gentle spiral pattern. This vortex applies thermal energy evenly around the chip perimeter, allowing quick solder liquefaction while mitigating the risk of blowing away microscopic passive components.
Equipped with an advanced high-capacity ceramic heating element, the machine reaches a standard operating temperature of 350°C within 3 seconds. This eliminates prolonged pre-heating periods and ensures that when the technician lifts the wand, it is ready to perform immediately. The micro-controller constantly monitors active load changes, quickly boosting power to compensate for the heat sink properties of ground-plane-heavy logic boards.
When placed into its holster, a magnetic switch instantly signals the mainboard to terminate active heating. The brushless motor enters a maximum purge state, pushing cool air through the wand until the internal temperature drops below a safe threshold (typically under 100°C). This automated cooling sequence saves energy, prevents accidental bench fires, and drastically extends the working lifespan of the heating core and surrounding casing components.
BGA Reworking: Safely reflowing or replacing underfilled chips, power management ICs (PMICs), and baseband processors on modern smartphones.
SMD Desoldering: Clean extraction of multi-pin surface-mount devices like QFPs, SOPs, and highly dense charging ports without scorching the PCB mask.
Motherboard Jumpers & Trace Repairs: Providing smooth, localized heat to cure solder masks or secure micro-jumper wires in trace repair scenarios.
