Please read the manual before use.
This section sets the foundation for a safe repair environment. Before a single tool touches a phone, the workspace must be prepared to protect both the technician and the sensitive electronics.
Electrostatic Discharge (ESD) Safety: Instructions on grounding yourself using an ESD wrist strap and working on an anti-static mat to prevent frying microchips with static electricity.
Safety Gear: Protocols for wearing safety glasses (critical when prying shattered glass) and working in a well-ventilated area (crucial for adhesive fumes and soldering smoke).
Lighting and Magnification: Recommendations for high-intensity desk lamps and digital microscopes or magnifying visors for viewing microscopic components.
The most physically risky part of mobile repair is opening the device without cracking the glass screen or ripping delicate internal ribbon cables.
Thermal Tools (Heat Guns & Heat Pads): Instructions on setting precise temperatures (typically 80°C to 100°C) to soften heavy factory adhesives without damaging the display.
Suction & Leverage Tools: Proper placement of heavy-duty suction cups and screen prying fixtures to safely create an initial gap.
Separation Media (Plastic Picks & Spudgers): Techniques for slicing through glue lines using plastic opening picks without inserting them too deeply into the frame.
Modern smartphones use dozens of tiny, highly specialized screws and brackets to hold internal shields in place.
Precision Driver Identification: A breakdown of specialized micro-bits, detailing exactly when to use Pentalobe (iPhones), Tri-point/Y-type (internal Apple shields), Torx/Torx Security (Android devices), and standard Micro-Phillips.
Organization Systems: Guidelines for using magnetic project mats or screw organizing trays to map out screw locations, preventing the catastrophic error of “long-screw damage.”
Gripping & Placer Tools: How to utilize straight and curved ESD-safe tweezers to safely disconnect fragile ZIF (Zero Insertion Force) and coaxial cable connectors.
This section transitions the user from basic mechanical teardowns to logical troubleshooting when a phone won’t turn on or charge.
Digital Multimeter (DMM): Step-by-step instructions on setting up the meter for DC voltage testing (checking battery and charging port output) and continuity/diode mode (hunting for short circuits).
DC Power Supply: How to boot a phone motherboard without a battery attached, interpreting current draw (Amperage) to diagnose power management failures.
USB Ammeter / Tester: Utilizing an inline USB safety tester plugged into the charging block to instantly diagnose if a phone is pulling normal current ($1A$ to $2A$) or completely dead ($0A$).
For advanced users handling board-level fixes like swapping out charging ports, audio IC chips, or FPC connectors.
Soldering Iron Stations: Temperature calibration tips, tip selection (chisel vs. conical), and maintenance/tinning procedures.
Hot Air Rework Stations: Managing the delicate balance of air flow and temperature to safely desolder multi-pin components without blowing adjacent surface-mount resistors off the board.
Chemical Consumables: Proper application of rosin flux (to clean joints and fluidize solder), solder wick (braided wire to remove old solder), and low-melt solder alloys.
The final step is cleaning up the internal cavity and sealing the device back up to its original structural integrity.
Chemical Cleaners: Safe usage of 99% Isopropyl Alcohol (IPA) to dissolve old glue residues, flux oils, and clean mild liquid damage.
Liquid Adhesives vs. Tape: Instructions on applying specialized acrylic glues (like B-7000) versus applying precision-cut double-sided adhesive gaskets.
Camping and Curing: Utilizing specialized display repair clamps to apply even, steady pressure while the new adhesives cure over 15 to 30 minutes.

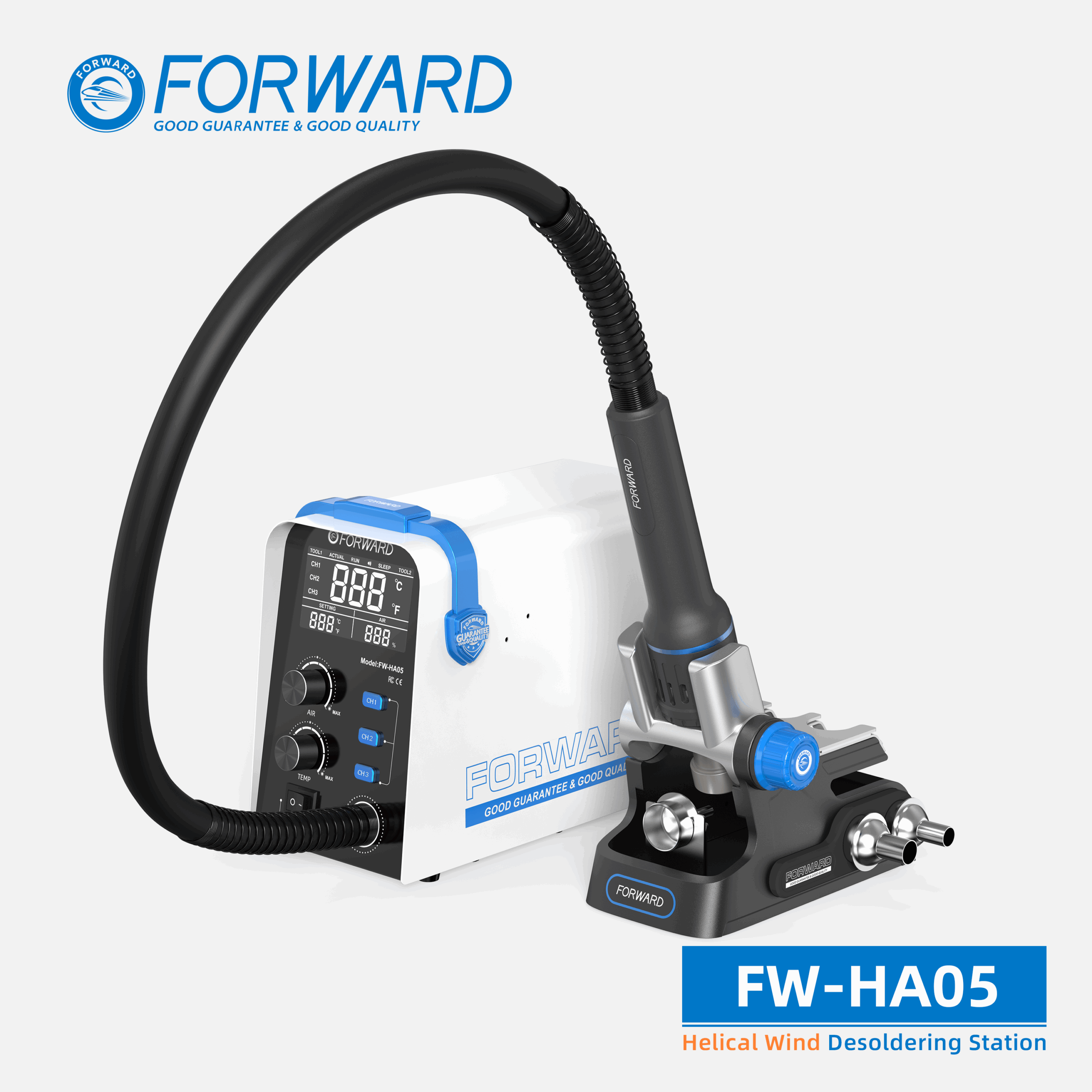

Introducing the FORWARD FW-HA05 New Arrival Helical Wind Soldering Station Welding Hot Air Gun SMD Rework Heat Gun For BGA Motherboard Repair, the perfect solution for precise and efficient BGA motherboard repairs. Designed with cutting-edge helical wind technology, this soldering station delivers consistent performance for professionals and hobbyists alike, ensuring every task is executed with accuracy.
The FW-HA05 is equipped with a powerful hot air gun and SMD rework capabilities. Its design ensures even heat distribution, making it ideal for delicate soldering tasks. Whether you’re repairing circuits, desoldering components, or reworking intricate layouts, this tool offers unparalleled control and reliability.
Perfect for a variety of applications, the FW-HA05 excels in both personal projects and industrial usage. Built with durable materials, it guarantees longevity and consistent performance under regular use. Its compact design allows for easy handling, making it a must-have for any workshop or bench setup.

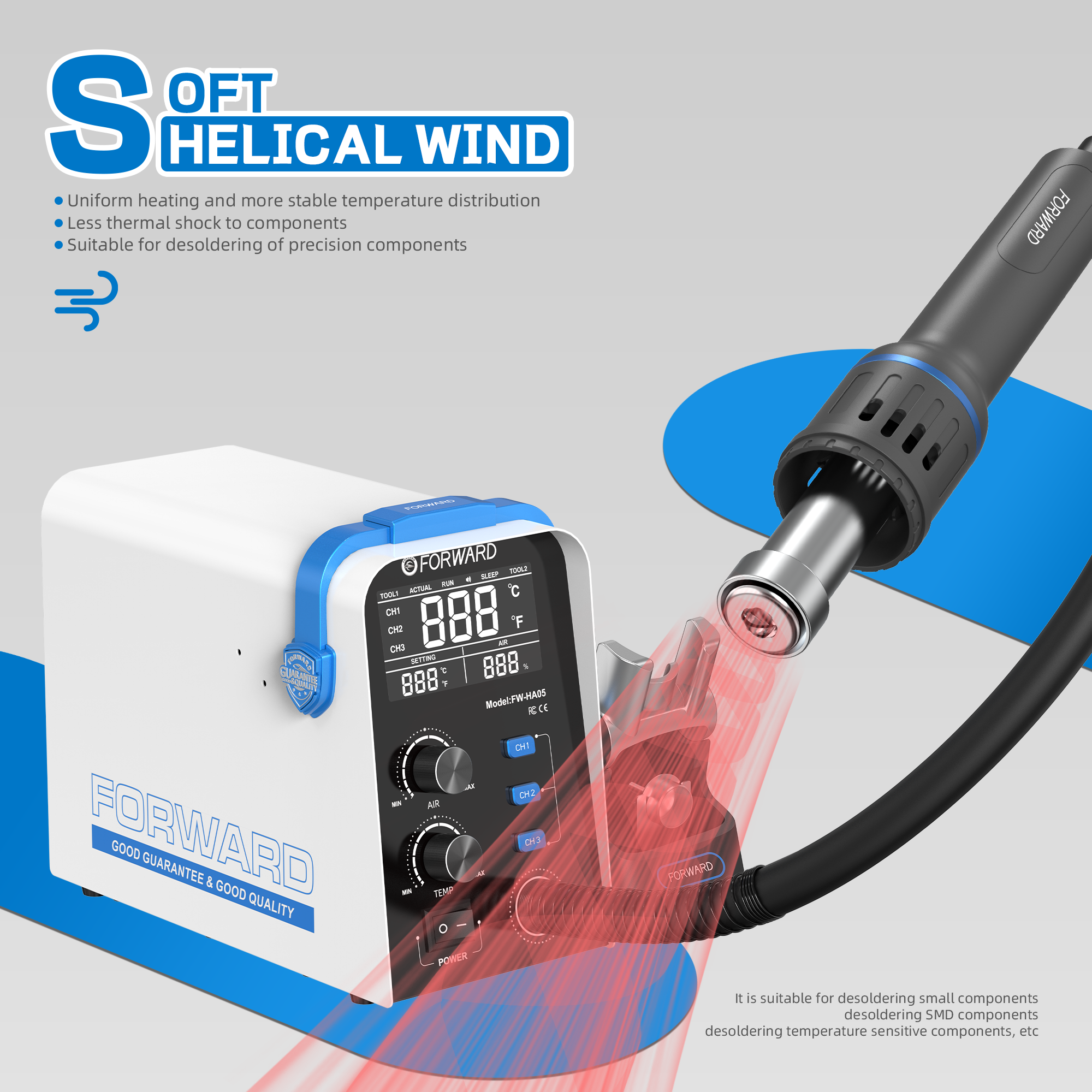

The FORWARD FW-HA05 Helical Wind Soldering Station & Hot Air Gun is a high-precision, professional-grade SMD rework tool specifically engineered for intricate circuit board tasks, including mobile phone motherboard repairs, BGA reballing, and precise IC desoldering. By shifting from traditional straight-line airflow to advanced helical (spiral) wind technology, this machine evenly distributes thermal energy across components, substantially mitigating the risk of localized thermal shock or accidental displacement of miniature passive components nearby.

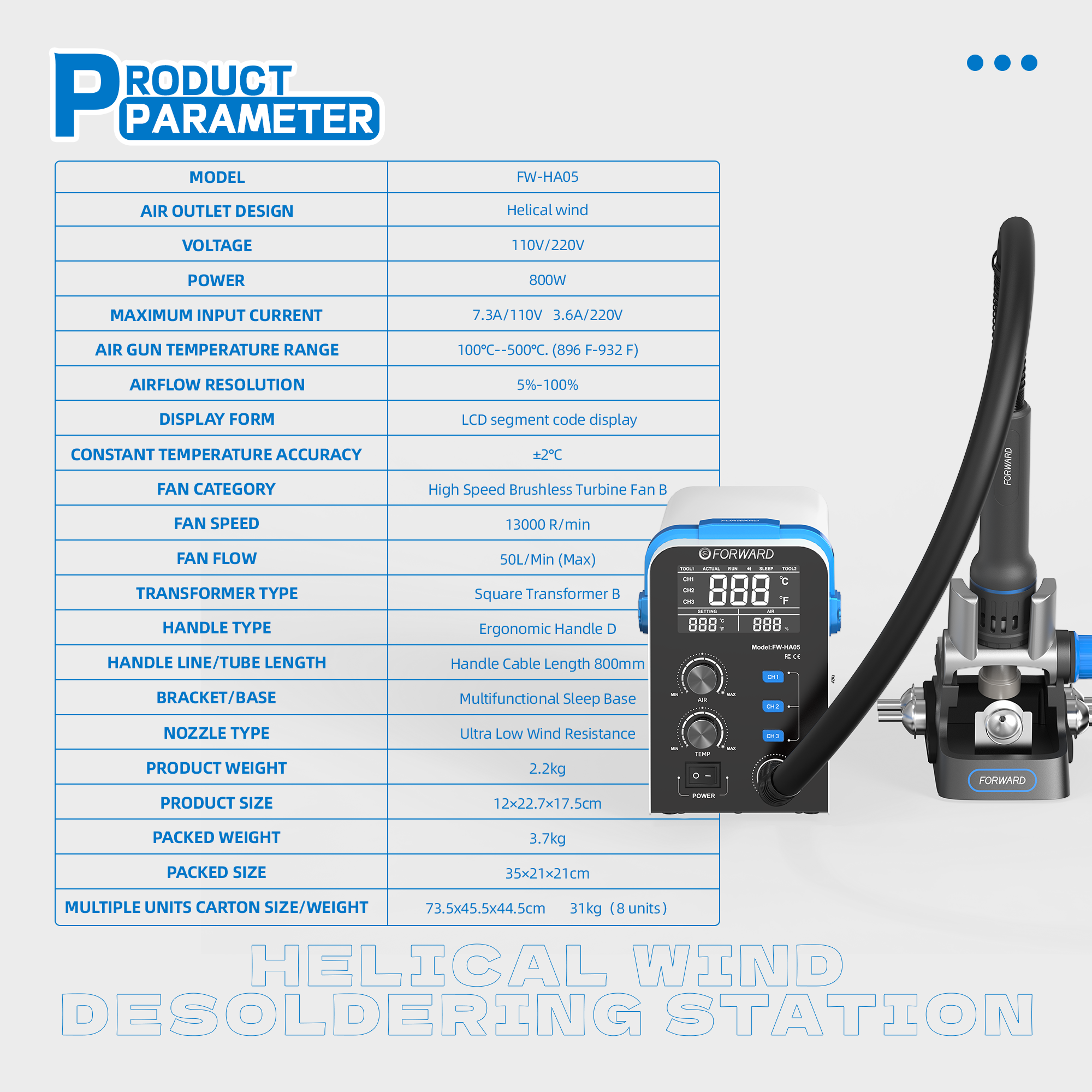

Below is an extensive, full-length breakdown of the FW-HA05’s physical, electrical, functional, and safety specifications structured to deliver exhaustive insight into its capabilities.
This section highlights the fundamental build, footprint, power requirements, and basic operating parameters of the FW-HA05 station.
The heart of the FW-HA05 relies on its unique spiral air pattern and smart microcontroller loop. This matrix focuses on specific temperatures, speeds, and output restrictions.
Modern repair requires immediate feedback. The control module interface and storage channels of the FW-HA05 are detailed below.

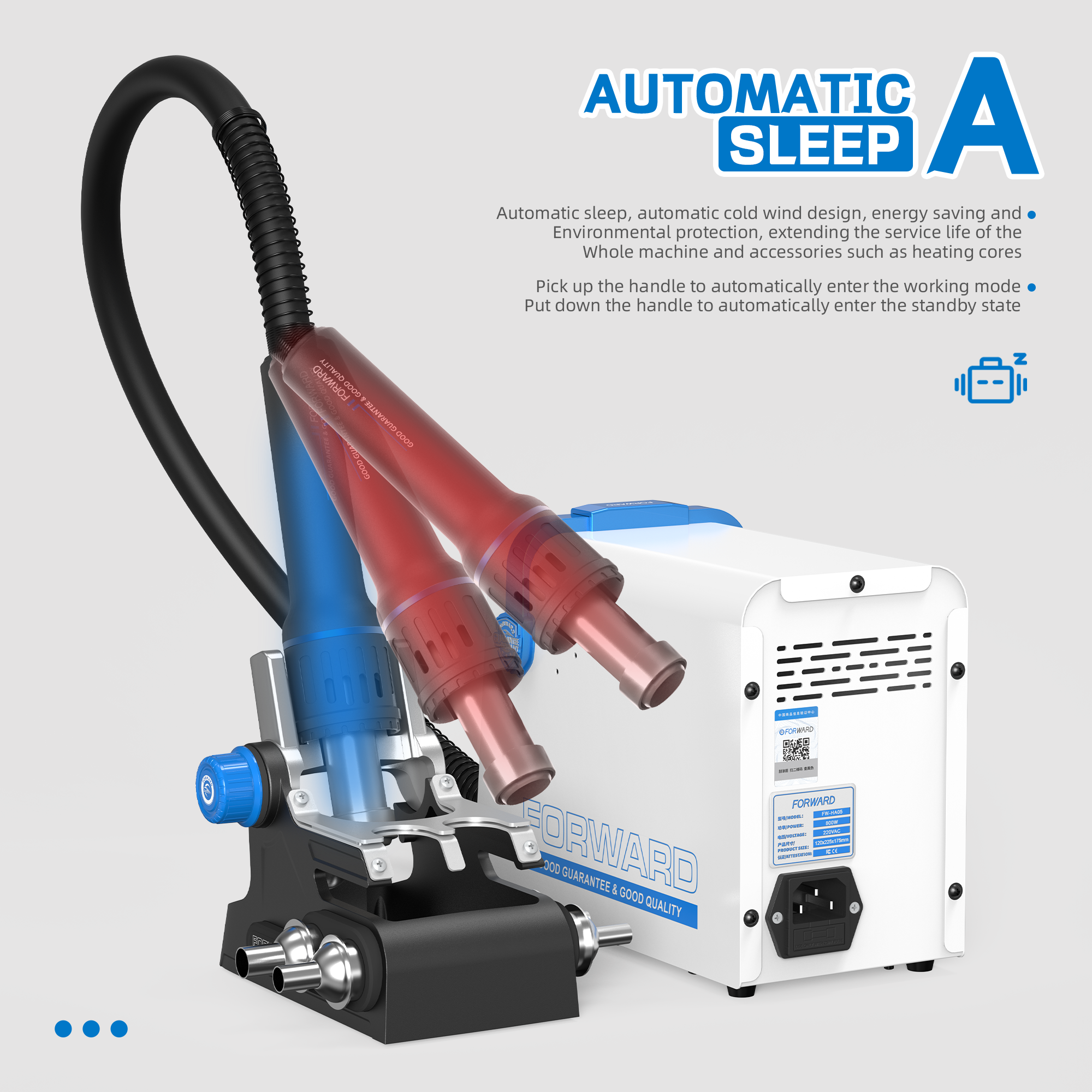

The system integrates active firmware protection to prevent catastrophic failures, element burnouts, or hazard risks on the workbench.
Every standard factory-sealed packaging crate of the FORWARD FW-HA05 comes equipped with all necessary tools for immediate out-of-the-box deployment.
