Please read the manual before use.
This section sets the foundation for a safe repair environment. Before a single tool touches a phone, the workspace must be prepared to protect both the technician and the sensitive electronics.
Electrostatic Discharge (ESD) Safety: Instructions on grounding yourself using an ESD wrist strap and working on an anti-static mat to prevent frying microchips with static electricity.
Safety Gear: Protocols for wearing safety glasses (critical when prying shattered glass) and working in a well-ventilated area (crucial for adhesive fumes and soldering smoke).
Lighting and Magnification: Recommendations for high-intensity desk lamps and digital microscopes or magnifying visors for viewing microscopic components.
The most physically risky part of mobile repair is opening the device without cracking the glass screen or ripping delicate internal ribbon cables.
Thermal Tools (Heat Guns & Heat Pads): Instructions on setting precise temperatures (typically 80°C to 100°C) to soften heavy factory adhesives without damaging the display.
Suction & Leverage Tools: Proper placement of heavy-duty suction cups and screen prying fixtures to safely create an initial gap.
Separation Media (Plastic Picks & Spudgers): Techniques for slicing through glue lines using plastic opening picks without inserting them too deeply into the frame.
Modern smartphones use dozens of tiny, highly specialized screws and brackets to hold internal shields in place.
Precision Driver Identification: A breakdown of specialized micro-bits, detailing exactly when to use Pentalobe (iPhones), Tri-point/Y-type (internal Apple shields), Torx/Torx Security (Android devices), and standard Micro-Phillips.
Organization Systems: Guidelines for using magnetic project mats or screw organizing trays to map out screw locations, preventing the catastrophic error of “long-screw damage.”
Gripping & Placer Tools: How to utilize straight and curved ESD-safe tweezers to safely disconnect fragile ZIF (Zero Insertion Force) and coaxial cable connectors.
This section transitions the user from basic mechanical teardowns to logical troubleshooting when a phone won’t turn on or charge.
Digital Multimeter (DMM): Step-by-step instructions on setting up the meter for DC voltage testing (checking battery and charging port output) and continuity/diode mode (hunting for short circuits).
DC Power Supply: How to boot a phone motherboard without a battery attached, interpreting current draw (Amperage) to diagnose power management failures.
USB Ammeter / Tester: Utilizing an inline USB safety tester plugged into the charging block to instantly diagnose if a phone is pulling normal current ($1A$ to $2A$) or completely dead ($0A$).
For advanced users handling board-level fixes like swapping out charging ports, audio IC chips, or FPC connectors.
Soldering Iron Stations: Temperature calibration tips, tip selection (chisel vs. conical), and maintenance/tinning procedures.
Hot Air Rework Stations: Managing the delicate balance of air flow and temperature to safely desolder multi-pin components without blowing adjacent surface-mount resistors off the board.
Chemical Consumables: Proper application of rosin flux (to clean joints and fluidize solder), solder wick (braided wire to remove old solder), and low-melt solder alloys.
The final step is cleaning up the internal cavity and sealing the device back up to its original structural integrity.
Chemical Cleaners: Safe usage of 99% Isopropyl Alcohol (IPA) to dissolve old glue residues, flux oils, and clean mild liquid damage.
Liquid Adhesives vs. Tape: Instructions on applying specialized acrylic glues (like B-7000) versus applying precision-cut double-sided adhesive gaskets.
Camping and Curing: Utilizing specialized display repair clamps to apply even, steady pressure while the new adhesives cure over 15 to 30 minutes.

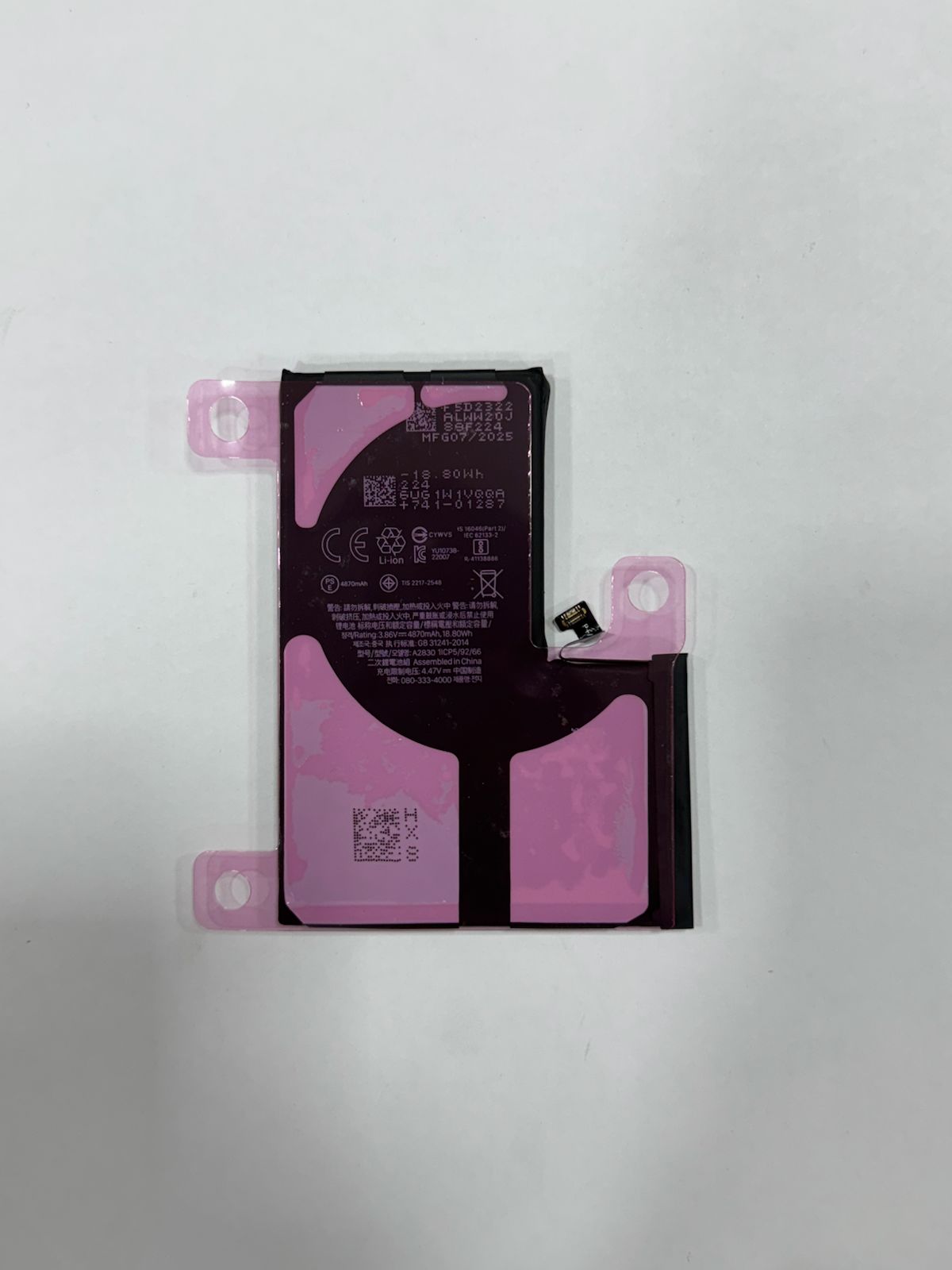

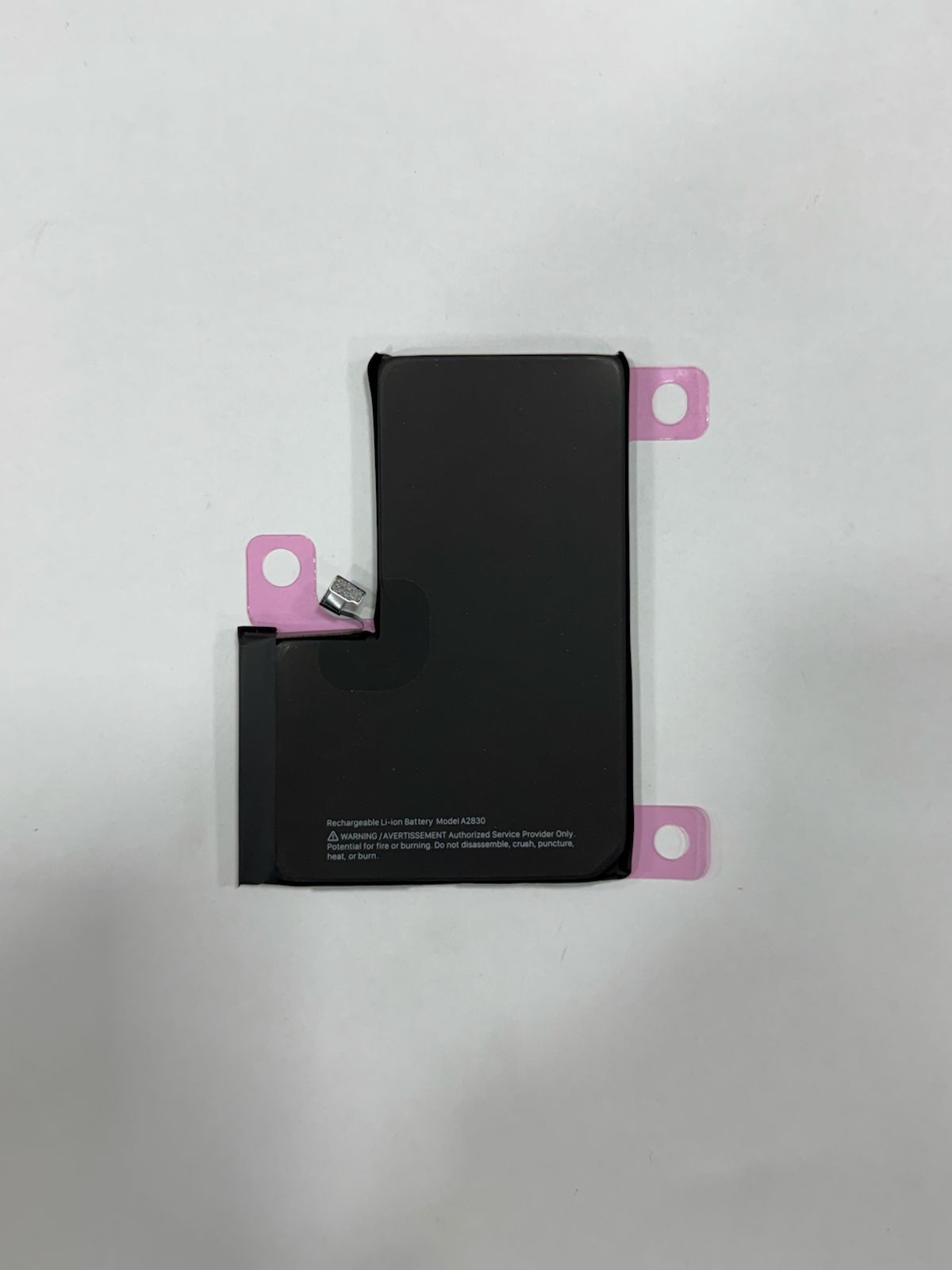

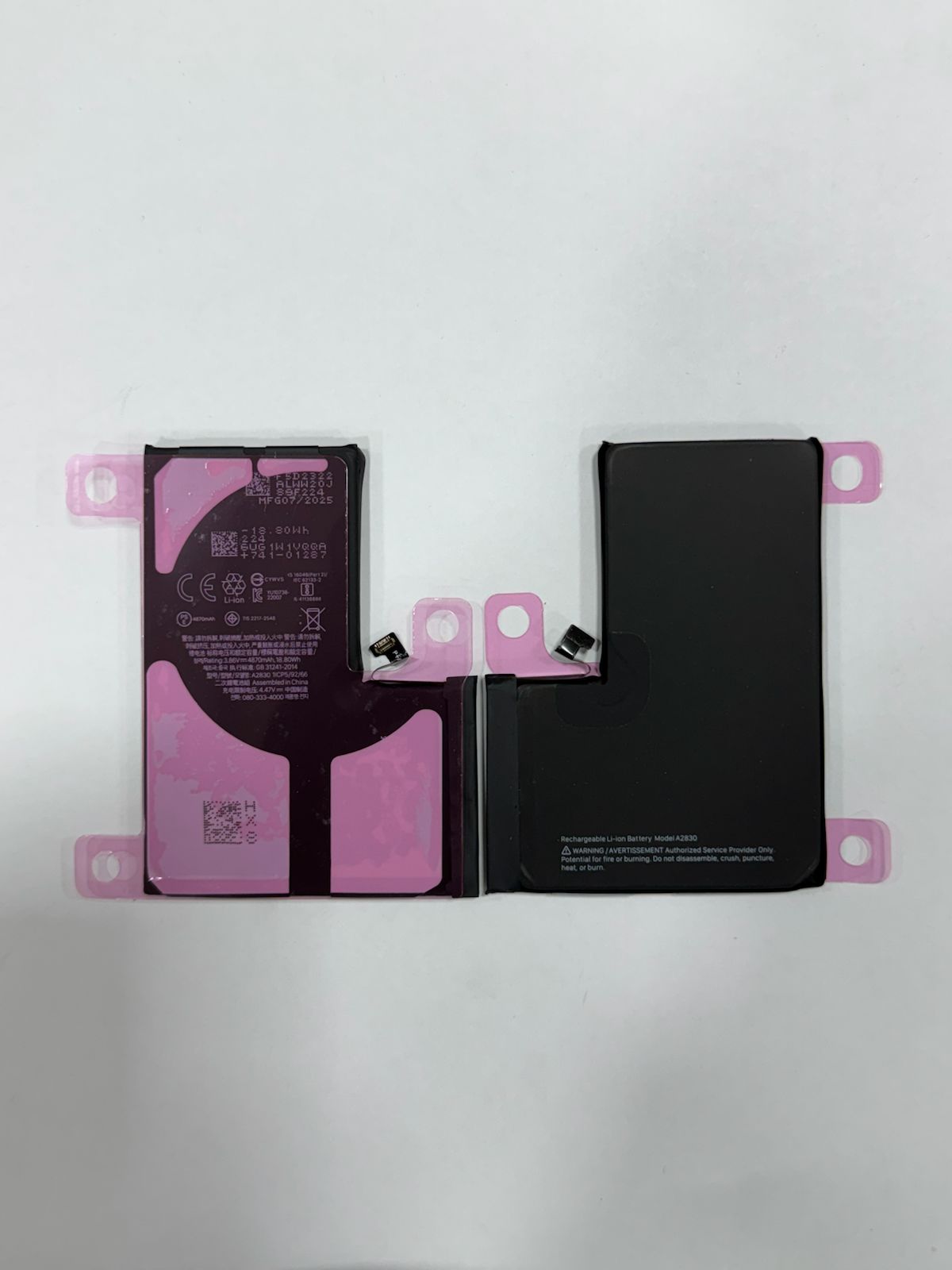

Upgrade your iPhone 14 Pro Max Model A2655 High Capacity Diagnostic Battary 4870mah. Designed with precision to deliver optimal performance, this 4870mAh battery ensures longer usage, so you can stay productive and entertained without interruptions. iPhone 14 Pro Max Model A2655 High Capacity Diagnostic Battary 4870mah
Crafted for reliability, this diagnostic battery is built to withstand daily demands. Whether you’re a power user or just need a dependable replacement, the Model A2655 battery offers a seamless experience with consistent power delivery. iPhone 14 Pro Max Model A2655 High Capacity Diagnostic Battary 4870mah
The iPhone 14 Pro Max Model A2655 battery is engineered to fit perfectly into your device, ensuring hassle-free installation. Enjoy peace of mind with a trusted replacement that maintains the original quality standards of your iPhone. iPhone 14 Pro Max Model A2655 High Capacity Diagnostic Battary 4870mah
The iPhone 14 Pro Max (Model A2655, primarily designated for the US market) initially ships with a factory-installed OEM Lithium-ion battery rated at a nominal capacity of 4,323 mAh (16.68 Wh, running at 3.86V). However, due to the heavy computing demands of the A16 Bionic chipset, high-brightness Super Retina XDR display (up to 2,000 nits peak), and Always-On display mechanics, power users frequently seek aftermarket modifications. iPhone 14 Pro Max Model A2655 High Capacity Diagnostic Battary 4870mah
An upgraded High-Capacity Diagnostic Battery rated at 4,870 mAh is a premium third-party aftermarket cell. It leverages structural improvements and modern high-density Lithium-Polymer (Li-Po) chemistry to offer roughly an 11–13% increase in total capacity relative to the physical dimensions of the standard enclosure. The designation “Diagnostic” implies that the underlying Battery Management System (BMS) logic board or secondary flex ribbon has been engineered to communicate successfully with Apple’s internal iOS telemetry algorithms. This compatibility prevents standard verification lockout screens, monitors dynamic temperature deltas, and provides real-time cycle count data natively within the operating system. iPhone 14 Pro Max Model A2655 High Capacity Diagnostic Battary 4870mah
The following comprehensive table outlines the direct specifications, hardware architecture, mechanical tolerances, and performance variances between a standard iPhone 14 Pro Max setup and one equipped with the modified 4,870 mAh high-capacity diagnostic replacement module. iPhone 14 Pro Max Model A2655 High Capacity Diagnostic Battary 4870mah
Achieving an increase to 4,870 mAh within the highly restrictive, L-shaped hardware bay of the Model A2655 chassis requires a shift from standard carbon-anode designs to an ultra-dense, silicon-graphene additive composite matrix. By reducing the space taken up by structural packaging layers inside the cell container and employing a tighter separator layer, the battery stores a higher volumetric energy density. This layout generates an extended 18.85 Wh fuel pool, driving prolonged runtime across 5G networks and resource-heavy processing tasks without causing the battery shell to bulge out against the screen.
Modern iOS versions run cryptographic handshake routines linked to the secure enclave on the logic board. Standard replacement batteries generate an intrusive “Important Battery Message” notification and disable basic health metrics under the System Settings menu.
The Diagnostic 4,870 mAh variant mitigates this through two primary implementation pipelines:
The Original BMS Transfer Method: Technicians spot-weld the factory Apple battery management strip directly onto the replacement 4,870 mAh core cell terminals. This retains the factory hardware registration.
Pre-paired Diagnostic Clone ICs: The module integrates an upgraded aftermarket controller chip programmed with accessible diagnostic modes. These modes allow independent calibration tools to write over old wear profiles, clear out original cycle counts, and establish the new 4,870 mAh baseline as the standard 100% health reading.
Because the larger capacity creates a tighter fit inside the chassis, managing thermal output is essential to preventing performance degradation. The diagnostic structural layout uses an integrated graphite thermal pad to pull heat away from the core layers during 27W wired fast-charging stages.
The upgraded internal Resistance (IR) values are tuned to limit internal temperature spikes. This configuration ensures that high-power charging phases safely taper off when the unit reaches upper voltage targets, preventing stress on the host logic board.
