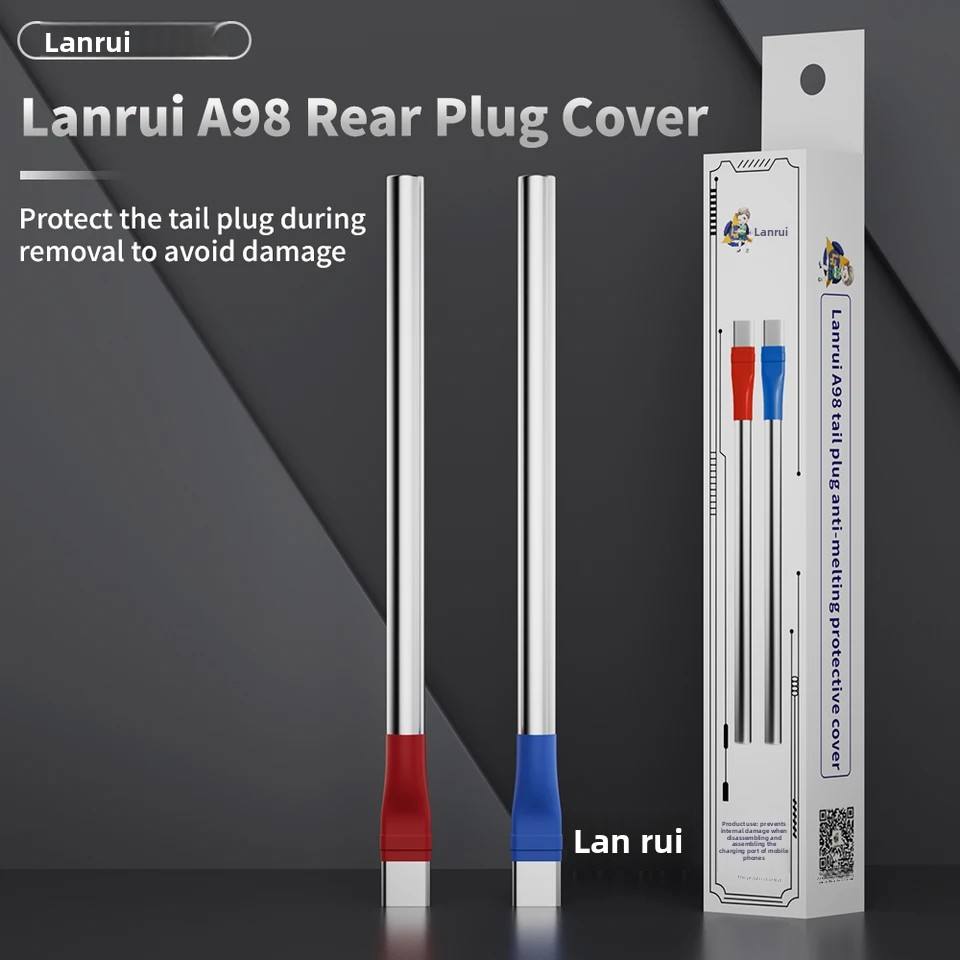

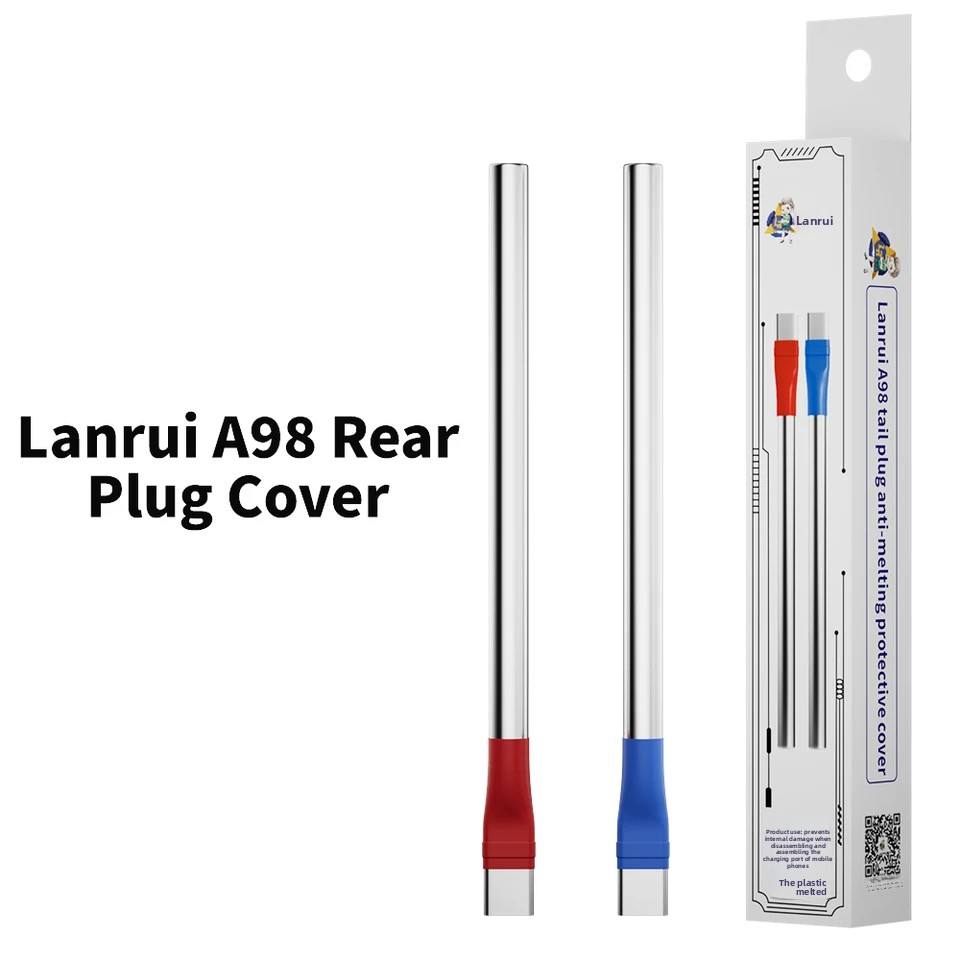

Lanrui A98 Type-C Port Anti-Melting Protective Cover

Ultimate Protection for Your Type-C Devices

The Lanrui A98 Type-C Port Anti-Melting Protective Cover Protective Cover is crafted to safeguard your devices against heat damage and wear. Designed with precision, it ensures your Type-C port remains in top-notch condition, prolonging the life of your gadgets. Lanrui A98 Type-C Port Anti-Melting Protective Cover

Engineered with Durability and Heat Resistance

Constructed from premium heat-resistant materials, this protective cover offers exceptional durability even under high temperatures. Its anti-melting design ensures unmatched safety, making it a smart addition for those who value device longevity and reliability. Lanrui A98 Type-C Port Anti-Melting Protective Cover

Seamless Fit and Easy Installation

The Lanrui A98 cover is designed for a snug fit that seamlessly integrates with your device’s Type-C port. Its lightweight and minimalistic construction make installation effortless, ensuring your convenience without compromising style. Lanrui A98 Type-C Port Anti-Melting Protective Cover

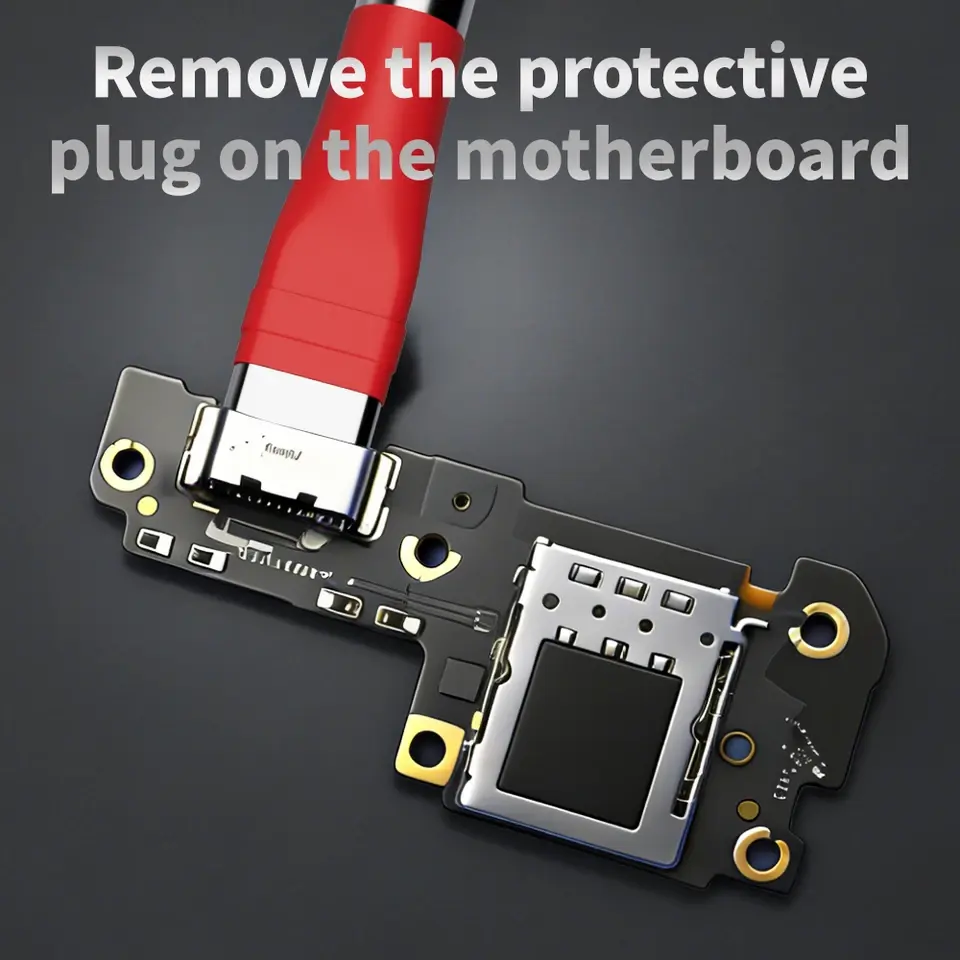

The Lanrui A98 Type-C Port Anti-Melting Protective Cover is a specialized micro-soldering and hardware repair fixture. Designed explicitly for cell phone, tablet, and electronics repair technicians, its primary function is to safeguard the internal plastic cores, delicate pins, and connected flex cables of Type-C tail plugs from heat deformation, melting, and physical stress during hot-air desoldering or board-level rework. Lanrui A98 Type-C Port Anti-Melting Protective Cover



Below is the comprehensive, deep-dive technical specification breakdown for the Lanrui A98 tool formatted in an exhaustive tabular matrix. Lanrui A98 Type-C Port Anti-Melting Protective Cover

1. Primary Product Architecture & Identity

Specification Parameter Technical Detail & Descriptive Analysis
Brand / Manufacturer Lanrui Hardware & Repair Technologies Co. Ltd.
Model Designation A98
Product Classification Precision Micro-Soldering Protection Accessory / Tail Plug Shield Lanrui A98 Type-C Port Anti-Melting Protective Cover
Target Interface Universal USB Type-C (USB-C) Female Receptacles / Tail Plugs Lanrui A98 Type-C Port Anti-Melting Protective Cover
Main Functionality Absorbs, deflects, and insulates internal delicate plastic assemblies and structural sub-components of a charging port from extreme thermal energy during SMD (Surface Mount Device) rework. Lanrui A98 Type-C Port Anti-Melting Protective Cover
Primary Industry Use Mobile device repair shops, PCB rework labs, DIY micro-soldering stations, hardware prototyping facilities. Lanrui A98 Type-C Port Anti-Melting Protective Cover
Form Factor Micro-insert profile with an integrated external heat-dissipation handle block. Lanrui A98 Type-C Port Anti-Melting Protective Cover

2. Structural Composition & Metallurgy

Component Zone Material Composition Engineering Purpose & Structural Advantage

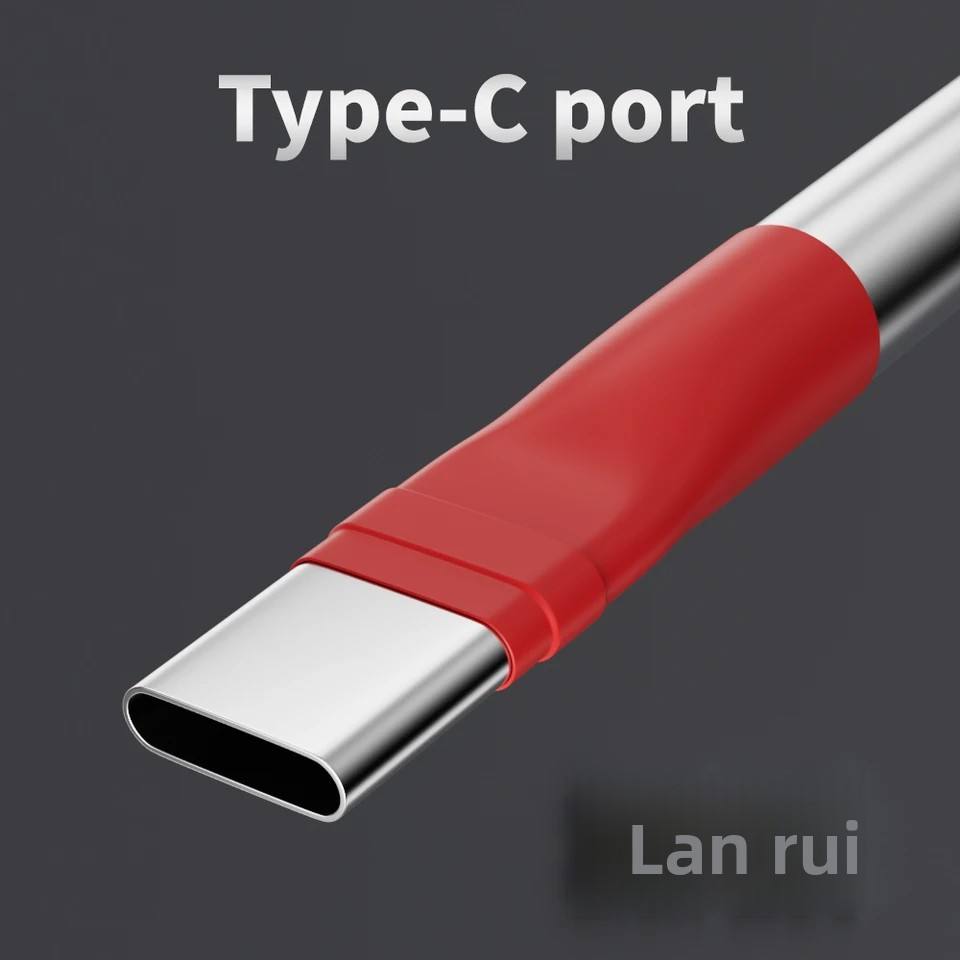

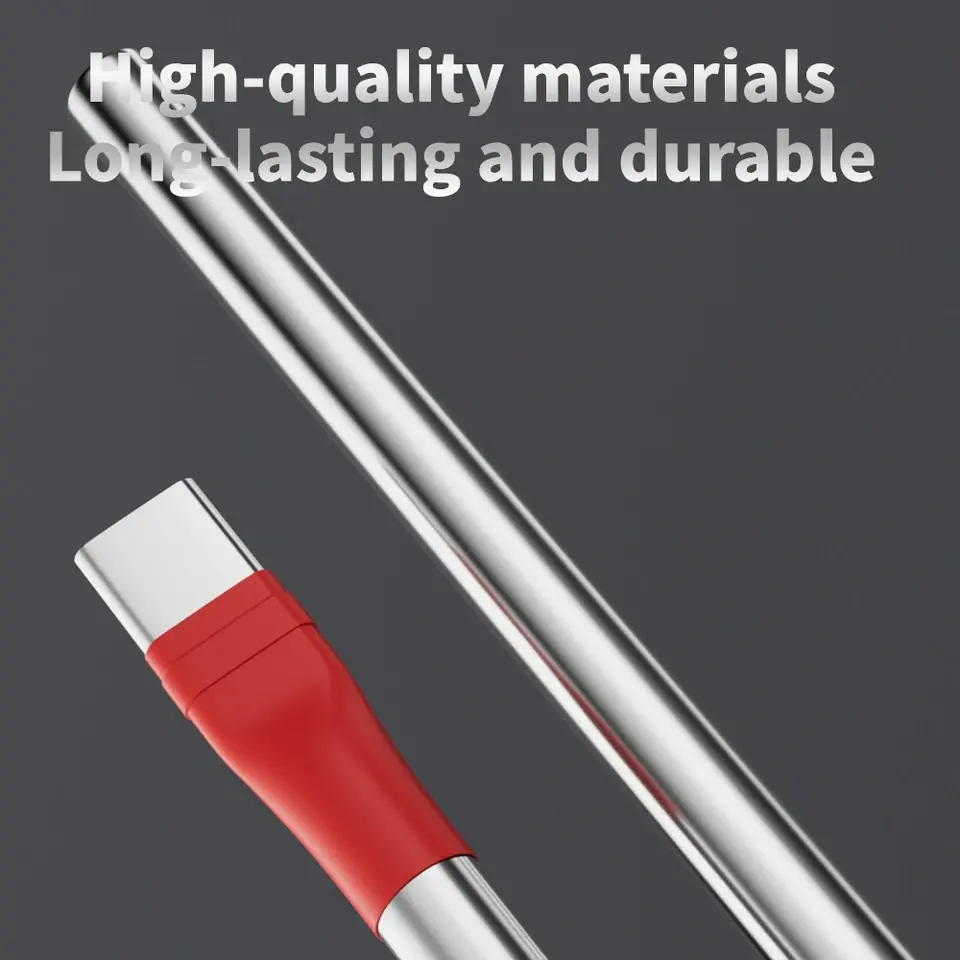

Core Insertion Tang High-Grade Refined Stainless Steel (SUS304 Variant) Provides structural rigidness that fits seamlessly into the Type-C port slot without bending. Stainless steel exhibits a relatively low thermal conductivity coefficient compared to copper or aluminum, meaning it doesn’t instantly transfer devastating heat spikes straight to the underlying elements.
Internal Matrix Filler Thermal-Stabilized Composite Coating / Ultra-thin Ceramic Layer Minimizes direct metal-to-plastic conduction inside the plug barrel while ensuring zero electrical shorts can occur across internal contact pins during placement.
Outer Insulation Ring / Sleeve High-Temperature Resistant Industrial Silicone Matrix Acts as a mechanical barrier preventing hot-air rework station nozzles from scratching the exterior metal lip of the smartphone frame or the housing of the port assembly.
Handle / Extraction Tab Knurled Anti-Slip Heat-Resistant Polymer / Alloy Blend Formed with structural ridges that allow tweezers, pliers, or gloved fingers to firmly grip and manipulate the shield tool immediately after heavy desoldering passes without risking burns or dropping the component.

3. Physical Attributes & Ergonomics

Physical Metric Measured Specification Value Operational Impact on Technician Workflow
Net Tool Weight Approximately $9\text{ grams}$ ($\pm 0.5\text{g}$ manufacturing variance) Extremely lightweight. It prevents the charging port flex assembly from sagging or flipping over under its own weight on a PCB fixture while holding down the port securely.
Gross Packaged Weight Approximately $15\text{ to }18\text{ grams}$ Includes protective retail storage sleeve preventing contamination or bending during transport.
Device Body Dimensions $136\text{ mm} \times 16\text{ mm} \times 20\text{ mm}$ (Full extension with handle) Extended length allows the technician’s hands and secondary tools (like hot air wands or soldering irons) to stay clear of the high-heat active zone.
Packaging Layout Size $20\text{ mm} \times 16\text{ mm} \times 136\text{ mm}$ Compact footprint optimized for standard workbench tool organizer trays, bin boxes, or magnetic mat storage slots.
Interface Tolerance Precision CNC Machined to $\pm 0.02\text{ mm}$ clearance Guarantees a strict, snug slide-in profile that leaves no loose spatial gaps where hot air currents could potentially seep inside the interior housing of the port.

4. Thermal Dynamics & Tolerance Limits

Thermal Property Rated Threshold Capacity Operational Performance Breakdown
Maximum Intermittent Heat Limit Up to $480^\circ\text{C}$ ($896^\circ\text{F}$) Fully handles direct ambient exhaust from modern lead-free rework configurations, which typically spike around $380^\circ\text{C}$ to $450^\circ\text{C}$.
Continuous Operating Thermal Limit $350^\circ\text{C}$ ($662^\circ\text{F}$) for up to 180 seconds continuous exposure Ensures the tool maintains structural structural integrity throughout extended, stubborn factory underfill/glue removal sequences.
Deformation Point Exceeds $550^\circ\text{C}$ ($1022^\circ\text{F}$) The stainless-steel core structure will not warp, bow, or lose its precision flatness matrix under standard operating parameters.
Heat Dissipation Rate Rapid Cooling Profile ($t_{cool} < 45\text{ seconds}$ to safe touch) The high surface-area-to-mass ratio of the external handle tab rapidly sheds heat into the ambient workspace once the hot air nozzle is removed.

5. Functional Capabilities & Operational Protections

Problem Encountered Without Tool Lanrui A98 Corrective Solution Matrix Protective Mechanism Utilized

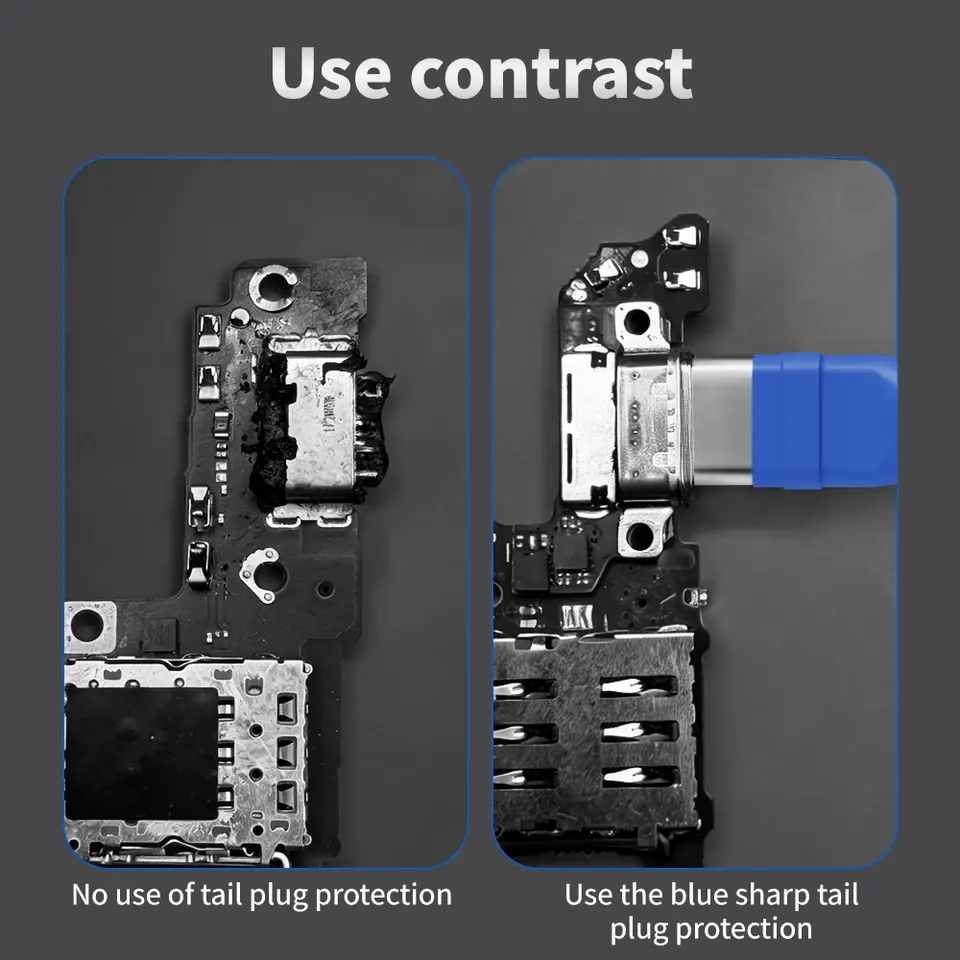

Internal Plastic tongue Melting Complete Internal Core Isolation The tool acts as a solid physical block occupying the empty air cavity within the Type-C port, choking out the free airflow required to melt internal plastic structures.
Pin Realignment / Shifting Mechanical Pin Locking Matrix Holds internal spring contacts locked perfectly in their designated tracks while the solder base transforms into a liquidous state.
Flex Cable Singeing & Blistering Thermal Shadow Deflection Deflects secondary, stray convective heat plumes away from adjacent trace lines and nearby flex ribbon polymers.
Port Frame Crushing / Warping Internal Structural Reinforcement Ring Acts as an internal structural anvil, ensuring the outer shell retains its shape when structural tweezers apply pressure during port alignment.

6. Compatibility & Maintenance Matrix

Evaluation Vector Comprehensive Technical Compatibility Profile Maintenance & Care Standard
Device Ecosystem Coverage Apple iPhone (Type-C lines), Samsung Galaxy (S/A/M series), Google Pixel, OnePlus, Xiaomi, Huawei, Nintendo Switch consoles, iPad Pro/Air models, and portable power banks. Lanrui A98 Type-C Port Anti-Melting Protective Cover Post-Rework Cleanup: Wipe down using $99\%$ Industrial Isopropyl Alcohol (IPA) to clear away active flux residue, char particles, and solder spatter.
Solder Alloy Ecosystems Compatible with low-melt bismuth solders ($138^\circ\text{C}$), traditional Leaded solders ($183^\circ\text{C}$), and demanding Lead-Free structural solders ($217^\circ\text{C} – 227^\circ\text{C}$). Anti-Adhesion Property: Naturally repels tinning; solder alloys will not bind or fuse to the specialized treated stainless steel core surface.
Rework Equipment Match Optimized for deployment alongside hot air guns (Quick, Atten, Sugon, JBC), standard micro-soldering irons, and under-board preheaters. Storage Protocol: Keep in its provided static-shielded container to prevent dust, metallic debris, or sticky flux films from contaminating the precision insertion tip.



Lanrui A98 Type-C Port Anti-Melting Protective Cover
