Please read the manual before use.
This section sets the foundation for a safe repair environment. Before a single tool touches a phone, the workspace must be prepared to protect both the technician and the sensitive electronics.
Electrostatic Discharge (ESD) Safety: Instructions on grounding yourself using an ESD wrist strap and working on an anti-static mat to prevent frying microchips with static electricity.
Safety Gear: Protocols for wearing safety glasses (critical when prying shattered glass) and working in a well-ventilated area (crucial for adhesive fumes and soldering smoke).
Lighting and Magnification: Recommendations for high-intensity desk lamps and digital microscopes or magnifying visors for viewing microscopic components.
The most physically risky part of mobile repair is opening the device without cracking the glass screen or ripping delicate internal ribbon cables.
Thermal Tools (Heat Guns & Heat Pads): Instructions on setting precise temperatures (typically 80°C to 100°C) to soften heavy factory adhesives without damaging the display.
Suction & Leverage Tools: Proper placement of heavy-duty suction cups and screen prying fixtures to safely create an initial gap.
Separation Media (Plastic Picks & Spudgers): Techniques for slicing through glue lines using plastic opening picks without inserting them too deeply into the frame.
Modern smartphones use dozens of tiny, highly specialized screws and brackets to hold internal shields in place.
Precision Driver Identification: A breakdown of specialized micro-bits, detailing exactly when to use Pentalobe (iPhones), Tri-point/Y-type (internal Apple shields), Torx/Torx Security (Android devices), and standard Micro-Phillips.
Organization Systems: Guidelines for using magnetic project mats or screw organizing trays to map out screw locations, preventing the catastrophic error of “long-screw damage.”
Gripping & Placer Tools: How to utilize straight and curved ESD-safe tweezers to safely disconnect fragile ZIF (Zero Insertion Force) and coaxial cable connectors.
This section transitions the user from basic mechanical teardowns to logical troubleshooting when a phone won’t turn on or charge.
Digital Multimeter (DMM): Step-by-step instructions on setting up the meter for DC voltage testing (checking battery and charging port output) and continuity/diode mode (hunting for short circuits).
DC Power Supply: How to boot a phone motherboard without a battery attached, interpreting current draw (Amperage) to diagnose power management failures.
USB Ammeter / Tester: Utilizing an inline USB safety tester plugged into the charging block to instantly diagnose if a phone is pulling normal current ($1A$ to $2A$) or completely dead ($0A$).
For advanced users handling board-level fixes like swapping out charging ports, audio IC chips, or FPC connectors.
Soldering Iron Stations: Temperature calibration tips, tip selection (chisel vs. conical), and maintenance/tinning procedures.
Hot Air Rework Stations: Managing the delicate balance of air flow and temperature to safely desolder multi-pin components without blowing adjacent surface-mount resistors off the board.
Chemical Consumables: Proper application of rosin flux (to clean joints and fluidize solder), solder wick (braided wire to remove old solder), and low-melt solder alloys.
The final step is cleaning up the internal cavity and sealing the device back up to its original structural integrity.
Chemical Cleaners: Safe usage of 99% Isopropyl Alcohol (IPA) to dissolve old glue residues, flux oils, and clean mild liquid damage.
Liquid Adhesives vs. Tape: Instructions on applying specialized acrylic glues (like B-7000) versus applying precision-cut double-sided adhesive gaskets.
Camping and Curing: Utilizing specialized display repair clamps to apply even, steady pressure while the new adhesives cure over 15 to 30 minutes.

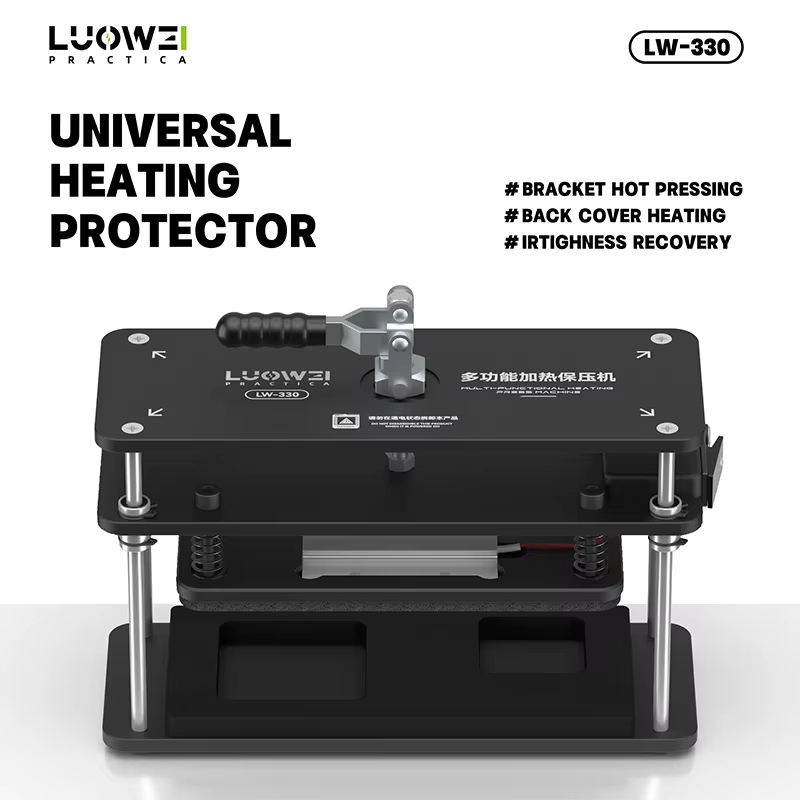

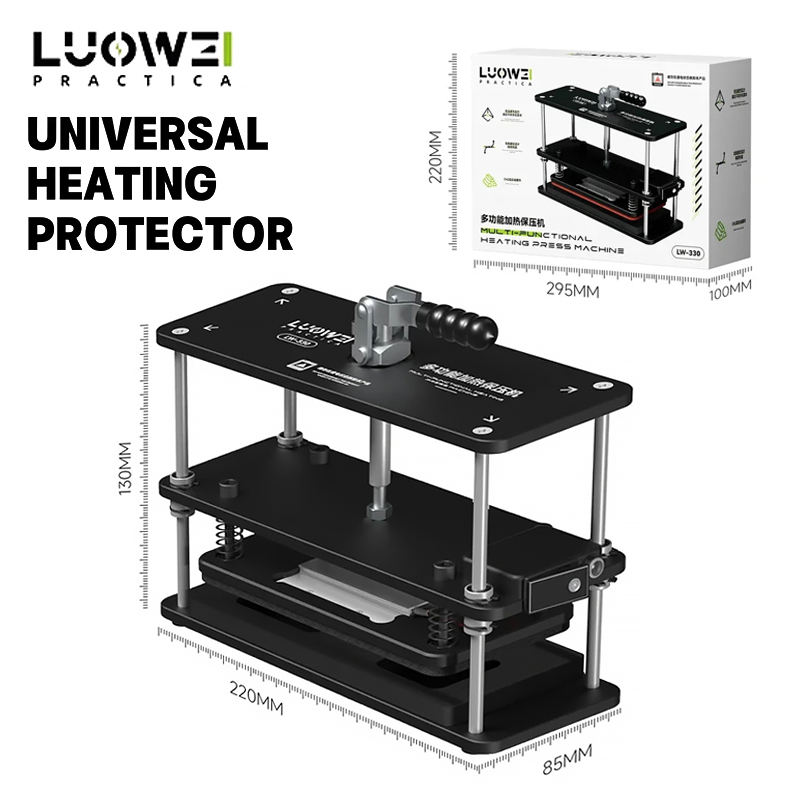

The LUOWEI LW-330 Universal Heating Protector Mold for Mobile Phone Bracket Hot Pressure Clamp Back Cover Fixture is an essential tool for mobile phone repair professionals and DIY enthusiasts alike. Its universal design ensures compatibility with a wide range of devices, making it a highly versatile addition to your toolkit.
Engineered for precision, the LW-330 features advanced heating and hot pressure clamping capabilities. Whether you’re working on a back cover fixture or a tricky repair job, this mold delivers consistent results while safeguarding delicate components from damage.
Crafted from high-quality materials, the durable construction of the LUOWEI LW-330 ensures reliability over countless uses. Its compact design allows for easy handling and storage, making it the ultimate companion for achieving professional repair outcomes, all from the comfort of your workspace.
The LUOWEI LW-330 Universal Heating & Press Station is a highly specialized, professional-grade smartphone restoration platform. Engineered explicitly for repair technicians, this multi-functional workstation integrates a dual-core rapid heating element with a heavy-duty, bi-directional mechanical pressure clamp. It is primarily utilized for precision tasks such as structural frame reinforcement, display panel lamination, airtightness restoration, and back glass adhesive bonding.
Below is the comprehensive technical breakdown and full product specification profile presented in an exhaustive, structured format.
110V AC
220V AC
Traditional display clamps require external heat guns or separating tables to activate adhesive strings. The LW-330 bypasses this completely by embedding its thermal transfer network directly into the clamping plates. By deploying a synchronized Dual-Core Heating Matrix, the device guarantees that both the front display panel and rear housing receive equal thermal energy simultaneously.
This specific temperature roof ensures the phone’s lithium-ion polymer batteries remain well below critical thermal runaway thresholds while effortlessly loosening old structural tape or activating freshly applied liquid adhesives.

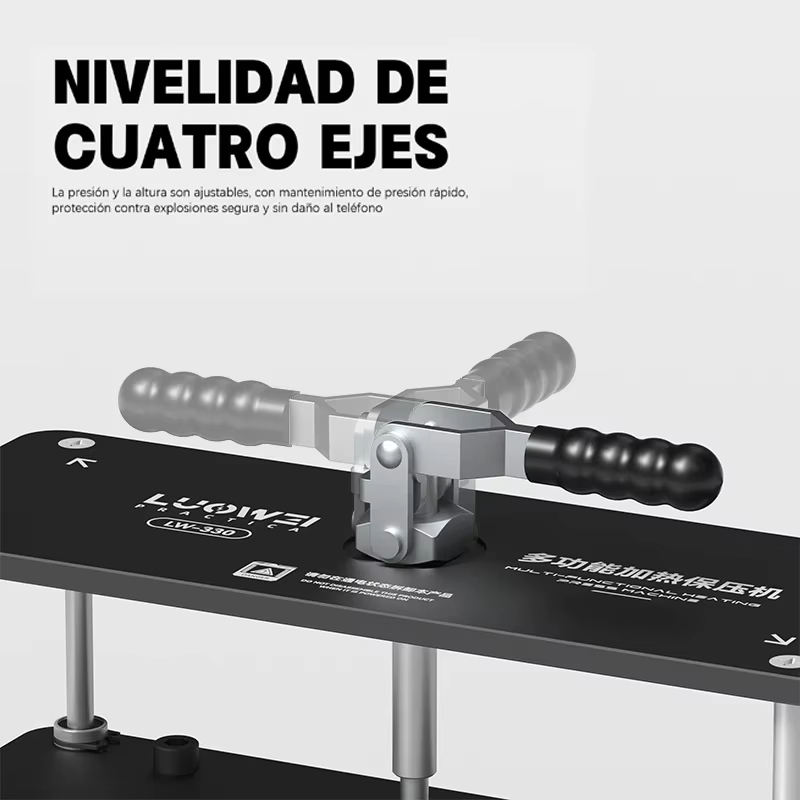

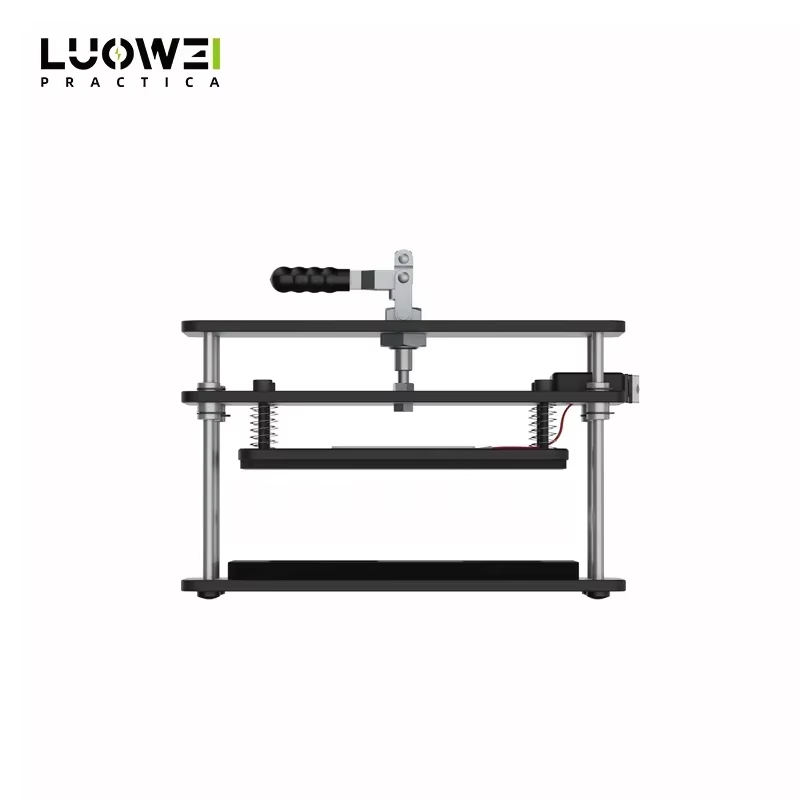

When repairing modern curved displays or ultra-thin bezel flagships, uncalibrated, uneven pressure is the primary driver behind accidental screen fractures. The LW-330 uses an advanced Four-Axis Guide Rail System paired with four heavy-duty precision linear sleeve bearings. When the manual rotary pressure handle is engaged, the downward force vector is distributed perfectly flat across the entire surface plane of the smartphone.
[ Manual Tension Knob ] │ ┌─────────▼─────────┐ │ Top Heating Core │ ───► Even Thermal Flow ====▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒==== [4-Axis Guide Rails] │ Silicone Pad │ │ [Smartphone] │ ───► Uniform Linear Force │ Bottom HeatingCore│ ───────────────────────────

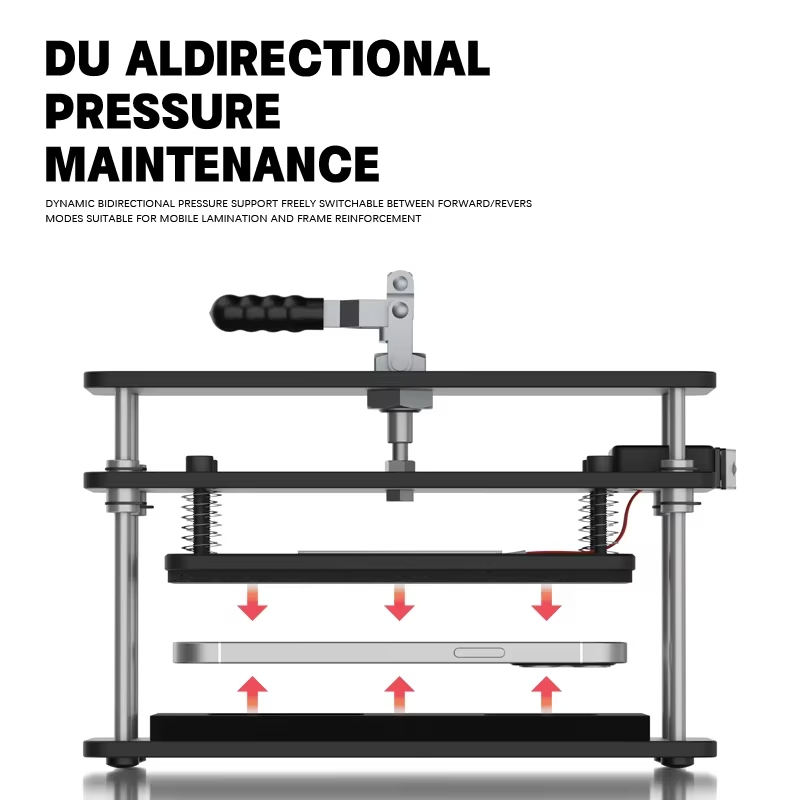

The structural architecture supports two completely distinct pressure vector workflows:
Forward Clamping (Lamination Mode): Applies a uniform downward crush force onto the screen assembly, securing the display matrix flush to the smartphone mid-frame.
Reverse Clamping (Reinforcement Mode): Repositions internal mechanical leverage to securely compress rear glass back-covers without pressing down directly onto the exposed structural components inside the front assembly.
To maximize tool longevity and protect delicate modern components during structural hot-pressing cycles, follow these professional protocols:
Adhesive Cleanup: Clean the high-density silicone pad immediately after use using a soft microfiber cloth lightly damp with 99% Isopropyl Alcohol (IPA) to remove residual LOCA or polyurethane adhesive stringing before it bakes solid.
Mechanical Drive Lubrication: Apply a single drop of low-viscosity machine oil directly to the main threaded shaft screw monthly to ensure silk-smooth manual tension control.
Thermal Management: Avoid running the station continuously at maximum temperature setting ($105^circtext{C}$) for more than 30 consecutive minutes to maximize internal heating element lifespan. Let the platform cool down naturally between heavy lamination sequences.

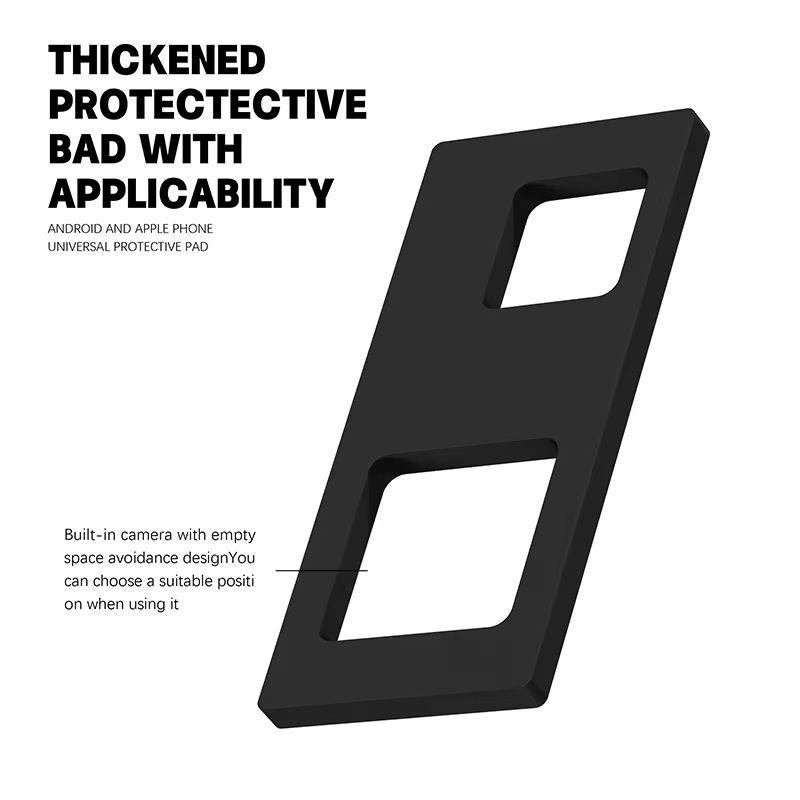

Camera Protection: Always verify that the smartphone’s rear camera module is correctly nested directly into the dedicated cutout cushion channel before tightening down the top clamping plate to avoid shattering sapphire camera lenses.
