Please read the manual before use.
This section sets the foundation for a safe repair environment. Before a single tool touches a phone, the workspace must be prepared to protect both the technician and the sensitive electronics.
Electrostatic Discharge (ESD) Safety: Instructions on grounding yourself using an ESD wrist strap and working on an anti-static mat to prevent frying microchips with static electricity.
Safety Gear: Protocols for wearing safety glasses (critical when prying shattered glass) and working in a well-ventilated area (crucial for adhesive fumes and soldering smoke).
Lighting and Magnification: Recommendations for high-intensity desk lamps and digital microscopes or magnifying visors for viewing microscopic components.
The most physically risky part of mobile repair is opening the device without cracking the glass screen or ripping delicate internal ribbon cables.
Thermal Tools (Heat Guns & Heat Pads): Instructions on setting precise temperatures (typically 80°C to 100°C) to soften heavy factory adhesives without damaging the display.
Suction & Leverage Tools: Proper placement of heavy-duty suction cups and screen prying fixtures to safely create an initial gap.
Separation Media (Plastic Picks & Spudgers): Techniques for slicing through glue lines using plastic opening picks without inserting them too deeply into the frame.
Modern smartphones use dozens of tiny, highly specialized screws and brackets to hold internal shields in place.
Precision Driver Identification: A breakdown of specialized micro-bits, detailing exactly when to use Pentalobe (iPhones), Tri-point/Y-type (internal Apple shields), Torx/Torx Security (Android devices), and standard Micro-Phillips.
Organization Systems: Guidelines for using magnetic project mats or screw organizing trays to map out screw locations, preventing the catastrophic error of “long-screw damage.”
Gripping & Placer Tools: How to utilize straight and curved ESD-safe tweezers to safely disconnect fragile ZIF (Zero Insertion Force) and coaxial cable connectors.
This section transitions the user from basic mechanical teardowns to logical troubleshooting when a phone won’t turn on or charge.
Digital Multimeter (DMM): Step-by-step instructions on setting up the meter for DC voltage testing (checking battery and charging port output) and continuity/diode mode (hunting for short circuits).
DC Power Supply: How to boot a phone motherboard without a battery attached, interpreting current draw (Amperage) to diagnose power management failures.
USB Ammeter / Tester: Utilizing an inline USB safety tester plugged into the charging block to instantly diagnose if a phone is pulling normal current ($1A$ to $2A$) or completely dead ($0A$).
For advanced users handling board-level fixes like swapping out charging ports, audio IC chips, or FPC connectors.
Soldering Iron Stations: Temperature calibration tips, tip selection (chisel vs. conical), and maintenance/tinning procedures.
Hot Air Rework Stations: Managing the delicate balance of air flow and temperature to safely desolder multi-pin components without blowing adjacent surface-mount resistors off the board.
Chemical Consumables: Proper application of rosin flux (to clean joints and fluidize solder), solder wick (braided wire to remove old solder), and low-melt solder alloys.
The final step is cleaning up the internal cavity and sealing the device back up to its original structural integrity.
Chemical Cleaners: Safe usage of 99% Isopropyl Alcohol (IPA) to dissolve old glue residues, flux oils, and clean mild liquid damage.
Liquid Adhesives vs. Tape: Instructions on applying specialized acrylic glues (like B-7000) versus applying precision-cut double-sided adhesive gaskets.
Camping and Curing: Utilizing specialized display repair clamps to apply even, steady pressure while the new adhesives cure over 15 to 30 minutes.

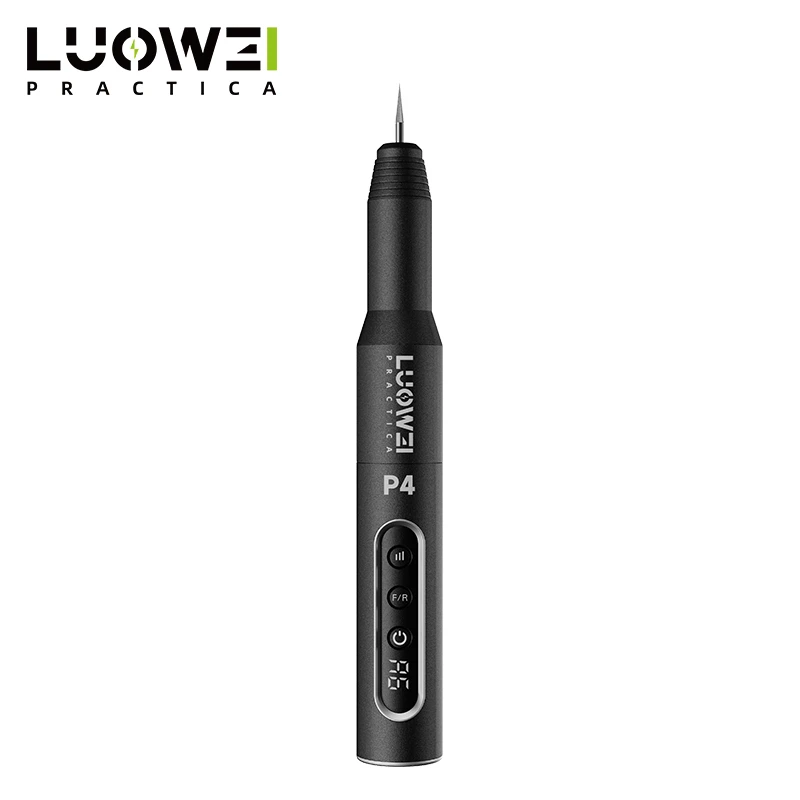

The Luowei LW-P4 Smart Polishing Pen is engineered for precision, making it an essential tool for both professionals and hobbyists. Crafted with a sleek and ergonomic design, it ensures unmatched control and comfort during use, even in tight or intricate spaces. Luowei LW-P4 Smart Polishing Pen
Powered by a high-performance motor, this device delivers consistent and reliable results. Whether you’re polishing delicate jewelry, fine woodworking, or restoring small details, the LW-P4 Smart Polishing Pen is built to handle a variety of tasks effortlessly. Luowei LW-P4 Smart Polishing Pen
Designed with simplicity in mind, the Luowei LW-P4 Smart Polishing Pen features intuitive controls for easy operation. Its lightweight and portable build make it a convenient companion for both on-the-go projects and at-home tasks. Bring precision and efficiency to your workflow today!
The Luowei LW-P4 Smart Polishing Pen Practica is a high-torque, smart electric polishing and micro-grinding pen optimized for precision electronics maintenance, mobile phone repair, and intricate DIY tasks. Luowei LW-P4 Smart Polishing Pen
Below is the exhaustive, feature-by-feature technical specification and design deep-dive formulated in a comprehensive tabular breakdown. Luowei LW-P4 Smart Polishing Pen
Tool Length: 172 mm
Body Diameter: 24 mm
The pen-shaped diameter mimics high-end writing instruments to lower hand strain during extended multi-hour micro-soldering and grinding sessions.
Net Tool Weight: 125 grams (optimized center of gravity to reduce tip vibration).
Gross Packaged Weight: 185 grams.
Rated Continuous Power: 2 Watts (optimized for thermal efficiency).
Maximum Stall Power: 42 Watts (delivers immense temporary torque reserves to cut through hardened brackets or stripped steel screws).

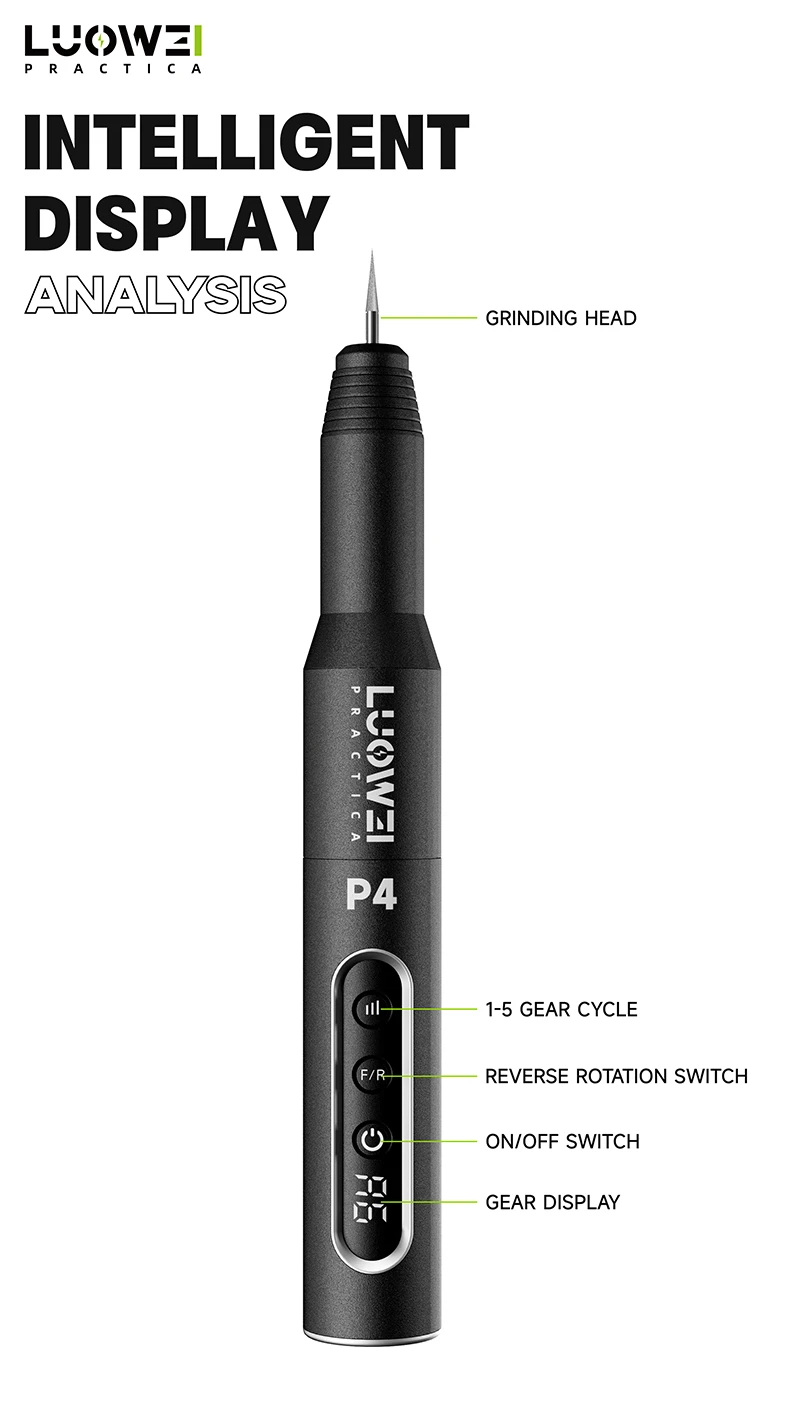

The Luowei LW-P4 employs an onboard micro-controller to regulate speed and torque distribution across 5 specific gears. This targeted mapping eliminates the risk of kinetic damage to highly sensitive smartphone motherboards.
[Gear 1 - 2] --> 🟢 Low Speed / High Precision (IC Chips, BGA Pad Polishing, Oxidation Scraping) [Gear 3] --> 🟡 Medium Speed / Balancing Mode (PCB Cleaning, Glue Film Removal, Acrylic Smoothing) [Gear 4 - 5] --> 🔴 High Speed / High Torque (Bracket Cutting, Screen Separation, Stripped Screw Extraction)
Operational Intent: Targeted at micro-level surface cleaning and fine-layer scraping.
Applications: Polishing integrated circuit (IC) pads, removing delicate black rubber underfill sealant around smartphone CPUs, gently buffing away oxidation layers from copper traces, and working near fragile ball grid array (BGA) layouts. Low gears minimize structural friction, preventing heat accumulation that could desolder nearby micro-components.
Operational Intent: Balanced kinetic delivery for everyday electronic repair operations.
Applications: Rapid removal of Optically Clear Adhesive (OCA) residues left behind on LCD/OLED glass screens during panel refurbishment, cleaning solder mask imperfections, and micro-drilling orientation holes in plastics or thin composite circuit boards.
Operational Intent: Maximizes the 42W stall power threshold to shear through resilient metallic and composite structural layers.
Applications: Slicing through damaged motherboard shielding cages, cutting aluminum mid-frame brackets on modern smartphones, micro-engraving serialization data on robust surfaces, and drilling out stripped or rusted internal chassis screws without damaging the surrounding structural housing.
Vibration Dampening & Coaxial Stability: Standard rotary pens suffer from microscopic tip wobbling, which can instantly rupture surface traces on a PCB. The Luowei LW-P4 Smart Polishing Pen utilizes automatic coaxial insertion inside its brass chuck assembly, securing the 2.35 mm bits down the true physical center of the axis. This guarantees zero vibration even when spinning at maximum RPM.
Thermal Regulation & Structural Integrity: The choice of aircraft-grade aluminum alloy serves a dual purpose. Beyond providing structural armor against drops, it acts as a passive heatsink. Thermal energy generated by the 42W turbo motor is quickly dissipated along the pen’s surface, preventing internal battery degradation and keeping the handle comfortable during prolonged operations.
Torque-to-Weight Optimization: Weighing only 125 grams, the device packs an exceptional power density ratio. The ability to shift dynamically from a gentle 2W output to a high-resistance 42W stall limit provides technicians with a tool that replaces both delicate detailing brushes and heavy micro-rotary cutters.
