₹2,000 Original price was: ₹2,000.₹1,399Current price is: ₹1,399.
Please read the manual before use.
This section sets the foundation for a safe repair environment. Before a single tool touches a phone, the workspace must be prepared to protect both the technician and the sensitive electronics.
Electrostatic Discharge (ESD) Safety: Instructions on grounding yourself using an ESD wrist strap and working on an anti-static mat to prevent frying microchips with static electricity.
Safety Gear: Protocols for wearing safety glasses (critical when prying shattered glass) and working in a well-ventilated area (crucial for adhesive fumes and soldering smoke).
Lighting and Magnification: Recommendations for high-intensity desk lamps and digital microscopes or magnifying visors for viewing microscopic components.
The most physically risky part of mobile repair is opening the device without cracking the glass screen or ripping delicate internal ribbon cables.
Thermal Tools (Heat Guns & Heat Pads): Instructions on setting precise temperatures (typically 80°C to 100°C) to soften heavy factory adhesives without damaging the display.
Suction & Leverage Tools: Proper placement of heavy-duty suction cups and screen prying fixtures to safely create an initial gap.
Separation Media (Plastic Picks & Spudgers): Techniques for slicing through glue lines using plastic opening picks without inserting them too deeply into the frame.
Modern smartphones use dozens of tiny, highly specialized screws and brackets to hold internal shields in place.
Precision Driver Identification: A breakdown of specialized micro-bits, detailing exactly when to use Pentalobe (iPhones), Tri-point/Y-type (internal Apple shields), Torx/Torx Security (Android devices), and standard Micro-Phillips.
Organization Systems: Guidelines for using magnetic project mats or screw organizing trays to map out screw locations, preventing the catastrophic error of “long-screw damage.”
Gripping & Placer Tools: How to utilize straight and curved ESD-safe tweezers to safely disconnect fragile ZIF (Zero Insertion Force) and coaxial cable connectors.
This section transitions the user from basic mechanical teardowns to logical troubleshooting when a phone won’t turn on or charge.
Digital Multimeter (DMM): Step-by-step instructions on setting up the meter for DC voltage testing (checking battery and charging port output) and continuity/diode mode (hunting for short circuits).
DC Power Supply: How to boot a phone motherboard without a battery attached, interpreting current draw (Amperage) to diagnose power management failures.
USB Ammeter / Tester: Utilizing an inline USB safety tester plugged into the charging block to instantly diagnose if a phone is pulling normal current ($1A$ to $2A$) or completely dead ($0A$).
For advanced users handling board-level fixes like swapping out charging ports, audio IC chips, or FPC connectors.
Soldering Iron Stations: Temperature calibration tips, tip selection (chisel vs. conical), and maintenance/tinning procedures.
Hot Air Rework Stations: Managing the delicate balance of air flow and temperature to safely desolder multi-pin components without blowing adjacent surface-mount resistors off the board.
Chemical Consumables: Proper application of rosin flux (to clean joints and fluidize solder), solder wick (braided wire to remove old solder), and low-melt solder alloys.
The final step is cleaning up the internal cavity and sealing the device back up to its original structural integrity.
Chemical Cleaners: Safe usage of 99% Isopropyl Alcohol (IPA) to dissolve old glue residues, flux oils, and clean mild liquid damage.
Liquid Adhesives vs. Tape: Instructions on applying specialized acrylic glues (like B-7000) versus applying precision-cut double-sided adhesive gaskets.
Camping and Curing: Utilizing specialized display repair clamps to apply even, steady pressure while the new adhesives cure over 15 to 30 minutes.
Shipping India
Guaranteed Satisfaction
Safe Checkout

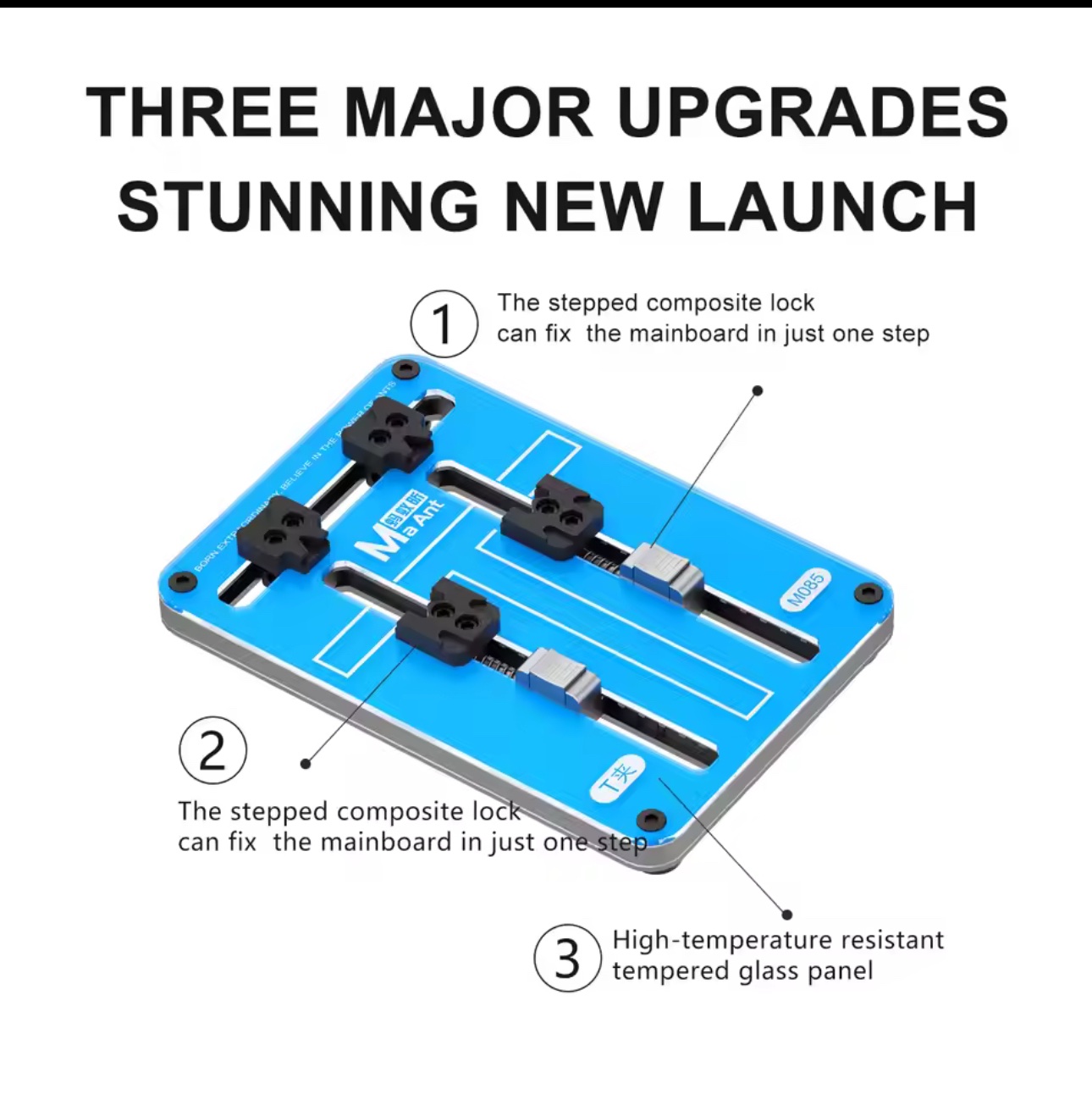

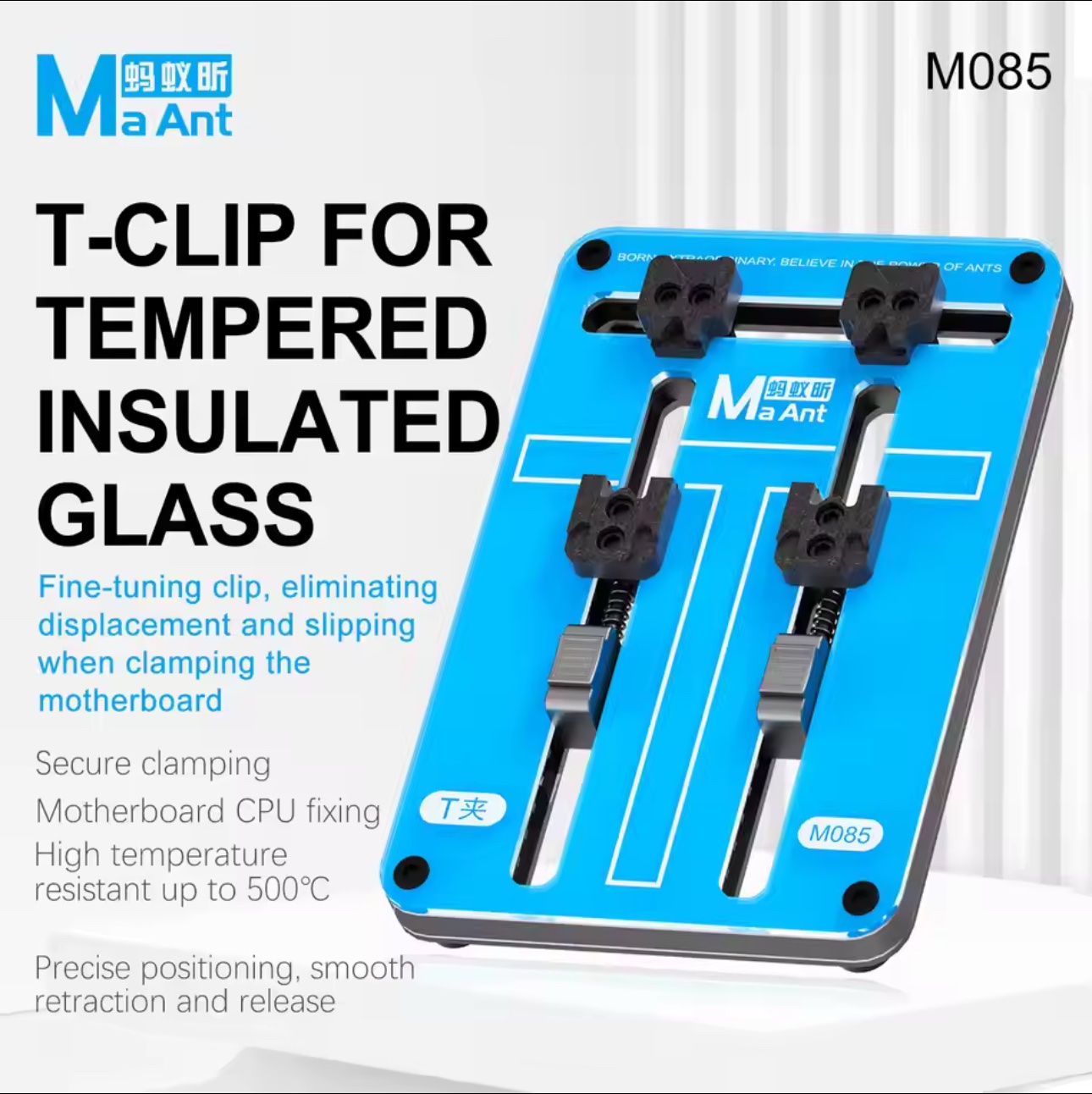

Introducing the MA-ANT M085 mobile phone repair tempered heat insulation glass fixture board—a robust solution designed for precision and efficiency in mobile device repairs. Whether you are a professional technician or an enthusiast, this fixture board is tailored to meet the challenges of degumming CPU chips, ensuring precise positioning, and handling heat insulation. Its ergonomic design and superior material quality set it apart, providing you with a reliable tool to optimize your repair tasks.
Constructed with high-grade tempered glass, the MA-ANT M085 offers unparalleled durability and protection during high-temperature repair processes. The heat insulation technology safeguards delicate components, allowing you to focus on resolving intricate repair tasks without the risk of overexposure to heat. The tempered glass board resists wear and tear, ensuring long-lasting performance for continual use in both professional workshops and home setups.

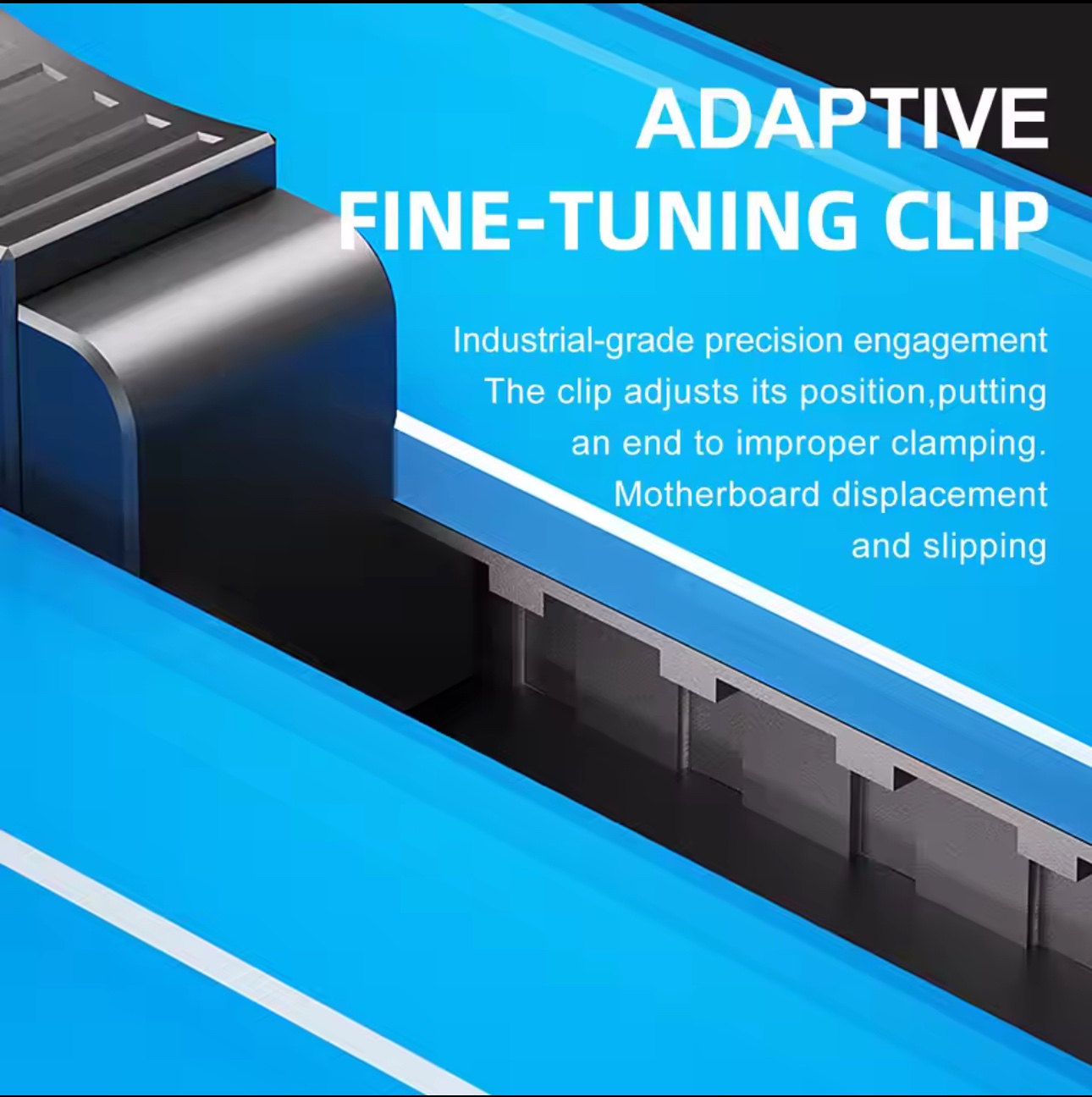

Precision is at the core of the MA-ANT M085’s design. Featuring dedicated positioning fixtures, this tool streamlines the delicate process of degumming and positioning CPU/font IC chips, helping you achieve accurate outcomes with minimal effort. Its efficient layout ensures that the chips stay securely in place, reducing the risk of damage or misalignment during handling. Whether repairing newer or older models, this fixture board adapts to multiple chip sizes, making it a versatile accessory in your toolset.
The MA-ANT M085 fixture board seamlessly combines durability, precision, and adaptability, making it a must-have for mobile phone repairs. Invest in this tool to elevate your repair expertise, streamline your workflow, and reduce time spent on intricate processes. Perfectly balanced between quality and usability, it is designed to cater to both professionals and DIY users who demand reliable tools for their repair tasks.
Take your mobile phone repair capabilities to the next level with the MA-ANT M085 tempered heat insulation glass fixture board—your trusted companion in achieving precision and efficiency.
