Please read the manual before use.
This section sets the foundation for a safe repair environment. Before a single tool touches a phone, the workspace must be prepared to protect both the technician and the sensitive electronics.
Electrostatic Discharge (ESD) Safety: Instructions on grounding yourself using an ESD wrist strap and working on an anti-static mat to prevent frying microchips with static electricity.
Safety Gear: Protocols for wearing safety glasses (critical when prying shattered glass) and working in a well-ventilated area (crucial for adhesive fumes and soldering smoke).
Lighting and Magnification: Recommendations for high-intensity desk lamps and digital microscopes or magnifying visors for viewing microscopic components.
The most physically risky part of mobile repair is opening the device without cracking the glass screen or ripping delicate internal ribbon cables.
Thermal Tools (Heat Guns & Heat Pads): Instructions on setting precise temperatures (typically 80°C to 100°C) to soften heavy factory adhesives without damaging the display.
Suction & Leverage Tools: Proper placement of heavy-duty suction cups and screen prying fixtures to safely create an initial gap.
Separation Media (Plastic Picks & Spudgers): Techniques for slicing through glue lines using plastic opening picks without inserting them too deeply into the frame.
Modern smartphones use dozens of tiny, highly specialized screws and brackets to hold internal shields in place.
Precision Driver Identification: A breakdown of specialized micro-bits, detailing exactly when to use Pentalobe (iPhones), Tri-point/Y-type (internal Apple shields), Torx/Torx Security (Android devices), and standard Micro-Phillips.
Organization Systems: Guidelines for using magnetic project mats or screw organizing trays to map out screw locations, preventing the catastrophic error of “long-screw damage.”
Gripping & Placer Tools: How to utilize straight and curved ESD-safe tweezers to safely disconnect fragile ZIF (Zero Insertion Force) and coaxial cable connectors.
This section transitions the user from basic mechanical teardowns to logical troubleshooting when a phone won’t turn on or charge.
Digital Multimeter (DMM): Step-by-step instructions on setting up the meter for DC voltage testing (checking battery and charging port output) and continuity/diode mode (hunting for short circuits).
DC Power Supply: How to boot a phone motherboard without a battery attached, interpreting current draw (Amperage) to diagnose power management failures.
USB Ammeter / Tester: Utilizing an inline USB safety tester plugged into the charging block to instantly diagnose if a phone is pulling normal current ($1A$ to $2A$) or completely dead ($0A$).
For advanced users handling board-level fixes like swapping out charging ports, audio IC chips, or FPC connectors.
Soldering Iron Stations: Temperature calibration tips, tip selection (chisel vs. conical), and maintenance/tinning procedures.
Hot Air Rework Stations: Managing the delicate balance of air flow and temperature to safely desolder multi-pin components without blowing adjacent surface-mount resistors off the board.
Chemical Consumables: Proper application of rosin flux (to clean joints and fluidize solder), solder wick (braided wire to remove old solder), and low-melt solder alloys.
The final step is cleaning up the internal cavity and sealing the device back up to its original structural integrity.
Chemical Cleaners: Safe usage of 99% Isopropyl Alcohol (IPA) to dissolve old glue residues, flux oils, and clean mild liquid damage.
Liquid Adhesives vs. Tape: Instructions on applying specialized acrylic glues (like B-7000) versus applying precision-cut double-sided adhesive gaskets.
Camping and Curing: Utilizing specialized display repair clamps to apply even, steady pressure while the new adhesives cure over 15 to 30 minutes.

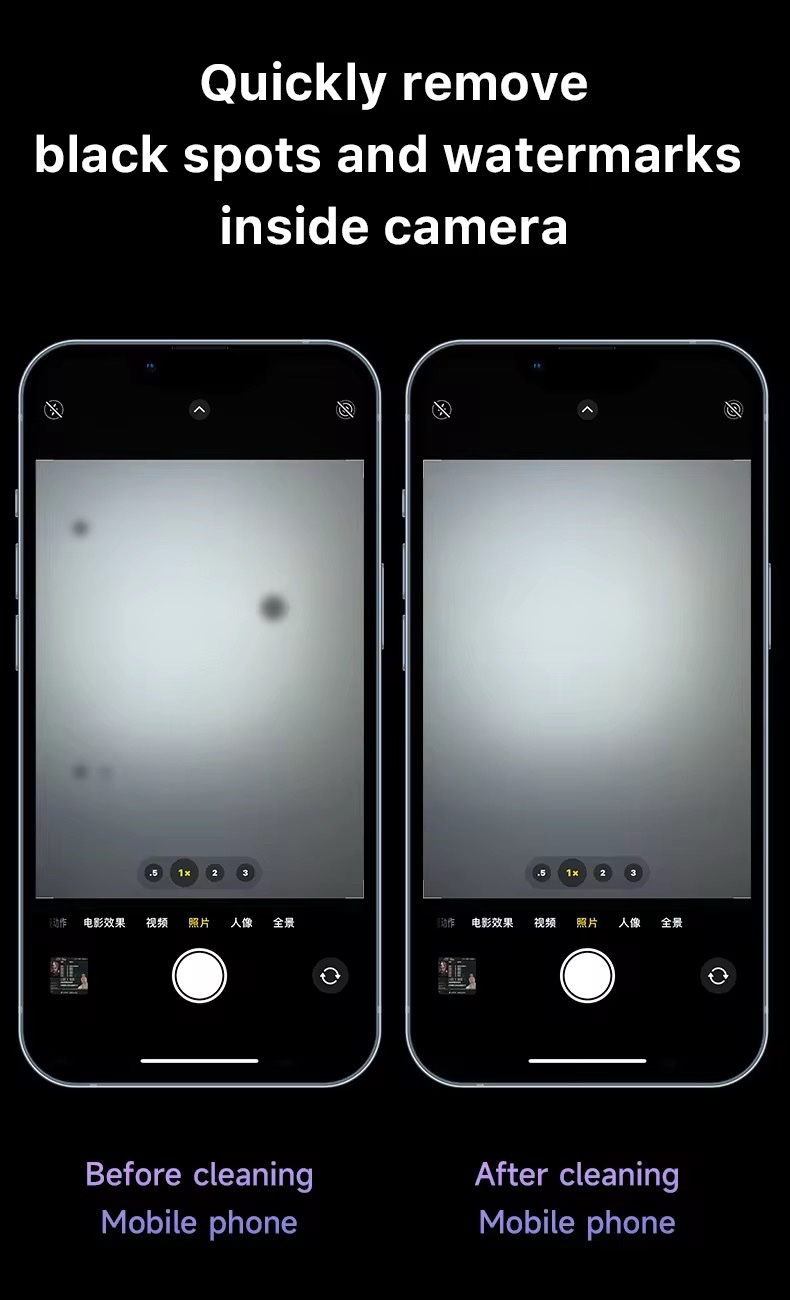

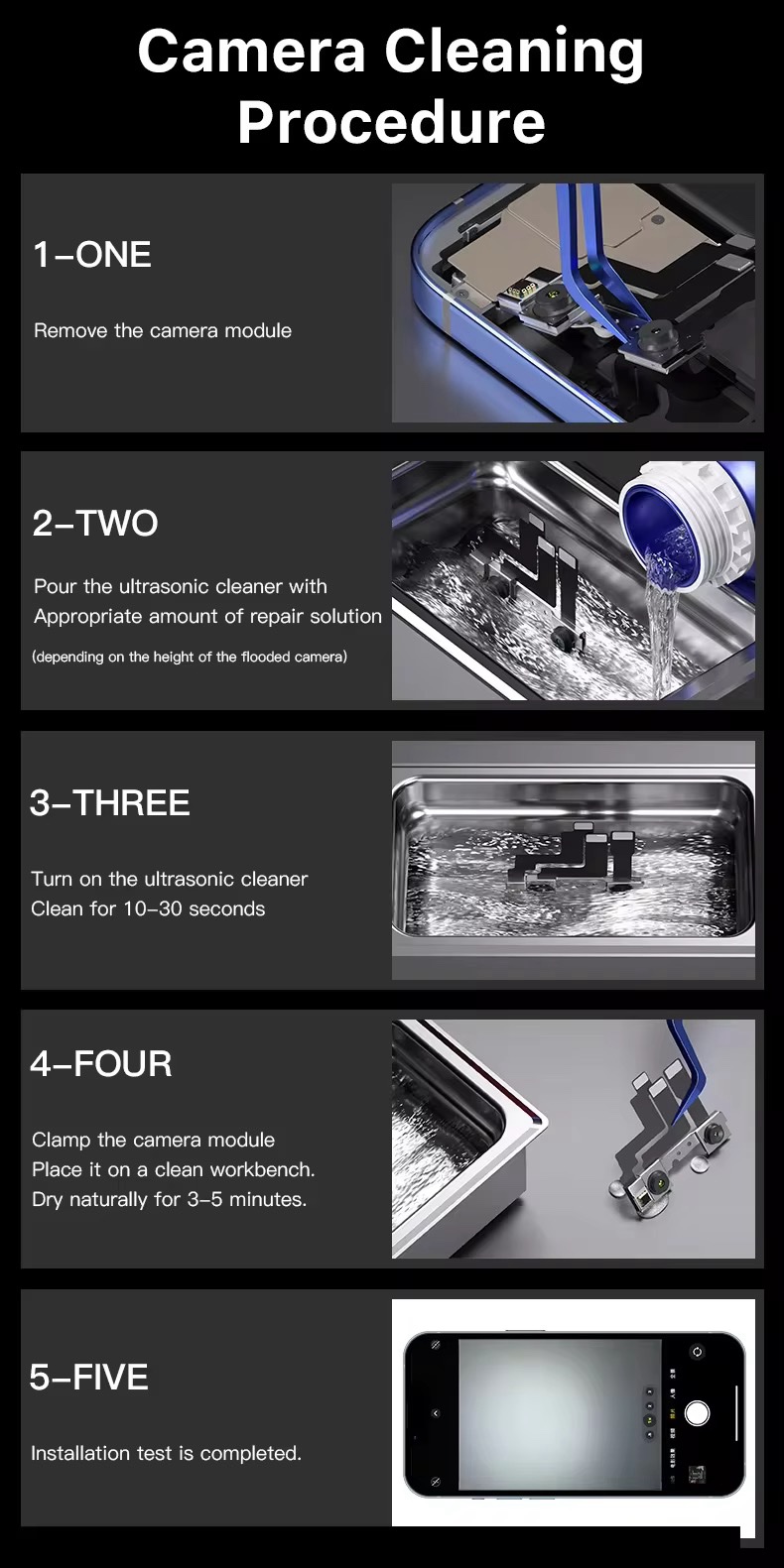

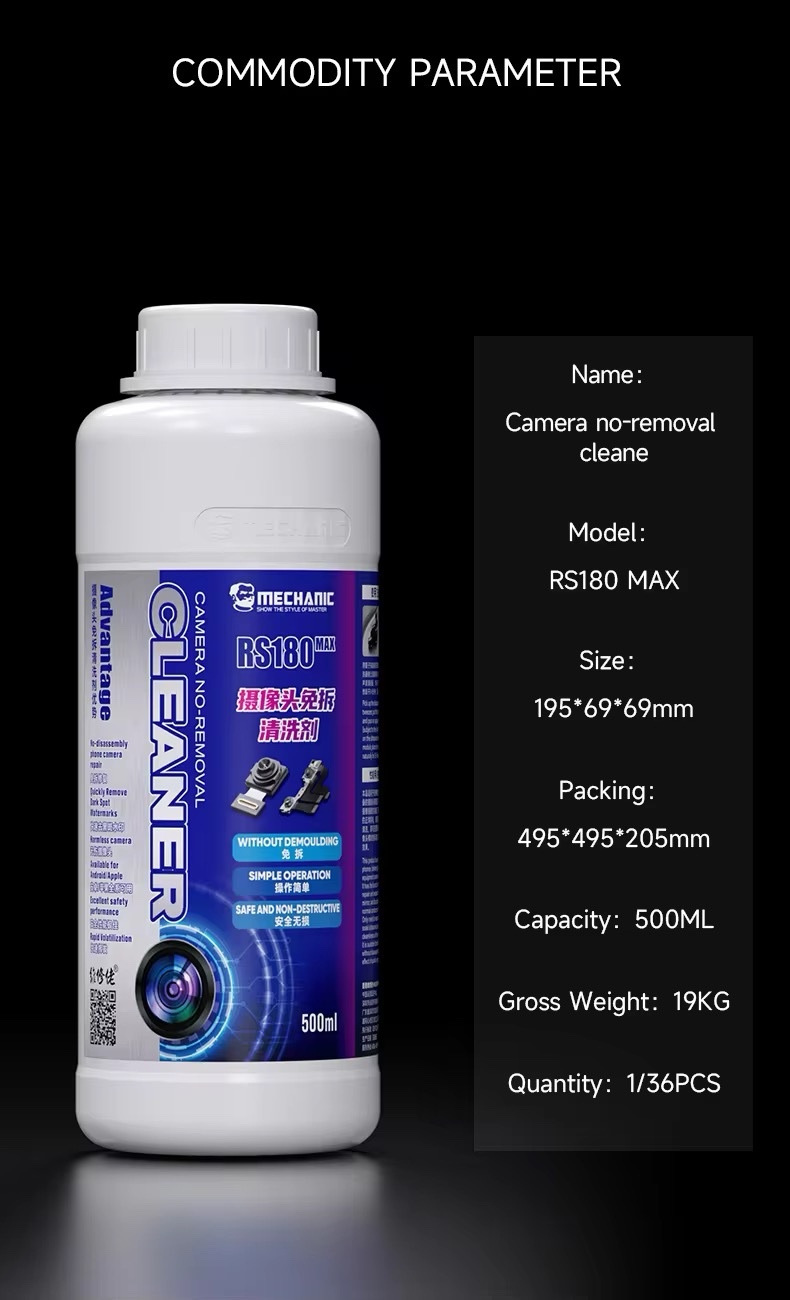

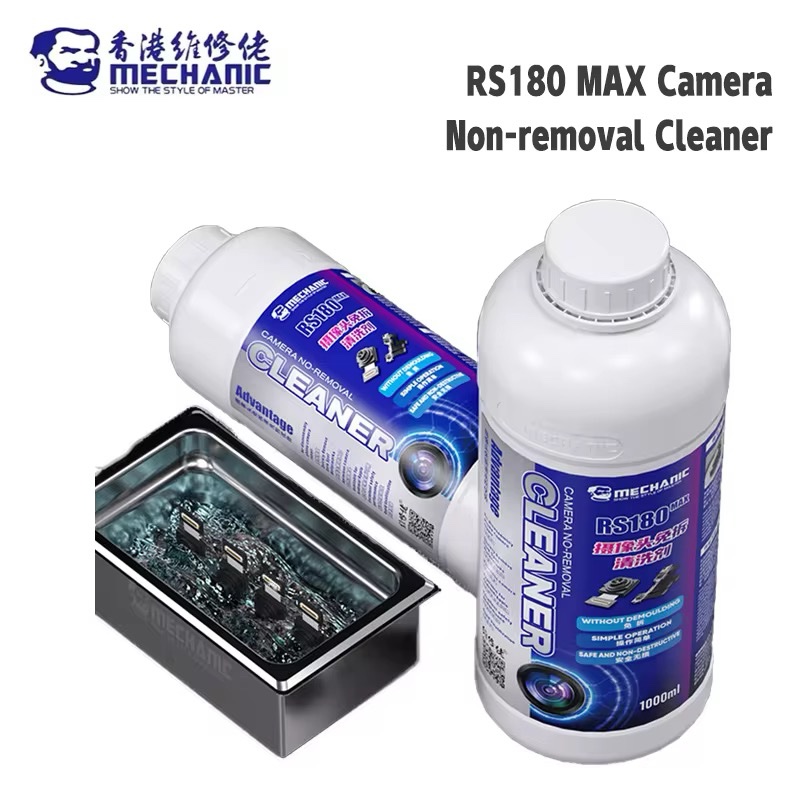

The MECHANIC RS180 MAX 500ML is the ultimate cleaning solution for restoring mobile phone rear cameras affected by stubborn watermarks, black spots, or other visual imperfections. Designed with precision and reliability at its core, this advanced cleaner addresses common issues without requiring intricate removal procedures, saving time and effort for repair professionals and DIY enthusiasts alike.
Gone are the days of complicated and time-consuming disassembly procedures. The MECHANIC RS180 MAX’s powerful formula is specially crafted to penetrate stubborn residues and blemishes that impact camera performance. With its non-removal application method, it provides comprehensive cleaning while ensuring the delicate components of your device are untouched. Trust this cleaner to rejuvenate clarity and precision in rear camera visuals effortlessly.
This cleaner comes in a generous 500ML bottle that caters to multiple uses, whether you’re handling repairs in a professional setting or maintaining your personal devices. Its convenient size ensures that you can rely on MECHANIC RS180 MAX for multiple cleaning tasks and repairs, offering lasting value and usability for mobile phone cameras and components.
The MECHANIC RS180 MAX is perfect for technicians and repair hobbyists who demand consistency and reliability. Its innovative formula ensures minimal risk to sensitive camera parts while restoring their functionality and appearance. Forget about extensive labor or potential damage caused by traditional cleaning methods — this cleaner simplifies rear camera repair while delivering high-quality results.
Experience the ease of use, powerful cleaning action, and cost-effective solution that MECHANIC RS180 MAX 500ML offers. Keep your mobile devices functioning at their best and repair rear camera imperfections with confidence. This cleaner isn’t just a product; it’s your efficient solution for professional-grade phone maintenance.
