Please read the manual before use.
This section sets the foundation for a safe repair environment. Before a single tool touches a phone, the workspace must be prepared to protect both the technician and the sensitive electronics.
Electrostatic Discharge (ESD) Safety: Instructions on grounding yourself using an ESD wrist strap and working on an anti-static mat to prevent frying microchips with static electricity.
Safety Gear: Protocols for wearing safety glasses (critical when prying shattered glass) and working in a well-ventilated area (crucial for adhesive fumes and soldering smoke).
Lighting and Magnification: Recommendations for high-intensity desk lamps and digital microscopes or magnifying visors for viewing microscopic components.
The most physically risky part of mobile repair is opening the device without cracking the glass screen or ripping delicate internal ribbon cables.
Thermal Tools (Heat Guns & Heat Pads): Instructions on setting precise temperatures (typically 80°C to 100°C) to soften heavy factory adhesives without damaging the display.
Suction & Leverage Tools: Proper placement of heavy-duty suction cups and screen prying fixtures to safely create an initial gap.
Separation Media (Plastic Picks & Spudgers): Techniques for slicing through glue lines using plastic opening picks without inserting them too deeply into the frame.
Modern smartphones use dozens of tiny, highly specialized screws and brackets to hold internal shields in place.
Precision Driver Identification: A breakdown of specialized micro-bits, detailing exactly when to use Pentalobe (iPhones), Tri-point/Y-type (internal Apple shields), Torx/Torx Security (Android devices), and standard Micro-Phillips.
Organization Systems: Guidelines for using magnetic project mats or screw organizing trays to map out screw locations, preventing the catastrophic error of “long-screw damage.”
Gripping & Placer Tools: How to utilize straight and curved ESD-safe tweezers to safely disconnect fragile ZIF (Zero Insertion Force) and coaxial cable connectors.
This section transitions the user from basic mechanical teardowns to logical troubleshooting when a phone won’t turn on or charge.
Digital Multimeter (DMM): Step-by-step instructions on setting up the meter for DC voltage testing (checking battery and charging port output) and continuity/diode mode (hunting for short circuits).
DC Power Supply: How to boot a phone motherboard without a battery attached, interpreting current draw (Amperage) to diagnose power management failures.
USB Ammeter / Tester: Utilizing an inline USB safety tester plugged into the charging block to instantly diagnose if a phone is pulling normal current ($1A$ to $2A$) or completely dead ($0A$).
For advanced users handling board-level fixes like swapping out charging ports, audio IC chips, or FPC connectors.
Soldering Iron Stations: Temperature calibration tips, tip selection (chisel vs. conical), and maintenance/tinning procedures.
Hot Air Rework Stations: Managing the delicate balance of air flow and temperature to safely desolder multi-pin components without blowing adjacent surface-mount resistors off the board.
Chemical Consumables: Proper application of rosin flux (to clean joints and fluidize solder), solder wick (braided wire to remove old solder), and low-melt solder alloys.
The final step is cleaning up the internal cavity and sealing the device back up to its original structural integrity.
Chemical Cleaners: Safe usage of 99% Isopropyl Alcohol (IPA) to dissolve old glue residues, flux oils, and clean mild liquid damage.
Liquid Adhesives vs. Tape: Instructions on applying specialized acrylic glues (like B-7000) versus applying precision-cut double-sided adhesive gaskets.
Camping and Curing: Utilizing specialized display repair clamps to apply even, steady pressure while the new adhesives cure over 15 to 30 minutes.

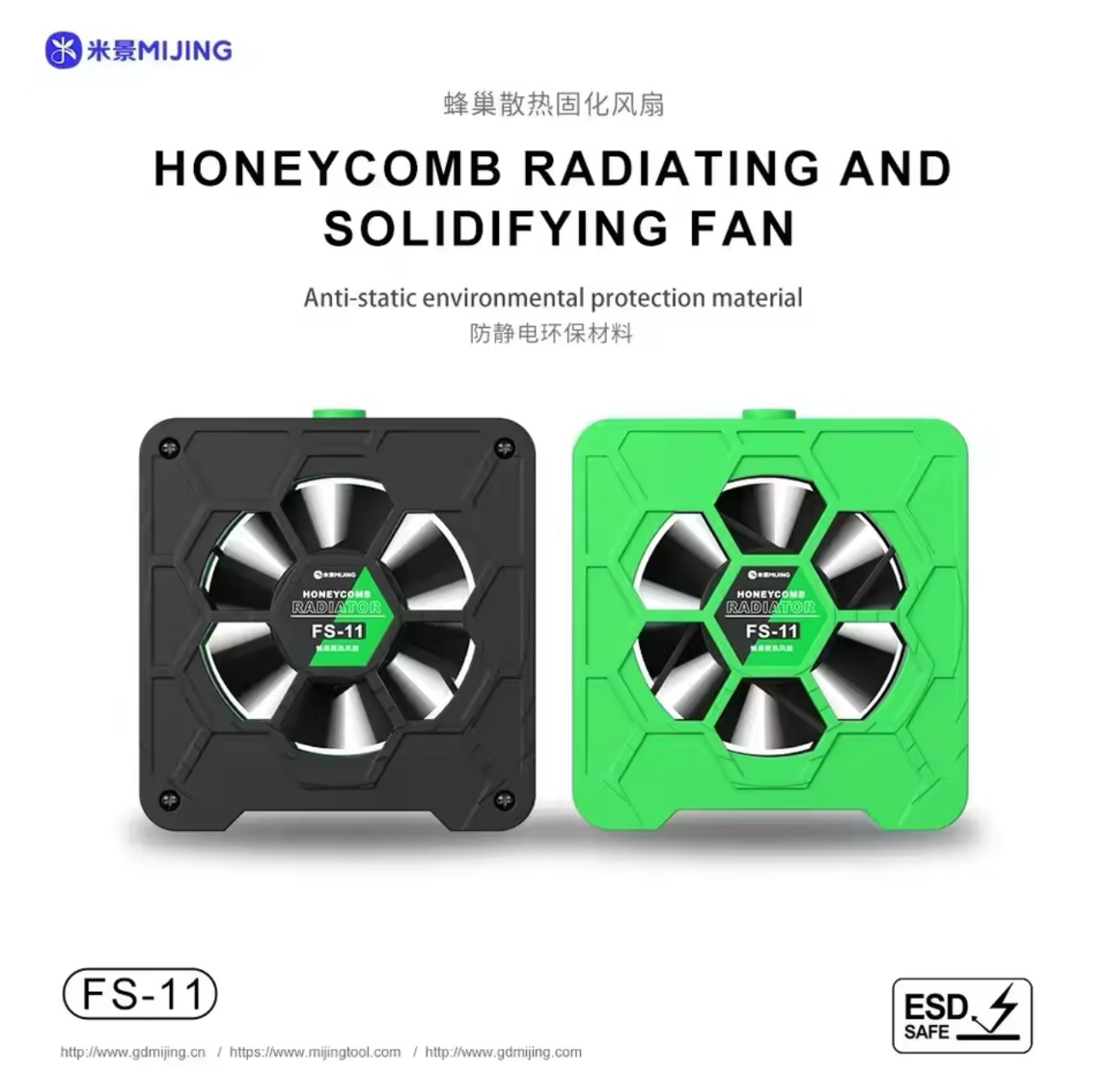

The MIJING FS-11 Fan is a state-of-the-art maintenance tool that combines powerful airflow, dual UV curing technology, and honeycomb thermal management into one high-efficiency device. Engineered specifically for mobile phone repair professionals, this tool streamlines essential repair processes such as UV glue solidification, PCB component cooling, and fume extraction, ensuring a clean, controlled, and efficient working environment.
Whether you’re doing screen refurbishing, optical bonding, or BGA rework, the MIJING FS-11 provides the precision and versatility needed for today’s advanced electronics repair tasks. MIJING FS-11 Fan
At its core, the MIJING FS-11 offers two synchronized repair functions:

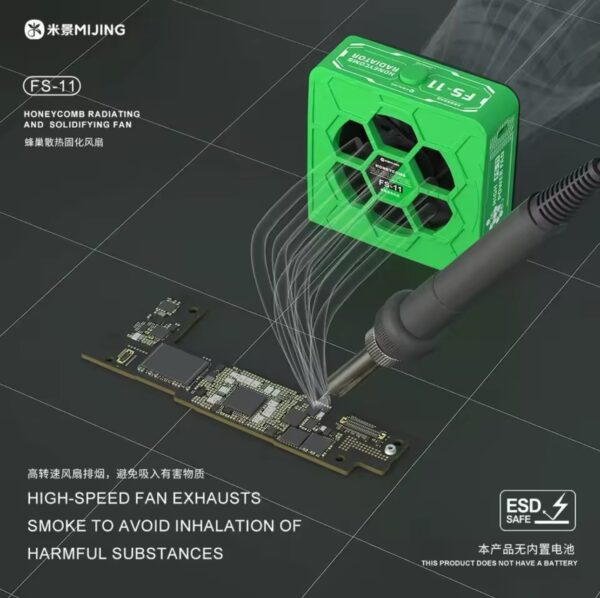

High-Speed Suction Fan – Designed to remove fumes, hot air, and microscopic particles generated during soldering or glue curing. MIJING FS-11 Fan
Dual UV Curing Lamps – Deliver intense, targeted ultraviolet light to instantly cure UV adhesives and resins used in screen and lens bonding.
This dual-action capability saves time, improves efficiency, and supports a cleaner, safer repair workspace.

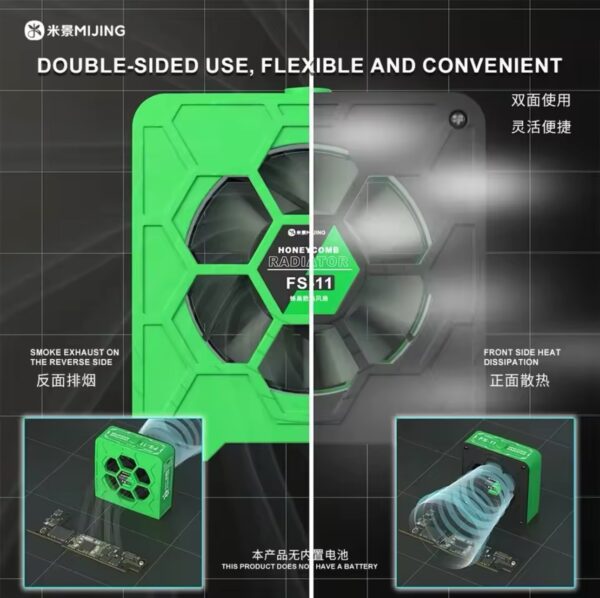

The FS-11 is equipped with a precision-engineered honeycomb exhaust structure that maximizes airflow while minimizing noise. This design:
Rapidly dissipates heat from circuit boards and other components.
Prevents overheating during prolonged repair sessions.
Supports uniform airflow to avoid hot or cold spots on the work surface.
Ideal for delicate operations such as IC replacement, glue removal, and screen lamination, the honeycomb system ensures thermal balance for optimal results.
The MIJING FS-11 features two high-intensity UV curing lamps that operate independently or simultaneously, allowing for:
Quick solidification of UV glue in screen and lens bonding.
Consistent curing across curved or edge displays.
Time-saving dual-head operation for larger surface areas or simultaneous multi-point bonding.
The UV spectrum is tuned for mobile device adhesive materials, providing fast and bubble-free cures with minimal heat radiation, protecting nearby components.

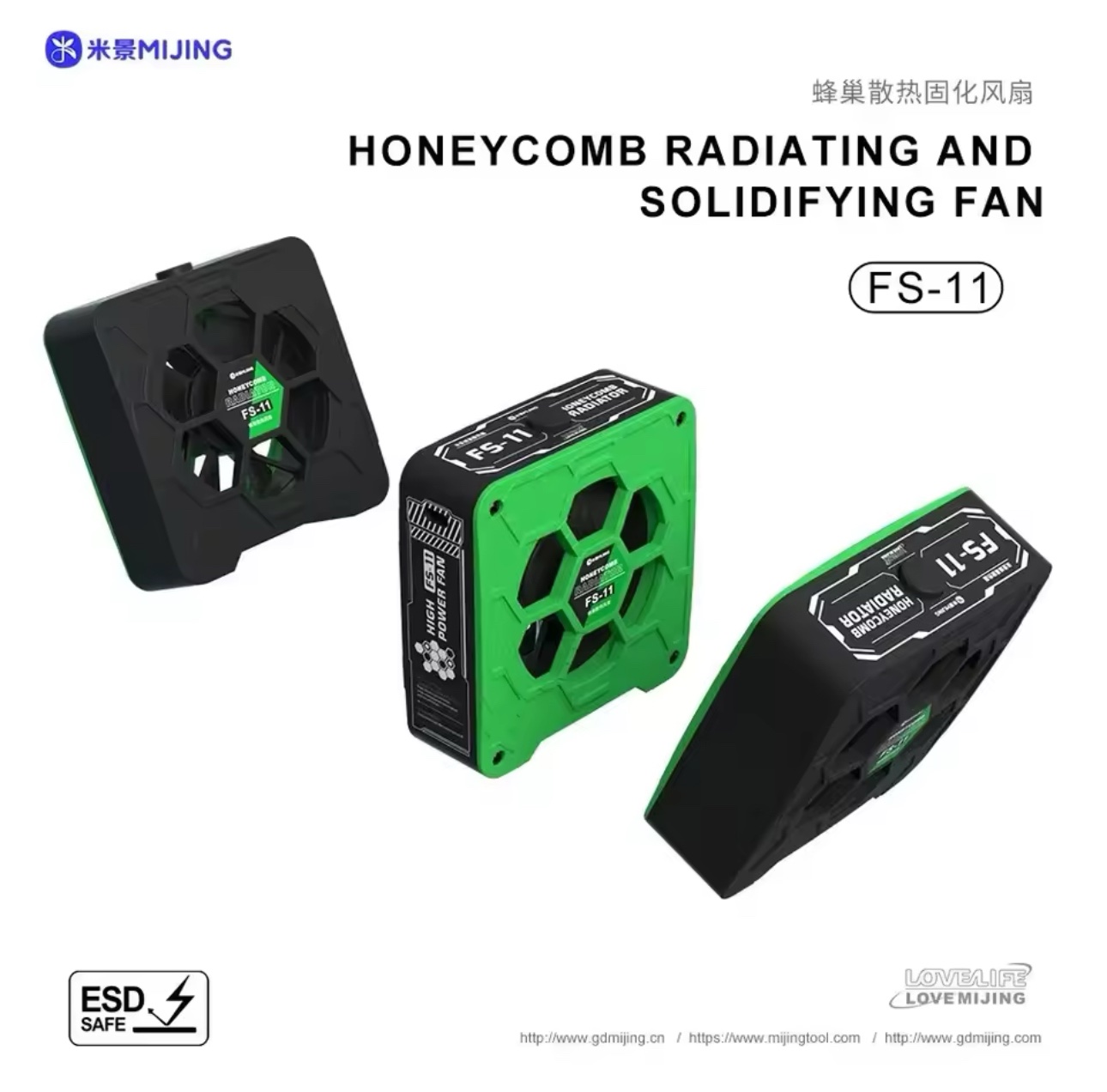

The FS-11 stands out not just in performance but also in design. Key physical features include:
Alloy construction with a matte finish – Durable, heat-resistant, and built for daily use in professional workshops. MIJING FS-11 Fan
Angled UV lamp arms – Adjustable for ideal curing angles depending on screen size or device position. MIJING FS-11 Fan
Ergonomic control panel – Easy-access switches and intuitive operation for both fan and UV functions. MIJING FS-11 Fan

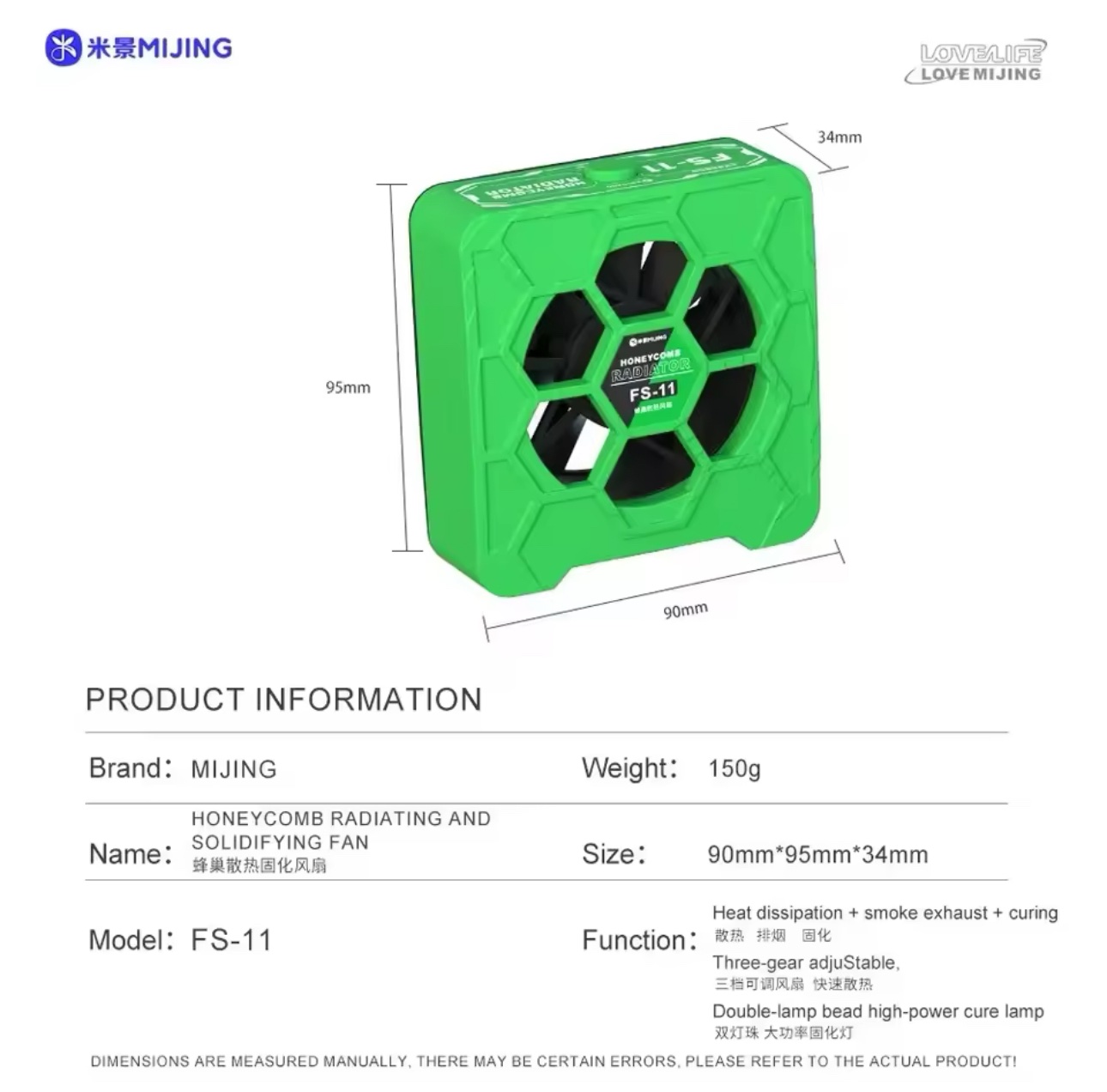

Its compact footprint makes it a perfect fit on crowded workbenches, while the strong base ensures stability during intensive repair work.
Screen refurbishing technicians
Electronics repair professionals
BGA and IC rework specialists
Optical glue bonding and lens replacement
UV adhesive applications in mobile device repairs
Increased Efficiency: Speeds up UV curing processes, allowing quicker turnaround on repairs.
Enhanced Safety: Built-in fume extraction minimizes inhalation of harmful soldering smoke and glue vapors.
Extended Component Life: Rapid cooling protects sensitive components from heat damage during soldering or bonding.
Compact & Portable: Easily fits on any workbench and can be moved as needed for different tasks.
Multi-Purpose Use: Combines the roles of UV lamp, cooling fan, and suction tool into one professional-grade device.
The MIJING FS-11 is more than just a fan or UV light—it’s a multi-functional repair assistant crafted for high-efficiency, precision, and durability. With MIJING’s reputation for innovation in mobile phone repair tools, the FS-11 continues this tradition, helping professionals work faster, safer, and with better results.
Whether you’re curing UV glue, cooling down sensitive chips after soldering, or creating a clean working space free from fumes, the FS-11 delivers performance that meets the highest repair standards.
