Please read the manual before use.
This section sets the foundation for a safe repair environment. Before a single tool touches a phone, the workspace must be prepared to protect both the technician and the sensitive electronics.
Electrostatic Discharge (ESD) Safety: Instructions on grounding yourself using an ESD wrist strap and working on an anti-static mat to prevent frying microchips with static electricity.
Safety Gear: Protocols for wearing safety glasses (critical when prying shattered glass) and working in a well-ventilated area (crucial for adhesive fumes and soldering smoke).
Lighting and Magnification: Recommendations for high-intensity desk lamps and digital microscopes or magnifying visors for viewing microscopic components.
The most physically risky part of mobile repair is opening the device without cracking the glass screen or ripping delicate internal ribbon cables.
Thermal Tools (Heat Guns & Heat Pads): Instructions on setting precise temperatures (typically 80°C to 100°C) to soften heavy factory adhesives without damaging the display.
Suction & Leverage Tools: Proper placement of heavy-duty suction cups and screen prying fixtures to safely create an initial gap.
Separation Media (Plastic Picks & Spudgers): Techniques for slicing through glue lines using plastic opening picks without inserting them too deeply into the frame.
Modern smartphones use dozens of tiny, highly specialized screws and brackets to hold internal shields in place.
Precision Driver Identification: A breakdown of specialized micro-bits, detailing exactly when to use Pentalobe (iPhones), Tri-point/Y-type (internal Apple shields), Torx/Torx Security (Android devices), and standard Micro-Phillips.
Organization Systems: Guidelines for using magnetic project mats or screw organizing trays to map out screw locations, preventing the catastrophic error of “long-screw damage.”
Gripping & Placer Tools: How to utilize straight and curved ESD-safe tweezers to safely disconnect fragile ZIF (Zero Insertion Force) and coaxial cable connectors.
This section transitions the user from basic mechanical teardowns to logical troubleshooting when a phone won’t turn on or charge.
Digital Multimeter (DMM): Step-by-step instructions on setting up the meter for DC voltage testing (checking battery and charging port output) and continuity/diode mode (hunting for short circuits).
DC Power Supply: How to boot a phone motherboard without a battery attached, interpreting current draw (Amperage) to diagnose power management failures.
USB Ammeter / Tester: Utilizing an inline USB safety tester plugged into the charging block to instantly diagnose if a phone is pulling normal current ($1A$ to $2A$) or completely dead ($0A$).
For advanced users handling board-level fixes like swapping out charging ports, audio IC chips, or FPC connectors.
Soldering Iron Stations: Temperature calibration tips, tip selection (chisel vs. conical), and maintenance/tinning procedures.
Hot Air Rework Stations: Managing the delicate balance of air flow and temperature to safely desolder multi-pin components without blowing adjacent surface-mount resistors off the board.
Chemical Consumables: Proper application of rosin flux (to clean joints and fluidize solder), solder wick (braided wire to remove old solder), and low-melt solder alloys.
The final step is cleaning up the internal cavity and sealing the device back up to its original structural integrity.
Chemical Cleaners: Safe usage of 99% Isopropyl Alcohol (IPA) to dissolve old glue residues, flux oils, and clean mild liquid damage.
Liquid Adhesives vs. Tape: Instructions on applying specialized acrylic glues (like B-7000) versus applying precision-cut double-sided adhesive gaskets.
Camping and Curing: Utilizing specialized display repair clamps to apply even, steady pressure while the new adhesives cure over 15 to 30 minutes.

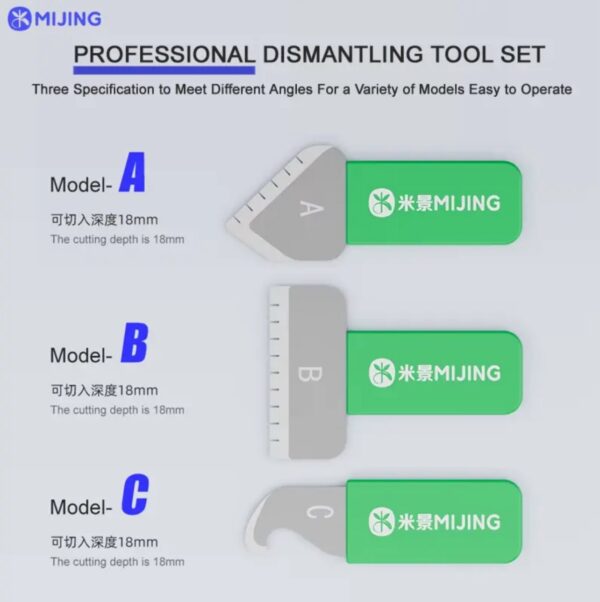

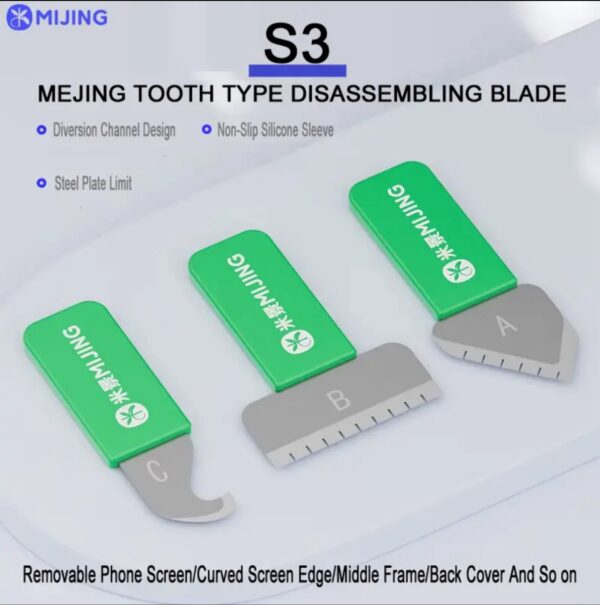

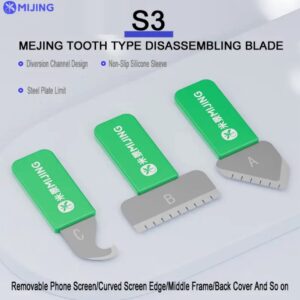

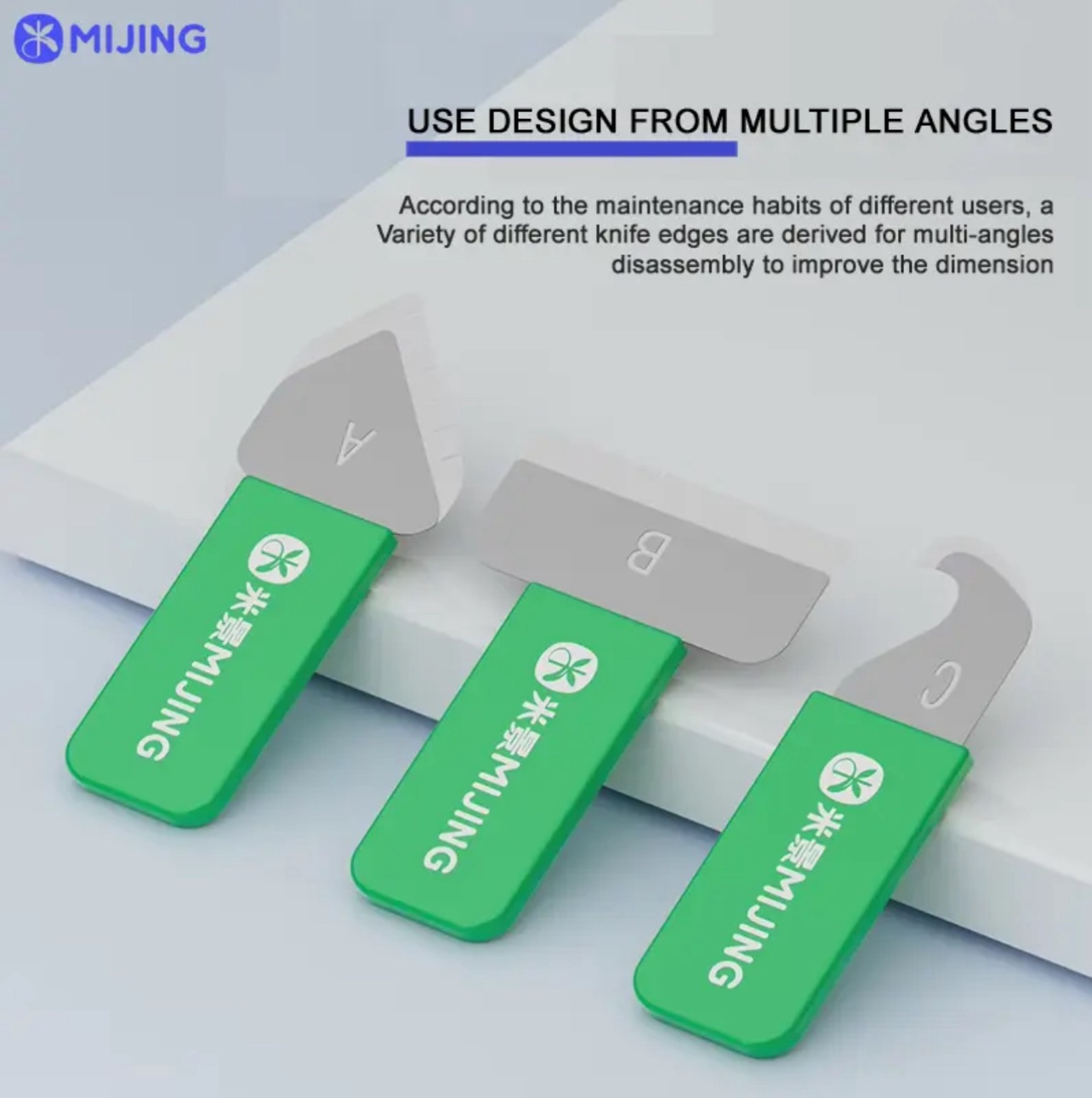

The MIJING S3 3 in 1 Toothed is a versatile and essential tool for any mobile phone repair technician. This ingeniously designed tool combines three crucial functionalities into a single, compact unit, streamlining the disassembly process and improving efficiency. It’s specifically crafted to aid in safely and effectively opening various mobile devices, minimizing the risk of damage to delicate components. Let’s delve into a detailed description of its features, benefits, and applications. MIJING S3 3 in 1 Toothed
Core Functionalities:
The MIJING S3 distinguishes itself with its three primary functions:

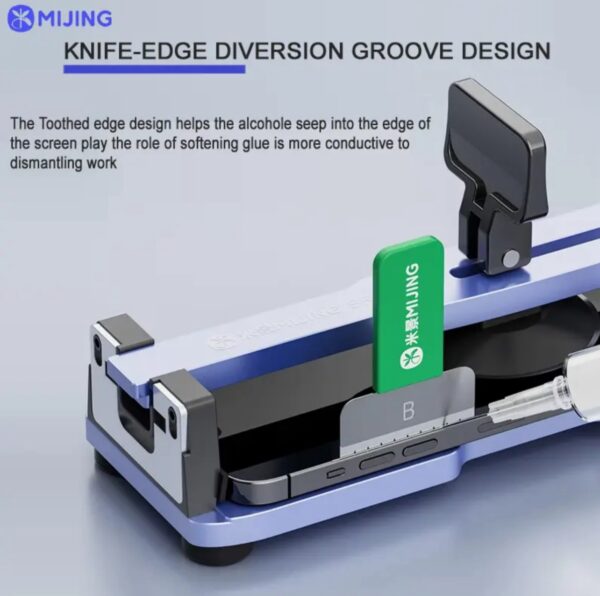

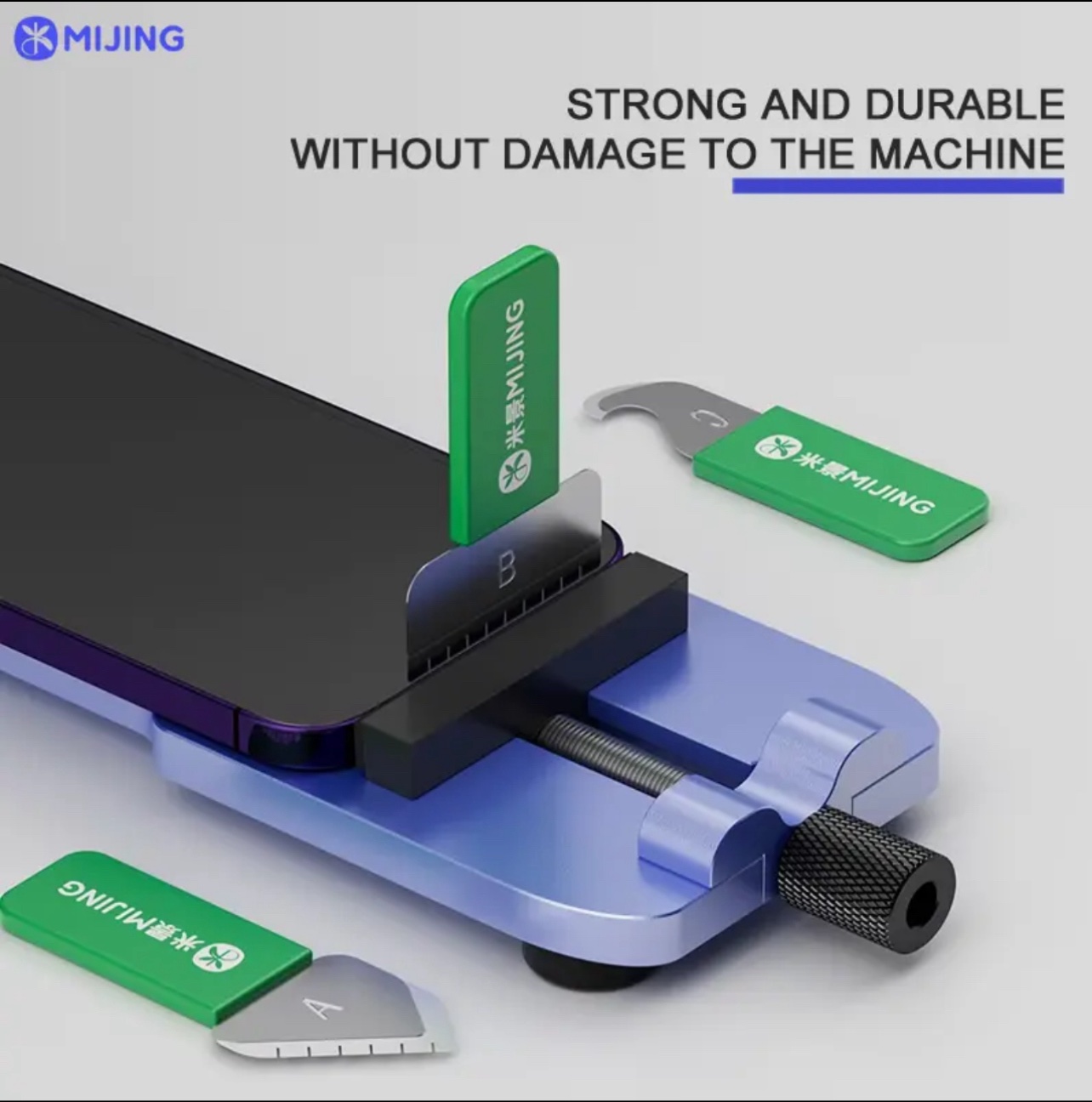

Screen Separation: The toothed wheel section of the S3 is designed for gentle and controlled screen separation. The precisely engineered teeth provide a secure grip on the edge of the screen, allowing for smooth and even pressure application. This minimizes the risk of cracking the screen or damaging the underlying components during the initial separation. The toothed wheel rolls along the edge, gradually loosening the adhesive holding the screen in place. This method is often preferred over prying tools, which can exert uneven force and lead to damage. MIJING S3 3 in 1 Toothed
Adhesive Removal: Once the screen is partially separated, stubborn adhesive often remains. The S3 incorporates a specialized edge, often located near the toothed wheel, designed specifically for slicing through and removing this adhesive. This feature avoids the need for separate adhesive removal tools, saving time and effort. The shape and material of this edge are carefully chosen to be effective on various types of adhesive while minimizing the risk of scratching or damaging the phone’s frame or internal components. MIJING S3 3 in 1 Toothed
Prying and Opening: The S3 also features a thin, flat, and often slightly angled edge. This portion of the tool acts as a gentle prying tool, assisting in further separating the screen or back cover from the device’s chassis. This prying edge is carefully designed to be thin enough to slip into tight spaces but strong enough to provide leverage without bending or breaking. Its precise shape allows technicians to apply controlled force, minimizing the risk of damaging delicate internal components.
Material and Design:
The MIJING S3 is typically constructed from high-quality materials, such as hardened steel or durable plastic composites. This ensures the tool’s longevity and resistance to wear and tear, even with frequent use. The ergonomic design of the handle provides a comfortable and secure grip, reducing hand fatigue during extended repair sessions. The compact size of the tool makes it easy to handle and maneuver, even in tight spaces within the device.
Benefits for Mobile Repair Technicians:
Applications:
The MIJING S3 3-in-1 Disassembly Piece is applicable to a wide range of mobile devices, including smartphones, tablets, and other electronic gadgets. It is particularly useful for separating screens, removing adhesive, and opening devices that are held together by clips or adhesive. Its versatility makes it an indispensable tool for any mobile repair technician, regardless of their experience level. MIJING S3 3 in 1 Toothed
Conclusion:
The MIJING S3 3-in-1 Toothed Disassembly Piece is a must-have tool for any professional mobile phone repair technician. Its combination of screen separation, adhesive removal, and prying capabilities, coupled with its durable construction and ergonomic design, makes it an invaluable asset for efficient and safe device disassembly. Investing in the MIJING S3 is a smart choice for any technician looking to improve their workflow and minimize the risk of damage during mobile device repairs. Its versatility and efficiency make it a worthwhile addition to any repair toolkit. MIJING S3 3 in 1 Toothed
