Revolutionize Your Device Maintenance

Introducing the OSS W209 PRO V11 Battery Activator Panel Fast Charge Detection Board For iPhone 6-17 Pro Max Samsung Android Phones Activation, your all-in-one solution for fast charging and activation across a broad range of devices. Whether you’re working with iPhone models from 6 to 17 Pro Max or popular Android brands like Samsung, this tool is designed to seamlessly cater to your needs. OSS W209 PRO V11 Battery Activator Panel Fast Charge Detection Board For iPhone 6-17 Pro Max Samsung Android Phones Activation

Efficient Charging and Detection Made Simple

This professional-grade panel allows you to ensure optimal battery performance by supporting fast charge detection and activation. With compatibility across multiple models, it’s an essential addition to any repair toolkit. The user-friendly setup makes diagnostics, activation, and charging straightforward—even for first-time users. OSS W209 PRO V11 Battery Activator Panel Fast Charge Detection Board For iPhone 6-17 Pro Max Samsung Android Phones Activation

Built for Versatility and Convenience

Engineered to support an extensive range of devices, the OSS W209 PRO V11 delivers precision and efficiency. Take the guesswork out of battery activation and fast charging, ensuring your clients’ devices operate at their peak performance. OSS W209 PRO V11 Battery Activator Panel Fast Charge Detection Board For iPhone 6-17 Pro Max Samsung Android Phones Activation

OSS W209 Pro V11: The Ultimate Battery Activation & Charging Solution

The OSS W209 Pro V11 is an essential diagnostic and recovery tool for professional mobile technicians. In the world of smartphone repair, batteries often fall into a “sleep” state when they drop below a certain voltage threshold, making them unable to accept a charge from a standard lightning or USB-C cable. The W209 Pro V11 is designed to “wake up” these batteries safely, fast-charge them, and provide real-time data on their health. OSS W209 PRO V11 Battery Activator Panel Fast Charge Detection Board For iPhone 6-17 Pro Max Samsung Android Phones Activation

This V11 iteration is the most comprehensive version yet, featuring expanded support for the latest flagship devices, including the iPhone 15, 16, and 17 series, alongside a wide array of Android handsets. OSS W209 PRO V11 Battery Activator Panel Fast Charge Detection Board For iPhone 6-17 Pro Max Samsung Android Phones Activation

Technical Specifications & Device Compatibility

Core Functionality: Why the W209 Pro V11 is Essential

1. Deep Discharge “Wake Up” (Activation)

When a phone remains unused for months, the battery voltage can drop below 2.5V. At this stage, the phone’s internal charging IC often rejects the battery for safety reasons. The W209 Pro V11 allows a technician to bypass the phone’s logic board and apply a direct “activation” pulse to the battery cells, bringing the voltage back to a level where the phone can take over the charging process again. OSS W209 PRO V11 Battery Activator Panel Fast Charge Detection Board For iPhone 6-17 Pro Max Samsung Android Phones Activation

2. Real-Time Diagnostics

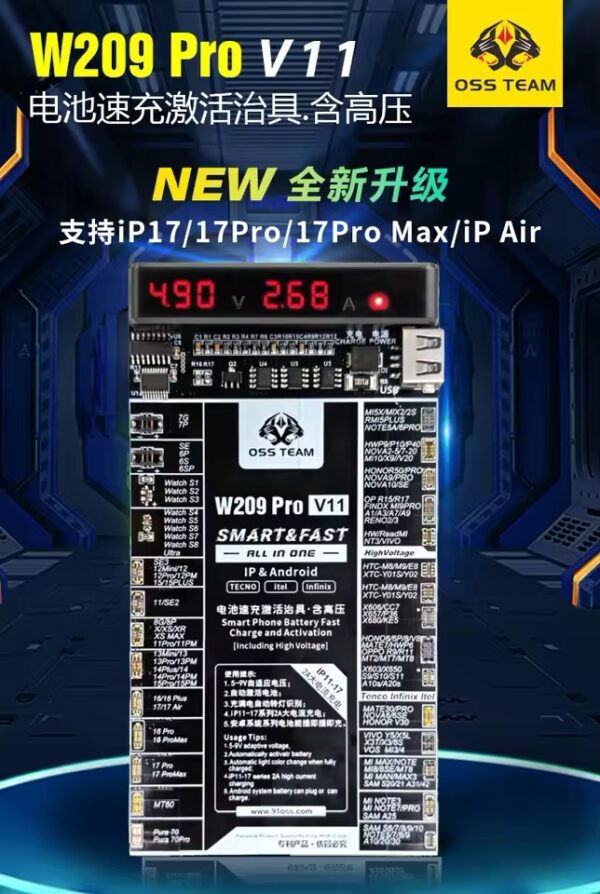

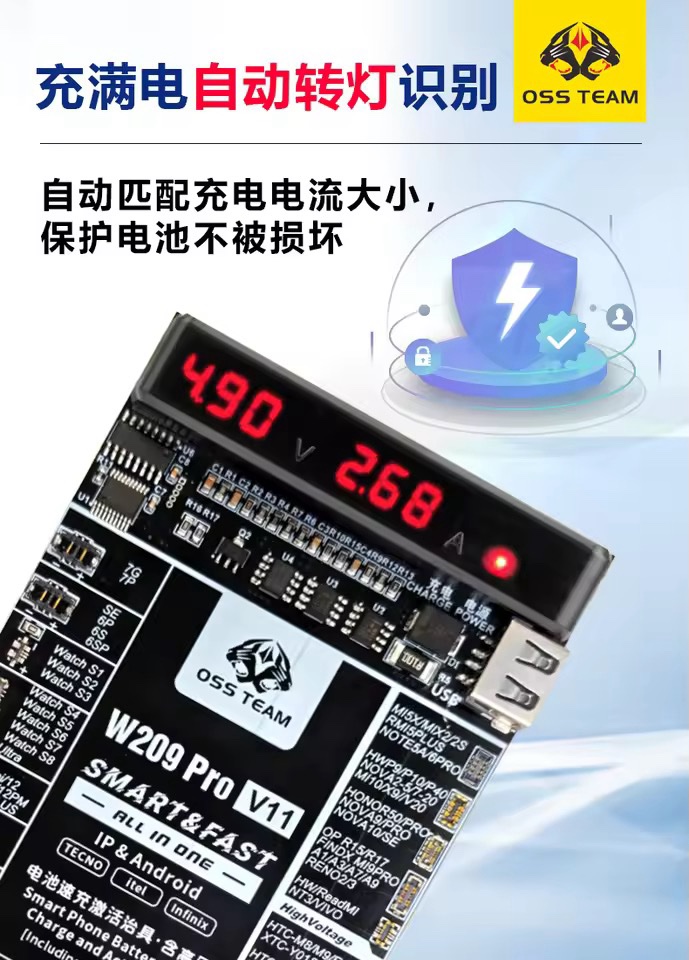

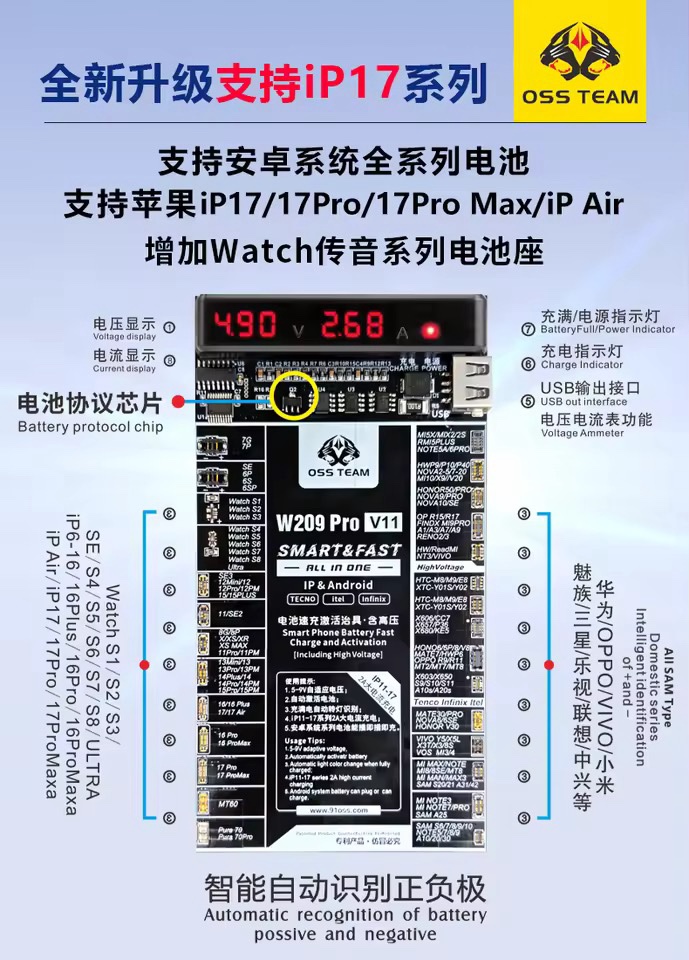

The dual digital display provides immediate feedback:

• Voltmeter: Shows the current charge level of the battery before you start.

• Ammeter: Shows how much current the battery is drawing. If a battery is connected but draws 0.00A, it indicates a dead protection board or a completely failed cell.

3. Automatic Intelligent Switching

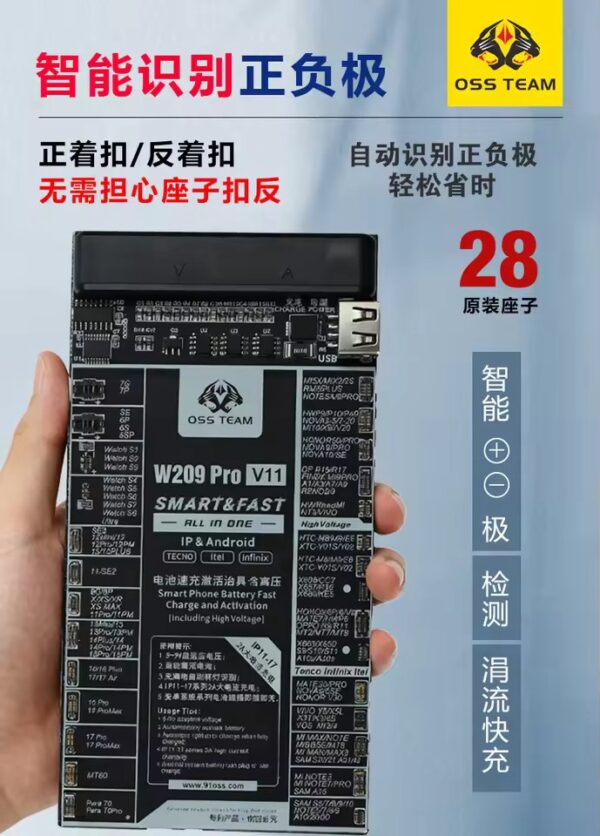

The board is designed with intelligent circuitry that recognizes the battery’s polarity. Even if a battery is connected via a compatible but differently pinned connector, the board manages the current flow to prevent short-circuiting. OSS W209 PRO V11 Battery Activator Panel Fast Charge Detection Board For iPhone 6-17 Pro Max Samsung Android Phones Activation

Key Performance Features

Step-by-Step Operational Guide

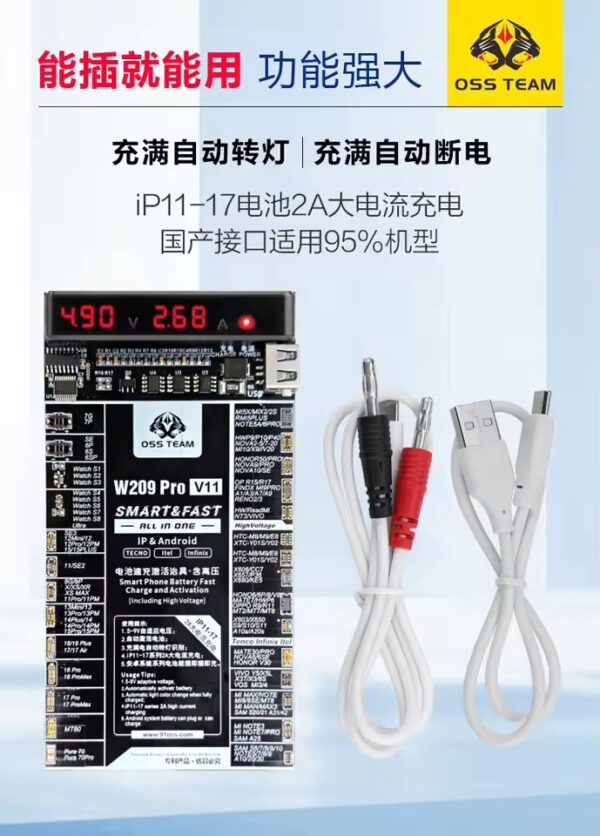

1. Power Input: Connect the board to a stable 5V USB source or, ideally, a DC Power Supply set to 4.2V.

2. Battery Connection: Locate the connector on the board that matches the battery’s FPC (Flexible Printed Circuit). The V11 version includes dedicated headers for the newest iPhone 16 and 17 series.

3. Initial Read: Check the digital display. If the voltage is extremely low (below 3.0V), the “Activation” button must be pressed.

4. The Activation Pulse: Press the button for 1-2 seconds. You will see the Ammeter spike, indicating the battery has “woken up.”

5. Charging Phase: Let the battery sit on the board. The current (Amps) will gradually decrease as the battery reaches its full capacity.

6. Testing: Once the battery reaches ~3.7V, it is safe to reinstall into the phone for further diagnostic testing.

Comparison: V11 vs. Older Versions

Maintenance & Safety Warnings

• Avoid Excessive Voltage: Never set your DC Power Supply above 5V when using this board, as it can damage the battery’s internal protection circuit.

• Monitor Heat: While the W209 Pro has over-current protection, always monitor the battery for physical swelling or excessive heat during the activation process.

• Keep Connectors Clean: Use 99% Isopropyl Alcohol to clean the FPC connectors on the board regularly to ensure a low-resistance connection.
