₹7,500 Original price was: ₹7,500.₹6,499Current price is: ₹6,499.
Shipping India
Guaranteed Satisfaction
Safe Checkout
Please read the manual before use.
This section sets the foundation for a safe repair environment. Before a single tool touches a phone, the workspace must be prepared to protect both the technician and the sensitive electronics.
Electrostatic Discharge (ESD) Safety: Instructions on grounding yourself using an ESD wrist strap and working on an anti-static mat to prevent frying microchips with static electricity.
Safety Gear: Protocols for wearing safety glasses (critical when prying shattered glass) and working in a well-ventilated area (crucial for adhesive fumes and soldering smoke).
Lighting and Magnification: Recommendations for high-intensity desk lamps and digital microscopes or magnifying visors for viewing microscopic components.
The most physically risky part of mobile repair is opening the device without cracking the glass screen or ripping delicate internal ribbon cables.
Thermal Tools (Heat Guns & Heat Pads): Instructions on setting precise temperatures (typically 80°C to 100°C) to soften heavy factory adhesives without damaging the display.
Suction & Leverage Tools: Proper placement of heavy-duty suction cups and screen prying fixtures to safely create an initial gap.
Separation Media (Plastic Picks & Spudgers): Techniques for slicing through glue lines using plastic opening picks without inserting them too deeply into the frame.
Modern smartphones use dozens of tiny, highly specialized screws and brackets to hold internal shields in place.
Precision Driver Identification: A breakdown of specialized micro-bits, detailing exactly when to use Pentalobe (iPhones), Tri-point/Y-type (internal Apple shields), Torx/Torx Security (Android devices), and standard Micro-Phillips.
Organization Systems: Guidelines for using magnetic project mats or screw organizing trays to map out screw locations, preventing the catastrophic error of “long-screw damage.”
Gripping & Placer Tools: How to utilize straight and curved ESD-safe tweezers to safely disconnect fragile ZIF (Zero Insertion Force) and coaxial cable connectors.
This section transitions the user from basic mechanical teardowns to logical troubleshooting when a phone won’t turn on or charge.
Digital Multimeter (DMM): Step-by-step instructions on setting up the meter for DC voltage testing (checking battery and charging port output) and continuity/diode mode (hunting for short circuits).
DC Power Supply: How to boot a phone motherboard without a battery attached, interpreting current draw (Amperage) to diagnose power management failures.
USB Ammeter / Tester: Utilizing an inline USB safety tester plugged into the charging block to instantly diagnose if a phone is pulling normal current ($1A$ to $2A$) or completely dead ($0A$).
For advanced users handling board-level fixes like swapping out charging ports, audio IC chips, or FPC connectors.
Soldering Iron Stations: Temperature calibration tips, tip selection (chisel vs. conical), and maintenance/tinning procedures.
Hot Air Rework Stations: Managing the delicate balance of air flow and temperature to safely desolder multi-pin components without blowing adjacent surface-mount resistors off the board.
Chemical Consumables: Proper application of rosin flux (to clean joints and fluidize solder), solder wick (braided wire to remove old solder), and low-melt solder alloys.
The final step is cleaning up the internal cavity and sealing the device back up to its original structural integrity.
Chemical Cleaners: Safe usage of 99% Isopropyl Alcohol (IPA) to dissolve old glue residues, flux oils, and clean mild liquid damage.
Liquid Adhesives vs. Tape: Instructions on applying specialized acrylic glues (like B-7000) versus applying precision-cut double-sided adhesive gaskets.
Camping and Curing: Utilizing specialized display repair clamps to apply even, steady pressure while the new adhesives cure over 15 to 30 minutes.

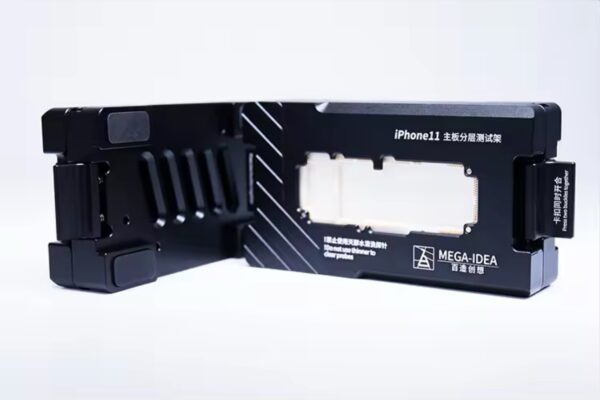

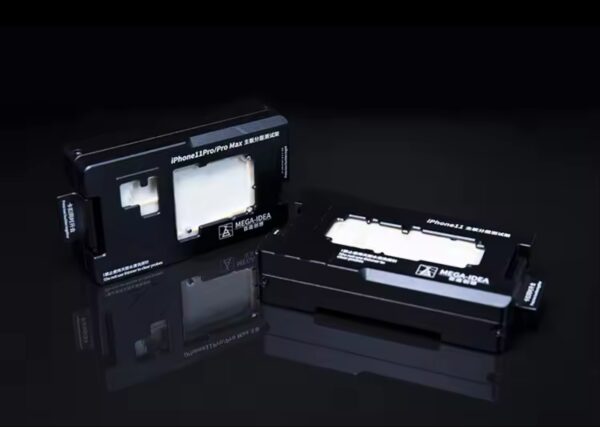

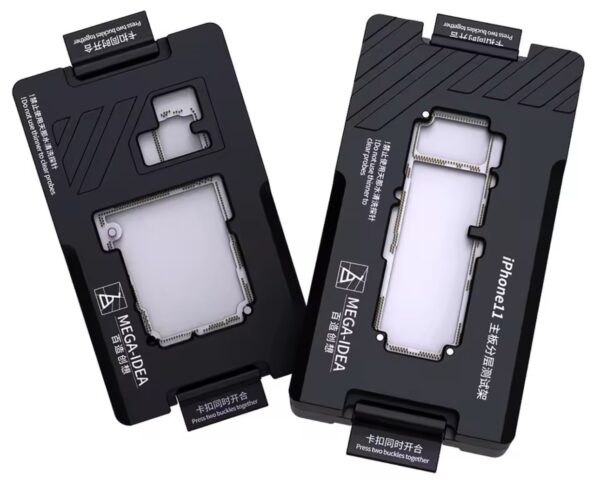

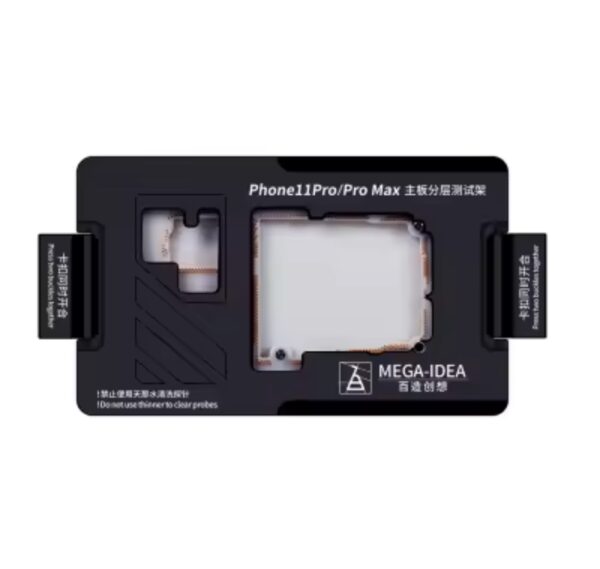

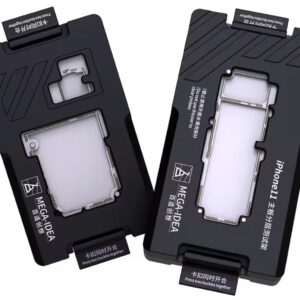

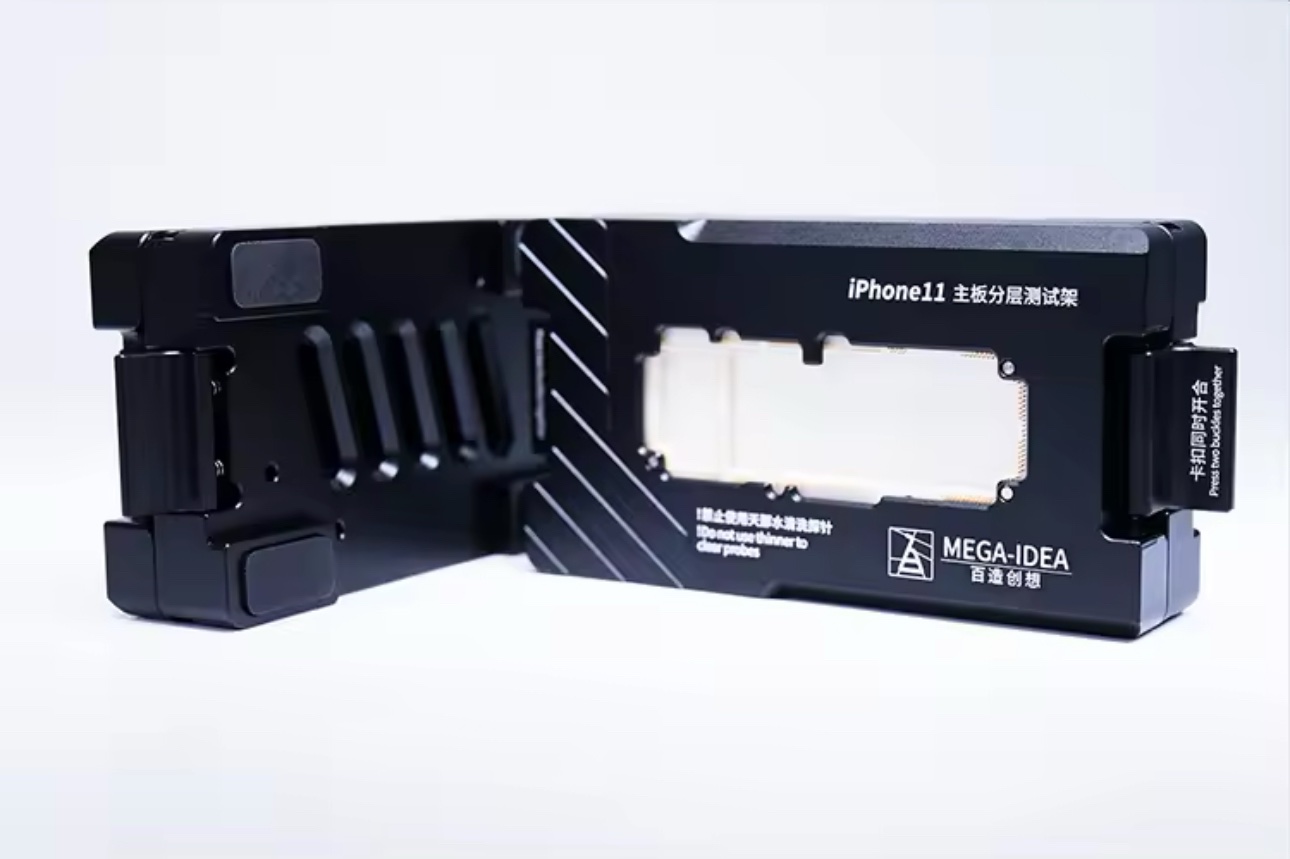

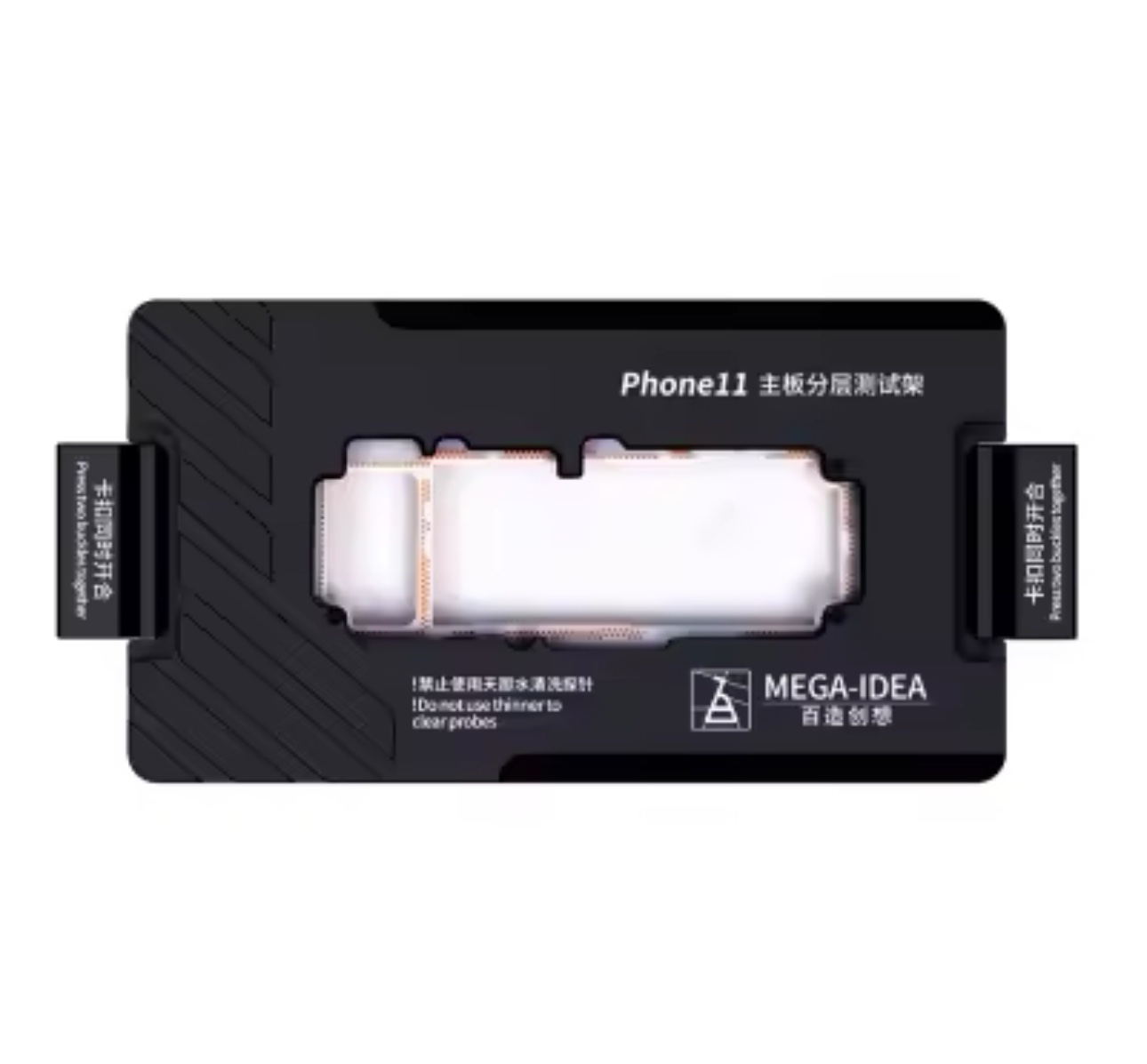

The Qianli Mega-IEDA ISocket Testing Mainboard represents a significant advancement in mobile device repair technology, particularly tailored for the iPhone 11 series. This innovative piece of equipment is designed with a layered frame and support structure, making it highly compatible with all models within the iPhone 11 lineup. Its bespoke design not only enhances usability but also mitigates the risk of damage during the testing process, a crucial factor in any repair setting. QIANLI MEGA-IEDA iSocket Testing
One of the standout features of the Qianli Mega-IEDA is its ability to facilitate efficient and precise diagnostics. Technicians can easily connect the iPhone 11 models to the mainboard, which operates seamlessly with various software applications for troubleshooting and testing. This mainboard provides critical information that helps identify issues such as short circuits, voltage irregularities, and other motherboard-related faults that could hinder the device’s overall functionality. QIANLI MEGA-IEDA iSocket Testing
In addition to its compatibility and diagnostic capabilities, the Qianli Mega-IEDA has been engineered for ease of use. The user-friendly interface allows both seasoned professionals and novices in mobile repair to operate it without extensive training. This feature is particularly beneficial in busy repair shops, where time efficiency is paramount. Technicians can quickly perform tests, ensuring that the iPhone 11 models are restored to peak performance with minimal downtime. QIANLI MEGA-IEDA iSocket Testing
Furthermore, the technical specifications of the Qianli Mega-IEDA support a comprehensive range of testing functions, making it a versatile tool in any repair technician’s arsenal. With its advanced features and robust design, the Qianli Mega-IEDA ISocket Testing Mainboard stands out as a preferred choice for mobile repair specialists focused on providing reliable service for iPhone 11 models. Its efficacy in both diagnostics and ease of use solidifies its role in enhancing the quality of mobile repair services. QIANLI MEGA-IEDA iSocket Testing
The Qianli Mega-IEDA ISocket Testing Mainboard serves as an essential tool in the mobile device repair industry, particularly for iPhone 11 models. This advanced testing mainboard facilitates various practical applications, enabling technicians to efficiently diagnose issues, perform repairs, and assess the functionalities of iPhone 11 logic boards. With it, repair professionals can swiftly identify faults during the diagnosis phase, minimizing downtime and enhancing service quality.
One of the foremost benefits of the Qianli Mega-IEDA ISocket Testing Mainboard is its time efficiency in conducting repairs. Technicians can streamline their workflow by using this tool, as it eliminates the need to repeatedly connect and disconnect components. Additionally, the ability to handle multiple iPhone 11 models illustrates the board’s versatility. By not requiring different tools for each model, it significantly reduces the overhead associated with inventory and tool management for repair shops.
Cost-effectiveness also emerges as a notable advantage for businesses utilizing the Qianli Mega-IEDA ISocket Testing Mainboard. By incorporating this testing technology into their operations, repair shops can reduce labor costs and increase throughput, allowing them to serve more customers in less time. This advantage can be particularly beneficial for independent technicians who often seek to maximize profitability while maintaining high standards of workmanship.
To optimize the use of the Qianli Mega-IEDA ISocket Testing Mainboard, technicians should familiarize themselves with the specific functionalities it offers. Employing systematic testing procedures for various components will yield the best results. Additionally, being aware of common troubleshooting tips, such as ensuring clean connections and properly calibrating the board, can significantly enhance the efficiency of repairs.
Overall, the Qianli Mega-IEDA ISocket Testing Mainboard stands out as a versatile and indispensable piece of equipment for anyone involved in iPhone 11 repairs, driving improvements across multiple dimensions.
