Please read the manual before use.
This section sets the foundation for a safe repair environment. Before a single tool touches a phone, the workspace must be prepared to protect both the technician and the sensitive electronics.
Electrostatic Discharge (ESD) Safety: Instructions on grounding yourself using an ESD wrist strap and working on an anti-static mat to prevent frying microchips with static electricity.
Safety Gear: Protocols for wearing safety glasses (critical when prying shattered glass) and working in a well-ventilated area (crucial for adhesive fumes and soldering smoke).
Lighting and Magnification: Recommendations for high-intensity desk lamps and digital microscopes or magnifying visors for viewing microscopic components.
The most physically risky part of mobile repair is opening the device without cracking the glass screen or ripping delicate internal ribbon cables.
Thermal Tools (Heat Guns & Heat Pads): Instructions on setting precise temperatures (typically 80°C to 100°C) to soften heavy factory adhesives without damaging the display.
Suction & Leverage Tools: Proper placement of heavy-duty suction cups and screen prying fixtures to safely create an initial gap.
Separation Media (Plastic Picks & Spudgers): Techniques for slicing through glue lines using plastic opening picks without inserting them too deeply into the frame.
Modern smartphones use dozens of tiny, highly specialized screws and brackets to hold internal shields in place.
Precision Driver Identification: A breakdown of specialized micro-bits, detailing exactly when to use Pentalobe (iPhones), Tri-point/Y-type (internal Apple shields), Torx/Torx Security (Android devices), and standard Micro-Phillips.
Organization Systems: Guidelines for using magnetic project mats or screw organizing trays to map out screw locations, preventing the catastrophic error of “long-screw damage.”
Gripping & Placer Tools: How to utilize straight and curved ESD-safe tweezers to safely disconnect fragile ZIF (Zero Insertion Force) and coaxial cable connectors.
This section transitions the user from basic mechanical teardowns to logical troubleshooting when a phone won’t turn on or charge.
Digital Multimeter (DMM): Step-by-step instructions on setting up the meter for DC voltage testing (checking battery and charging port output) and continuity/diode mode (hunting for short circuits).
DC Power Supply: How to boot a phone motherboard without a battery attached, interpreting current draw (Amperage) to diagnose power management failures.
USB Ammeter / Tester: Utilizing an inline USB safety tester plugged into the charging block to instantly diagnose if a phone is pulling normal current ($1A$ to $2A$) or completely dead ($0A$).
For advanced users handling board-level fixes like swapping out charging ports, audio IC chips, or FPC connectors.
Soldering Iron Stations: Temperature calibration tips, tip selection (chisel vs. conical), and maintenance/tinning procedures.
Hot Air Rework Stations: Managing the delicate balance of air flow and temperature to safely desolder multi-pin components without blowing adjacent surface-mount resistors off the board.
Chemical Consumables: Proper application of rosin flux (to clean joints and fluidize solder), solder wick (braided wire to remove old solder), and low-melt solder alloys.
The final step is cleaning up the internal cavity and sealing the device back up to its original structural integrity.
Chemical Cleaners: Safe usage of 99% Isopropyl Alcohol (IPA) to dissolve old glue residues, flux oils, and clean mild liquid damage.
Liquid Adhesives vs. Tape: Instructions on applying specialized acrylic glues (like B-7000) versus applying precision-cut double-sided adhesive gaskets.
Camping and Curing: Utilizing specialized display repair clamps to apply even, steady pressure while the new adhesives cure over 15 to 30 minutes.

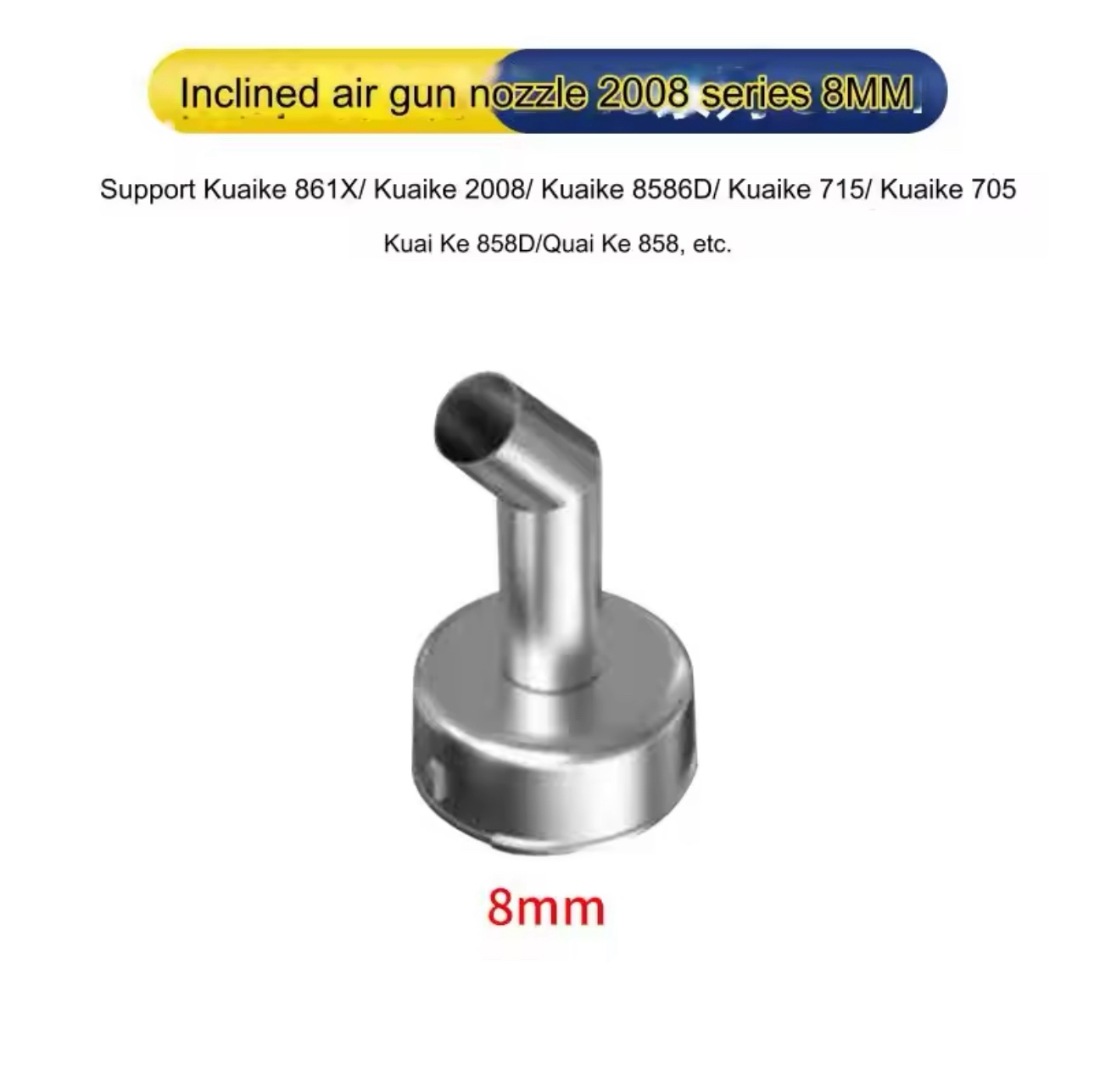

The Quick 2008 smd Bend Nozzle 8mm is a crucial component in any professional mobile phone repair toolkit. Designed for use with hot air rework stations, this specialized nozzle directs and focuses the hot air precisely onto Surface Mount Devices (SMDs), allowing for the safe and efficient removal and replacement of delicate components on mobile phone circuit boards. Its 8mm size and bent design make it particularly well-suited for targeting specific areas on the densely populated boards found in modern smartphones. Quick 2008 smd Bend Nozzle 8mm
Precision and Control for Delicate Components:
Modern mobile phones utilize incredibly small and sensitive electronic components. Applying excessive or uncontrolled heat can easily damage these components or the surrounding circuitry, leading to further problems and potentially rendering the device irreparable. The Quick 2008 SMD Bend Nozzle addresses this challenge by providing a concentrated and controlled stream of hot air. The 8mm diameter ensures that the heat is applied directly to the target component, minimizing the risk of collateral damage to adjacent parts. This precision is paramount when working with sensitive components like integrated circuits (ICs), connectors, and other SMDs. Quick 2008 smd Bend Nozzle 8mm
Bent Design for Accessibility:
The defining feature of this nozzle is its bent design. This bend allows technicians to access components located in tight or awkward spaces on the motherboard. Often, components are positioned close to other parts, under shields, or near the edge of the board. A straight nozzle might not be able to direct the hot air at the correct angle in these situations, making it difficult to remove the component without risking damage to nearby elements. The bent nozzle, however, allows for maneuvering around these obstacles, providing the necessary access for effective rework. This is especially useful when working on areas of the board that are obstructed or difficult to reach with a standard straight nozzle. Quick 2008 smd Bend Nozzle 8mm
Efficient Heat Application:
The Quick 2008 SMD Bend Nozzle is designed to optimize the airflow from the hot air rework station. It effectively channels the hot air into a concentrated stream, ensuring efficient heat transfer to the target component. This focused heat application is crucial for quickly and effectively melting the solder that holds the SMD in place, allowing for its safe removal. The efficient heat transfer also minimizes the time required to reflow solder during component replacement, reducing the overall repair time and minimizing the risk of heat damage to the component or the PCB. Quick 2008 smd Bend Nozzle 8mm
Compatibility and Ease of Use:
The Quick 2008 SMD Bend Nozzle is designed to be compatible with Quick hot air rework stations, specifically the 2008 model. It attaches easily and securely to the hot air gun, ensuring a stable connection during use. The nozzle is also relatively easy to clean and maintain, which is essential for ensuring its longevity and performance. Regular cleaning prevents the buildup of solder residue or other debris that could impede airflow and reduce the nozzle’s effectiveness. Quick 2008 smd Bend Nozzle 8mm
Essential for Professional Mobile Repair:
For professional mobile phone repair technicians, having the right tools is essential for success. The Quick 2008 SMD Bend Nozzle is a vital part of that toolkit. Its precision, accessibility, and efficient heat application make it an indispensable tool for working with the delicate and densely populated circuit boards found in modern smartphones. Whether you are replacing a faulty IC, a damaged connector, or any other SMD, this nozzle will help you perform the repair quickly, safely, and effectively. Investing in high-quality tools like the Quick 2008 SMD Bend Nozzle is a crucial step in providing reliable and professional mobile phone repair services. It allows technicians to tackle even the most challenging repairs with confidence, ensuring customer satisfaction and building a reputation for quality workmanship. Without this specialized nozzle, many repairs would be significantly more difficult, time-consuming, and prone to error. It represents a small investment that pays significant dividends in terms of efficiency, precision, and the overall quality of mobile phone repairs. Quick 2008 smd Bend Nozzle 8mm
