Please read the manual before use.
This section sets the foundation for a safe repair environment. Before a single tool touches a phone, the workspace must be prepared to protect both the technician and the sensitive electronics.
Electrostatic Discharge (ESD) Safety: Instructions on grounding yourself using an ESD wrist strap and working on an anti-static mat to prevent frying microchips with static electricity.
Safety Gear: Protocols for wearing safety glasses (critical when prying shattered glass) and working in a well-ventilated area (crucial for adhesive fumes and soldering smoke).
Lighting and Magnification: Recommendations for high-intensity desk lamps and digital microscopes or magnifying visors for viewing microscopic components.
The most physically risky part of mobile repair is opening the device without cracking the glass screen or ripping delicate internal ribbon cables.
Thermal Tools (Heat Guns & Heat Pads): Instructions on setting precise temperatures (typically 80°C to 100°C) to soften heavy factory adhesives without damaging the display.
Suction & Leverage Tools: Proper placement of heavy-duty suction cups and screen prying fixtures to safely create an initial gap.
Separation Media (Plastic Picks & Spudgers): Techniques for slicing through glue lines using plastic opening picks without inserting them too deeply into the frame.
Modern smartphones use dozens of tiny, highly specialized screws and brackets to hold internal shields in place.
Precision Driver Identification: A breakdown of specialized micro-bits, detailing exactly when to use Pentalobe (iPhones), Tri-point/Y-type (internal Apple shields), Torx/Torx Security (Android devices), and standard Micro-Phillips.
Organization Systems: Guidelines for using magnetic project mats or screw organizing trays to map out screw locations, preventing the catastrophic error of “long-screw damage.”
Gripping & Placer Tools: How to utilize straight and curved ESD-safe tweezers to safely disconnect fragile ZIF (Zero Insertion Force) and coaxial cable connectors.
This section transitions the user from basic mechanical teardowns to logical troubleshooting when a phone won’t turn on or charge.
Digital Multimeter (DMM): Step-by-step instructions on setting up the meter for DC voltage testing (checking battery and charging port output) and continuity/diode mode (hunting for short circuits).
DC Power Supply: How to boot a phone motherboard without a battery attached, interpreting current draw (Amperage) to diagnose power management failures.
USB Ammeter / Tester: Utilizing an inline USB safety tester plugged into the charging block to instantly diagnose if a phone is pulling normal current ($1A$ to $2A$) or completely dead ($0A$).
For advanced users handling board-level fixes like swapping out charging ports, audio IC chips, or FPC connectors.
Soldering Iron Stations: Temperature calibration tips, tip selection (chisel vs. conical), and maintenance/tinning procedures.
Hot Air Rework Stations: Managing the delicate balance of air flow and temperature to safely desolder multi-pin components without blowing adjacent surface-mount resistors off the board.
Chemical Consumables: Proper application of rosin flux (to clean joints and fluidize solder), solder wick (braided wire to remove old solder), and low-melt solder alloys.
The final step is cleaning up the internal cavity and sealing the device back up to its original structural integrity.
Chemical Cleaners: Safe usage of 99% Isopropyl Alcohol (IPA) to dissolve old glue residues, flux oils, and clean mild liquid damage.
Liquid Adhesives vs. Tape: Instructions on applying specialized acrylic glues (like B-7000) versus applying precision-cut double-sided adhesive gaskets.
Camping and Curing: Utilizing specialized display repair clamps to apply even, steady pressure while the new adhesives cure over 15 to 30 minutes.

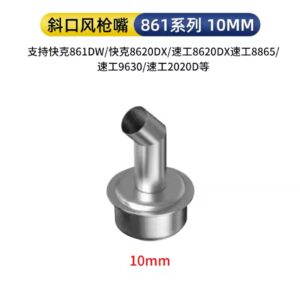

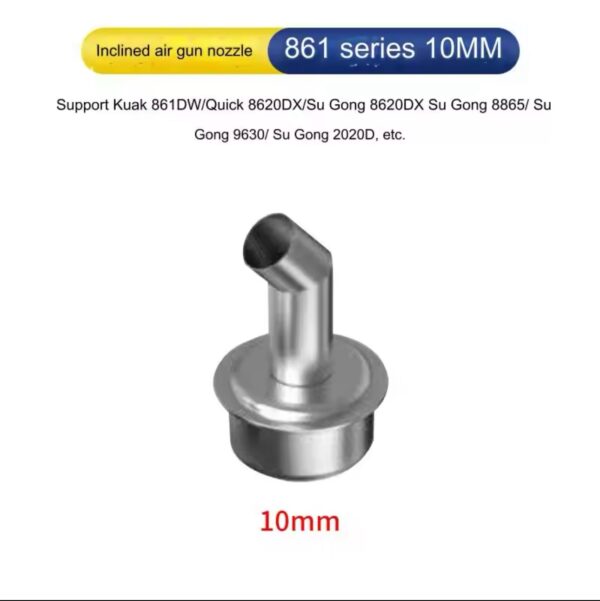

The Quick 861DW SMD Bend Nozzle 10mm is an essential tool for any mobile phone repair technician. Designed specifically for use with the Quick 861DW hot air rework station, this nozzle offers precise and controlled airflow, making it ideal for delicate surface mount device (SMD) component removal and soldering. Its bent design and 10mm aperture provide targeted heating, minimizing the risk of damage to surrounding components and the PCB itself.
Key Features and Benefits:
Precise Airflow Control: The 10mm aperture of this nozzle delivers a focused stream of hot air, allowing technicians to accurately target specific components without affecting neighboring parts. This precision is crucial when working with densely populated mobile phone PCBs. It allows for the controlled application of heat necessary for tasks like removing a damaged connector or resoldering a sensitive IC.
Bent Design for Accessibility: The angled or bent design of the nozzle is a game-changer when working in tight spaces. Mobile phone PCBs are often packed with components, and a straight nozzle can be difficult to maneuver. The bend allows for easier access to components located under other parts or near edges of the board, improving efficiency and reducing the chances of accidental damage. This is particularly helpful when dealing with components near the edge of the PCB or those shielded by other larger components.
Optimized for SMD Rework: Surface mount devices come in a variety of sizes and shapes. The 10mm size of this nozzle is versatile enough to handle a range of common SMD components found in mobile phones, including connectors, ICs, and other small parts. It provides the right balance of heat concentration and coverage for effective and safe removal and re-soldering.
Durable Construction: Built to withstand the rigors of daily use in a professional repair environment, the Quick 861DW SMD Bend Nozzle is made from high-quality materials. This ensures longevity and consistent performance, making it a reliable tool in your arsenal. The robust construction helps maintain the nozzle’s shape and airflow characteristics over time.
Compatibility: This nozzle is specifically designed for the Quick 861DW hot air rework station, ensuring a secure and efficient fit. Using the correct nozzle with your rework station is vital for optimal performance and safety. It ensures proper airflow and heat distribution, contributing to successful repairs. Quick 861dw smd Bend Nozzle 10mm
Improved Efficiency: The combination of precise airflow and the bent design allows technicians to work more efficiently. The targeted heating reduces the time required to remove or solder components, and the improved accessibility minimizes the need for awkward maneuvers. This translates to faster turnaround times for repairs and increased productivity. Quick 861dw smd Bend Nozzle 10mm
Reduced Risk of Damage: By providing controlled and focused heat, this nozzle minimizes the risk of damage to surrounding components and the PCB. Overheating or applying heat to the wrong area can easily ruin a mobile phone’s delicate circuitry. The Quick 861DW SMD Bend Nozzle 10mm helps prevent this by directing the hot air precisely where it’s needed.
Essential for Mobile Repair: This nozzle is a must-have for any technician working on mobile phone repairs. Whether you’re replacing a charging port, a damaged IC, or simply resoldering a connection, this tool will make the job easier, faster, and safer. It’s an investment that will quickly pay for itself through improved efficiency and reduced rework. Quick 861dw smd Bend Nozzle 10mm
In conclusion, the Quick 861DW SMD Bend Nozzle 10mm is a valuable addition to any mobile phone repair toolkit. Its precise airflow, bent design, durable construction, and compatibility with the Quick 861DW hot air rework station make it an indispensable tool for tackling the challenges of modern mobile phone repair. Investing in quality tools like this nozzle is essential for achieving professional results and ensuring customer satisfaction. It allows technicians to perform intricate soldering and desoldering tasks with confidence and precision, ultimately contributing to the success of their repair business. Quick 861dw smd Bend Nozzle 10mm
