Please read the manual before use.
This section sets the foundation for a safe repair environment. Before a single tool touches a phone, the workspace must be prepared to protect both the technician and the sensitive electronics.
Electrostatic Discharge (ESD) Safety: Instructions on grounding yourself using an ESD wrist strap and working on an anti-static mat to prevent frying microchips with static electricity.
Safety Gear: Protocols for wearing safety glasses (critical when prying shattered glass) and working in a well-ventilated area (crucial for adhesive fumes and soldering smoke).
Lighting and Magnification: Recommendations for high-intensity desk lamps and digital microscopes or magnifying visors for viewing microscopic components.
The most physically risky part of mobile repair is opening the device without cracking the glass screen or ripping delicate internal ribbon cables.
Thermal Tools (Heat Guns & Heat Pads): Instructions on setting precise temperatures (typically 80°C to 100°C) to soften heavy factory adhesives without damaging the display.
Suction & Leverage Tools: Proper placement of heavy-duty suction cups and screen prying fixtures to safely create an initial gap.
Separation Media (Plastic Picks & Spudgers): Techniques for slicing through glue lines using plastic opening picks without inserting them too deeply into the frame.
Modern smartphones use dozens of tiny, highly specialized screws and brackets to hold internal shields in place.
Precision Driver Identification: A breakdown of specialized micro-bits, detailing exactly when to use Pentalobe (iPhones), Tri-point/Y-type (internal Apple shields), Torx/Torx Security (Android devices), and standard Micro-Phillips.
Organization Systems: Guidelines for using magnetic project mats or screw organizing trays to map out screw locations, preventing the catastrophic error of “long-screw damage.”
Gripping & Placer Tools: How to utilize straight and curved ESD-safe tweezers to safely disconnect fragile ZIF (Zero Insertion Force) and coaxial cable connectors.
This section transitions the user from basic mechanical teardowns to logical troubleshooting when a phone won’t turn on or charge.
Digital Multimeter (DMM): Step-by-step instructions on setting up the meter for DC voltage testing (checking battery and charging port output) and continuity/diode mode (hunting for short circuits).
DC Power Supply: How to boot a phone motherboard without a battery attached, interpreting current draw (Amperage) to diagnose power management failures.
USB Ammeter / Tester: Utilizing an inline USB safety tester plugged into the charging block to instantly diagnose if a phone is pulling normal current ($1A$ to $2A$) or completely dead ($0A$).
For advanced users handling board-level fixes like swapping out charging ports, audio IC chips, or FPC connectors.
Soldering Iron Stations: Temperature calibration tips, tip selection (chisel vs. conical), and maintenance/tinning procedures.
Hot Air Rework Stations: Managing the delicate balance of air flow and temperature to safely desolder multi-pin components without blowing adjacent surface-mount resistors off the board.
Chemical Consumables: Proper application of rosin flux (to clean joints and fluidize solder), solder wick (braided wire to remove old solder), and low-melt solder alloys.
The final step is cleaning up the internal cavity and sealing the device back up to its original structural integrity.
Chemical Cleaners: Safe usage of 99% Isopropyl Alcohol (IPA) to dissolve old glue residues, flux oils, and clean mild liquid damage.
Liquid Adhesives vs. Tape: Instructions on applying specialized acrylic glues (like B-7000) versus applying precision-cut double-sided adhesive gaskets.
Camping and Curing: Utilizing specialized display repair clamps to apply even, steady pressure while the new adhesives cure over 15 to 30 minutes.

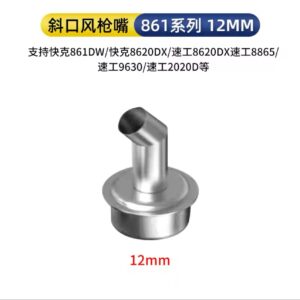

The Quick 861dw smd Bend Nozzle 12mm, specifically the 12mm variant, is an indispensable tool for professional mobile phone repair technicians. This specialized nozzle is designed to direct the hot air from a rework station with pinpoint accuracy, allowing for the safe and efficient removal and replacement of surface-mounted devices (SMDs) on delicate circuit boards. Its bent design and precise 12mm opening make it particularly suited for targeting components in tight or hard-to-reach areas, common in modern smartphones and other mobile devices. Quick 861dw smd Bend Nozzle 12mm
Precision and Control:
The hallmark of the Quick 861DW SMD Bend Nozzle is its ability to deliver controlled and focused heat. The 12mm opening provides a concentrated stream of hot air, minimizing the risk of collateral damage to surrounding components. This is crucial when working with densely populated circuit boards where nearby components can be easily affected by excessive heat. The bent design of the nozzle allows for access to components that might be obstructed by other parts or located close to the edge of the board. This is a significant advantage over straight nozzles, which can be cumbersome and less precise in such situations. Quick 861dw smd Bend Nozzle 12mm
Optimized for SMD Rework:
This nozzle is specifically engineered for SMD rework. Whether you are removing a faulty chip, replacing a connector, or reworking a BGA (Ball Grid Array) component, the 12mm bend nozzle provides the necessary precision and control. The focused heat allows for the rapid melting of solder without overheating the component or the PCB. This is critical for ensuring the integrity of the components and preventing damage to the circuit board. The controlled airflow also helps to prevent components from being blown away by the force of the air. Quick 861dw smd Bend Nozzle 12mm
Compatibility and Ease of Use:
The Quick 861DW SMD Bend Nozzle is designed to be compatible with Quick 861DW hot air rework stations, ensuring a secure and efficient connection. Installation is typically simple and straightforward, allowing technicians to quickly switch between different nozzle sizes as needed. The nozzle is made from high-quality materials that can withstand the high temperatures associated with SMD rework. This ensures durability and a long lifespan, making it a worthwhile investment for any professional repair shop. Quick 861dw smd Bend Nozzle 12mm
Applications in Mobile Repair:
The 12mm bend nozzle is particularly useful for a variety of mobile phone repair tasks, including:
Benefits for Technicians:
Using the Quick 861DW SMD Bend Nozzle offers several benefits for mobile phone repair technicians:
In conclusion, the Quick 861DW SMD Bend Nozzle, 12mm, is a valuable addition to any mobile phone repair toolkit. Its precision, control, and compatibility make it an essential tool for tackling the challenges of modern mobile device repair. Investing in this high-quality nozzle can significantly improve the efficiency and effectiveness of SMD rework, leading to better results and increased customer satisfaction. Quick 861dw smd Bend Nozzle 12mm
