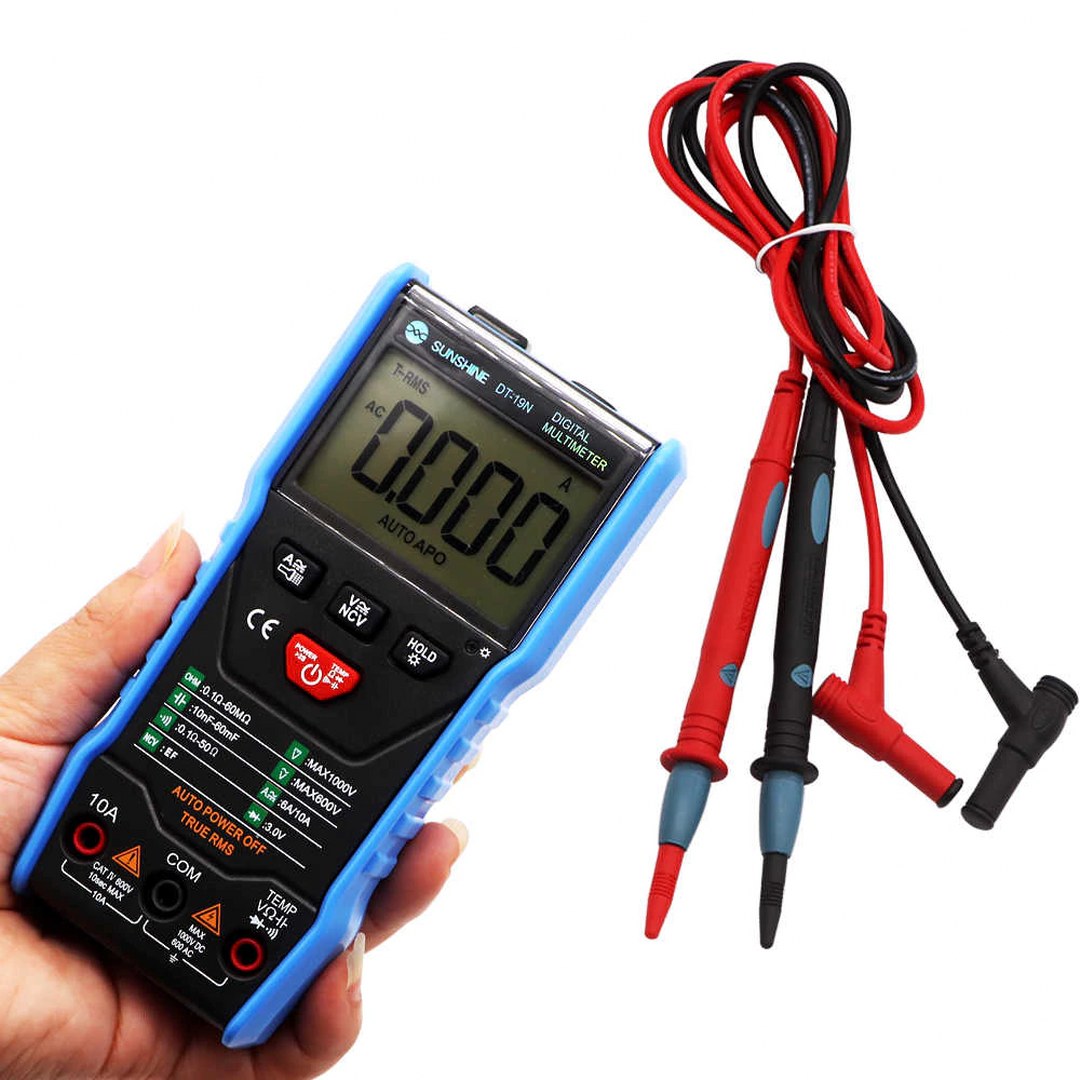

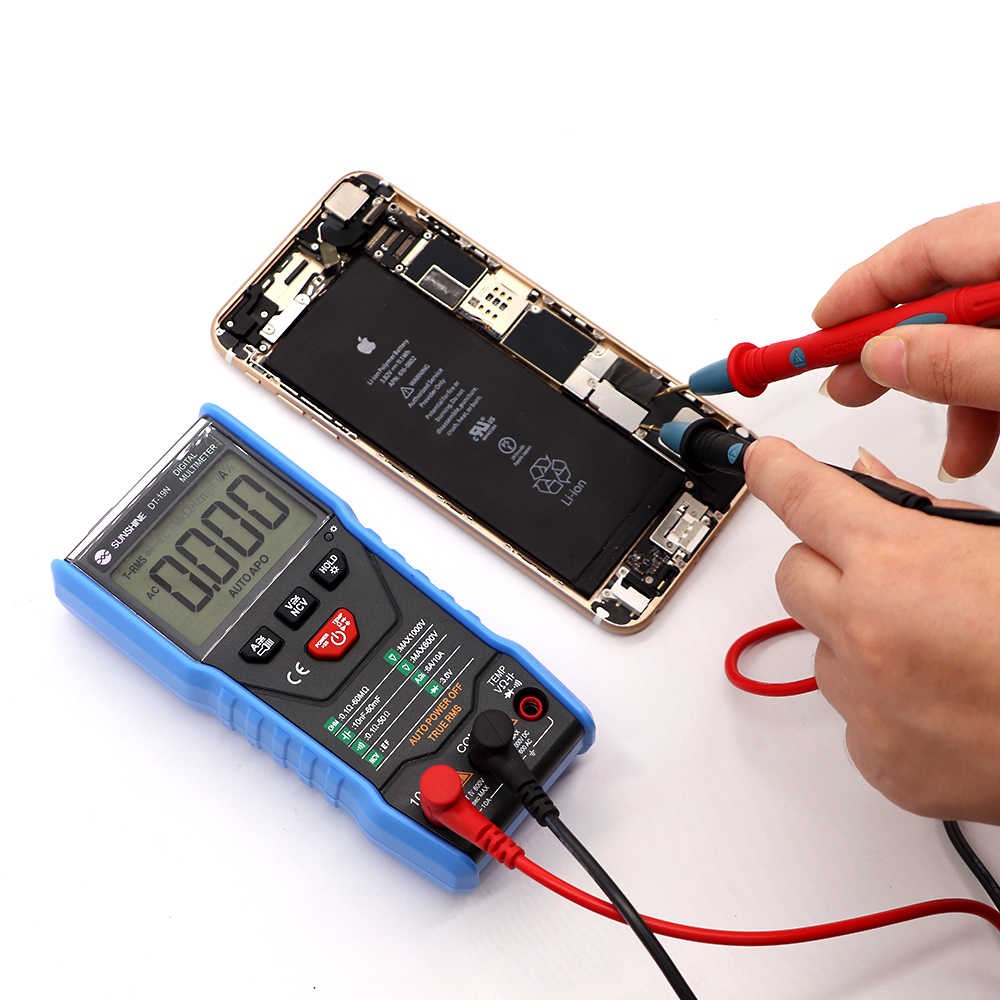

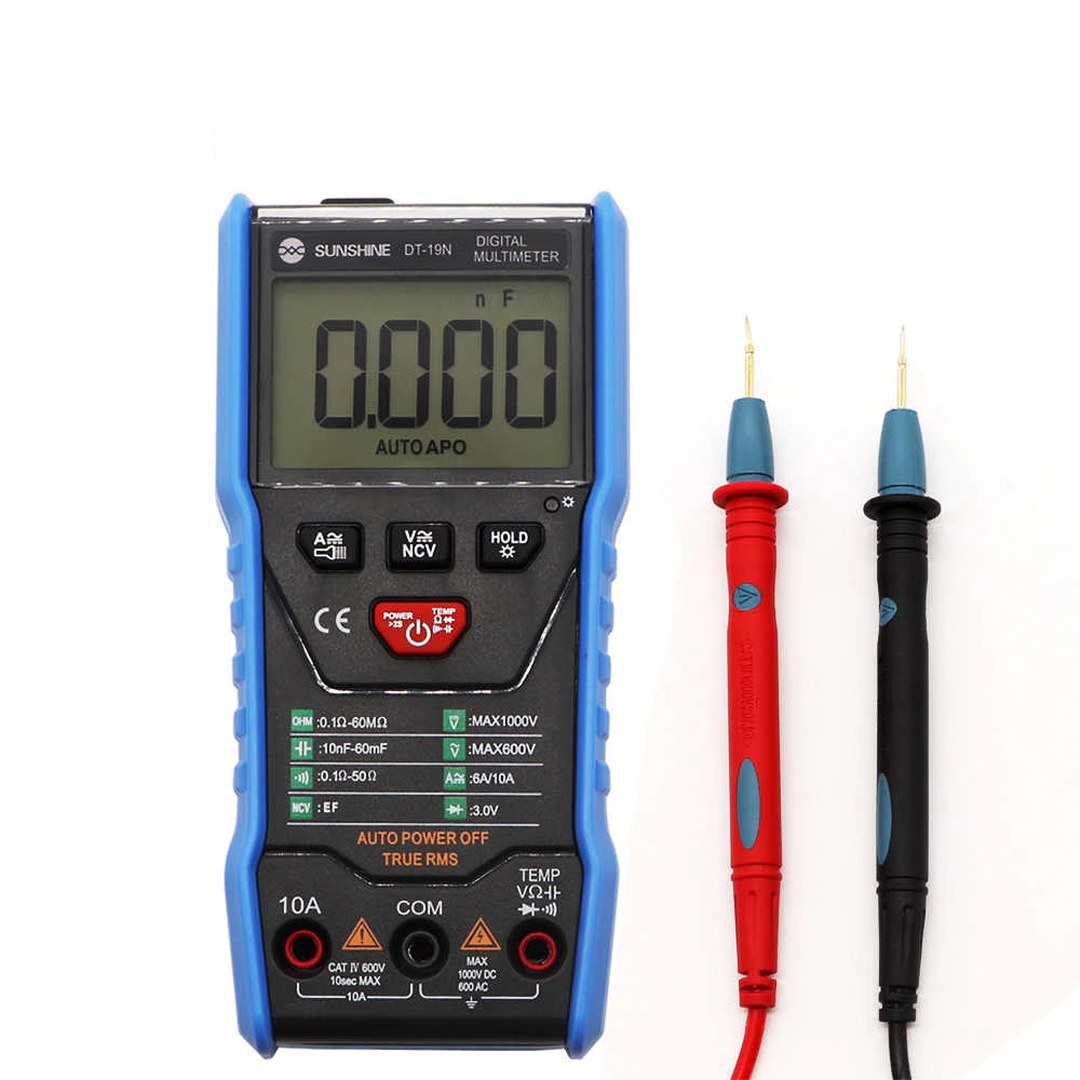

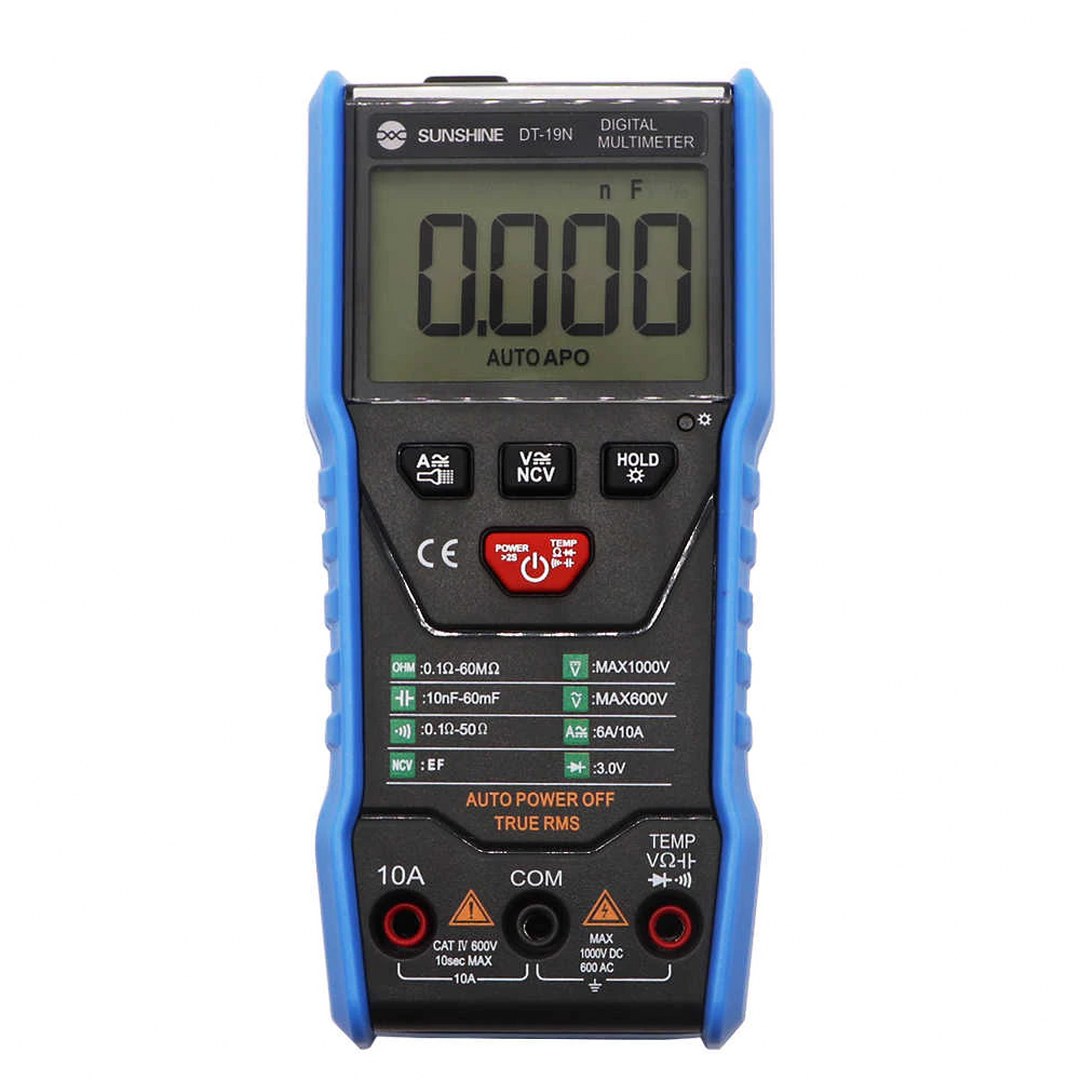

Sunshine DT-19N Digital Multimeter
19n1
19N 1080x1080
19 1080x1080
View details

Sunshine DT-19N Digital Multimeter

0 customer reviews Sold: 0

Categories: , Tag: Brand:
Guaranteed Safe Checkout

Free

Worldwide
Shopping

100%

Guaranteed
Satisfaction

30 Days

Guaranteed
Money Back

Sunshine DT-19N Digital Multimeter

The Sunshine DT-19N Digital Multimeter is your go-to tool for all electronic and electrical measurement needs. Engineered for accuracy and reliability, this multimeter provides precise readings every time, making it a must-have for professionals and DIY enthusiasts alike.

Built for Versatility and Durability

With the Sunshine Sunshine DT-19N Digital Multimeter, you’ll experience unmatched versatility. It can measure voltage, current, resistance, and more. Its robust build ensures it lasts through tough environments, while the user-friendly design simplifies operation for everyone, regardless of skill level.

Enhanced Functionality for Everyday Use

This Sunshine DT-19N Digital Multimeter comes packed with convenient features like a large digital display for easy readability, automatic range selection, and overload protection. Whether you’re diagnosing circuits, repairing electronics, or working on automotive systems, the Sunshine DT-19N is your trusted partner.

The Sunshine DT-19N Digital Multimeter is a highly compact, intelligent, auto-ranging diagnostic tool designed specifically for mobile hardware repair, micro-soldering diagnostics, and precise electronic troubleshooting. Built with an integrated fireproof ABS protective sleeve, it balances rugged durability with high precision.

Below is the comprehensive, full technical specification breakdown organized across key functional domains.

1. General & Physical Specifications

This section covers the core structural design, manufacturing materials, physical footprint, and basic structural parameters of the device.

Parameter Specification Detail Operational Context & Application
Brand & Manufacturer Sunshine Tailored for micro-electronics and mobile phone repair technicians.
Model Designation DT-19N Part of the smart “Mini Intelligent” instrument series.
Material Construction High-grade ABS Fireproof Polymer Protects internal circuitry against high bench heat and accidental drops.
Protective Housing Integrated Anti-shock Sleeve Suppresses mechanical vibrations and absorbs bench-level impacts.
Form Factor / Portability Ultra-compact Mini Pocket Design Sized for restricted bench spaces and single-handed operational use.
Physical Dimensions $184 \times 90 \times 46\text{ mm}$ Highly ergonomic; fits easily into field toolkits.
Device Mass (Weight) Approximately $320\text{ grams}$ Lightweight chassis prevents fatigue during prolonged testing sessions.
Operational Control Mode Intelligent Auto-Ranging / Manual Overrides Automatically determines optimal scaling parameters without user selection.

2. Core Measuring Parameters & Range Capacity

The electrical performance metrics define the absolute operational boundaries for voltage, current, resistance, and capacitance metrics.

Measurement Domain Absolute Range Coverage Resolution & Diagnostic Scope
DC Voltage Range $0.1\text{ mV}$ up to $1000\text{ V}$ Essential for testing logic boards, power rails, and primary cells.
AC Voltage Range $0.1\text{ V}$ up to $600\text{ V}$ Suitable for main power supplies, adapters, and transformer tracking.
DC Current Range $0.1\ \mu\text{A}$ up to $10\text{ A}$ Used for calculating leakage currents and total device draw metrics.
AC Current Range $1\text{ mA}$ up to $6\text{ A}$ Monitored via the dedicated high-current isolation input port.
Resistance ($\Omega$) Range $0.1\ \Omega$ up to $60\text{ M}\Omega$ Covers everything from low-resistance chokes to high-value pull-ups.
Capacitance Range $60\text{ nF}$ up to $6000\ \mu\text{F}$ Validates SMD coupling, filtering, and bulk reservoir caps.
Temperature Range $-20^\circ\text{C}$ to $+1000^\circ\text{C}$ Monitors thermal profiling of ICs, hot-air calibration, and components.

3. Signal Processing & Display Performance

This system governs how the multimeter converts physical analogue properties into structural digital readouts.

Processing Parameter Hardware Specification Practical Workflow Benefit
Display Type Enhanced LCD Digital Matrix High contrast character rendering for visibility under high bench lights. Sunshine DT-19N Digital Multimeter
Display Density 4-Digit Display ($6000\text{ Counts}$) Delivers granular resolution critical for detecting minute drops. Sunshine DT-19N Digital Multimeter
Measurement Conversion Double-Integral A/D Converter Guarantees excellent linearity and noise rejection during sampling. Sunshine DT-19N Digital Multimeter
Sampling Rate 3 Measurements per Second ($3\text{ Hz}$) Real-time tracking of rapidly shifting voltage and load metrics. Sunshine DT-19N Digital Multimeter
Signal Waveform Class True RMS (Root Mean Square) Computes accurate AC values regardless of waveform distortion. Sunshine DT-19N Digital Multimeter
Backlight Mechanism High-Intensity Integrated Backlight Ensures readability inside dark device chassis or unlit environments. Sunshine DT-19N Digital Multimeter

4. Advanced Diagnostic Features & Safety Guards

Beyond standard metrics, these integrated features provide micro-circuit safety, device protection, and non-contact diagnostics.

Feature Classification Integrated Functionality Safety & Operational Purpose
NCV Detection Non-Contact Voltage Detector Safely senses hidden AC lines without making physical metal contact.
Continuity Testing Fast-Response Audio Buzzer ($\le 50\ \Omega$) Pinpoints direct short circuits across copper ground planes instantly.
Diode Test Mode Forward Voltage Drop Readout Measures $0.5\text{ V} – 0.7\text{ V}$ junctions to find blown ESD protection diodes.
Data Hold System Dedicated “Hold” Interface Toggle Freezes transient values onto the screen when working in tight spaces.
Anti-Burn System Intelligent Multi-Stage Overload Protection Prevents internal shunts from frying if probes are placed incorrectly.
Power Management Auto Power-Off (Idle Sleep Timer) Preserves battery lifespan if left turned on accidentally on the bench.
Integrated Torch Forward-Facing LED Worklight Illuminates localized PCB areas during deep-chassis troubleshooting.

5. Environmental & Package Manifest

Environmental boundaries for operation and the physical components included within the standard retail box.

Category element Standard Specifications Environmental Parameters
Operating Temperature $0^\circ\text{C}$ to $40^\circ\text{C}$ Standard room temperature bench environments.
Storage Temperature $-10^\circ\text{C}$ to $50^\circ\text{C}$ Resilient against harsh warehouse and transit conditions.
Relative Humidity Limits $\le 80\%$ Non-Condensing Prevents moisture-induced tracking errors across the PCB.
Standard Probes Included Fine-point Silicone Test Leads Sharp tips optimized for probing micro-SMD components ($0201$/$0402$).
Thermal Sensor Input K-Type Thermocouple Probe Sub-miniature bead probe designed for localized thermal tests.
Documentation Supplied Comprehensive English Manual Details step-by-step calibration guidelines and safety bounds.
