₹150 Original price was: ₹150.₹100Current price is: ₹100.
Shipping India
Guaranteed Satisfaction
Safe Checkout
Please read the manual before use.
This section sets the foundation for a safe repair environment. Before a single tool touches a phone, the workspace must be prepared to protect both the technician and the sensitive electronics.
Electrostatic Discharge (ESD) Safety: Instructions on grounding yourself using an ESD wrist strap and working on an anti-static mat to prevent frying microchips with static electricity.
Safety Gear: Protocols for wearing safety glasses (critical when prying shattered glass) and working in a well-ventilated area (crucial for adhesive fumes and soldering smoke).
Lighting and Magnification: Recommendations for high-intensity desk lamps and digital microscopes or magnifying visors for viewing microscopic components.
The most physically risky part of mobile repair is opening the device without cracking the glass screen or ripping delicate internal ribbon cables.
Thermal Tools (Heat Guns & Heat Pads): Instructions on setting precise temperatures (typically 80°C to 100°C) to soften heavy factory adhesives without damaging the display.
Suction & Leverage Tools: Proper placement of heavy-duty suction cups and screen prying fixtures to safely create an initial gap.
Separation Media (Plastic Picks & Spudgers): Techniques for slicing through glue lines using plastic opening picks without inserting them too deeply into the frame.
Modern smartphones use dozens of tiny, highly specialized screws and brackets to hold internal shields in place.
Precision Driver Identification: A breakdown of specialized micro-bits, detailing exactly when to use Pentalobe (iPhones), Tri-point/Y-type (internal Apple shields), Torx/Torx Security (Android devices), and standard Micro-Phillips.
Organization Systems: Guidelines for using magnetic project mats or screw organizing trays to map out screw locations, preventing the catastrophic error of “long-screw damage.”
Gripping & Placer Tools: How to utilize straight and curved ESD-safe tweezers to safely disconnect fragile ZIF (Zero Insertion Force) and coaxial cable connectors.
This section transitions the user from basic mechanical teardowns to logical troubleshooting when a phone won’t turn on or charge.
Digital Multimeter (DMM): Step-by-step instructions on setting up the meter for DC voltage testing (checking battery and charging port output) and continuity/diode mode (hunting for short circuits).
DC Power Supply: How to boot a phone motherboard without a battery attached, interpreting current draw (Amperage) to diagnose power management failures.
USB Ammeter / Tester: Utilizing an inline USB safety tester plugged into the charging block to instantly diagnose if a phone is pulling normal current ($1A$ to $2A$) or completely dead ($0A$).
For advanced users handling board-level fixes like swapping out charging ports, audio IC chips, or FPC connectors.
Soldering Iron Stations: Temperature calibration tips, tip selection (chisel vs. conical), and maintenance/tinning procedures.
Hot Air Rework Stations: Managing the delicate balance of air flow and temperature to safely desolder multi-pin components without blowing adjacent surface-mount resistors off the board.
Chemical Consumables: Proper application of rosin flux (to clean joints and fluidize solder), solder wick (braided wire to remove old solder), and low-melt solder alloys.
The final step is cleaning up the internal cavity and sealing the device back up to its original structural integrity.
Chemical Cleaners: Safe usage of 99% Isopropyl Alcohol (IPA) to dissolve old glue residues, flux oils, and clean mild liquid damage.
Liquid Adhesives vs. Tape: Instructions on applying specialized acrylic glues (like B-7000) versus applying precision-cut double-sided adhesive gaskets.
Camping and Curing: Utilizing specialized display repair clamps to apply even, steady pressure while the new adhesives cure over 15 to 30 minutes.

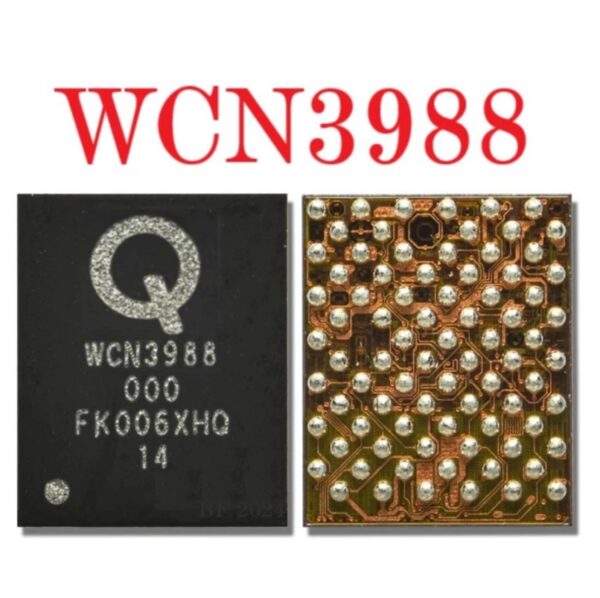

The WCN3988 NEW WIFI IC is a cutting-edge Wi-Fi Integrated Circuit (IC) that represents a significant advancement in wireless communication technology. Designed to cater to the demands of modern devices, the WCN3988 integrates dual-band Wi-Fi capabilities, supporting both 2.4 GHz and 5 GHz bands. This feature not only enhances connectivity but also significantly improves performance, allowing for higher data throughput and reduced latency when compared to its predecessors. The architecture of the WCN3988 also supports 802.11ac and 802.11n standards, which contribute to its efficient operation and compatibility with a wide range of devices. WCN3988 NEW WIFI IC
In addition to its impressive Wi-Fi capabilities, the WCN3988 incorporates Bluetooth functionality. This dual-mode operation enables devices to connect seamlessly with other Bluetooth-enabled gadgets, expanding the versatility of applications. The integration of Wi-Fi and Bluetooth into a single IC streamlines the design process for manufacturers, reducing the overall footprint of hardware configurations. The result is an efficient component that not only meets emerging market needs but also facilitates the development of IoT products, smartphones, and tablets. WCN3988 NEW WIFI IC
The WCN3988 Wi-Fi IC stands at the forefront of modern wireless communication technology, offering a plethora of advantages that significantly enhance the performance of consumer electronics and smart devices. One of the primary benefits of this integrated circuit is its improved battery efficiency. By optimizing power consumption, the WCN3988 enables devices to prolong their battery life, which is particularly beneficial for portable gadgets such as smartphones and wearable technologies. This enhancement not only contributes to user convenience but also aligns with the growing demand for sustainable technology. WCN3988 NEW WIFI IC
Another noteworthy advantage of the WCN3988 is its capability to provide faster data transfer rates. This improvement is critical in today’s digital ecosystem, where users increasingly rely on real-time data streaming, online gaming, and high-definition video conferencing. The WCN3988’s advanced technology facilitates smooth and swift data exchanges, thus enhancing the overall user experience. Moreover, the device encompasses features that extend coverage, allowing for broader connectivity options. With stronger signal strength and reduced dead zones, users can enjoy uninterrupted access to their favorite applications and services even in challenging environments.
In terms of real-world use cases, manufacturers are already implementing the WCN3988 across various segments. For example, smart home devices such as security cameras, thermostats, and smart speakers benefit immensely from the IC’s capabilities, enabling them to maintain stable connections while reducing power consumption. Furthermore, in the automotive sector, the WCN3988 supports advancements in vehicle-to-everything (V2X) communications, paving the way for safer and more efficient driving experiences. Looking ahead, the future potential of the WCN3988 seems promising, as its versatility could redefine wireless communication standards, ensuring that consumers remain connected in an ever-evolving technological landscape.
