₹350 Original price was: ₹350.₹250Current price is: ₹250.
Shipping India
Guaranteed Satisfaction
Safe Checkout
Please read the manual before use.
This section sets the foundation for a safe repair environment. Before a single tool touches a phone, the workspace must be prepared to protect both the technician and the sensitive electronics.
Electrostatic Discharge (ESD) Safety: Instructions on grounding yourself using an ESD wrist strap and working on an anti-static mat to prevent frying microchips with static electricity.
Safety Gear: Protocols for wearing safety glasses (critical when prying shattered glass) and working in a well-ventilated area (crucial for adhesive fumes and soldering smoke).
Lighting and Magnification: Recommendations for high-intensity desk lamps and digital microscopes or magnifying visors for viewing microscopic components.
The most physically risky part of mobile repair is opening the device without cracking the glass screen or ripping delicate internal ribbon cables.
Thermal Tools (Heat Guns & Heat Pads): Instructions on setting precise temperatures (typically 80°C to 100°C) to soften heavy factory adhesives without damaging the display.
Suction & Leverage Tools: Proper placement of heavy-duty suction cups and screen prying fixtures to safely create an initial gap.
Separation Media (Plastic Picks & Spudgers): Techniques for slicing through glue lines using plastic opening picks without inserting them too deeply into the frame.
Modern smartphones use dozens of tiny, highly specialized screws and brackets to hold internal shields in place.
Precision Driver Identification: A breakdown of specialized micro-bits, detailing exactly when to use Pentalobe (iPhones), Tri-point/Y-type (internal Apple shields), Torx/Torx Security (Android devices), and standard Micro-Phillips.
Organization Systems: Guidelines for using magnetic project mats or screw organizing trays to map out screw locations, preventing the catastrophic error of “long-screw damage.”
Gripping & Placer Tools: How to utilize straight and curved ESD-safe tweezers to safely disconnect fragile ZIF (Zero Insertion Force) and coaxial cable connectors.
This section transitions the user from basic mechanical teardowns to logical troubleshooting when a phone won’t turn on or charge.
Digital Multimeter (DMM): Step-by-step instructions on setting up the meter for DC voltage testing (checking battery and charging port output) and continuity/diode mode (hunting for short circuits).
DC Power Supply: How to boot a phone motherboard without a battery attached, interpreting current draw (Amperage) to diagnose power management failures.
USB Ammeter / Tester: Utilizing an inline USB safety tester plugged into the charging block to instantly diagnose if a phone is pulling normal current ($1A$ to $2A$) or completely dead ($0A$).
For advanced users handling board-level fixes like swapping out charging ports, audio IC chips, or FPC connectors.
Soldering Iron Stations: Temperature calibration tips, tip selection (chisel vs. conical), and maintenance/tinning procedures.
Hot Air Rework Stations: Managing the delicate balance of air flow and temperature to safely desolder multi-pin components without blowing adjacent surface-mount resistors off the board.
Chemical Consumables: Proper application of rosin flux (to clean joints and fluidize solder), solder wick (braided wire to remove old solder), and low-melt solder alloys.
The final step is cleaning up the internal cavity and sealing the device back up to its original structural integrity.
Chemical Cleaners: Safe usage of 99% Isopropyl Alcohol (IPA) to dissolve old glue residues, flux oils, and clean mild liquid damage.
Liquid Adhesives vs. Tape: Instructions on applying specialized acrylic glues (like B-7000) versus applying precision-cut double-sided adhesive gaskets.
Camping and Curing: Utilizing specialized display repair clamps to apply even, steady pressure while the new adhesives cure over 15 to 30 minutes.

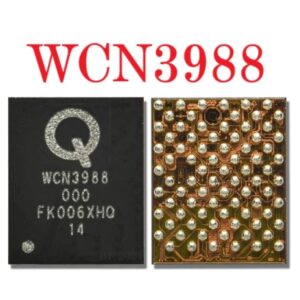

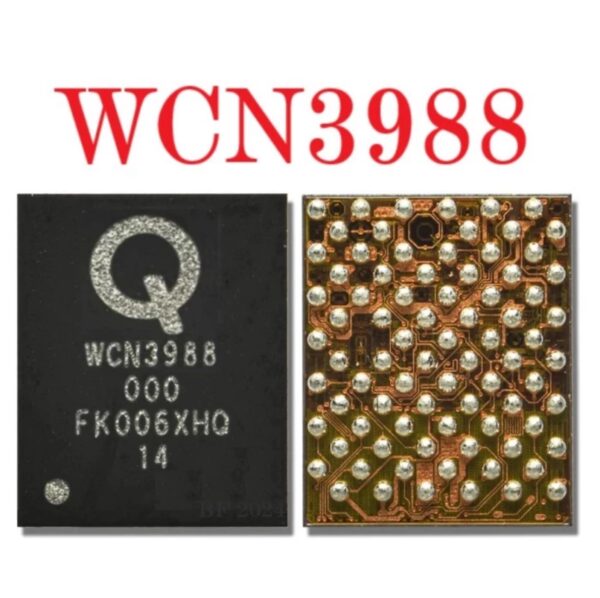

The WCN3988 ORG WIFI IC is a cutting-edge WiFi integrated circuit (IC) designed by Qualcomm, aimed at providing enhanced wireless connectivity capabilities across various devices. This advanced IC represents a significant advancement in the realm of wireless communication technology, incorporating a range of features that address the growing demand for high-speed, reliable internet connectivity in today’s digital landscape. WCN3988 ORG WIFI IC
At the heart of the WCN3988’s design are several key technologies, including multiple-input and multiple-output (MIMO) and beamforming. MIMO technology allows for multiple data streams to be transmitted simultaneously, effectively increasing the overall throughput of the network. This capability is particularly beneficial in environments where multiple devices are connecting to the same network, as it ensures that each device can maintain a stable connection without sacrificing speed or performance. WCN3988 ORG WIFI IC
Beamforming is another crucial aspect of the WCN3988’s functionality. This technology directs the WiFi signal towards specific devices rather than broadcasting the signal uniformly in all directions. By concentrating the signal, beamforming enhances the strength and quality of the connection, delivering faster data rates and reducing latency. These capabilities are particularly valuable in various applications, such as smartphones, tablets, and smart home devices, where consistent and reliable connectivity is paramount. WCN3988 ORG WIFI IC
Moreover, the WCN3988 supports a broad range of wireless standards, which enables it to cater to different device needs without compromising performance. This flexibility contributes to its growing adoption across a variety of sectors, facilitating improved wireless communication. As a result, the WCN3988 not only enhances connectivity in personal handheld devices but also plays an essential role in the expanding Internet of Things (IoT) landscape, where seamless interaction between devices is critical. WCN3988 ORG WIFI IC
The WCN3988 WiFi integrated circuit (IC) stands out in today’s rapidly evolving technology landscape due to its numerous advantages that enhance wireless connectivity for modern devices. One of the most significant benefits of the WCN3988 is its ability to improve data transfer speeds dramatically. With support for the latest WiFi standards, this IC enables users to experience faster downloads and smoother streaming of high-definition content, thereby improving overall user satisfaction. As consumers increasingly rely on mobile devices for their online needs, the enhanced speed provided by the WCN3988 is essential for maintaining connectivity in congested areas.
In addition to improved data rates, the WCN3988 also increases wireless range. This feature addresses a common pain point for users—dead zones in their homes or offices—by extending the coverage area of WiFi connections. The IC achieves this increase in range through advanced antenna diversity and signal processing techniques, which translates to a more reliable internet experience in various environments and configurations.
Furthermore, the overall efficiency of wireless connections is significantly boosted by the WCN3988. The IC is designed to optimize power usage, a critical consideration for portable devices that operate on battery power. Efficient power management not only prolongs battery life but also reduces heat generation, further enhancing device performance. The WCN3988’s efficiency makes it a valuable asset for manufacturers focused on creating sustainable and user-friendly products.
The impact of the WCN3988 extends beyond individual devices; it plays a pivotal role in the development of smart home ecosystems. By facilitating seamless connectivity among smart gadgets, the WCN3988 empowers consumers to create integrated environments that enhance daily living. Comparing this IC to previous technologies highlights its superiority, underscoring its significance in shaping the future of consumer technology and connectivity. As devices continue to evolve, the WCN3988 is poised to be a key enabler of innovative solutions for connected living.
