This section sets the foundation for a safe repair environment. Before a single tool touches a phone, the workspace must be prepared to protect both the technician and the sensitive electronics.
Electrostatic Discharge (ESD) Safety: Instructions on grounding yourself using an ESD wrist strap and working on an anti-static mat to prevent frying microchips with static electricity.
Safety Gear: Protocols for wearing safety glasses (critical when prying shattered glass) and working in a well-ventilated area (crucial for adhesive fumes and soldering smoke).
Lighting and Magnification: Recommendations for high-intensity desk lamps and digital microscopes or magnifying visors for viewing microscopic components.
The most physically risky part of mobile repair is opening the device without cracking the glass screen or ripping delicate internal ribbon cables.
Thermal Tools (Heat Guns & Heat Pads): Instructions on setting precise temperatures (typically 80°C to 100°C) to soften heavy factory adhesives without damaging the display.
Suction & Leverage Tools: Proper placement of heavy-duty suction cups and screen prying fixtures to safely create an initial gap.
Separation Media (Plastic Picks & Spudgers): Techniques for slicing through glue lines using plastic opening picks without inserting them too deeply into the frame.
Modern smartphones use dozens of tiny, highly specialized screws and brackets to hold internal shields in place.
Precision Driver Identification: A breakdown of specialized micro-bits, detailing exactly when to use Pentalobe (iPhones), Tri-point/Y-type (internal Apple shields), Torx/Torx Security (Android devices), and standard Micro-Phillips.
Organization Systems: Guidelines for using magnetic project mats or screw organizing trays to map out screw locations, preventing the catastrophic error of “long-screw damage.”
Gripping & Placer Tools: How to utilize straight and curved ESD-safe tweezers to safely disconnect fragile ZIF (Zero Insertion Force) and coaxial cable connectors.
This section transitions the user from basic mechanical teardowns to logical troubleshooting when a phone won’t turn on or charge.
Digital Multimeter (DMM): Step-by-step instructions on setting up the meter for DC voltage testing (checking battery and charging port output) and continuity/diode mode (hunting for short circuits).
DC Power Supply: How to boot a phone motherboard without a battery attached, interpreting current draw (Amperage) to diagnose power management failures.
USB Ammeter / Tester: Utilizing an inline USB safety tester plugged into the charging block to instantly diagnose if a phone is pulling normal current ($1A$ to $2A$) or completely dead ($0A$).
For advanced users handling board-level fixes like swapping out charging ports, audio IC chips, or FPC connectors.
Soldering Iron Stations: Temperature calibration tips, tip selection (chisel vs. conical), and maintenance/tinning procedures.
Hot Air Rework Stations: Managing the delicate balance of air flow and temperature to safely desolder multi-pin components without blowing adjacent surface-mount resistors off the board.
Chemical Consumables: Proper application of rosin flux (to clean joints and fluidize solder), solder wick (braided wire to remove old solder), and low-melt solder alloys.
The final step is cleaning up the internal cavity and sealing the device back up to its original structural integrity.
Chemical Cleaners: Safe usage of 99% Isopropyl Alcohol (IPA) to dissolve old glue residues, flux oils, and clean mild liquid damage.
Liquid Adhesives vs. Tape: Instructions on applying specialized acrylic glues (like B-7000) versus applying precision-cut double-sided adhesive gaskets.
Camping and Curing: Utilizing specialized display repair clamps to apply even, steady pressure while the new adhesives cure over 15 to 30 minutes.

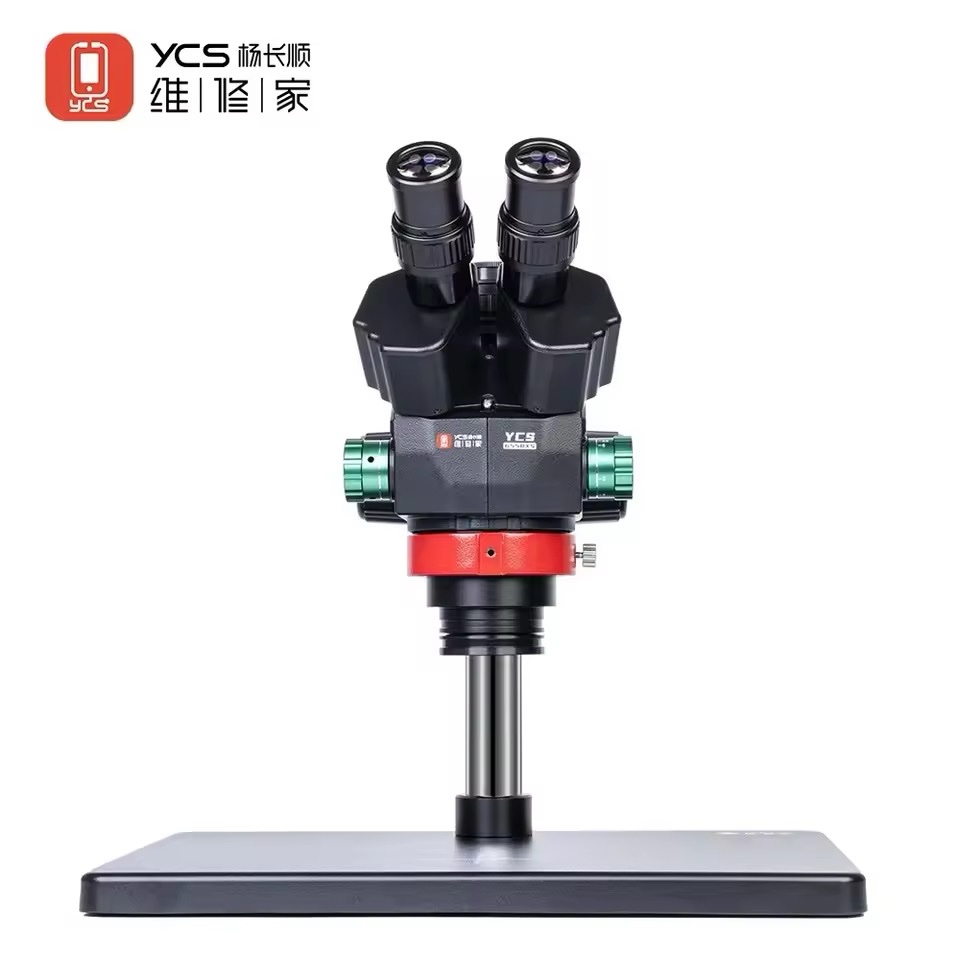

Discover the ultimate tool for precision work with the YCS 6558XS Microscope 6.5X-58X Zoom Binocular Stereo Microscope with LED Light for Phone PCB Repair. Designed for intricate tasks, this binocular stereo microscope offers a 6.5X-58X zoom range, ensuring you can easily examine the finest details. Whether you’re repairing PCB boards or handling delicate components, this microscope provides unparalleled clarity for your work. YCS 6558XS Microscope 6.5X-58X Zoom Binocular Stereo Microscope with LED Light for Phone PCB Repair
The YCS 6558XS features an integrated LED lighting system that delivers bright, even illumination. This makes it an excellent choice for tackling intricate phone repairs and other detailed projects by providing a well-lit workspace to eliminate shadows and improve accuracy. YCS 6558XS Microscope 6.5X-58X Zoom Binocular Stereo Microscope with LED Light for Phone PCB Repair
Engineered with a durable yet ergonomic design, this stereo microscope ensures user comfort even during extended usage. Its adjustable binocular head promises precise alignment and minimal eye strain, making it suitable for long work sessions. YCS 6558XS Microscope 6.5X-58X Zoom Binocular Stereo Microscope with LED Light for Phone PCB Repair
Upgrade your repair toolkit with the YCS 6558XS Microscope and experience efficiency and precision like never before. Perfect for DIY enthusiasts, professionals, and specialists alike. YCS 6558XS Microscope 6.5X-58X Zoom Binocular Stereo Microscope with LED Light for Phone PCB Repair

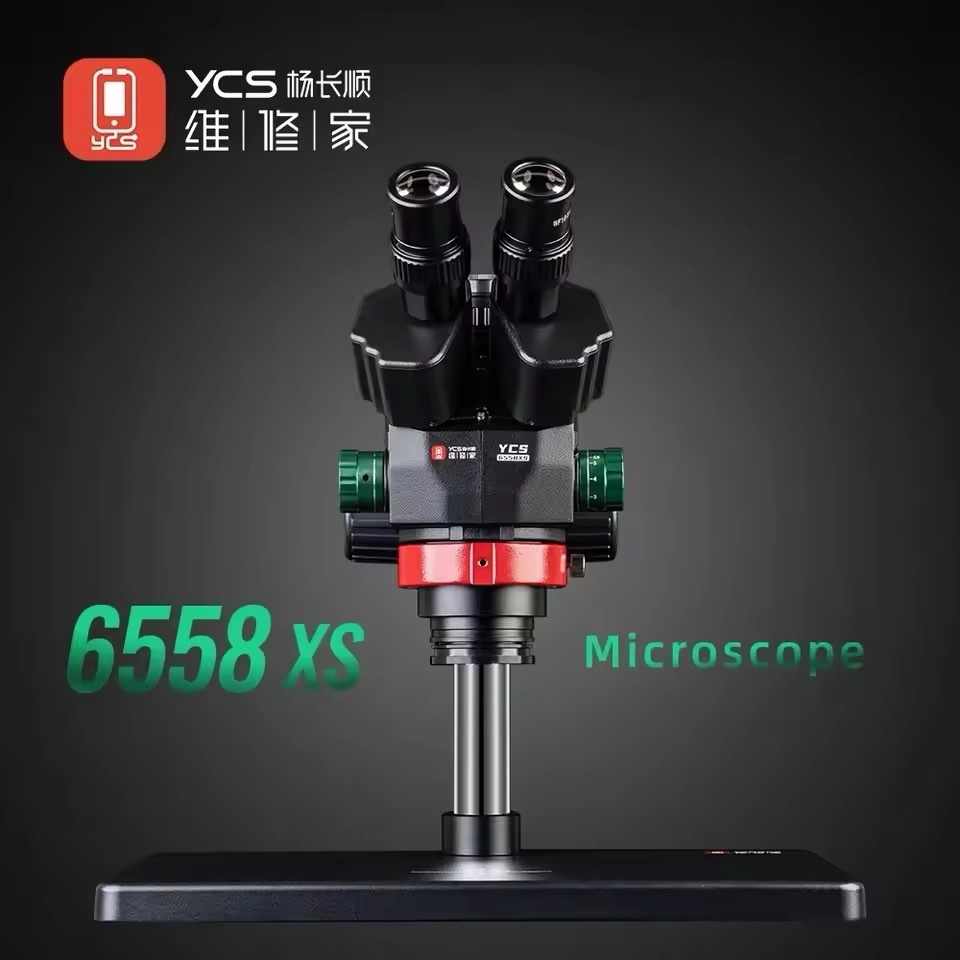

The YCS 6558XS Trinocular Stereo Microscope is an industrial-grade optical instrument engineered specifically for precision electronics inspection, micro-soldering, and mobile phone PCB diagnostics. Despite the “binocular” phrasing common in broad searches, this specific series features a trinocular head system. This layout enables integrated digital imaging alongside dual-eyepiece viewing. YCS 6558XS Microscope 6.5X-58X Zoom Binocular Stereo Microscope with LED Light for Phone PCB Repair
Below is the exhaustive technical specification breakdown for this model, optimized for hardware repair technicians and laboratory environments. YCS 6558XS Microscope 6.5X-58X Zoom Binocular Stereo Microscope with LED Light for Phone PCB Repair
The primary mechanical advantage of the YCS 6558XS Optical Core is its internal simul-focal prism splitter. Older trinocular designs required switching a physical lever to redirect light away from the left eyepiece into the camera port. This model maintains active light paths to both eyepieces and the C-mount sensor simultaneously. Technicians can execute complex micro-soldering steps under the eyepieces while providing a real-time, matching high-definition stream to an external monitor for training or digital documentation. YCS 6558XS Microscope 6.5X-58X Zoom Binocular Stereo Microscope with LED Light for Phone PCB Repair
The microscope replaces traditional 20mm eyepieces with 23mm ultra-widefield lenses. This expands the horizontal field of view to 39mm at lowest magnification. The structural benefit is a massive, distortion-free view of a smartphone logic board. Technicians can trace entire power lines or circuit arrays without constantly shifting the board position underneath the pillar stand. YCS 6558XS Microscope 6.5X-58X Zoom Binocular Stereo Microscope with LED Light for Phone PCB Repair
Maintaining a baseline 100mm working clearance provides plenty of room for hot air rework stations, soldering iron tips, and precision tweezers. For advanced applications requiring even greater clearances for large hand tools, the objective assembly supports standard auxiliary Barlow lenses:
0.5X Barlow Lens (Optional add-on): Scales total magnification down to 3.25X–29X but expands the vertical tool clearance up to a massive 165mm.
The high-density 144-LED ring assembly mounts directly over the objective housing. It projects cool, uniform white light straight down onto the target component. This design eliminates hard shadows around dense, high-profile SMD components, making it easier to spot bridge solder joints, micro-fractures, and damaged pins underneath BGA chips. YCS 6558XS Microscope 6.5X-58X Zoom Binocular Stereo Microscope with LED Light for Phone PCB Repair

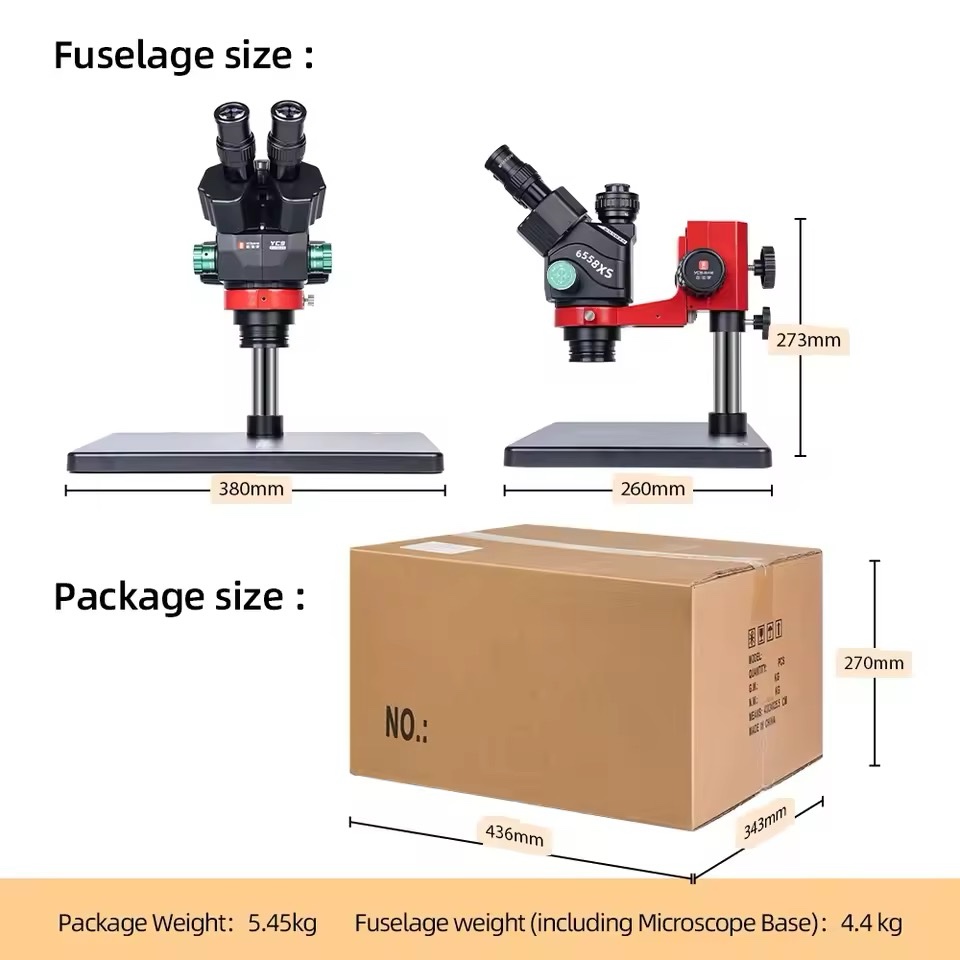

The microscope is mounted to an industrial vertical column pillar system (Standard 250mm height, Ø32mm solid pillar core). This connects to an extended alloy base plate. The base includes dedicated magnetic sectors to anchor small screws, shield plates, and component brackets during smartphone disassembly. YCS 6558XS Microscope 6.5X-58X Zoom Binocular Stereo Microscope with LED Light for Phone PCB Repair
