Please read the manual before use.
This section sets the foundation for a safe repair environment. Before a single tool touches a phone, the workspace must be prepared to protect both the technician and the sensitive electronics.
Electrostatic Discharge (ESD) Safety: Instructions on grounding yourself using an ESD wrist strap and working on an anti-static mat to prevent frying microchips with static electricity.
Safety Gear: Protocols for wearing safety glasses (critical when prying shattered glass) and working in a well-ventilated area (crucial for adhesive fumes and soldering smoke).
Lighting and Magnification: Recommendations for high-intensity desk lamps and digital microscopes or magnifying visors for viewing microscopic components.
The most physically risky part of mobile repair is opening the device without cracking the glass screen or ripping delicate internal ribbon cables.
Thermal Tools (Heat Guns & Heat Pads): Instructions on setting precise temperatures (typically 80°C to 100°C) to soften heavy factory adhesives without damaging the display.
Suction & Leverage Tools: Proper placement of heavy-duty suction cups and screen prying fixtures to safely create an initial gap.
Separation Media (Plastic Picks & Spudgers): Techniques for slicing through glue lines using plastic opening picks without inserting them too deeply into the frame.
Modern smartphones use dozens of tiny, highly specialized screws and brackets to hold internal shields in place.
Precision Driver Identification: A breakdown of specialized micro-bits, detailing exactly when to use Pentalobe (iPhones), Tri-point/Y-type (internal Apple shields), Torx/Torx Security (Android devices), and standard Micro-Phillips.
Organization Systems: Guidelines for using magnetic project mats or screw organizing trays to map out screw locations, preventing the catastrophic error of “long-screw damage.”
Gripping & Placer Tools: How to utilize straight and curved ESD-safe tweezers to safely disconnect fragile ZIF (Zero Insertion Force) and coaxial cable connectors.
This section transitions the user from basic mechanical teardowns to logical troubleshooting when a phone won’t turn on or charge.
Digital Multimeter (DMM): Step-by-step instructions on setting up the meter for DC voltage testing (checking battery and charging port output) and continuity/diode mode (hunting for short circuits).
DC Power Supply: How to boot a phone motherboard without a battery attached, interpreting current draw (Amperage) to diagnose power management failures.
USB Ammeter / Tester: Utilizing an inline USB safety tester plugged into the charging block to instantly diagnose if a phone is pulling normal current ($1A$ to $2A$) or completely dead ($0A$).
For advanced users handling board-level fixes like swapping out charging ports, audio IC chips, or FPC connectors.
Soldering Iron Stations: Temperature calibration tips, tip selection (chisel vs. conical), and maintenance/tinning procedures.
Hot Air Rework Stations: Managing the delicate balance of air flow and temperature to safely desolder multi-pin components without blowing adjacent surface-mount resistors off the board.
Chemical Consumables: Proper application of rosin flux (to clean joints and fluidize solder), solder wick (braided wire to remove old solder), and low-melt solder alloys.
The final step is cleaning up the internal cavity and sealing the device back up to its original structural integrity.
Chemical Cleaners: Safe usage of 99% Isopropyl Alcohol (IPA) to dissolve old glue residues, flux oils, and clean mild liquid damage.
Liquid Adhesives vs. Tape: Instructions on applying specialized acrylic glues (like B-7000) versus applying precision-cut double-sided adhesive gaskets.
Camping and Curing: Utilizing specialized display repair clamps to apply even, steady pressure while the new adhesives cure over 15 to 30 minutes.

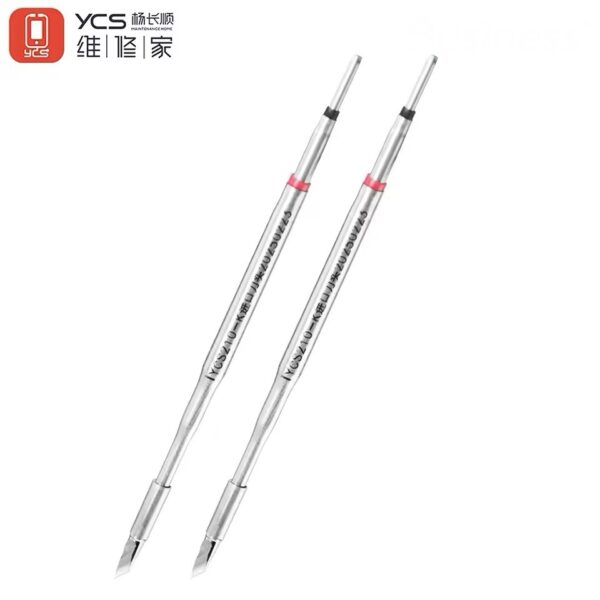

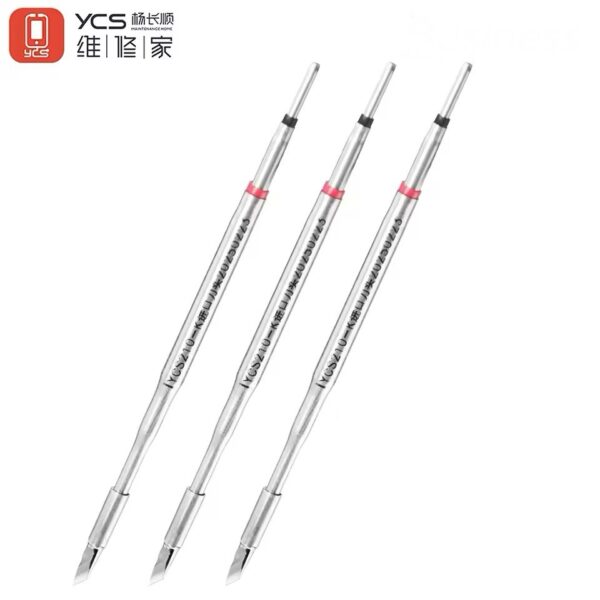

The YCS C210-018 Knife Series Soldering Iron Tips are designed for high-efficiency performance with 120W power. Whether you need to handle T210/T26 soldering station handles or work on delicate mobile phone PCB and IC repairs, these tips deliver unmatched precision and reliability.
Constructed to withstand rigorous usage, the YCS C210-018 tips are crafted to enable seamless soldering for professionals and hobbyists alike. Their knife-shaped design ensures accurate heat delivery, making it a perfect tool for intricate soldering tasks and repairs.
Optimized for compatibility with T210/T26 soldering handles, this series is the ideal companion for advanced-technology stations. Whether you’re working on microelectronics or high-power circuit boards, these soldering iron tips ensure optimal outcomes every time.
The YCS C210-018 Knife Series soldering tips are precision-engineered components designed for professional-grade electronics repair. As the industry moves toward increasingly miniaturized components (like those found in modern iPhones or high-end Android devices), the demand for high-thermal-recovery tips has skyrocketed.
The C210-018 specifically targets technicians who need a balance between delicate precision and high heat capacity.
The following table outlines the core parameters of the YCS C210-018 Knife tip.
The YCS C210-018 is not just a standard “replacement” tip; it is built to handle the rigors of 120W high-power output. While the C210 handle is small and ergonomic, it often struggles with heat dissipation on large ground planes. YCS has addressed this through a multi-layered construction.
Unlike older soldering technologies where the heating element is separate from the tip, the C210-018 utilizes an integrated design. The thermocouple and heating filament are built directly into the cartridge. This allows for:
Instant Thermal Recovery: When the tip touches a large solder joint that “sucks” the heat away, the sensor detects the drop immediately and the station pumps 120W of power to stabilize the temperature.
Precision Calibration: Because the sensor is so close to the tip, the temperature you see on your station is a true reflection of the heat at the blade.
The “018” designation refers to the knife-edge shape. This is widely considered the most versatile shape for PCB repair.
The Blade: Used for dragging across rows of pins (drag soldering) or cleaning pads after an IC has been removed.
The Point: The very tip of the knife can still be used for micro-soldering individual 0201 capacitors or resistors.
The Flat Side: Excellent for applying heat to a larger area to remove bridges or “wicking” away excess solder.
The longevity of a soldering tip is determined by its plating. YCS uses a four-layer process:
Copper Core: Provides the best thermal conductivity to move heat from the element to the work surface.
Iron Plating: Protects the copper from being “eaten” by the solder (corrosion).
Nickel Plating: Provides a non-wetting surface on the shaft so solder doesn’t climb up the tip.
Chrome Finish: Prevents oxidation on the exterior of the cartridge.
For technicians working on PCB IC Repairing, the C210-018 is a “daily driver.” It is particularly effective for:
Underfill Removal: The knife shape allows you to gently scrape away black underfill around CPUs and Power ICs without scratching the motherboard.
Cleaning Pads: Using a solder wick with a knife tip is the fastest way to flatten a BGA (Ball Grid Array) site before reballing.
High-Density Connectors: Perfect for soldering FPC connectors where the pins are extremely close together.
To ensure your YCS tip lasts through hundreds of repairs, follow these steps:
Avoid Excessive Heat: While it can handle 450°C, most lead-free work is best done between 330°C and 370°C.
Tin the Tip: Never leave the tip “dry” on the stand. Always leave a blob of solder on the blade to prevent oxidation.
Use Brass Wool: Avoid wet sponges if possible, as the thermal shock of the water can cause micro-cracks in the plating.
Note: The 120W rating is a peak capability. Ensure your soldering station (like the JBC CD-2SHE or Sugon T26) is configured to handle high-current cartridges to take full advantage of the C210-018’s speed
