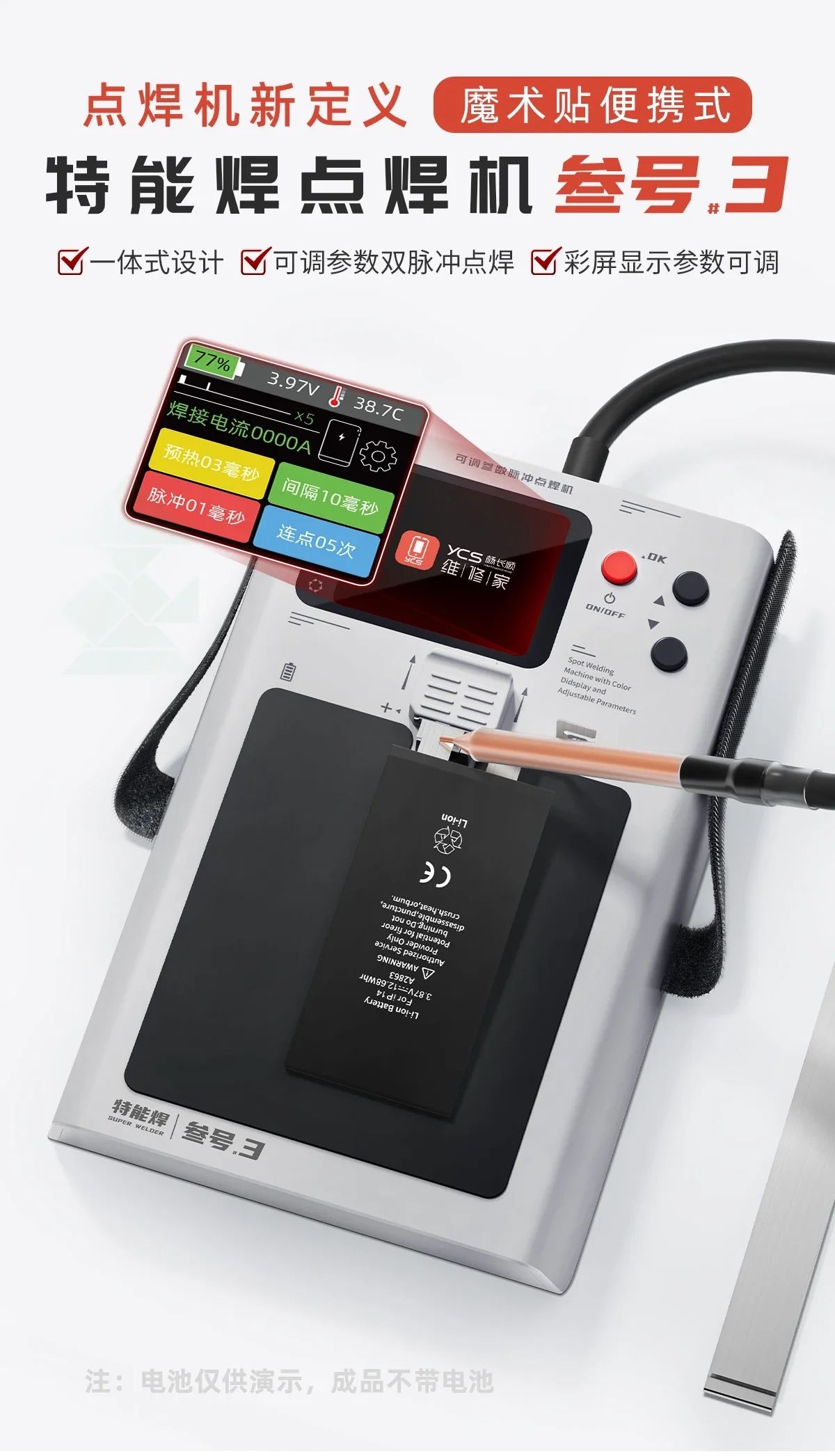

YCS No3 Portable Dual Pulse Battery Spot Welder Machine Adjustable Parameters LCD Display Battery Welding Tool

Enhance Your Battery Welding Experience

The YCS No3 Portable Dual Pulse Battery Spot Welder Machine Adjustable Parameters LCD Display Battery Welding Tool Machine is designed to revolutionize battery welding with its advanced features and user-friendly functionality. Whether you’re a professional or a hobbyist, this tool offers unmatched precision and efficiency for your battery assembly projects.

Advanced Features for Maximum Control

Equipped with adjustable parameters and an LCD display, the YCS No3 Spot Welder allows you to tailor each welding session to your specific needs. Dual pulse technology ensures clean and sturdy welds, making it perfect for a variety of battery types and configurations.

Compact and Durable Design

Portable and robust, this spot welder is ideal for both workspace and field use. Its lightweight design enhances convenience, while the durable construction ensures long-lasting performance, making this the tool you can rely on for all your battery welding tasks.

Parameter Attribute Comprehensive Technical Specification & Operational Range
Product Model Name YCS No. 3 (Also referenced globally as YCS Parameter 3)
Device Architecture All-in-One Integrated System (Eliminates external circuit expansion boards)
Welding Mechanism Advanced Double Pulse / Dual Pulse Output Architecture
Output Pulse Modality

Primary Pulse 1: Preheat Pulse (Removes oxidation/surface impurities)


Primary Pulse 2: Main Welding Pulse (Creates structural molecular fusion)
Display Matrix Full-Color Multi-Parameter Visual LCD TFT Display Screen
Parameter Configuration Adjustable via onboard physical micro-switch control buttons
Pre-Heat Pulse Range $0 \text{ to } 99\text{ ms}$ (Adjustable in millisecond increments)
Interval Pulse Delay $0 \text{ to } 99\text{ ms}$ (Adjustable time gap between preheat and main fusion)
Main Welding Pulse $0 \text{ to } 99\text{ ms}$ (Adjustable duration determining final penetration depth)
Connection Points Multi-point micro-soldering calibration parameters
Power Capacity Rating Equivalent peak energy input capability up to $10 \text{ kVA}$
Supported Materials Pure Nickel Strips, Nickel-Plated Steel Belts, Specialized Battery Tabs
Welding Thickness Optimized for $0.1\text{ mm}$ to $0.2\text{ mm}$ strip thickness profiles
Charging Interface $5\text{V}$ DC High-Efficiency Type-C USB Input Port
Power Bank Utility Standard Auxiliary USB-A Output port ($5\text{V}$ stabilized power distribution)
Device Weight Ultra-lightweight configuration profile ($\approx 0.320\text{ kg}$ to $0.450\text{ kg}$ unit weight)
Chassis Composition Reinforced Impact-Resistant Metallic Alloy Outer Core
Portability Assist Heavy-Duty Hook-and-Loop (Velcro) Fastener Integrated Wrap System

2. Advanced Technology & Feature Breakdown

Technological Module Industrial Capability & Operational Logic
Dual-Pulse Tech Delivers an initial pre-heating discharge to break down oxide layers and ensure optimal material conductivity. Following a programmed cooling gap, it discharges the high-energy main pulse, achieving clean, spark-free welds without warping delicate battery casings.

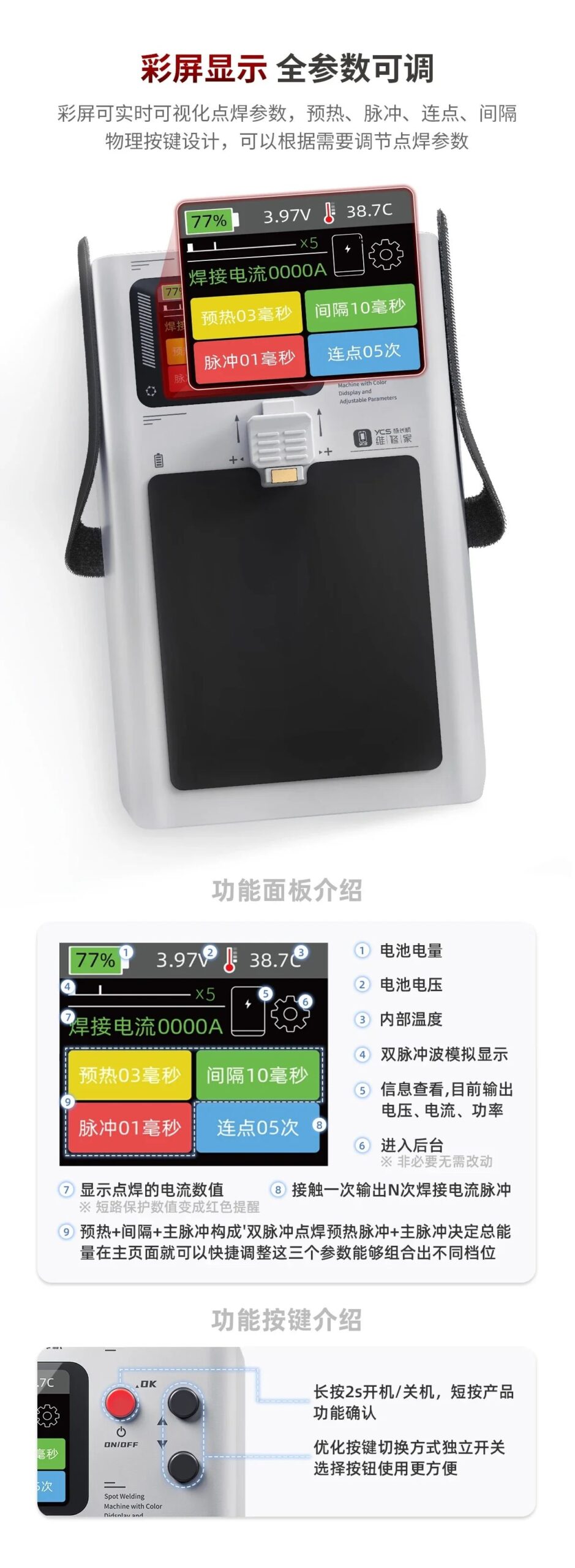

LCD Parameter Telemetry Displays real-time metrics including operating voltage, output current levels, microsecond interval timers, and internal core temperature safety status.

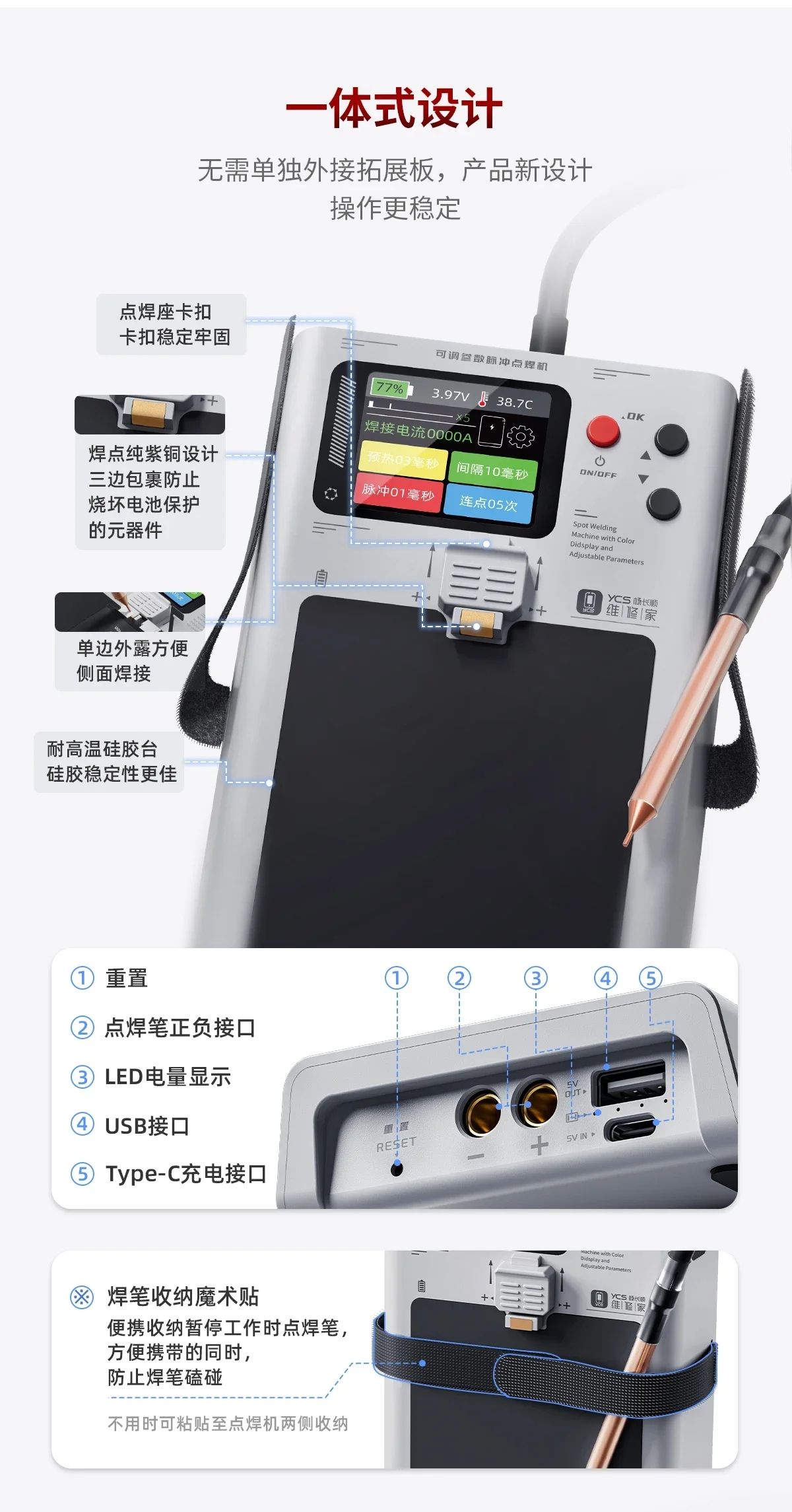

Integrated Form Factor Houses both the control microcontroller unit (MCU) and the primary capacitor banks within a single enclosure. This minimizes internal resistance drops along the circuit paths.
Bidirectional Energy Acts as an on-the-go backup power supply, using its internal high-rate discharge cells to power small electronic repair equipment or mobile devices.
Thermal Protection Integrated safety cutoff protocols regulate energy discharge if internal thermal sensors detect temperatures passing safe operating thresholds.

3. Core Applications & Target Use Cases

Industry Sector Applied Utility & Target Materials
Mobile Device Repair Precision replacement of internal Lithium-Ion (Li-Ion) and Lithium-Polymer (Li-Po) battery management system (BMS) boards for iPhone and Android devices.
Custom Battery Packs Structural multi-cell packing designs using standard cylindrical architectures like 18650 and 21700 form factors.
Micro-Soldering / PCB Specialized precision attachment of electronic connections where conventional soldering iron tip thermal transfer would damage components.
RC Modeling & Robotics On-site field servicing of customized High-C discharge rate remote control drone and robotics battery packs.

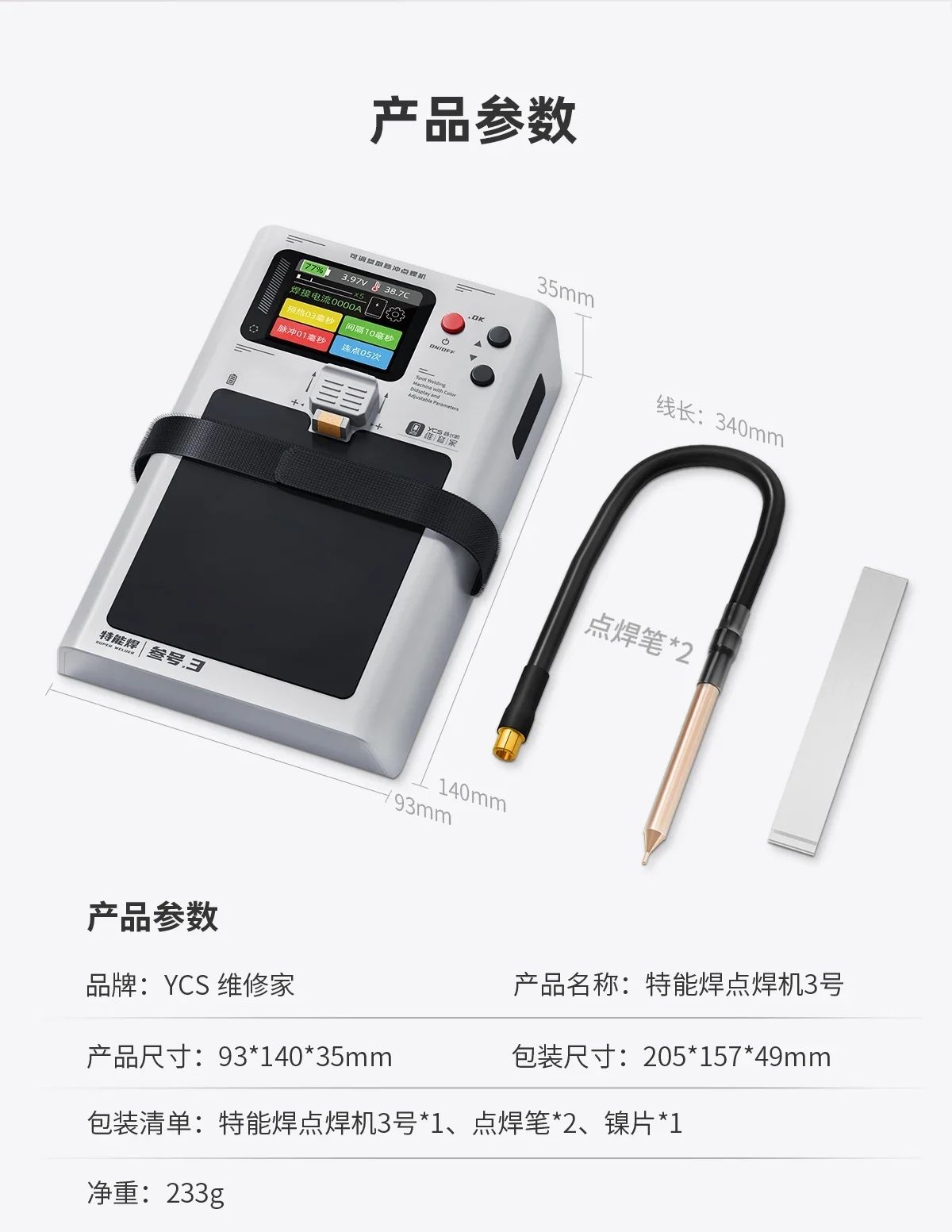

4. Hardware Assembly & Package Elements

Package Component Engineering Material Specifications
Main Welder Unit YCS No. 3 Solid metal controller body featuring physical navigation keys and a scratch-resistant LCD crystal overlay. YCS No3 Portable Dual Pulse Battery Spot Welder Machine Adjustable Parameters LCD Display Battery Welding Tool
Welding Pens (x2) High-conductivity pure copper core electrodes insulated with high-flexibility, heat-resistant silicone jackets. YCS No3 Portable Dual Pulse Battery Spot Welder Machine Adjustable Parameters LCD Display Battery Welding Tool
Auxiliary Consumables Starter roll of calibrated $0.12\text{ mm}$ thickness high-purity nickel strip sheet metal. YCS No3 Portable Dual Pulse Battery Spot Welder Machine Adjustable Parameters LCD Display Battery Welding Tool
Securing Harness Integrated canvas velcro anchoring wrap to bundle the welding pens directly to the chassis for transit. YCS No3 Portable Dual Pulse Battery Spot Welder Machine Adjustable Parameters LCD Display Battery Welding Tool

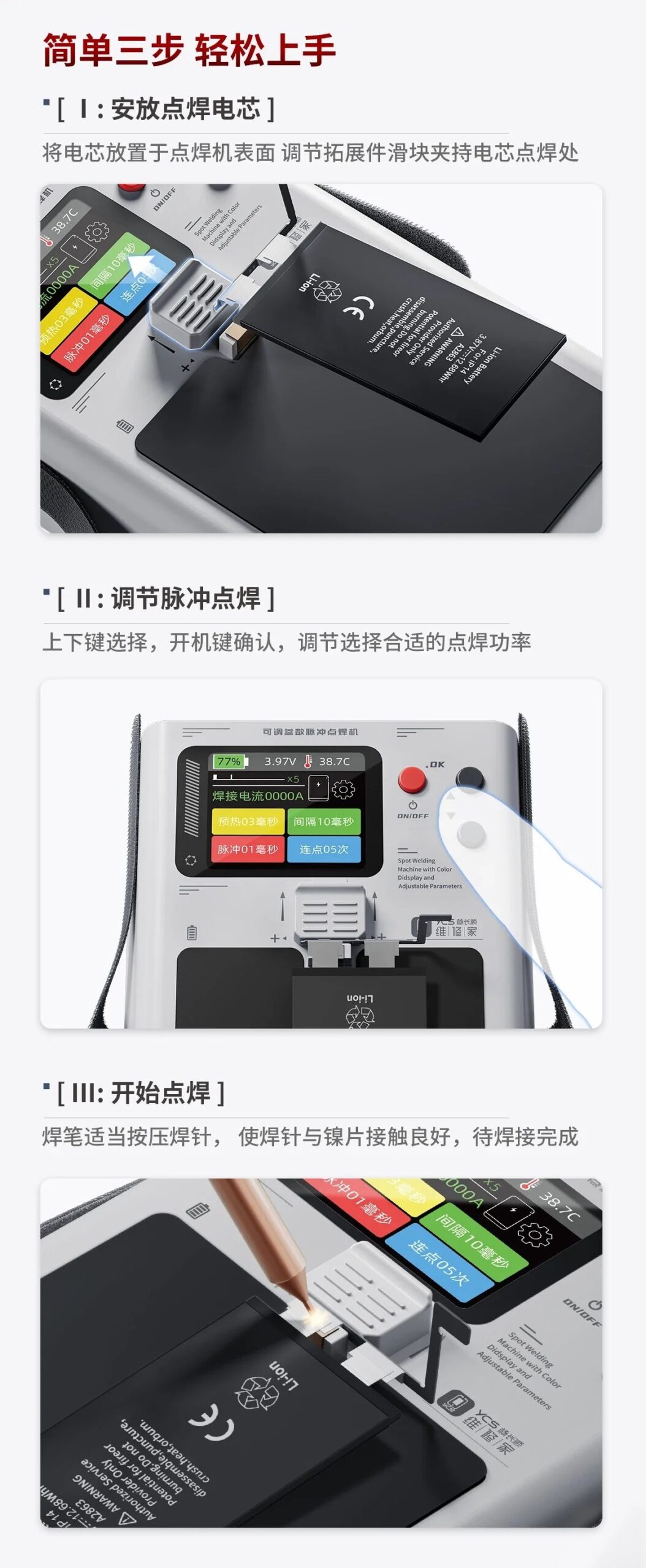

5. Standard Step-by-Step Operating Protocol

Operational Phase Required Operator Action & Verification Sequence

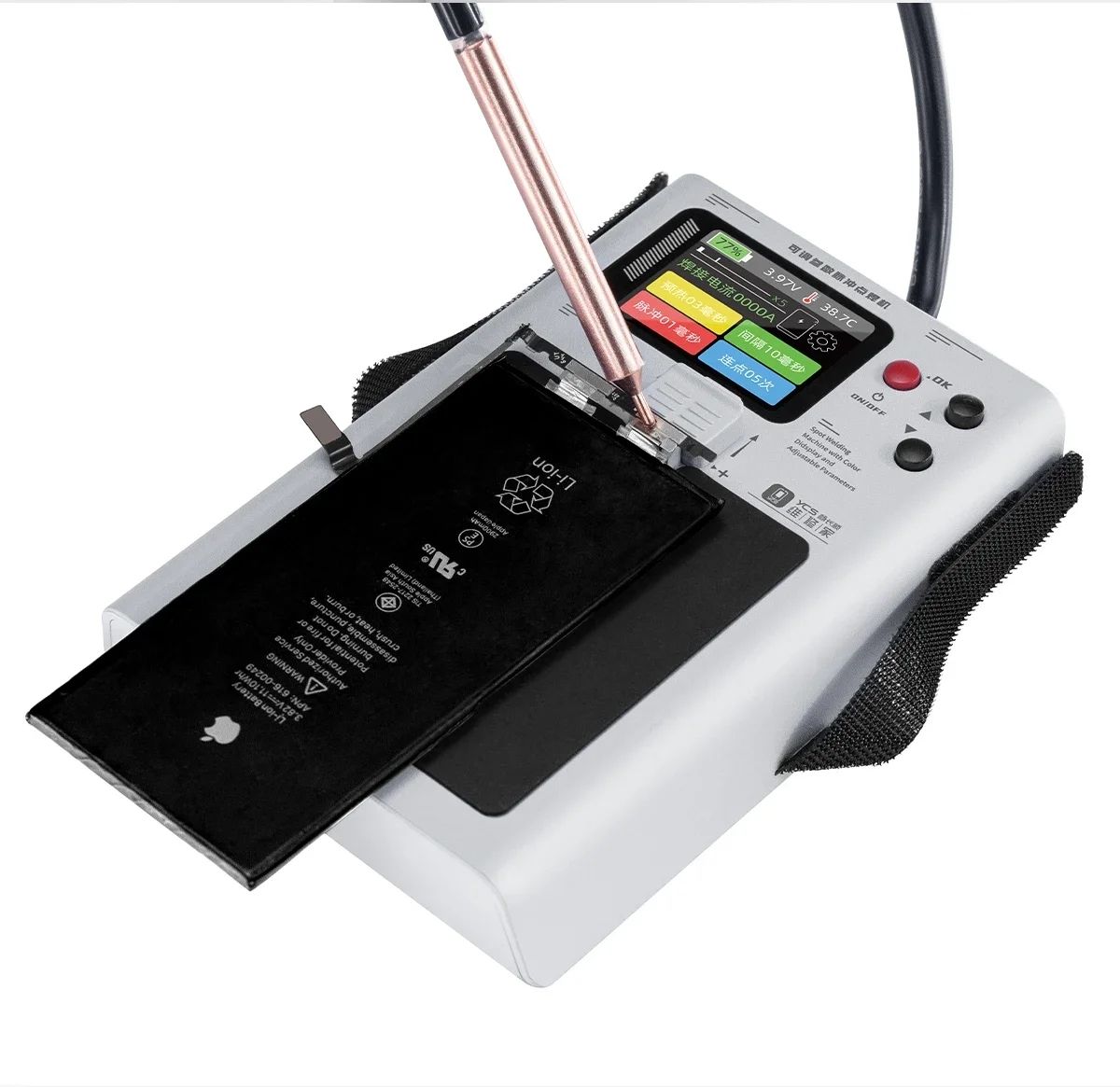

Phase 1: Material Prep Clean the target battery terminal and strip. Position the nickel sheet firmly over the battery’s positive or negative terminal pad without leaving air gaps. YCS No3 Portable Dual Pulse Battery Spot Welder Machine Adjustable Parameters LCD Display Battery Welding Tool
Phase 2: Dialing Setting Power up the unit via the LCD menu. Adjust the Pre-Heat, Interval, and Main Pulse timers using the control buttons to match the thickness of your nickel strip. YCS No3 Portable Dual Pulse Battery Spot Welder Machine Adjustable Parameters LCD Display Battery Welding Tool
Phase 3: Force Execution Press both copper welding pen tips down vertically onto the nickel strip with consistent, moderate pressure to initiate the automatic pulse cycle. YCS No3 Portable Dual Pulse Battery Spot Welder Machine Adjustable Parameters LCD Display Battery Welding Tool

YCS No3 Portable Dual Pulse Battery Spot Welder Machine Adjustable Parameters LCD Display Battery Welding Tool
