₹7,000 Original price was: ₹7,000.₹5,399Current price is: ₹5,399.
Shipping India
Guaranteed Satisfaction
Safe Checkout
Please read the manual before use.
This section sets the foundation for a safe repair environment. Before a single tool touches a phone, the workspace must be prepared to protect both the technician and the sensitive electronics.
Electrostatic Discharge (ESD) Safety: Instructions on grounding yourself using an ESD wrist strap and working on an anti-static mat to prevent frying microchips with static electricity.
Safety Gear: Protocols for wearing safety glasses (critical when prying shattered glass) and working in a well-ventilated area (crucial for adhesive fumes and soldering smoke).
Lighting and Magnification: Recommendations for high-intensity desk lamps and digital microscopes or magnifying visors for viewing microscopic components.
The most physically risky part of mobile repair is opening the device without cracking the glass screen or ripping delicate internal ribbon cables.
Thermal Tools (Heat Guns & Heat Pads): Instructions on setting precise temperatures (typically 80°C to 100°C) to soften heavy factory adhesives without damaging the display.
Suction & Leverage Tools: Proper placement of heavy-duty suction cups and screen prying fixtures to safely create an initial gap.
Separation Media (Plastic Picks & Spudgers): Techniques for slicing through glue lines using plastic opening picks without inserting them too deeply into the frame.
Modern smartphones use dozens of tiny, highly specialized screws and brackets to hold internal shields in place.
Precision Driver Identification: A breakdown of specialized micro-bits, detailing exactly when to use Pentalobe (iPhones), Tri-point/Y-type (internal Apple shields), Torx/Torx Security (Android devices), and standard Micro-Phillips.
Organization Systems: Guidelines for using magnetic project mats or screw organizing trays to map out screw locations, preventing the catastrophic error of “long-screw damage.”
Gripping & Placer Tools: How to utilize straight and curved ESD-safe tweezers to safely disconnect fragile ZIF (Zero Insertion Force) and coaxial cable connectors.
This section transitions the user from basic mechanical teardowns to logical troubleshooting when a phone won’t turn on or charge.
Digital Multimeter (DMM): Step-by-step instructions on setting up the meter for DC voltage testing (checking battery and charging port output) and continuity/diode mode (hunting for short circuits).
DC Power Supply: How to boot a phone motherboard without a battery attached, interpreting current draw (Amperage) to diagnose power management failures.
USB Ammeter / Tester: Utilizing an inline USB safety tester plugged into the charging block to instantly diagnose if a phone is pulling normal current ($1A$ to $2A$) or completely dead ($0A$).
For advanced users handling board-level fixes like swapping out charging ports, audio IC chips, or FPC connectors.
Soldering Iron Stations: Temperature calibration tips, tip selection (chisel vs. conical), and maintenance/tinning procedures.
Hot Air Rework Stations: Managing the delicate balance of air flow and temperature to safely desolder multi-pin components without blowing adjacent surface-mount resistors off the board.
Chemical Consumables: Proper application of rosin flux (to clean joints and fluidize solder), solder wick (braided wire to remove old solder), and low-melt solder alloys.
The final step is cleaning up the internal cavity and sealing the device back up to its original structural integrity.
Chemical Cleaners: Safe usage of 99% Isopropyl Alcohol (IPA) to dissolve old glue residues, flux oils, and clean mild liquid damage.
Liquid Adhesives vs. Tape: Instructions on applying specialized acrylic glues (like B-7000) versus applying precision-cut double-sided adhesive gaskets.
Camping and Curing: Utilizing specialized display repair clamps to apply even, steady pressure while the new adhesives cure over 15 to 30 minutes.

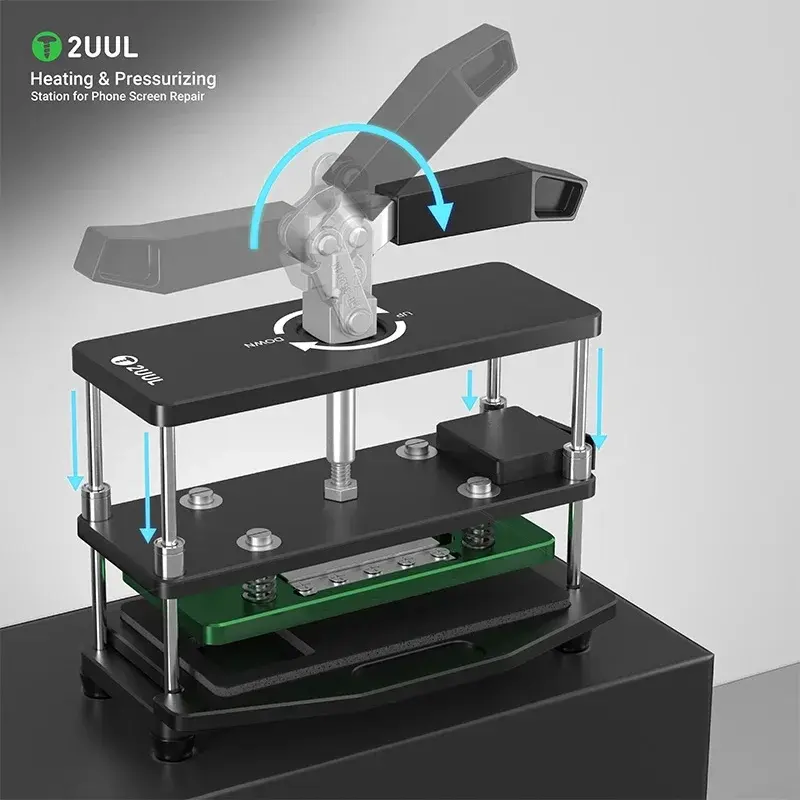

The 2UUL DA05 Constant Temperature Heating and Pressurizing Phone Back Cover Frame Air Tightness Pressing Clamp Fixture Clamp is designed to deliver optimal performance for your device assembly needs. With its precise temperature control and airtight pressurizing capabilities, this tool ensures consistent results every time.
Crafted for professionals, the 2UUL DA05 Constant Temperature Heating and Pressurizing Phone Back Cover Frame Air Tightness Pressing Clamp Fixture offers seamless integration into repair tasks or manufacturing processes. Its constant temperature functionality minimizes the risk of damage, ensuring the back cover is securely fixed without compromising structural integrity or design aesthetics.
Built with high-quality materials, the 2UUL DA05 Constant Temperature Heating and Pressurizing Phone Back Cover Frame Air Tightness Pressing Clamp Fixture withstands rigorous use while maintaining its efficiency. Perfect for phone technicians, DIY enthusiasts, or manufacturers, this fixture delivers reliability and precision in every operation.
The 2UUL DA05 Constant Temperature Heating and Pressurizing Phone Back Cover Frame Air Tightness Pressing Clamp Fixture Tool is an advanced hardware module engineered specifically for professional smartphone refurbishment and repair. It consolidates two crucial workflows: precision thermal output and multi-axial compression bonding.
By applying uniform heat to loosen or set structural adhesives alongside balanced physical force, it allows technicians to correctly bond mid-frames, replace glass back covers, seat display assemblies, and effectively restore a device’s factory-grade IP-rated air tightness. 2UUL DA05 Constant Temperature Heating and Pressurizing Phone Back Cover Frame Air Tightness Pressing Clamp Fixture
Below is the comprehensive technical specification sheet detailed in an organized tabular layout. 2UUL DA05 Constant Temperature Heating and Pressurizing Phone Back Cover Frame Air Tightness Pressing Clamp Fixture

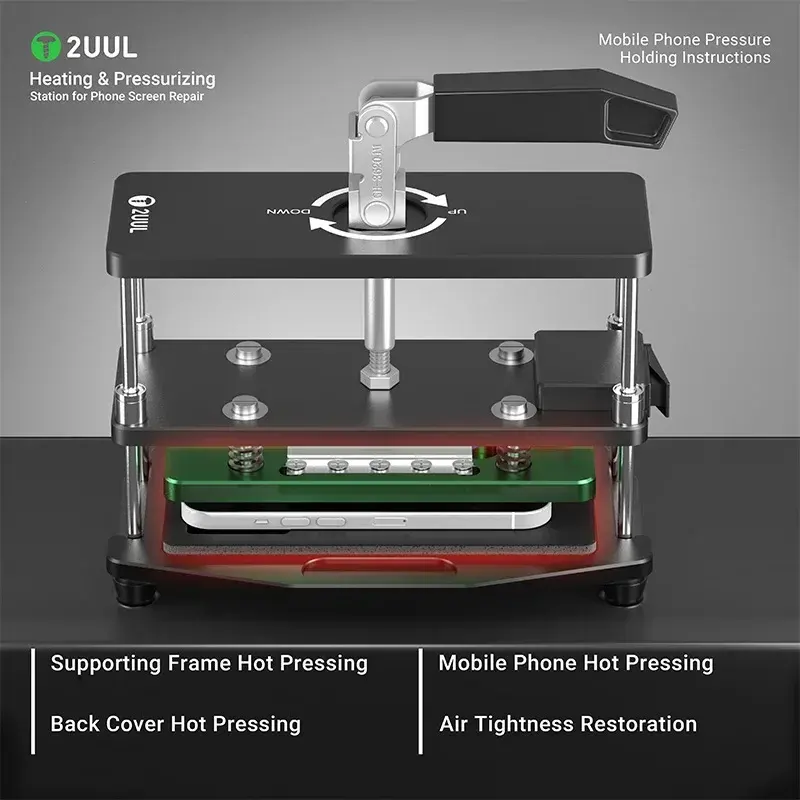

* 1. Front Display LCD/OLED Panel Hot Pressing
* 2. Middle Frame Structural Realignment
* 3. Glass Back Cover Thermal Fusion Binding
* 4. Factory Air Tightness & Water-Resistant Seal Restoration
Traditional phone frame repair requires separate heating plates and manual heavy clamps. The 2UUL DA05 bridges this gap by offering simultaneous thermal softening and uniform compression. Applying controlled heat at a safe baseline temperature relaxes the molecular structure of cold-cured polymer glues. Concurrently, the mechanical screw-down arm provides continuous, static down-force. This dual action causes the adhesive to flow evenly into microscopic frame grooves, eliminating micro-gaps and securing a bubble-free laminate bond. 2UUL DA05 Constant Temperature Heating and Pressurizing Phone Back Cover Frame Air Tightness Pressing Clamp Fixture
When dealing with delicate curved displays or ultrathin glass back components, uneven pressure can instantly crack the glass substrate or fracture the underlying digitizer lines. 2UUL DA05 Constant Temperature Heating and Pressurizing Phone Back Cover Frame Air Tightness Pressing Clamp Fixture
The four-axis horizontal safety press uses self-leveling pressure points. As the handgrip lowers the primary plate, the four balancing points absorb minor variations in phone thickness (such as protruding camera modules or side buttons). This guarantees that downward force vectors stay purely vertical ($90^circ$ perpendicular to the phone assembly plane), eliminating lateral sheer stress. 2UUL DA05 Constant Temperature Heating and Pressurizing Phone Back Cover Frame Air Tightness Pressing Clamp Fixture
With modern smartphones featuring massive multi-lens camera bumps, older universal clamps often crush the camera assembly or apply uneven stress on the surrounding frame. 2UUL DA05 Constant Temperature Heating and Pressurizing Phone Back Cover Frame Air Tightness Pressing Clamp Fixture
The DA05 utilizes a specialized Camera-Avoid Air Design. This architectural relief cavity isolates the rear camera module completely from physical contact. The frame gets pressed tightly right up to the edge, but the vulnerable camera lens rests safely in a zero-pressure zone. 2UUL DA05 Constant Temperature Heating and Pressurizing Phone Back Cover Frame Air Tightness Pressing Clamp Fixture
When a phone is opened for battery or screen replacement, its factory water resistance (IP67/IP68 rating) is instantly compromised. Restoring this seal demands precise pressure while the waterproof adhesive cures.

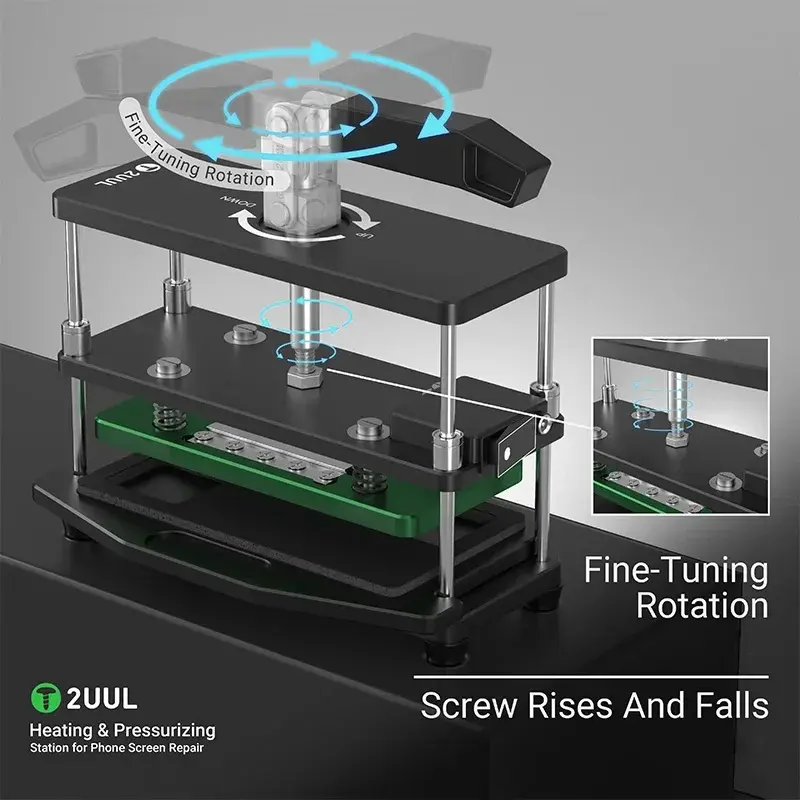

The DA05’s fine-tune rotation screw allows the technician to dial in a precise amount of pressure. This forces the internal rubber gaskets and specialized perimeter adhesive tapes to compressed tolerances, successfully replicating the structural sealing and air-tightness profiles of factory production lines.
